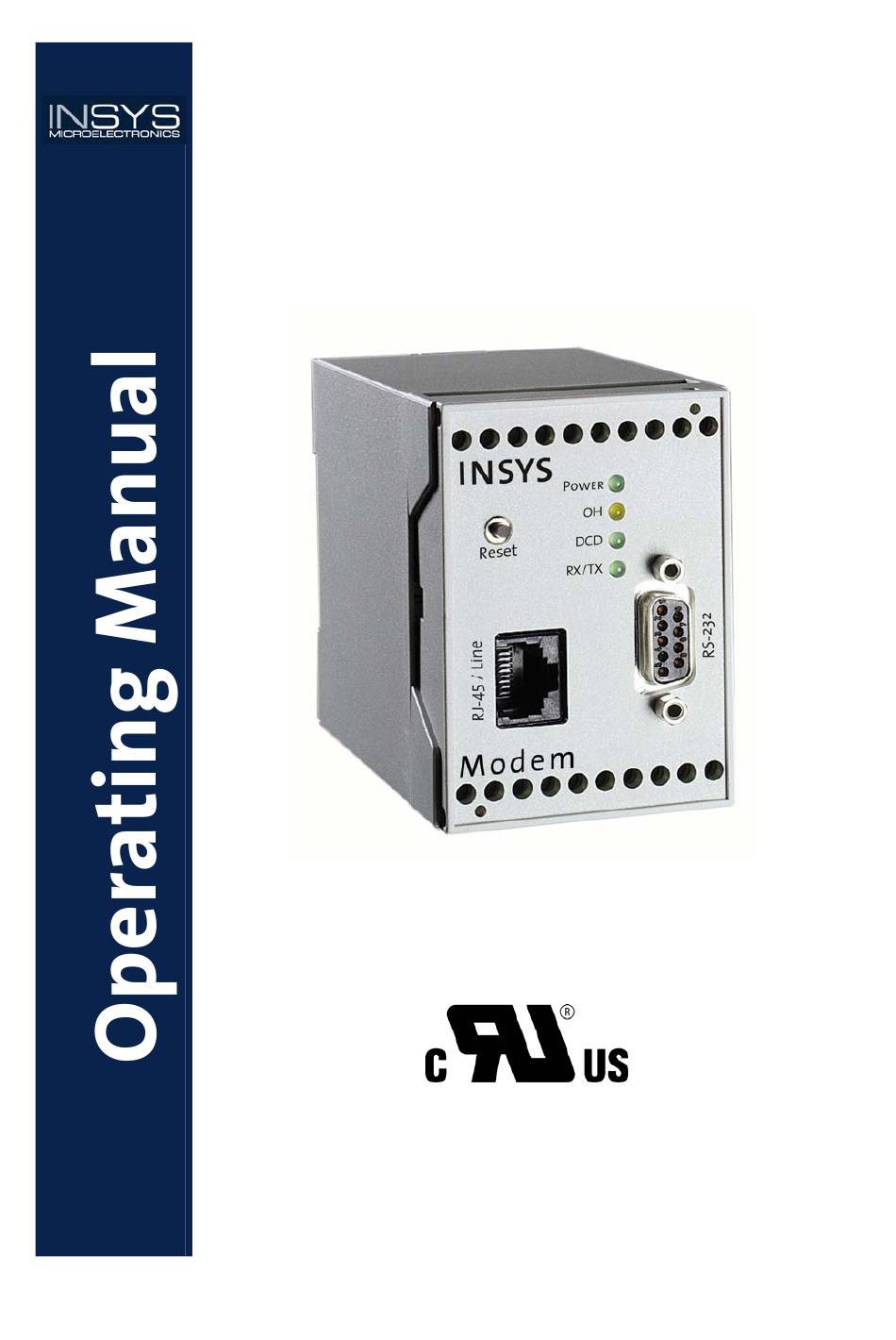

- Page 1 INSYS Modem 56k File E239995 Juni 05...
- Page 2 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corpora- tion. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Publisher:...
-
Page 3: Table Of Contents
INSYS Modem 56k UL Content SCOPE OF DELIVERY ........... 4 GENERAL ..............4 INITIAL OPERATION............ 5 IMPORTANT SAFETY INSTRUCTIONS ! ........5 ............5 NSTALLATION VERVIEW ..............6 NSTALLATION TEPS CONFIGURATION............7 ......... 7 ONFIGURATION OFTWARE 4.1.1 HSComm Operation ................7 4.1.2... - Page 4 Content INSYS Modem 56k UL ................. 13 LARM NPUT 4.6.1 Alarm Trigger..................14 4.6.2 Alarm Actions ................... 15 4.6.2.1 Simple alarm ......................15 4.6.2.2 Impulse alarm ......................15 4.6.2.3 Collective fax massage ..................15 4.6.2.4 Connection......................15 4.6.2.5 SMS in the fixed network ..................15 4.6.3...
- Page 5 INSYS Modem 56k UL Content 5.2.8 Digital Inputs and Outputs............... 26 5.2.8.1 Alarm input: ......................26 5.2.8.2 Control output: ....................26 ........26 RANSMISSION TANDARDS ROTOCOLS ................27 IRMWARE ................27 PPROVALS COMMAND OVERVIEW ..........28 AT C AND S-R ....... 28...
-
Page 6: Scope Of Delivery
Please keep packaging for future dispatch or storage. General The INSYS Modem 336/56k is a modem for the analogue telephone network (PSTN). INSYS Modem 336/56K provides plenty of advantages for professional users. The mount- ing on DIN rail in your cabinet is very simple, as well as installation and operation. -
Page 7: Initial Operation
INSYS Modem 56k UL Initial Operation Initial Operation 3.1 IMPORTANT SAFETY INSTRUCTIONS ! When using your telephone equipment, basic safety precautions should always be fol- lowed to reduce the risk of fire, electric shock and injury to persons, including the follow- ing: 1. -
Page 8: Installation Steps
NC). c) connect cable to the TAE plug Disconnect the INSYS Modem 144/336/56K from the phone line immediately in case of any fault or functional irregularities – e.g. when the OFF-Hook-LED switches on immedi- ately - and contact your service partner. In order to preserve your guarantee please do not open or interfere with the modem. -
Page 9: Configuration
Configuration 4.1 Configuration Software HSComm INSYS Modem is configured by AT commands from a terminal program or PLC. All basic functions of INSYS Modem can be controlled by the configuration software HSComm without any knowledge about single commands and parameters. The description of set- tings within HSComm is followed by a list of corresponding AT commands. -
Page 10: At Commands For Settings
A comprehensive description of all AT commands and parameters is available in the ad- dendum „command overview“. 4.2 Serial Interface Both devices on the serial line (PLC or PC on one side and INSYS Modem on the other) have to agree on the following settings for the serial line: •... -
Page 11: Pc Settings
Within HSComm the serial line setting are configured by the menu interface. The actual settings are displayed in the status line of the program window. Note: Serial setting has to be configured in any device (PC or PLC) connected to the INSYS Modem. -
Page 12: At Commands For The Serial Line
Idle connection control is configured by AT command only. 4.2.4 AT Commands For The Serial Line Command Description AT*S data transmission speed on serial line AT+IPR autobauding, baud rate (INSYS Modem 56k only) AT*U serial line protocol AT&K flow control between PC and modem command echo AT&S DSR handling AT&C... -
Page 13: International Settings
Configiration 4.3.2 International Settings INSYS Modem 56k can be adjusted to the line requirements of 87 countries worldwide by a configuration command. The country codes for the firmware versions “standard coun- tries” and “further countries” are listed in chapter 8. Some countries do not require a separate adaptation but are using the standards “TBR21 (Europe)”... -
Page 14: Access Protection
Display phone connection quality ATS0 auto answer AT+VCID set caller ID (INSYS Modem 56k only) AT+VRID last received caller ID (INSYS Modem 56k only) AT\V connect messages Extended result reporting, dial tone detection AT%L Display level of received signal AT&Z... -
Page 15: At Commands For Access Protection
„command overview“. 4.6 Alarm Input INSYS Modems 144/336/56k from version 4.0 provide two digital inputs which are acti- vated by ground potential. In case of an alarm the modem transmits an alarm notifica- tion by data connection, as a fax or an SMS. -
Page 16: Alarm Trigger
Configuration INSYS Modem 56k UL 4.6.1 Alarm Trigger The alarm inputs are on HIGH potential provided by internal pull-up resistors as long as it is open. The alarm is activated by a simple connection to the ground potential. The alarm input is configured by the HSComm... -
Page 17: Alarm Actions
INSYS Modem 56k UL Configiration 4.6.2 Alarm Actions SMS transmission from the analog telephone network is routed by special gateway numbers of the network providers. These Service Center Numbers and the protocol (PET or UCP) are preconfigured for German GSM networks. -
Page 18: At Commands For Alarm Actions
„command overview“. 4.7 Command Input Mode At power up INSYS Modem is in the command input mode ready to receive AT commands from the serial line. When a data connection is established the modem can be set back to... -
Page 19: Remote Configuration
INSYS Modem 56k UL Configiration 4.8 Remote Configuration To change into remote configuration mode a data connection must exist between the modems. A specific protocol is not necessary, however it is recommended to use an error corrected connection to avoid transmission errors of critical commands. -
Page 20: Voice Mode And Dtmf Transmission
Status of both inputs is indicated in the form of HIGH (not active) or LOW (active). Return: „OK“ – Status Input 1 – Status Input 2 The connection is closed by the INSYS Modem after a idle time of 25 seconds without further DTMF signals. -
Page 21: At Commands For Voice And Dtmf Mode
INSYS Modem 56k UL Configiration The INSYS Modem switches to data mode if it receives the call signal for a data connec- tion from a modem. Acoustic Signals Description short deep sound – short break – short high sound ready, command executed, PIN ok... -
Page 22: Upload Procedure
Configuration INSYS Modem 56k UL 4.10.1 Upload Procedure 1. Upload is initiated by the AT command AT** - the modem replies „Download ini- tiated“. 2. ASCII upload of the flash loader HS_LADER.S37. The transmission process is displayed by dots in some terminal programs. Upon termination the message „Download Flashcode“... -
Page 23: Technical Data
0 - 95% not condensing Note: The INSYS Modem 56K must not be used in wet environments. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. -
Page 24: Interfaces And Display Elements
Command Overview INSYS Modem 56k UL 5.2 Interfaces And Display Elements front view 5.2.1 Display Elements The INSYS Modem 56K 4.0 provides four LEDs for status indication. Name Color Off state On state Power green no power supply power supply connected... -
Page 25: Power Supply
INSYS Modem 56k UL Command Overview Bottom side terminal: Terminal OUT1NC Output 1 – normally closed OUT 1-NC OUT1 Output 1 OUT 1 OUT1NO Output 1 – normally open OUT 1-NO OUT 2-NC OUT2NC Output 2 – normally closed OUT 2... -
Page 26: Reset
Command Overview INSYS Modem 56k UL 5.2.4 Reset Modem reset can be triggered by an external unit over the screw terminal Reset. A low potential has to be applied for a minimum of 3 seconds. Modem reset can also be triggered by the reset key on the front panel. The key has to be pushed for a minimum of 3 seconds. -
Page 27: Phone Interface
INSYS Modem 56k UL Command Overview 5.2.7 Phone Interface RJ 12 plug with nose downward b2 b1 a2 a1 TAE-Stecker 1 2 3 4 5 6 7 8 von unten RJ 12 plug front RJ45 Stecker front RJ 12 and RJ 45... -
Page 28: Digital Inputs And Outputs
Command Overview INSYS Modem 56k UL 5.2.8 Digital Inputs and Outputs 5.2.8.1 Alarm input: LOW 0 .. 1 V HIGH 4 .. 12 V current from LOW to internal +5 V voltage: typ. 0.5 mA 5.2.8.2 Control output: SPDT (single pole double throw) switches by galvanic insulated relays... -
Page 29: Firmware
8 5.5 Approvals The INSYS Modem 144/336/56K bears the CE symbol of conformity. This symbol declares that the INSYS Modem 144/336/56K corresponds to the currently valid versions of the following EC Directives:... -
Page 30: Command Overview
„command overview“ from INSYS Microelectronics GmbH , Waffnergasse 8, 93057 Regensburg, Germany Tel +49 941 560061, Fax +49 941 563471, Email: insys@insys-tec.de 6.2 Syntax Of The Standard AT Commands Modem guideline V.25 ter is applicable as regards the time sequence of interface com- mands. -
Page 31: Messages Returned For Normal Data Communication
INSYS Modem 56k UL Command Overview 6.3 Messages Returned For Normal Data Communication Response Code Type Meaning final Command executed, no errors CONNECT intermediate Connection set up, if parameter setting X=0 CONNECT [<text>] intermediate Connection set up, if parameter setting X>0 <text>: e.g.: ´... - Page 32 Command Overview INSYS Modem 56k UL Register Function Units Range Default S13* Number of dialing attempts for alarm 1-12 S14* General settings S15* Data Transmit Controller DTC 0-255 S17* Remote initial character 0-127 S21* Settings for V24 S22* Settings 75h (117)
-
Page 33: Operation With Plcs
INSYS Modem 56k UL Operation with PLC Operation With PLCs The INSYS Modem 144/336/56K has been tested for the most common PLC systems on the market. The documentation of the settings required for the respective PLC (Application Note) can be requested at INSYS (email: insys@insys-tec.de) -
Page 34: Country Codes
Country Codes INSYS Modem 56k UL Country Codes Adjust the modem to local requirements using the command AT+CGI=<countrycode> All other settings should be carried out after the country code has been selected, because some factory settings depend on these country settings. - Page 35 INSYS Modem 56k UL Country Codes INSYS Modem 56k 4.0 Land erweiterte Standardländer Ländergruppe Indien Indonesien Irland Island Israel Italien ITU/Taiwan Japan Jemen Jordanien Kanada Kolumbien Korea Republik Kroatien Kuwait Libanon Liechtenstein Lettland Lichtenstein Litauen Malaysia Marokko Mexiko Neuseeland Nicaragua...
- Page 36 Country Codes INSYS Modem 56k UL INSYS Modem 56k 4.0 Land erweiterte Standardländer Ländergruppe Peru Philippinen Polen Portugal Rumänien Russische Förderation Saudi-Arabien Schweden Schweiz Senegal Singapur Slowakische Republik Slowenien Spanien Sri Lanka Südafrika Taiwan Thailand Tschechische Republik Türkei Tunesien Ukraine...
