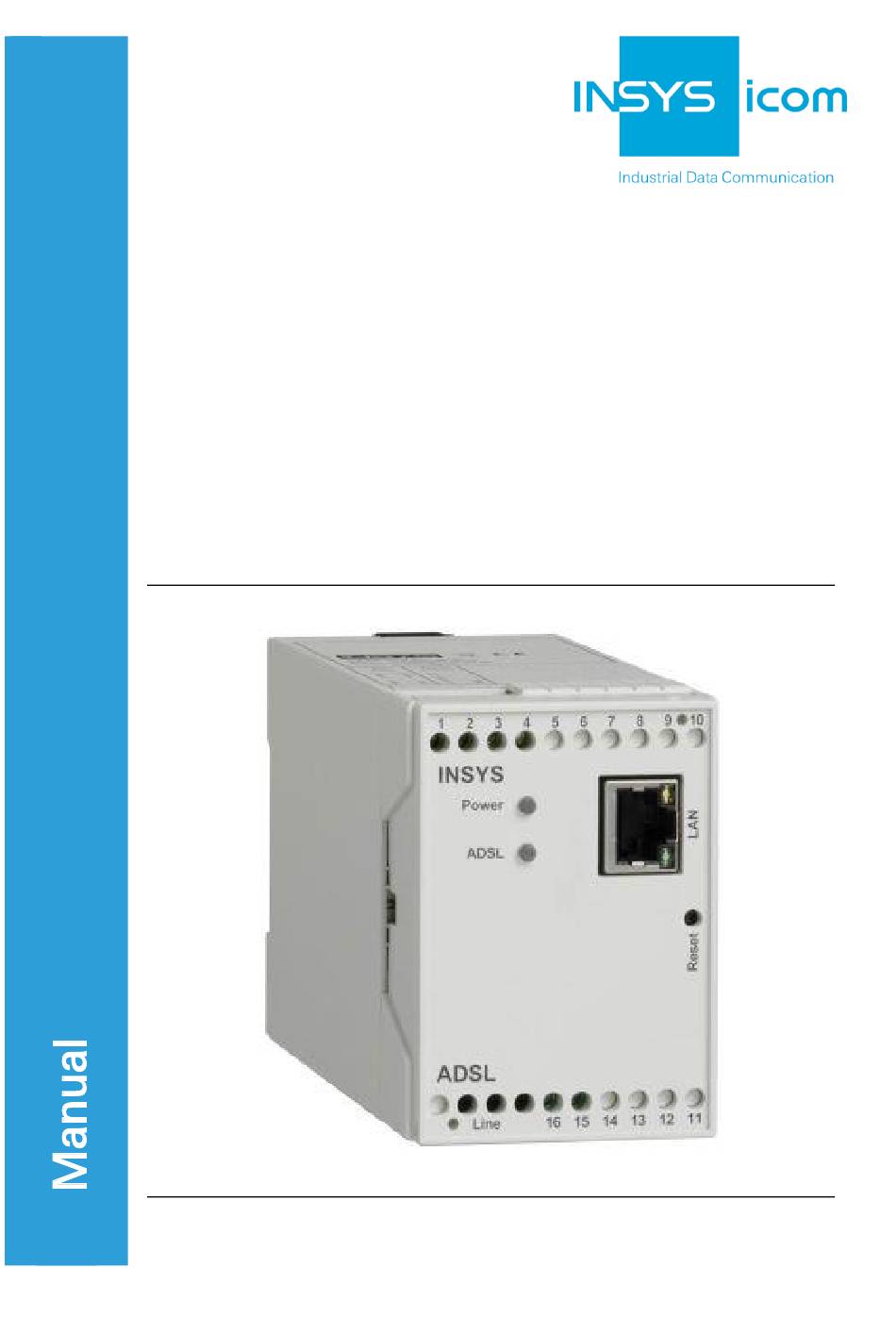

  • Page 1 INSYS ADSL 1.1...
  • Page 3 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Cor- poration. INSYS®, VCom®, e-Mobility LSG® and e-Mobility PLC® are registered trademarks of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation.

  • Page 4: Table Of Contents

    Content Preface ....................6 Defects Liability Terms ..................6 Feedback ......................6 Marking of Warnings and Notes ................7 Symbols and the Formatting in this Manual ............8 Safety ....................9 Intended Use ....................... 9 Permissible Technical Limits................10 Responsibilities of the Operator ................. 10 Qualification of the Personnel ................
  • Page 5 Contents Maintenance, Repair and Troubleshooting ........... 39 14.1 Maintenance ..................... 39 14.2 Troubleshooting ....................39 14.3 Repair ....................... 39 Waste Disposal ..................40 15.1 Repurchasing of Legacy Systems ..............40 Declaration of Conformity ..............41 Tables and Diagrams ................42 17.1 List of Tables .....................

  • Page 6: Preface

    The liability of the manufacturer ceases to exist. The regulations of our Delivery and Purchasing Conditions are effective. These can be found on our website (www.insys-icom.de/imprint/) under “General Terms and Conditions“. Feedback We are permanently improving our products and the associated technical docu- mentation.

  • Page 7: Marking Of Warnings And Notes

    INSYS ADSL 1.1 Preface Marking of Warnings and Notes Symbols and Key Words Danger! Risk of severe or fatal injury One of these symbols in conjunction with the key word Danger indicates an imminent danger. It will cause death or severe injuries if not avoided.

  • Page 8: Symbols And The Formatting In This Manual

    Preface INSYS ADSL 1.1 Symbols and the Formatting in this Manual This section describes the definition, formatting and symbols used in this manual. The various symbols are meant to help you read and find the information relevant to you. The following text is structured like a typical operating instruction of this manual.

  • Page 9: Safety

    INSYS ADSL 1.1 Safety Safety The Safety section provides an overview about the safety instructions, which must be observed for the operation of the product. The product is constructed according to the currently valid state-of-the-art technol- ogy and reliable in operation. It has been checked and left the factory in flawless condition concerning safety.

  • Page 10: Permissible Technical Limits

    Safety INSYS ADSL 1.1 Permissible Technical Limits The product is only intended for the use within the permissible technical limits specified in the data sheets. The following permissible limits must be observed:  The ambient temperature limits must not be fallen below or exceeded.

  • Page 11: Markings On The Product

    INSYS ADSL 1.1 Safety Markings on the Product The identification plate of the product is either a print or a label on a face of the product. Amongst other things, it can contain the following markings, which are explained in detail here.

  • Page 12: Safety Instructions For Electrical Installation

    Safety INSYS ADSL 1.1 Safety Instructions for Electrical Installation The electrical connection must only be made by authorised expert personnel ac- cording to the wiring diagrams. The notes to the electrical connection in the manual must be observed. Otherwise, the protection category might be affected.
  • Page 13 INSYS ADSL 1.1 Safety Caution! Overvoltage and voltage peaks from the mains supply! Fire hazard and damage of the product due to overvoltage. Install suitable overvoltage protection. Caution! Damage due to chemicals! Ketones and chlorinated hydrocarbons dissolve the plastic housing and damage the surface of the device.

  • Page 14: General Information

    General Information INSYS ADSL 1.1 General Information This manual describes different versions of the INSYS ADSL 1.1 that only differ regarding the supported ADSL specification. These devices are referred to as INSYS ADSL 1.1 in the manual. The devices are: ...

  • Page 15: Scope Of Delivery

    Scope of Delivery Scope of Delivery The scope of delivery for the INSYS ADSL 1.1 includes all accessories listed below. Please check if all accessories are included in the box. If a part is missing or damaged, please contact your distributor.

  • Page 16: Technical Data

    Technical Data INSYS ADSL 1.1 Technical Data Physical Features All specified data was measured with nominal input voltage, at full load, and an ambient temperature of 25°C. The limit value tolerances are subject to the usual variations. Physical Feature Value...

  • Page 17: Display And Control Elements

    INSYS ADSL 1.1 Display and Control Elements Display and Control Elements Figure 1: Display and control elements on the front of the device Position Description Power LED ADSL LED Reset key LAN status LED (yellow) LAN status LED (green) Table 3: Description of the display and control elements on the front panel of the device...

  • Page 18: Meaning Of The Displays

    (Hard reset) Press three times for a short Deletes all settings of the INSYS time within 2 seconds. ADSL 1.1 and resets the device to the factory defaults. Table 5: Description of the functions and meaning of the control elements...

  • Page 19: Connections

    INSYS ADSL 1.1 Connections Connections Front Panel Connections Figure 2: Connections on the front panel of the device Position Description Ethernet port (RJ45, 10/100 BT) Table 6: Description of the connections on the front panel of the device...

  • Page 20: Connections On The Top

    Connections INSYS ADSL 1.1 Connections on the Top Figure 3: Connections on the top of the device Terminal Description Description Reset Reset input Ground 10 ... 60 VDC Power supply 10 V – 60 V DC Ground Table 7: Description of the connections on the top of the device...

  • Page 21: Adsl Line Connection Rj45

    INSYS ADSL 1.1 Connections ADSL Line Connection RJ45 Figure 5: RJ45 connector Signal Description Not connected Not connected Not connected ADSL line connection wire a ADSL line connection wire b Not connected Not connected Not connected Table 9: Description of the pin allocation of the RJ45 connector...

  • Page 22: Function Overview

     Dying Gasp support The INSYS ADSL 1.1 provides an internal buffer to be able to dispatch a dying gasp signal in case of shutdown of the INSYS ADSL 1.1 or loss of power. This enables a faster re-establishment of the...

  • Page 23: Assembly

    Assembly Assembly This section describes how to mount the INSYS ADSL 1.1 to a DIN rail, connect the power supply and uninstall it again. Observe the instructions in the "Safety" section of this manual, in particular the "Safety Instructions for Electrical Installation"...
  • Page 24 Position the device at the DIN rail as seen in the following diagram. There are two snap-in hooks at the upper and lower edge of the DIN rail groove of INSYS ADSL 1.1. Hook the upper one into place behind the upper edge of the DIN rail.
  • Page 25 The INSYS ADSL 1.1 is disconnected from the power supply. Removing the device from the DIN rail How to uninstall the INSYS ADSL 1.1 from a DIN rail in a switch cabinet:  You will need a small flat-blade screwdriver.
  • Page 26 The plastic spring of the snap-in hook is stretched. While you hold the plastic spring apart with the lower snap-in hooks, pull the INSYS ADSL 1.1 away from the DIN rail. Un-hook the INSYS ADSL 1.1 and take it off perpendicularly to the DIN rail. ...

  • Page 27: Initial Operation

    Initial Operation This chapter describes how to activate the INSYS ADSL 1.1, i.e. how to connect the INSYS ADSL 1.1 to a PC, and how to prepare it for the configuration. Connecting the INSYS ADSL 1.1 to a DSL network and a PC How to connect the INSYS ADSL 1.1 to a DSL network and PC for...

  • Page 28: Operating Principle

    Operating Principle This chapter describes the basic procedures to operate and configure an INSYS ADSL 1.1. In general, the INSYS ADSL 1.1 is configured and operated via a management interface (MI). You can enter these commands with the help of a Telnet connection and the command reference.

  • Page 29: Function

    The IP address of the INSYS ADSL 1.1 is only required to access the management interface of the INSYS ADSL 1.1. The IP address is not required for the actual oper- ation, the transport of Ethernet packets. If the INSYS ADSL 1.1 is to be operated at an IP device (e.g.

  • Page 30: Country-Specific Configuration

    12.2 Country-Specific Configuration The INSYS ADSL 1.1 is pre-configured for an operation in Germany (VPI: 1, VCI: 32). It may be required to adjust the parameters VPI and VCI to the ISP (Internet Service Provider) for an operation other countries. Please refer to your ISP to obtain the required settings.

  • Page 31: Pppoa Configuration

    12.3 PPPoA Configuration The INSYS ADSL 1.1 is pre-configured for bridge operation (for PPPoE). For a PPPoA (PPP over ATM) operation, it is necessary to configure the PPPoA connec- tion. Please refer to your ISP to obtain the required settings or access data.

  • Page 32: Command Reference

    INSYS ADSL 1.1 Command Reference The management interface (MI) of the INSYS ADSL 1.1 can be accessed via a Telnet connection. The management interface provides the commands described in the following for operation and configuration of the INSYS ADSL 1.1.
  • Page 33 INSYS ADSL 1.1 Command Reference Command Description exit Aborting the management interface Aborts the management interface. help Command list Displays a list of all available commands. info Display of the system information Displays the system information (software version, MAC address, serial number, hardware version).
  • Page 34 Display and configuration of the DNS server request Displays or configures, whether the INSYS ADSL 1.1 requests the IP address of the DNS server from the remote terminal. The current setting is displayed by entering ppp_dns without any further parame- ters (default = 1): PPP DNS usage <x>...
  • Page 35 INSYS ADSL 1.1 Command Reference Command Description ppp_mru Display and configuration of the MRU Displays the configured MRU (Maximum Receive Unit, maximum number of bytes in a packet to be received) for PPPoA connections or configures this. The configured MRU value is displayed by entering ppp_mru without any further parameters (default = 1500): PPP MRU <MRU>...
  • Page 36 Command Description pppoa Display and configuration of the PPPoA usage Displays or configures, whether the INSYS ADSL 1.1 uses PPPoA (PPP over ATM). The current setting is displayed by entering pppoa without any further parameters (default = 0): PPPoA <x>...
  • Page 37 Display of synchronisation state Displays the synchronisation state. Response: Silent The INSYS ADSL 1.1 is not wired to a DSL line Handshake The INSYS ADSL 1.1 tries to connect to the DSLAM Training The INSYS ADSL 1.1 is currently connecting to the DSLAM Showtime The INSYS ADSL 1.1 is connected to the DSLAM (SYNC)
  • Page 38 Command Reference INSYS ADSL 1.1 Command Description status Display of modem state Displays the modem state. Example: Status: Showtime ADSL mode: ADSL2+ ADSL Annex Type: Receive Bit rate: 25993800 Transmit Bit rate: 1311800 update Updating the Firmware Updates the firmware (system or boot loader) Syntax: update <file name>...

  • Page 39: Maintenance, Repair And Troubleshooting

    14.3 Repair Send defect devices with detailed failure description to the source of supply of your device. If you have purchased the device directly from INSYS icom, send the device to: INSYS MICROELECTRONICS GmbH, Hermann-Köhl-Str. 22, 93049 Regensburg. Caution! Short circuits and damage due to improper repairs and modifications as well as opening of products.

  • Page 40: Waste Disposal

    Waste Disposal INSYS ADSL 1.1 Waste Disposal 15.1 Repurchasing of Legacy Systems According to the new WEEE guidelines, the repurchasing and recycling of legacy systems for our clients is regulated as follows: Please send those legacy systems to the following address, carriage prepaid:...

  • Page 41: Declaration Of Conformity

    INSYS ADSL 1.1 Declaration of Conformity Declaration of Conformity Hereby, INSYS Microelectronics GmbH declares that herein described device types are in compliance with Directives 2014/30/EU and 2011/65/EU. The full text of the EC Declaration of Conformity is available under www.insys-icom.com/manual.

  • Page 42: Tables And Diagrams

    Tables and Diagrams INSYS ADSL 1.1 Tables and Diagrams 17.1 List of Tables Table 1: Physical Features ..................16 Table 2: Technological Features ................16 Table 3: Description of the display and control elements on the front panel of the device ........................

  • Page 43: Index

    INSYS ADSL 1.1 Index Index Accessories ........15 LED display ........22 Additional information ....... 8 Liquids ........12, 23 ADSL LED ......... 17, 18 Management interface ....29, 32 Alternative results ......8 Marking ..........7 Assembly ......... 23 MI port ..........
  • Page 44 Index INSYS ADSL 1.1 Responsibilities of the operator ..10 Symbol .......... 7, 8 Safety ..........9 Synchronisation state ...... 37 Scope of Delivery ......15 System information ......33 Short-cut ........12, 39 Technological Features ....16 Signal information ......36 Telnet ..........
