INSYS 56k small INT 2.0 Operating Manual

Hide thumbs Also See for 56k small INT 2.0:
Table of Contents

Advertisement

Quick Links

Download this manual

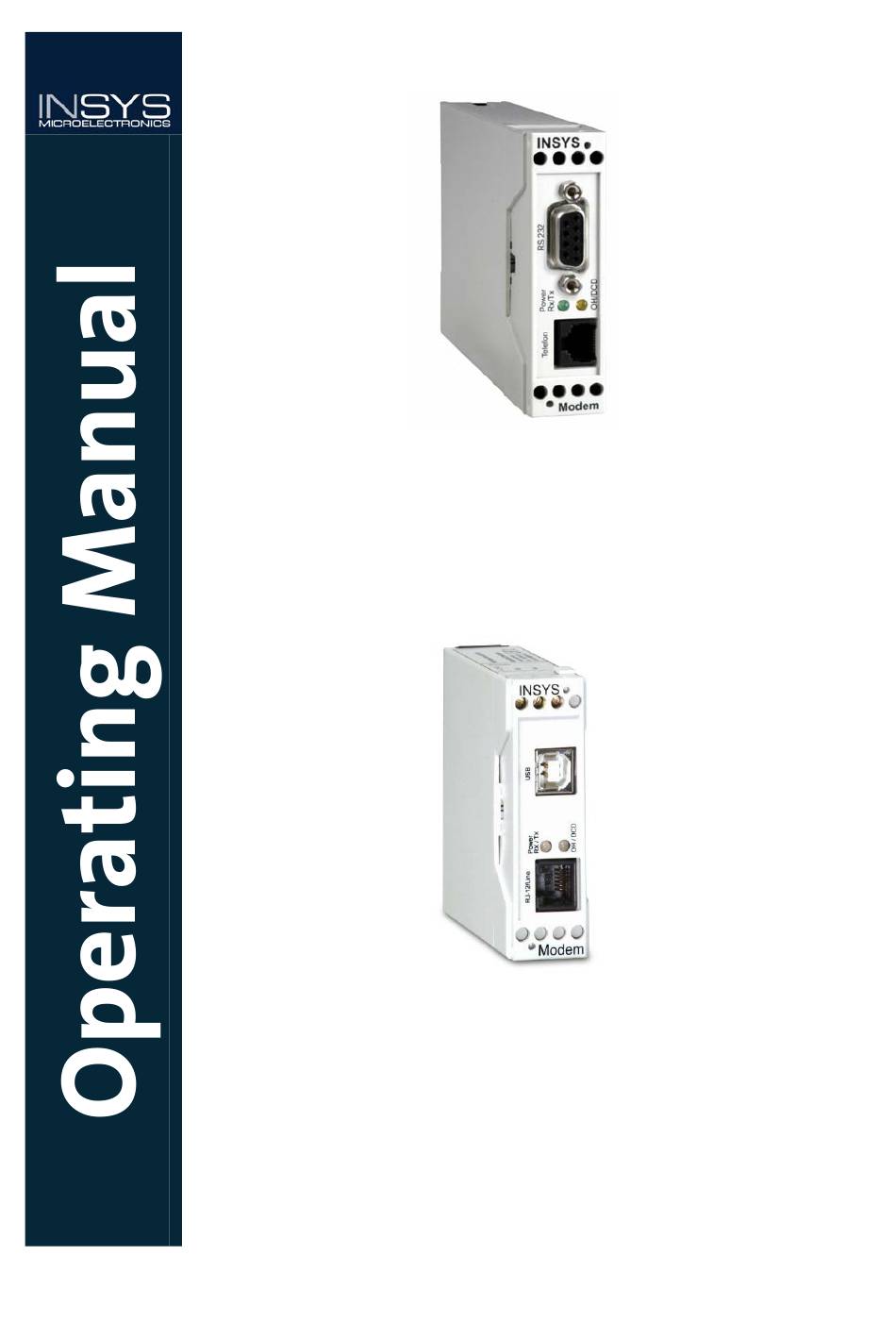

INSYS Modem 56k
small INT 2.0
INSYS Modem 56k
small INT USB 1.0
June 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56k small INT 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for INSYS 56k small INT 2.0

Summary of Contents for INSYS 56k small INT 2.0

  • Page 1 INSYS Modem 56k small INT 2.0 INSYS Modem 56k small INT USB 1.0 June 06...
  • Page 2 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Publisher:...

  • Page 3: Table Of Contents

    INSYS Modem 56k small INT 2.0/USB 1.0 Contents SCOPE OF DELIVERY............6 FUNCTION OVERVIEW..........6 NOTES REGARDING THE USE OF THE MANUAL ..7 INITIAL OPERATION ............8 ................8 RONT PANEL ..................9 ................9 ROFILES .................10 NSTALLATION USB D ..........12 NSTALLATION OF A RIVER FUNCTIONS...............19 ..............19...
  • Page 4 Contents INSYS Modem 56k small INT 2.0/USB 1.0 5.10 RIORITY IRCUIT FOR ODEMS WITH HONES ONNECTED IN ERIES CONFIGURATION SOFTWARE HSCOMM ....39 OPERATION WITH A PLC...........40 FIRMWARE UPDATE ..........41 ...............41 LASHCOM ..............42 ERMINAL ROGRAM AT COMMAND SET ...........44 AT C ............45...
  • Page 5 INSYS Modem 56k small INT 2.0/USB 1.0 Contents 13.2 ................87 LEANING TECHNICAL DATA............88 14.1 ............88 ECHANICAL EATURES 14.2 ...............88 OWER UPPLY 14.3 PC I .................89 NTERFACE 14.4 ............90 OSSIBLE NTERFACE PEEDS 14.5 ........91 UPPORTED RANSMISSION TANDARDS 14.6 ..............92 ELEPHONE NTERFACE 14.7...

  • Page 6: Scope Of Delivery

    Please keep the packaging material for possible future shipping or storage. Function Overview The INSYS Modem 56k small INT is a modem for the analogue telephone network. It has a very compact design and very robust plastic housing. The modem sup-...

  • Page 7: Notes Regarding The Use Of The Manual

    INSYS Modem 56k small INT 2.0/USB 1.0 Notes Regarding the Use of the Manual Notes Regarding the Use of the Manual This manual uses the symbol for especially important notes. Further notes will be marked accordingly. All factory settings are marked “default”.

  • Page 8: Initial Operation

    INSYS Modem 56k small INT 2.0 INSYS Modem 56k small INT USB 1.0 The INSYS Modem 56k small INT has two LEDs to indicate the operating state: The left LED (Power RX/TX) displays the condition of the operating voltage and a data transmission.

  • Page 9: Top

    INSYS Modem 56k small INT 2.0/USB 1.0 Initial Operation LED is red The modem is not “off hook” (it has not “lifted the receiver” yet) and the DCD line at the modem is perma- nently switched on. 4.2 Top Terminal Meaning 10..32V DC...

  • Page 10: Installation

    336 under Windows. For INSYS Modem 56k small USB 1.0: If the INSYS USB drivers are not installed on your system yet, you must perform the installation described in Chapter 4.5 . Communication with the Modem Now, start your communication program on the PC and set it to the used COM interface.
  • Page 11 INSYS Modem 56k small INT 2.0/USB 1.0 Initial Operation Perform a short test using your terminal program. (TeraTermPro, ProcommPlus). Open the terminal program and enter AT Enter the command. LED RXTX lights up for a short time When the message appears on your monitor, the device has been successfully installed.

  • Page 12: Installation Of Ausb Driver

    (Only for INSYS Modem 56k small INT USB 1.0) The installation of the INSYS modem 56k small INT USB 1.0 is performed in three steps. During the first two installation steps, a virtual COM port is installed, through which a modem can be addressed via a terminal program or the configuration software HSComm.
  • Page 13 INSYS Modem 56k small INT 2.0/USB 1.0 Initial Operation Select the item "Software from a list..." and click on "Next"... Click the button "Browse" and enter the path to the location of the driver information. E.g.: <CD Drive>\DIN_Rail\Driver\Modem The system will now search for the driver information.
  • Page 14 Initial Operation INSYS Modem 56k small INT 2.0/USB 1.0 Click on "Finish" to complete the first part of the installation. Note: Immediately after the first driver has been installed, this installation route must be per- formed the same way a second time to install the second part of the driver.
  • Page 15 INSYS Modem 56k small INT 2.0/USB 1.0 Initial Operation After the second installation has been completed, the system has a new COM port avail- able. You can check the installation by opening the device manager in the start menu at Control Panel ->System ->...
  • Page 16 Initial Operation INSYS Modem 56k small INT 2.0/USB 1.0 4.5.2 Modem Driver Installation The following describes the installation of a driver for an INSYS Modem. Open the mo- dem management in the control panel. Start menu: Control Panel ->Network and Internet Connections -> Phone and Modem Options Start the installation using the button "Add".
  • Page 17 After activating the check box "Select Modem", click on the button "Next". You can now either install a standard modem 56k or a special INSYS modem driver. If necessary, you may need to enter the storage location manually using the button "Disk Drive"...
  • Page 18 Initial Operation INSYS Modem 56k small INT 2.0/USB 1.0 Now enter the COM port for the modem connection. Use the virtual COM port that was installed in the previous chapter. In our example, this is COM 4. Click on "Next" to complete the installation.

  • Page 19: Functions

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5 Functions 5.1 Configuration 5.1.1 Configuration Change Loading the factory settings into the active profile will enable AT&F you to easily recover an executable state. Loading the user profile 0 ATZ0 Loading the user profile 1 ATZ1 Prior to the loading of the user profile, a reset is performed.
  • Page 20 Functions INSYS Modem 56k small INT 2.0/USB 1.0 STORED PROFILE 1: B3 E1 L1 M1 Q0 T V1 W0 X4 *A1 *L0 *M0 *P0 *R1 %B0 %C3 %E2 \A1 \N3 \V0 &A0 &C1 &D2 &G0 &K3 &Q5 &R1 &S0 &X0...

  • Page 21: Serial Data Transmission

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.1.2 Save Configuration If the modem configuration was adjusted to certain user re- quirements, these settings can be saved in the user profiles AT&W0 AT&W or 1. AT&W1 Configuration changes will be lost after a RESET or restart if they were not saved before.
  • Page 22 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.2.2 Data Buffer for Serial Data Transmission The modem has a fast send and receive cache (so-called buffer) to adjust the modem to the operating speed of the application. It is, however, possible to deactivate this data buffering and switch to bit direct mode.
  • Page 23 INSYS Modem 56k small INT 2.0/USB 1.0 Functions Hardware data flow control with the application (RTS): RS232 Cable Application Modem (E.g.: PC or con- RTS Line trol) The application sets the RTS line to OFF to request from the mo- dem to interrupt the data transmission.
  • Page 24 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.2.6 Reset There are three reset options: After the power supply has been interrupted for a short time. After the terminal RESET is connected to the terminal GND With the help of the terminal program...

  • Page 25: Error Correction

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.3 Error correction The modem masters the V.42 error correction protocol includ- ing the Microcom Networking Protocol Levels 2/3/4 (MNP2, MNP3, MNP4) and the data throughput optimization MNP10. 5.3.1 V42 Error Correction The V.42 error correction includes the protocols LAPM (Link...
  • Page 26 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.4.1 V.42bis Data Compression AT%C3 Switch on V.42bis data compression AT%C0 Switch off V.42bis data compression V.42bis data compression may only be performed for a V.42 AT%C2 connection (LAP-M or MNP 4). First of all, V.42bis generates a...

  • Page 27: Selective Call Answer

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.5 Selective Call Answer If the selective call acceptance is activated, the modem will only accept calls from certain callers. The identifi- cation of permitted callers takes places via the caller ID transmission (CLIP).
  • Page 28 Functions INSYS Modem 56k small INT 2.0/USB 1.0 The list of phone numbers may also contain wildcards AT*N<n>=94158692** “'*”. This allows the activation of entire blocks of phone numbers. The wild card character (“*”) replaces exactly 1 character of the phone number.

  • Page 29: Send Messages

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.6 Send Messages Note: The sending time of an SMS from the sender to a recipi- ent depends on the pertinent provider of the service number. Depending on the degree of utilization and the time of day, an SMS may be on the way for an extended period.
  • Page 30 Functions INSYS Modem 56k small INT 2.0/USB 1.0 The modem will reply with new text: and expects the input of the phone number and the alarm <phone number, text in the form text> For the transmission, the variable part (maximum of 80 char- acters) will be attached to the common part (maximum of 160 characters) of the collective message.

  • Page 31: Remote Configuration (Remote Control)

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.7 Remote Configuration (Remote Control) 5.7.1 Mode of Operation Phone line Modem 1 Modem 2 (local modem) (remote modem) To switch into the remote configuration mode, a data connec- tion must be established between the modems. A certain...
  • Page 32 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.7.4 Start of the remote configuration at the local modem Dial the modem ATD <phone num- ber> The modem will establish a successful connection Connect… Switch to remote configuration mode **** Prompt for entering the password...

  • Page 33: Access Control

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.8 Access Control 5.8.1 Password To protect from unauthorized access via the phone line, the AT*C modem may be protected by a password. This password is used to establish a data connection, as well as for security callback and remote configuration The default setting is QWERTY.
  • Page 34 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.8.3.2 Operation ATD <Renumber> Establishing a connection to the modem. Connect The connection to the modem is established. SECURITY CALLBACK The modem responds to an incoming call. REMOTE PASSWORD: You must now enter the “Remote Password”, which is QWERTY identical to the password for the remote configuration.

  • Page 35: Data Transmit Controller (Idle Connection Control)

    INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.9 Data Transmit Controller (Idle Connection Control) The Data Transmit Control (DTC) is a function integrated in the firmware which monitors the data transmission in online mode. This function prevents the modem to stay online for an unlimited amount of time, although no data is being transmitted anymore.

  • Page 36: Priority Circuit For Modems With Phones Connected In Series

    INSYS Modem 56k small INT 2.0/USB 1.0 5.10 Priority Circuit for Modems with Phones Connected in Series The INSYS Modem 56k small INT gives a phone connected in series priority, to make sure it interferes as little as possi- ble with the usage of the phone connection.
  • Page 37 INSYS Modem 56k small INT 2.0/USB 1.0 Functions 5.10.2 Going off-hook on account of a telephone con- nected in series If a telephone connected in series goes off-hook during an existing modem connection, the modem will immediately terminate the connection.
  • Page 38 Functions INSYS Modem 56k small INT 2.0/USB 1.0 5.10.3 Remote Terminal Connection Abort When the remote terminal aborts a connection, the modem will immediately hang up. ATS86=25 In the registry S86, the value is set to 25. AT-TTE=U1, U2, U3 Changing the loop voltage to detect the function –...

  • Page 39: Configuration Software Hscomm

    For a simple set-up, all basic functions of the INSYS modem can be en- tered without knowing the individual commands and their parameters, using the configuration software.

  • Page 40: Operation With A Plc

    Operation with a PLC INSYS Modem 56k small INT 2.0/USB 1.0 Operation with a PLC The INSYS Modem 56k small INT has been tested for the most common PLC systems on the market. The documentation (Application Notes) of the settings required for the respective PLC can be queried at INSYS MICROELECTRONICS (E-mail: insys@insys-tec.de).

  • Page 41: Firmware Update

    ATI4 Query of the used firmware Unpack the file into any directory on the PC and start Flash- com.exe. The program will automatically search for the connected modem. Select the according INSYS Modem and start the update. June 06...

  • Page 42: Terminal Program

    Firmware Update INSYS Modem 56k small INT 2.0/USB 1.0 Close the window when the update is completed. 8.2 Terminal Program 8.2.1 Requirements For the firmware update, you will need a PC and a termi- nal program. The terminal program must be able to per- form an ASCII upload (ASCII data transmission protocol).
  • Page 43 INSYS Modem 56k small INT 2.0/USB 1.0 Firmware Update ASCII upload of the file HS_LADER.S37 Download Flashcode Device success- ASCII upload of the firmware (xxxxxxxx.S37) fully programmed The process is finished as soon as the loading procedure is completed. Monitoring of Results: The transfer process is indicated by dots on the moni- tor (of the terminal program).

  • Page 44: At Command Set

    INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set All INSYS communication devices are controlled internally via AT commands. A terminal program is integrated in the HSComm. The AT commands can be di- rectly entered at the menu item “Terminal”.

  • Page 45: Overview At Commands

    INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set 9.1 Overview AT Commands Command Description AT** Start of the flash load function Answer mode The modem is switched into response mode. This is only effective in Germany, if the connected phone goes off-hook or if a call comes in.
  • Page 46 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Send “break” to the other modem AT\B<n> For connections that were not error corrected the modem sends a break signal to the other modem. The length of the signal is: the specified parameter times 1/10 of a sec- ond.
  • Page 47 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Remote configuration password AT*C This password secures the remote configuration as well as incoming data connections (see AT*P) and security callback. OLD PASSWORD Requires the old password (default: QWERTY). Wrong input leads to ERROR.
  • Page 48 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Dummy command for GSM compatibility AT+CPIN? AT+CPIN? responds with "+CPIN: READY" This command only serves for the purpose of compatibility with applications for GSM devices. AT+CREG? Dummy command for GSM compatibility AT+CREG? responds with "+CREG: 0,1".
  • Page 49 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Dial ATD<n> The modem goes off-hook and dials according to the transmitted dialing string. After the dialing procedure, the modem attempts to establish a connection. If the ATD com- mand was performed without a dialing string, the modem goes off-hook and attempts to connect to the other modem (without dialing).
  • Page 50 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description ‚ Dial tone delay: The modem performs a dial tone delay before it exe- ATD<n> cutes the next character of the parameter string. The delay length is ONTINUATION defined in the S8 registry.
  • Page 51 The modem loads the default factory setting from the internal, nonvolatile memory. This puts the modem into a defined basic state. AT&F also overwrites a part of the S registry. The INSYS Modem 56k small INT has two factory defaults (AT&F0, AT&F1). June 06...
  • Page 52 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Set country code AT+GCI=< > The command AT+GCI allows the customization of the modem for different countries. As default, the modem is set to Europe (CTR21) with AT+GCI=FD. Currently, the mo- dem is only authorized for this country profile.
  • Page 53 AT&K8 for RS485. In this mode, the CTS signal is deactivated (high), while the INSYS Modem 56k small INT sends data at the serial interface. Thus, the CTS signal can be used as driver release signal for a RS485 driver.
  • Page 54 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Break control AT\K The modem reacts to a break (receive path off for a certain amount of time), which it receives from another modem or from the PC, or from the command AT\B according to the parameters.
  • Page 55 (or the speed defined with AT+MS), irrespective of the data rate at the serial interface. This means that the INSYS Modem 56k small INT will, for example, always attempt to establish a 33600 baud connection, even if the serial interface is only set to 9600 baud.
  • Page 56 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Show modulation type AT+MR=<n> The command “AT+MR“ enables the display of the modulation type after the message CONNECT. AT+MR=0 Switches the display function OFF (default). Switches the display function ON. The displayed value applies to the AT+MR=1 sent data.
  • Page 57 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Parameter modulation: AT+MS=<Modula tion>, [Auto- The modulation parameter determines the preferred (automode = 1) or the mandatory mode], [Send (automode = 0) modulation type. Minbaud, Send The following values are available: Maxbaud], [Re- V.21...
  • Page 58 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Remote terminal selection AT*M<n> Defines the protocol that is used to send the alarm string to the network provider. The remote terminal is a normal fixed network modem (default)
  • Page 59 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Permitted numbers for selective call acceptance AT*N<n>=<nr> Definition of 8 authorized phone numbers, for which modem access is permitted. Only if the transmitted phone number matches a phone number that was entered in the list will the modem report RING for an incoming call or will accept the call according to the settings of ATS0 (the line RI is activated with each call, irrespective of that fact).
  • Page 60 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Password query AT*P<n> AT*P0 Switches the password query off after the connection has been estab- lished (default). AT*P1 Switches the password query on after the connection has been estab- lished.
  • Page 61 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Quiet Call AT\Q<n> Quiet Call will switch of the phone connected in series at the first ring. In connection with the selective call answer (AT&N<n>), calls from a previously defined phone num- ber can take place without a ring of the phone connected in series.
  • Page 62 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Ability to switch between DCD and DSR lines AT%S<n> AT%S0 The DSR signal is on the DSR line The DCD signal is on the DCD line (default) AT%S1...
  • Page 63 Priority Circuit for Modems with Phones Connected in Series AT-STE=<n> The INSYS Modem 56k small INT gives a phone connected in series priority, to make sure it interferes as little as possible with the usage of the phone connection. (see Chapter 5.10)
  • Page 64 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Parameter Configuration for Priority Circuit AT-TTE=U1, U2, U3 The command AT-TTE=U1, U2, U3 will set the change of the loop voltage. The set- tings are required to detect AT-STE=<n>.
  • Page 65 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Format of connect rate messages AT\V<n> AT\V0 This command enables the display of the connect message in three lines. AT\V1 This command enables the display of the connect message in one line.
  • Page 66 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Show the configurations AT&V<n> The active configuration of the modem, the saved user defaults and AT&V0 the saved phone numbers 0 to 3 (the parameter 0 may be omitted) are displayed AT&V1...
  • Page 67 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Set CLIP AT+VCID=<n> With this function, the phone number of the caller can be displayed during an incom- ing call. (Only for phone lines or systems that support CLIP. If you want to use the CLIP func- tion, please ask your network provider, if your connection supports this function.
  • Page 68 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Command Description Extended result messages, dial tone detection ATX<n> The command determines which group of messages the modem sends to the PC. This is important for PBXs, as often a leading 0 or 9 must be dialed before a dialing tone is heard on the line.
  • Page 69 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Command Description Save phone numbers AT&Z<n> The command saves four entries permanently in the EEPROM. Each entry may consist of up to 35 characters. The entries may be overwritten and must comply with the dial- ing string as described in the ATD command.

  • Page 70: Overview Fax And Voice Commands

    AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 9.2 Overview Fax and Voice Commands More detailed information regarding the Fax Class 2 commands and a document regarding voice commands can be obtained from your supplier. 9.3 AT Messages List of message numbers and messages texts depending on the command ATX<n>.
  • Page 71 INSYS Modem 56k small INT 2.0/USB 1.0 AT Command Set Message Num- ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Message text in long form Short form CARRIER 4800 CARRIER 7200 CARRIER 9600 CARRIER 12000 CARRIER 14400 CARRIER 16800 CARRIER 19200 CARRIER 21600...
  • Page 72 AT Command Set INSYS Modem 56k small INT 2.0/USB 1.0 Message Num- ATX<0> ATX<1> ATX<2> ATX<3> ATX<4> Message text in long form Short form CONNECT 36000 CONNECT 38000 CONNECT 40000 CONNECT 42000 CONNECT 44000 CONNECT 46000 CONNECT 48000 CONNECT 50000...

  • Page 73: Registry

    INSYS Modem 56k small INT 2.0/USB 1.0 S Registry 10 S Registry S registries may be read and written using the ATS<n> command. (See Chapter 9 "AT Command Set", command ATS<n>) Certain S registries may only be read; into others only a particular range of values may be entered.

  • Page 74: Descriptions Registry

    S Registry INSYS Modem 56k small INT 2.0/USB 1.0 Register Function Units Range Default Time period until hang up due to silence 10 s 0-255 S31* General settings C2h (194) S36* Reset of error logs Time period until forced hang up...
  • Page 75 INSYS Modem 56k small INT 2.0/USB 1.0 S Registry Linefeed character Linefeed character Backspace character Backspace character Waiting period dial tone Maximum waiting time for the dialing tone. After the modem went off-hook it waits 7 seconds for the dialing tone (fixed for approval purposes). If it detects a dialing tone during this waiting period it will start dialing.
  • Page 76 S Registry INSYS Modem 56k small INT 2.0/USB 1.0 S13* Number of dialing attempts to send the message Meaning Bit 0 – 3 Number of dialing attempts Range of values: 1...12 Default value: 3 S13 determines the number of attempts to send the message.
  • Page 77 INSYS Modem 56k small INT 2.0/USB 1.0 S Registry S21* Settings for V24 Meaning Bit 0.1 Reserved Bit 2 CTS behavior CT106 (CTS) behaviour: 0: see AT\K0 1: see AT&R1 Bit 3-4 DTR behavior CT108 (DTR) behaviour: 0: see AT&D0 1: see AT&D1...
  • Page 78 S Registry INSYS Modem 56k small INT 2.0/USB 1.0 S24* Time period until switching into sleep mode The time after which the modem switches to energy saving mode (sleep) during inactivity is determined (in seconds) in S24. The energy saving mode will be quit as soon as characters are sent to the modem, or when a call comes in.
  • Page 79 INSYS Modem 56k small INT 2.0/USB 1.0 S Registry S31* General settings Meaning Bit 0 Reserved 0: 3- line message (AT\V0) Bit 1 Description 1: Expanded 1-line message (AT\V1) Connect message Error correction Messages: 0: Only PC baud rate Messages...
  • Page 80 S Registry INSYS Modem 56k small INT 2.0/USB 1.0 S39* Flow control Selection of the data flow control between the modem and the application. S39=0 No data flow control (AT&K0) S39=3 RTS/ CTS data flow control (AT&K3) S39=4 XON/ XOFF data flow control (AT&K4) S39=5 Transparente XON data flow control (AT&K5)
  • Page 81 INSYS Modem 56k small INT 2.0/USB 1.0 S Registry S46* V.42bis Data Compression S46=136 No data compression S46=138 V.42bis data compression on S48* V.42bis Connection setup protocol S48=0 Only LAPM connection possible S48=7 LAPM or MNP 4 connection S48=128 Connection protocol as laid down in S36 Error event code When a connection fails (NO CARRIER), an event code is written into this registry.
  • Page 82 S Registry INSYS Modem 56k small INT 2.0/USB 1.0 S91* Transmit Level The value for the transmit level of the modem is stored in the S91 registry. The value can be set between 0 and 15. The connection can in some cases be improved by decreasing the transmit level.

  • Page 83: Sending Sms As Fax Or E-Mail

    INSYS Modem 56k small INT 2.0/USB 1.0 Sending SMS as Fax or E-mail Sending SMS as Fax or E-mail Chapter 11 shows an overview of network providers for German-speaking coun- tries (Germany, Austria, Switzerland). All necessary information is available from the customer service center of the provider.

  • Page 84: Sms As E-Mail

    Sending SMS as Fax or E-mail INSYS Modem 56k small INT 2.0/USB 1.0 11.2 SMS as e-mail June 06...

  • Page 85: Faq

    INSYS Modem 56k small INT 2.0/USB 1.0 In the following some questions are described, which – from experience – may occur dur- ing the installation. Problem: Possible cause: Remedy The modem does not accept Automatic call acceptance is deac- Enter the following commands in calls.
  • Page 86 INSYS Modem 56k small INT 2.0/USB 1.0 Problem: Possible cause: Remedy It is not possible to establish a The modem dials with the pulse You can determine if your phone phone connection. dialing method instead of the system dials with pulses or tones:...

  • Page 87: Safety Instructions

    The INSYS Modem 56k small INT may not be used in wet environ- ments. Please also take care not to let liquids seep into the modem as this may lead to short circuits.

  • Page 88: Technical Data

    77.00 °F. The threshold value tolerances are sub- ject to the typical fluctuations. A maximum of one value may be operated in the threshold value range. To operate the INSYS modem, a suitable device protection must be used. Power supply: 10...32 V DC Power input: approx.

  • Page 89: Pc Interface

    Request to send AT&K Clear to send Ring Indication 14.3.2 USB Interface (Only for INSYS Modem 56k small INT USB 1.0) Layout of the 4-pin USB jack, type B Description of the signals: Name USBVCC, USB supply voltage D-, data line...

  • Page 90: Possible Interface Speeds

    Technical Data INSYS Modem 56k small INT 2.0/USB 1.0 14.4 Possible Interface Speeds Baud rate in bps 4.800 28.800 9.600 38.400 1.200 14.400 57.600 2.400 19.200 115.200 June 06...

  • Page 91: Supported Transmission Standards

    INSYS Modem 56k small INT 2.0/USB 1.0 Technical Data 14.5 Supported Transmission Standards Transmission standard Transmission standard V.17 V.44 Data Compression V.21 V.90 V.21 Channel2 V.92 V.22A/B Bell 212A and 103 V.22bis Remote Maintenance V.23 Fax group 3 send/receive up to 14,400 bps V.27ter...

  • Page 92: Telephone Interface

    Technical Data INSYS Modem 56k small INT 2.0/USB 1.0 14.6 Telephone Interface RJ 12 connector directed backwards b2 b1 a2 a1 RJ 12 connector front Layout of the RJ12 Connector and the RJ45 Jack Description Description Meaning of the Signals:...

  • Page 93: Itu Standards (Ccitt)

    INSYS Modem 56k small INT 2.0/USB 1.0 Technical Data 14.7 ITU Standards (CCITT) ITU Standards (CCITT) Meaning Transmission with 300 bps (duplex) V.21 Transmission with 1,200 bps (duplex) V.22 Transmission with 2,400 bps (duplex) V.22bis* Send with 75 bps and receive with 1,200 bps and vice versa.

  • Page 94: Country Codes

    Country Codes INSYS Modem 56k small INT 2.0/USB 1.0 15 Country Codes Adjust the modem to local requirements using the command AT+CGI=<countrycode> All other settings should be carried out after the country code has been selected, because some factory settings depend on the country.
  • Page 95 INSYS Modem 56k small INT 2.0/USB 1.0 Country Codes INSYS Modem 56k small INT Country Standard coun- Extended tries country groups Indonesia Ireland* FD/57 Iceland* FD/52 Israel Italy* FD/59 ITU/Taiwan Japan Yemen Jordan Cambodia Canada Colombia Republic of Korea Croatia...
  • Page 96 Country Codes INSYS Modem 56k small INT 2.0/USB 1.0 INSYS Modem 56k small INT Country Standard coun- Extended tries country groups Russian Federation San Marino* Saudi Arabia Sweden* FD/A5 Switzerland FD/A6* Senegal Serbia Singapore Slovak Republic Slovenia Spain* FD/A0 Sri Lanka...
