INSYS MoRoS Operating Manual

Hide thumbs Also See for MoRoS:
Table of Contents

Advertisement

Quick Links

Download this manual
MoRoS
Modem 1.0
ISDN 1.0
June 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MoRoS and is the answer not in the manual?

Questions and answers

Related Manuals for INSYS MoRoS

Summary of Contents for INSYS MoRoS

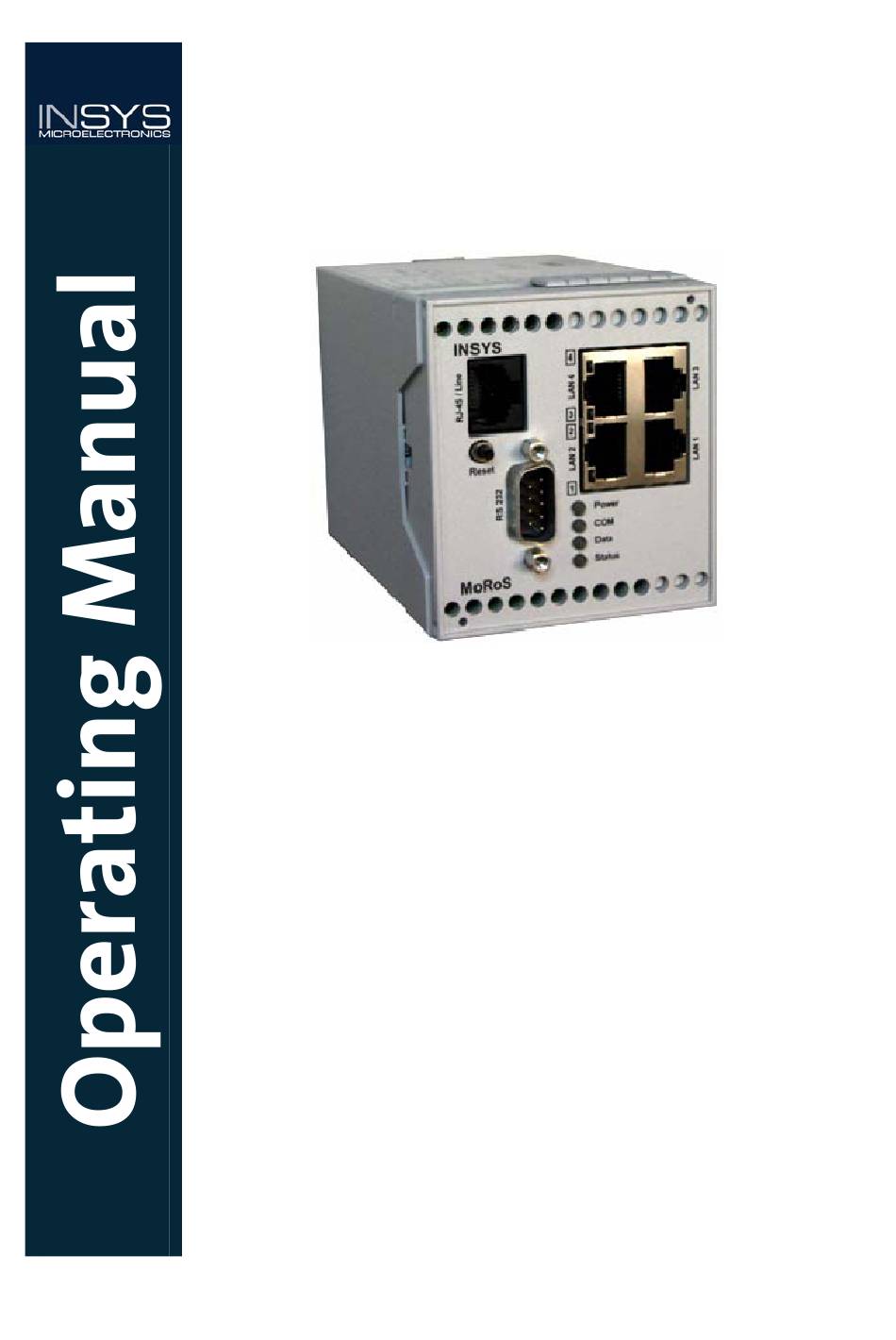

  • Page 1 MoRoS Modem 1.0 ISDN 1.0 June 06...
  • Page 2 IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Linux is a registered trademark of Linus Torvalds. Windows™ is a registered trademark of Microsoft Corporation.

  • Page 3: Table Of Contents

    MoRoS Modem/ISDN Contents SCOPE OF DELIVERY............5 GENERAL..............5 DEVICE DESCRIPTION ..........7 ................7 RONT PANEL ..................8 ..................9 OTTOM INSTALLATION ............10 CONFIGURATION............11 PC S ................11 ETUP ............15 NITIAL ONFIGURATION FUNCTIONS...............18 ...............18 ASIC SETTINGS DHCP ...................20 ISDN..................21 .................22 ODEM ..................23 ................26 ...................30 NPUTS ................30...
  • Page 4 Contents MoRoS Modem/ISDN ..................31 YSTEM PROXY ..............35 .............35 ASIC ONFIGURATION ..............37 ELOAD UNCTION FAQ................38 SAFETY INSTRUCTIONS..........41 TECHNICAL DATA............42 10.1 ............42 ECHANICAL EATURES 10.2 ...............42 OWER UPPLY 10.3 ..............43 NPUTS AND UTPUTS 10.4 ..............43 NTEGRATED WITCH 10.5 ........43 NTEGRATED OMMUNICATION ODULE 10.6...

  • Page 5: Scope Of Delivery

    1 ISDN phone cord S0 (only for MoRoS ISDN) manual Please contact your supplier if the content is not complete. Please also check the MoRoS for shipping damage. Please also refer to the supplier if anything is damaged. The scope of delivery does not include a power supply.
  • Page 6 The MoRoS can automatically start to establish a connection from each network. The MoRoS can connect a network to the Internet in the same way. The connection setup takes place automatically, via local network queries.

  • Page 7: Device Description

    Green No supply voltage Supply voltage available Green MoRoS is offline. MoRoS is hooked to the phone line, but there is no usable data connection yet (OH). Orange MoRoS has established a usable data connection via the phone line (CONNECT).

  • Page 8: Top

    The reset key has several functions: Pressing it for a short time (no longer than 1 second) initiates a soft reset. The MoRoS performs a restart; the integrated communication module is not restarted. The settings are maintained. Pressing it for a long time (more than 3 seconds) initiates a hard reset; the integrated communication module is also restarted.

  • Page 9: Bottom

    MoRoS Modem/ISDN Device Description Bottom Terminal Meaning RS 485 B Reserved RS 485 A Reserved Ground Input 2 Input 2 Input 1 Input 1 Ground Reset Reset input Ground 10..60 VDC Power supply 10V - 60V DC Ground For the voltage supply, please use a power supply which has its own fuse and overvoltage protection and can supply at least 3W at a DC voltage of 10 V minimum and 60V maximum.

  • Page 10: Installation

    Switch on power supply The green ”Power” LED lights up. Connection to the PC The network card of the PC must be connected to any one of the four MoRoS Ethernet ports. Connection to the telephone network The ”RJ45/Line” plug is connected as follows: for the MoRoS Modem, via the supplied phone cord with the TAE (German telephone plug unit).

  • Page 11: Configuration

    PC Setup To enable the communication between the PC and the MoRoS, both devices must be present in the same network. Depending on the operating system, the steps for the network settings will differ.
  • Page 12 Configuration MoRoS Modem/ISDN Under “Control Panel” is located the menu item “Network Connections”. Under this item, you will find the entry “Local Area Connection”. If this entry is not available yet, it has to be selected the network installation assistant first to activate the network card.
  • Page 13 All DNS inquiries which cannot be handled within the local network will be sent to the MoRoS. If “Dial-Out” was activated, MoRoS will automatically establish a connection, and will handle the DNS query as soon as this connection is activated.
  • Page 14 If there is already a DNS server in the local network, its IP address can be entered at this point. The MoRoS has the IP address 192.168.1.1. This address must be stated as the standard gateway. For the sub network mask, the number 255.255.255.0 must be entered.

  • Page 15: Initial Configuration

    IP address. The MoRoS has the IP address 192.168.1.1. Enter 255.255.255.0 as sub network mask. Enter the IP address of the MoRoS, 192.168.1.1, on the tab "Gateway". This route is activated after you click “Add”. Windows 98 must be restarted after all settings are completed.
  • Page 16 After successful authentication, the start page of the configuration interface is displayed. The individual function blocks of the MoRoS can be selected from the buttons on the left side. Basically, all settings are stored in the device after clicking “OK”. After a restart or a voltage failure, the MoRoS reloads those settings.
  • Page 17 MoRoS Modem/ISDN Configuration This is a summary of the possible configuration options of the buttons: Button Configuration Home start page, no configuration Basic settings authentication, Ethernet addresses DNS DHCP DHCP client, DHCP server Modem or ISDN modem or ISDN-TA Configuration, Terminal...

  • Page 18: Functions

    6 Functions Basic settings The access to the settings of the MoRoS is protected from unauthorized access by a password query. The password is displayed by asterisks. If the user name and the password can no longer be identified, a device reset of the MoRoS will reset it to factory defaults.
  • Page 19 MoRoS. To be able to continue the configuration, the new IP address must be entered in the browser window. The MAC address is unambiguous for each MoRoS. It may not be modified and is unique. It is merely shown for informational purposes.

  • Page 20: Dhcp

    IP addresses to guarantee accessibility from outside. MoRoS as DHCP client: The MoRoS can only be operated as DHCP client, if a DHCP server is operated in the adjacent Ethernet network. This server will assign an IP address to the MoRoS. If necessary, the server will assign a new IP address after the lease time has expired (the lease time is the time that a client is assigned or “leased"...

  • Page 21: Isdn

    DHCP clients on request. The MoRoS keeps its set IP address. When the MoRoS has assigned an IP address to a DHCP client, the lease times for the assigned IP addresses will be specified in the DHCP configuration.

  • Page 22: Modem

    AT commands may be entered in the field “Terminal”. This command is sent directly to the ISDN-TA of the MoRoS. The reply of the ISDN-TA is displayed below the entry field. Modem This section only applies to the MoRoS Modem.

  • Page 23: Dial-In

    It may be necessary to set this setting to “No”, if the MoRoS is connected to a phone system. It is usually necessary to enter “0” as dialing code when entering the phone number. Further information about this topic can be found under "Dial-Out"...
  • Page 24 The radio button “Authenticate Dial-In” is important if authentication is required for Dial-In. If “No“ is selected, all persons who know the MoRoS phone number can Dial-In. This is also the place to set all user names and passwords which should be authorized for Dial-In.
  • Page 25 LAN. If another gateway must be used behind the MoRoS in the LAN, this is the place to enter the according IP address. One application could be a firewall between MoRoS and the local network.

  • Page 26: Dial -Out

    Dial-Out This setting activates the function “Dial-Out”. All other settings are ignored if “No” is selected at this point. To enable the MoRoS to automatically establish a connection, the IP address of the MoRoS must be entered as standard gateway at the machines which should trigger a connection.
  • Page 27 MoRoS Modem/ISDN Functions If the MoRoS is connected to a phone system, it may be necessary to enter the prefix “0” and/or “,” before the phone number. Enter a value for “Idle time” to set the time after which a Dial-Out connection is automatically terminated, if no data is transmitted during the set time.
  • Page 28 Functions MoRoS Modem/ISDN The MoRoS is equipped with a dialing filter which prevents certain data packets to immediately result in a connection setup and therefore costs. Deactivating the dialing filter directs each data packet that is aimed at an IP address outside of the LAN to a Dial- In at the remote terminal.
  • Page 29 MoRoS Modem/ISDN Functions trigger a dial-up connection. In the second line, all IP addresses of the machine may be entered which are not allowed to trigger a dial-up connection. Data packets sent to the IP addresses in the third line will result in a connection setup.

  • Page 30: Inputs

    Functions MoRoS Modem/ISDN Inputs This shows all states of the digital MoRoS inputs. The button “Refresh” will reload the page and update the status display. The inputs can be used to visualize testing the failure of a machine, for example.

  • Page 31: System

    MoRoS Modem/ISDN Functions Use the radio buttons to switch the digital outputs. Click "OK" for an automatic update. One application using this output would be the ability to remotely switch a device within the LAN on and off. This is often the only possibility for reactivating a device that does no longer respond to network commands.
  • Page 32 25 seconds until the MoRoS is again ready for operation. During the restart, the “Status” LED on the front panel of the housing lights up red. The MoRoS be ready for operation after the LED goes out. After the basic settings have been loaded, it takes about one minute until the MoRoS is ready for operation.
  • Page 33 In case of an error during the update process it may occur that the MoRoS can not be started afterwards. Before each update, you must under all circumstances follow the notes of the text file, which is supplied together with the update file.
  • Page 34 MoRoS will have no valid system and the device will not be able to start! A restart of the MoRoS will load the new system. Before a restart is performed, it may be possible that the basic settings need to be restored first. This information can be taken from the text file, which is supplied together with the update file.

  • Page 35: Proxy

    HTTP query, the MoRoS will buffer this requested page. This page will then be available as a copy from the MoRoS the next time this page is required. The content of the page does not need to be loaded via the dial-up connection, which results in a noticeable speed benefit.
  • Page 36 Select the tab “Connections” and click on the button “LAN Settings…” in the box “Local Area Network (LAN) Settings” to access the configuration. In the box “Proxy server” has to be entered the “Address” of the MoRoS IP address. Use “8888” as port. We recommend activating the checkbox “Bypass proxy server for local addresses”.

  • Page 37: Reload Function

    In case the MoRoS has currently no active dial-up connection and the function “Dial-Out” is active, a query for a HTTP site will result in the MoRoS establishing a dial-up connection. For the MoRoS Modem, establishing this connection may take some time, due to the technology.

  • Page 38: Faq

    If the MoRoS can still not be reached, this means that the PC is in another network than the MoRoS. In this case, the IP address and the sub network mask of the PC must be adjusted (see Chapter 5.1).
  • Page 39 (pressing the reset key more than 3 seconds). No connection between the MoRoS Modem and the MoRoS ISDN can be established. This is not an error! A connection between analogue connections and ISDN connections is in general not possible anyways.
  • Page 40 MoRoS Modem/ISDN The configuration interface acts “funny”: The MoRoS does not accept the interface configuration. Possible cause: After the configuration of a page, the button “Restart” or "Reload” in the browser was clicked to check if the configuration was accepted.

  • Page 41: Safety Instructions

    The MoRoS may not be used in wet environments, damp rooms or close to water. Take care not to let liquids seep into the MoRoS as this may lead to short circuits. If a power failure occurs the device will not be operational. We recommend providing a separate circuit for the MoRoS.

  • Page 42: Technical Data

    All specified technical data was measured with a nominal input voltage, full load, and an ambient temperature of 77 °F. The threshold value tolerances are subject to the typical fluctuations. To operate the MoRoS, a suitable device protection must be used. Power supply: 10..60 V DC Power input: approx.

  • Page 43: Inputs And Outputs

    It may therefore occur that the theoretically achievable maximum transmission speed is slower. The integrated communication module of the MoRoS is an i-modul Modem 56k PRO. The technical data as well as the entire AT command set are summarized in the "Designers Guide wired”...

  • Page 44: Interface Communication Module

    Technical Data MoRoS Modem/ISDN 10.6 Interface Communication Module Phone interface (only for MoRoS Modem). RJ 12 plug with nose pointing backwards b2 b1 a2 a1 RJ 12 plug front view Layout of the RJ12 Connector and the RJ45 Jack Description...

  • Page 45: Directives

    Layout of the RJ11 Connector and the RJ45 Jack 10.7 Directives The MoRoS bears the CE symbol of conformity. This symbol is a declaration that on account of its design and implementation, the MoRoS is in compliance with the currently valid versions of the following EC directives: R&TTE...

  • Page 46: Glossary

    Dynamic Host Configuration Protocol; DHCP servers can dynamically design an IP address and other parameters to DHCP clients, on request. Dial-In: MoRoS can be called via a Dial-In connection and then create a connection to the LAN. Dial-Out: MoRoS can use a Dial-up to make calls and to perform Internet connections, for example.
