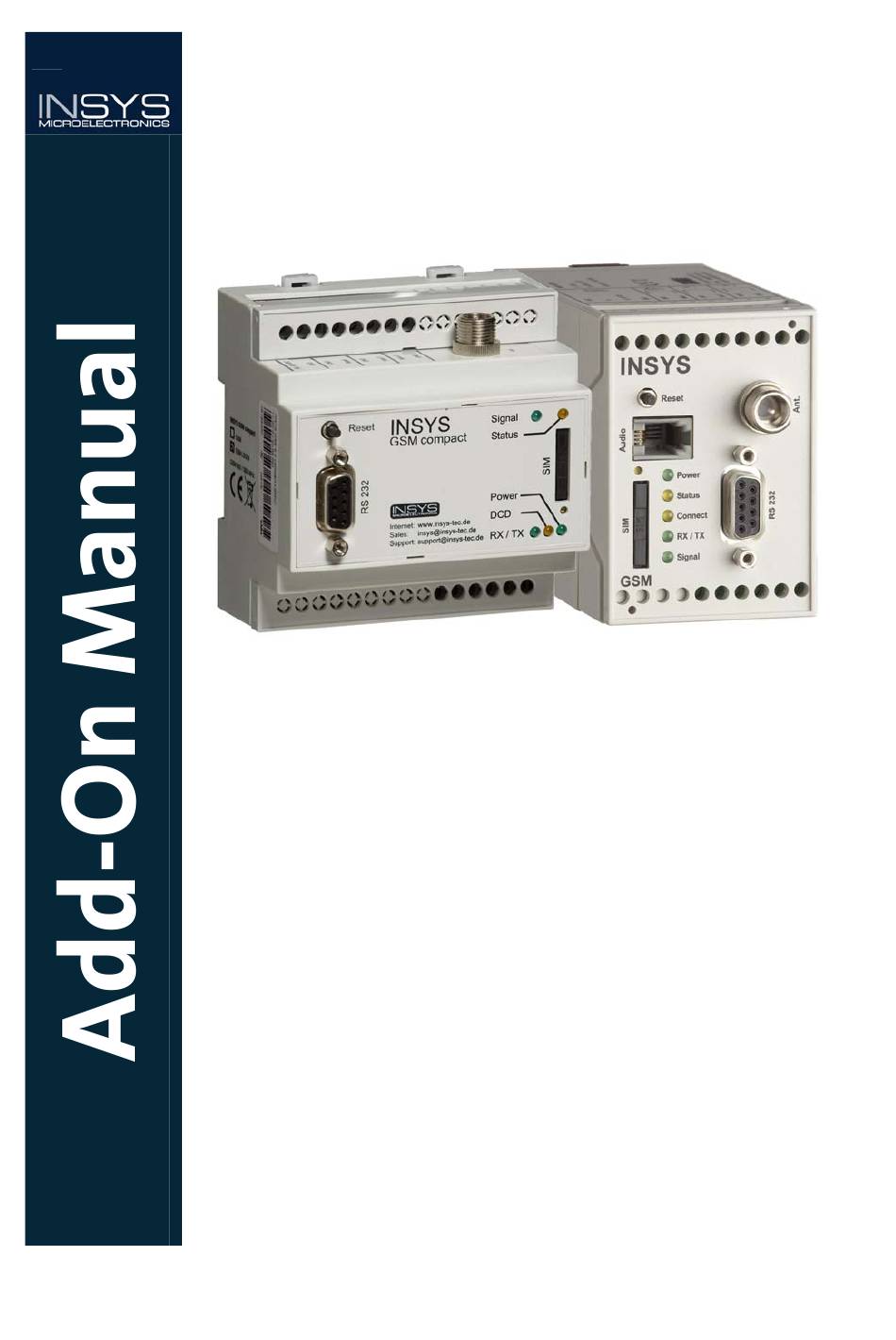

- Page 1 INSYS GSM 4.3 easy Apr-09...
- Page 3 MNP is a registered trademark of Microcom Inc. IBM PC, AT, XT are registered trademarks of International Business Machine Corporation. INSYS ® is a registered trademark of INSYS MICROELECTRONICS GmbH. Windows™ is a registered trademark of Microsoft Corporation. Linux is a registered trademark of Linus Torvalds.
-
Page 4: Table Of Contents
Restrictions / Notes ......................8 Installation and Initial Operation ............... 9 Installation and Initial Operation of the INSYS GSM 4.3 easy...........9 Operation of the INSYS GSM 4.3 easy with the Moeller easy ...........9 Operating Principle ................... 10 Configure Alias........................11 Configure Monitoring.......................12 Configure Time-Scheduled SMS ..................13... -
Page 5: Scope Of Delivery
Scope of Delivery Scope of Delivery The scope of delivery for the INSYS GSM 4.3 easy includes all accessories listed below. Please check if all accessories are included in the box. If a part is missing or damaged, please contact your distributor. -
Page 6: General

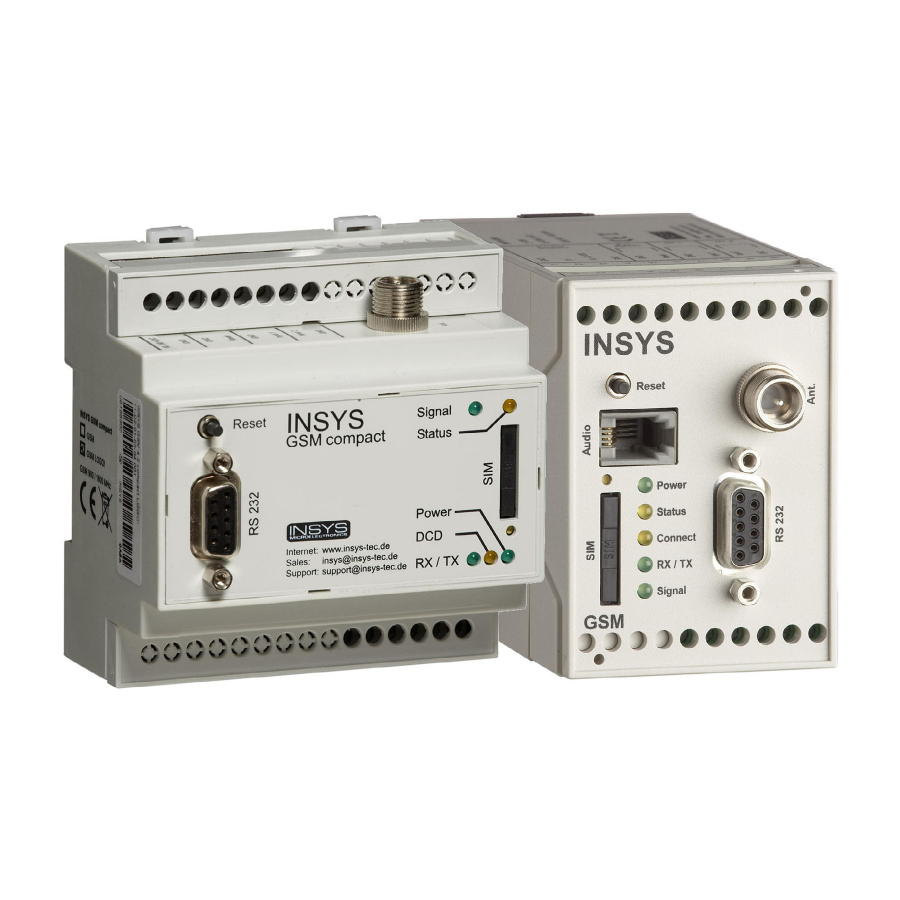

INSYS GSM 4.3 easy. Both versions are referred to as INSYS GSM 4.3 easy in the further course of this manual. If the INSYS GSM 4.3 easy compact differs from the INSYS GSM 4.3 easy, this will be mentioned in particu- lar in the respective sections. -
Page 7: Remote Control Via Mobile Phone Or Data Connection
The supplied program “EASY Soft” by Moeller is used to program the remote easy device. The INSYS GSM 4.3 easy serves as remote terminal of the dial up connection and forwards the data transparently to the Moeller easy device. -
Page 8: Restrictions / Notes
Valuable outputs of the compact controllers are used, because they are needed for the pulse output. Restrictions / Notes Since the INSYS GSM 4.3 easy is connected to the Moeller easy device via a serial interface, a memory can not be used simultaneously with the INSYS GSM 4.3 easy. -
Page 9: Installation And Initial Operation
This section provides additional information about the connection of the INSYS GSM 4.3 easy to the Moeller easy. You’ll find instructions about the installation and initial opera- tion of the INSYS GSM 4.3 easy in the enclosed manual of the INSYS GSM. Installation and Initial Operation of the INSYS GSM 4.3 easy Follow the instructions about the installation and initial operation of the INSYS GSM 4.3... -
Page 10: Operating Principle
Operating Principle This section provides an amendment to the respective section in the enclosed manual of the INSYS GSM and describes the additional options of the HSComm software for the INSYS GSM 4.3 easy. The settings for the Moeller easy™ compact controls are available under the “Moeller easy(tm)”... -
Page 11: Configure Alias
INSYS GSM 4.3 easy Operating Principle Configure Alias After clicking the button “Configure”, a window is displayed under the field “Alias”, which is used to allocate aliases to up to 30 object instances. The table is not used to en- ter data, but to visualize the configuration. -
Page 12: Configure Monitoring
Operating Principle INSYS GSM 4.3 easy Configure Monitoring Clicking the button “Configure” displays the special configuration of the function. The table is not used to enter data, but to visualize the configuration. The entry takes place below the table. Selecting the monitoring line in the configuration window is done either with the selec- tion box “No.”... -
Page 13: Configure Time-Scheduled Sms
INSYS GSM 4.3 easy configuration has been read out once (“Read settings” button). Figure 6: Software HSComm - manage configuration data These three buttons will enable you to read, write or delete the INSYS GSM 4.3 easy con- figuration for the Moeller easy functionality in particular. Reading and writing using these buttons will be faster than the total transfer via the button Send values, because the standard functionality does not need to be transferred once more. -
Page 14: Functional Description
Therefore, so-called aliases were introduced for the INSYS GSM 4.3 easy. This offers the possibility to allocate a name that is easy to understand. If the Moeller easy device controls a waste water system, for example, the digital register M1 can be allocated the alias "waste water pump1”. - Page 15 As for each automatic SMS dispatch with the INSYS GSM 4.3 easy, the dispatch can be set for resending in case of errors (default: 3 attempts).
-
Page 16: Time-Scheduled Sms
INSYS GSM 4.3 easy. The monitored value 1 is therefore queried prior to the monitored value 2. If exceeding or changing of values is detected, the system will immediately attempt to send the alarm message. -
Page 17: Querying And Controlling Via Sms
INSYS GSM 4.3 easy indi- rectly via registers. For the INSYS GSM 4.3 easy it is also possible to query various information regarding the state of the easy device via SMS, or the control program that is running on it. It is also possible to change values of the running program with commands. - Page 18 Example 1: Query of the object instance M12 MONITOR M12,CN: In this case, an SMS is sent to the INSYS GSM 4.3 easy, which includes the command for the query of object instance M12. The reply SMS should be sent to the sender phone number which sent this command SMS to the INSYS GSM 4.3 easy.
-
Page 19: Setting An Object Instance
INSYS GSM 4.3 easy Functional Description number „0123456789“ SECRET,MONITOR PUMP,CN: 0123456789 In this case, the alias „PUMP“ is linked to an object „analogue byte register“, „analogue word register“ or „analogue double word register“. 5.3.3 Setting an Object Instance Command: SET < Objectshortname><Instance>=<Value>[,CN:[ Callback]] SET <Alias>=<Value>[,CN:[ Callback]]... -
Page 20: Status Query
Functional Description INSYS GSM 4.3 easy Theoretically it is possible to set all other object instances, too. INSYS MI- CROELECTRONICS recommends paralleling the corresponding registers within the configuration program of the easy to avoid impact on the proper function of the easy objects. E.g. it is not recommended to switch objects like digital inputs directly. -
Page 21: New History Entries
(see easy status query). New History Entries The description of the history functionality of the INSYS GSM 4.3 easy can be found in the supplied manual of the INSYS GSM. Due to the extended functionality of the INSYS GSM 4.3 easy, there are several additional entries in the history memory:... -
Page 22: Remote Configuration With Easy-Soft And Insys Connect
GSM Modem) is required locally. Any of these devices can be used to establish a connec- tion to the remote INSYS GSM 4.3 easy via a dial up connection. When the connection is established, INSYS Connect will retreat from the serial interface. The communication de- vice connected to this serial interface now has no connection to another program, but maintains the connection. - Page 23 INSYS GSM 4.3 easy Remote Configuration with EASY-SOFT and INSYS The according waiting period of EASY-SOFT must be set under “Communication” -> “In- terface” -> “Timeout” -> “Device” For the easy 500 and 700 devices, the „Timeout for Communication“ must be increased to at least 1000 ms.
-
Page 24: Declaration Of Conformity
Declaration of Conformity INSYS GSM 4.3 easy Declaration of Conformity We’ll send you the declaration of conformity on request. -
Page 25: Tables And Diagrams
Table 8: New history entries.........................21 List of Diagrams Figure 1: Principal connection of the (INSYS GSM 4.3 easy to the Moeller easy ..... 9 Figure 2: Software HSComm - Moeller easy(tm) tab ..............10 Figure 3: Software HSComm - Assign alias window ..............11 Figure 4: Software HSComm - Configure monitoring window..........12...
