Printer Operation

Control Panel

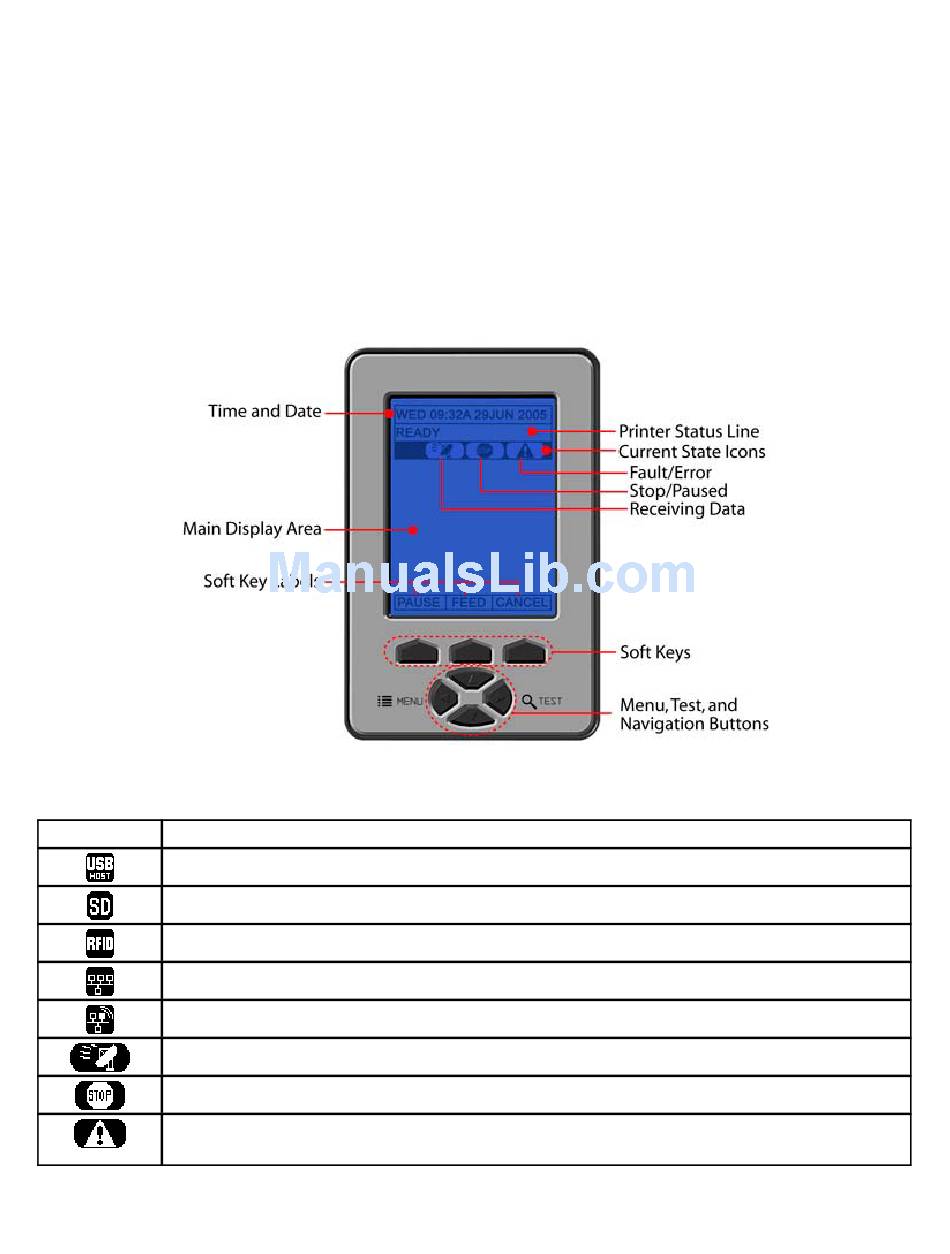

The Control Panel, an event-driven user interface, is comprised of a graphic display, buttons,
and keys. In addition to providing a real-time display of current printer functions, the operation
is mode-dependent, allowing the items in the Main Display Area and the functions of the Soft
Keys to change as events or selections require. For more information regarding the Control
Panel, see User Interface.
Current State Icon / Indicator Definitions
Icon Definition
A USB Host device (memory drive or keyboard) has been detected.
An SDIO memory card has been detected.
RFID is installed.
A wired LAN connection has been detected
A wireless LAN connection has been detected.
The printer is communicating -- sending or receiving data.
The printer is stopped or paused.
A fault or error condition has been detected. For a listing of possible messages,
see the Prompts, Messages, and Troubleshooting Tips section.
