Loading the Internal Rewinder

When equipped with the Internal Rewind option, printed label outputs can be rewound or, with
the addition of a Peel and Present option, dispensed automatically for immediate application. If
your printer has this feature, follow the instructions below to begin using the option:

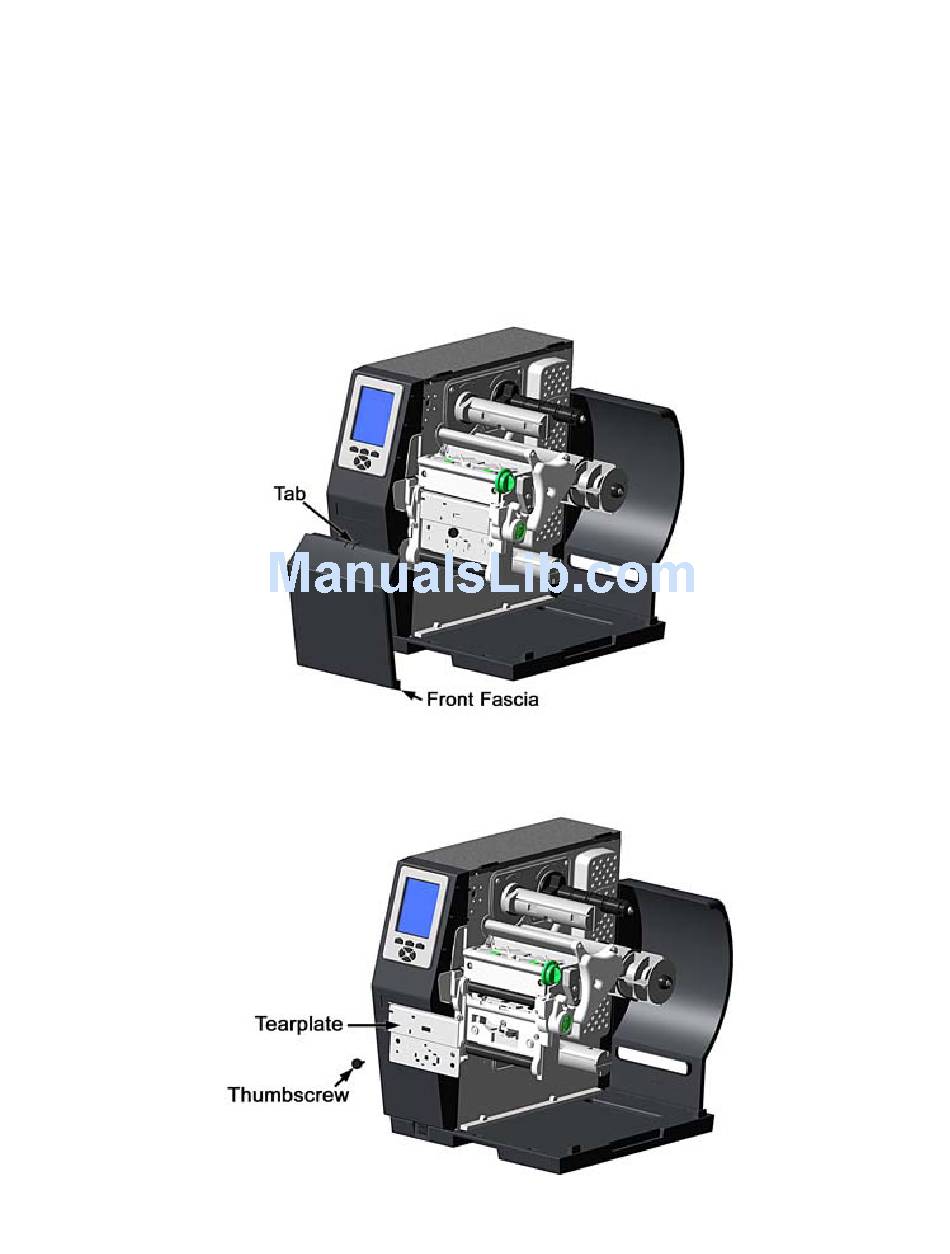

1. Press down on the Tab then pull outward to remove the Front Fascia.
2. Remove Thumbscrew and Tear Plate.
