Datamax H Class Operator's Manual page 38

Removing the Adapter Core
To switch from label rewinding to label peeling, you will need to remove the Rewind Adapter
Core, as follows:
1. Remove labels from the Internal Rewinder.

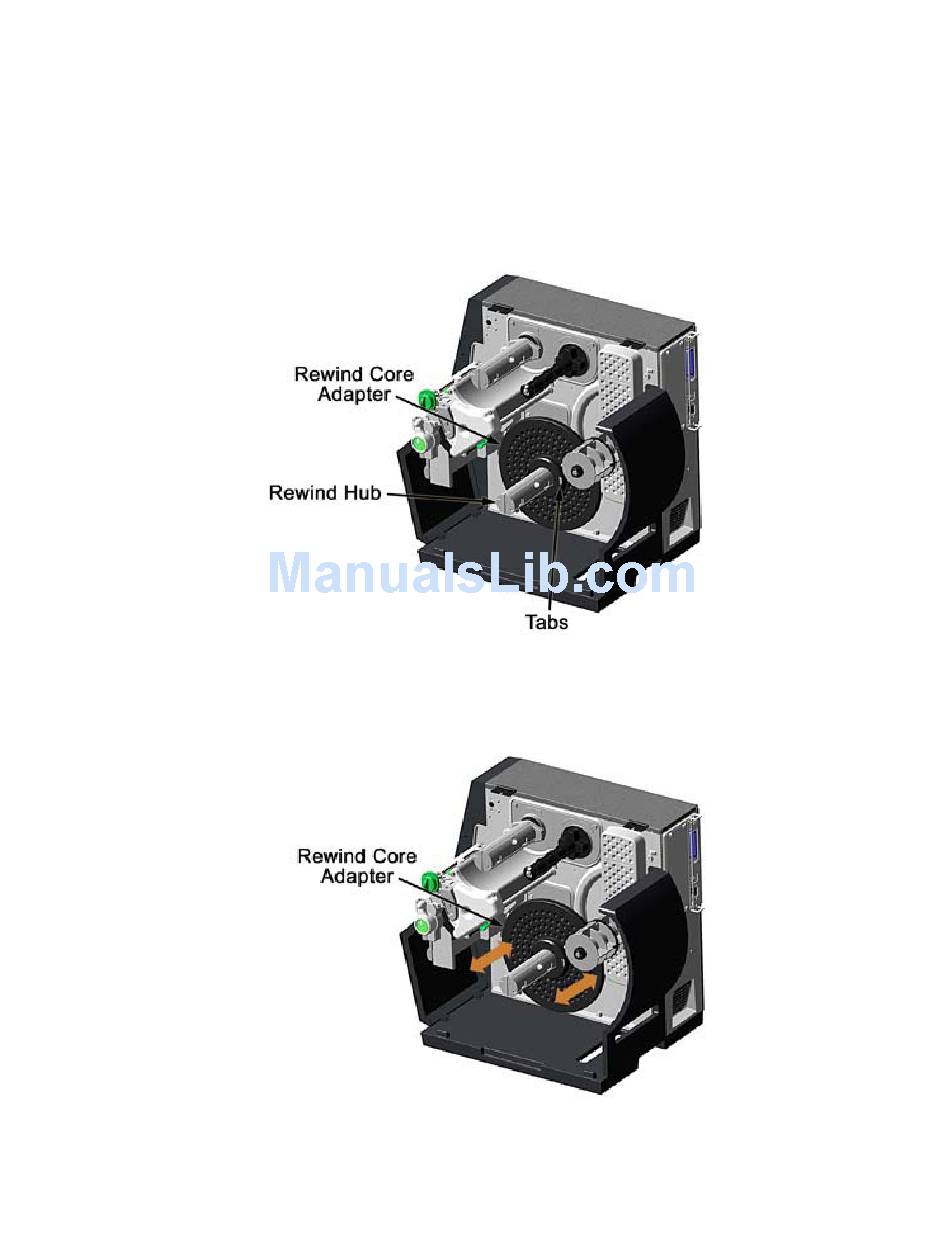

2. Rotate the Rewind Hub so that the Tabs are in a horizontal position, as shown.
3. Using both hands, grasp the Rewind Core Adapter and, with a gentle back-and-forth
rocking motion, pull the Rewind Core Adapter off the Rewind Hub.
30
