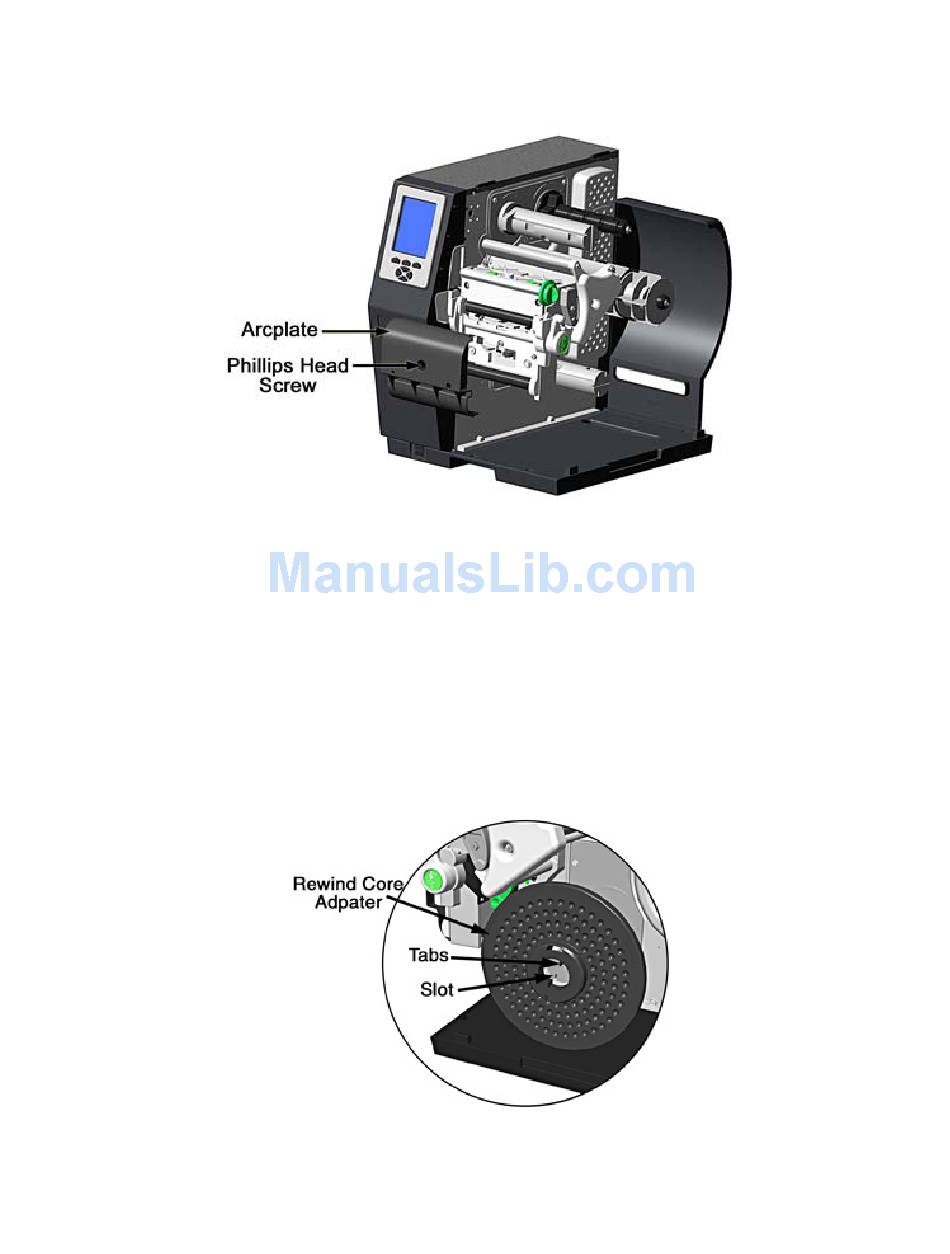

3. Place the Arcplate on the front of the printer (as shown below) and tighten the Phillips
Head Screw to secure it; or, to use the Peel and Present option attach that device.
Proceed according to your application:
•
To rewind labels onto an empty media core, go to Step 4.
•
To dispense labels using a Peel and Present option, refer to the instructions
included with that option.
4. Align the Tabs on the Rewind Core Adapter to the Slots in the hub, and then
slide the Rewind Core Adapter onto the middle of the hub.
