Media Loading

Loading Roll Media

Load a roll of media into the printer as follows:

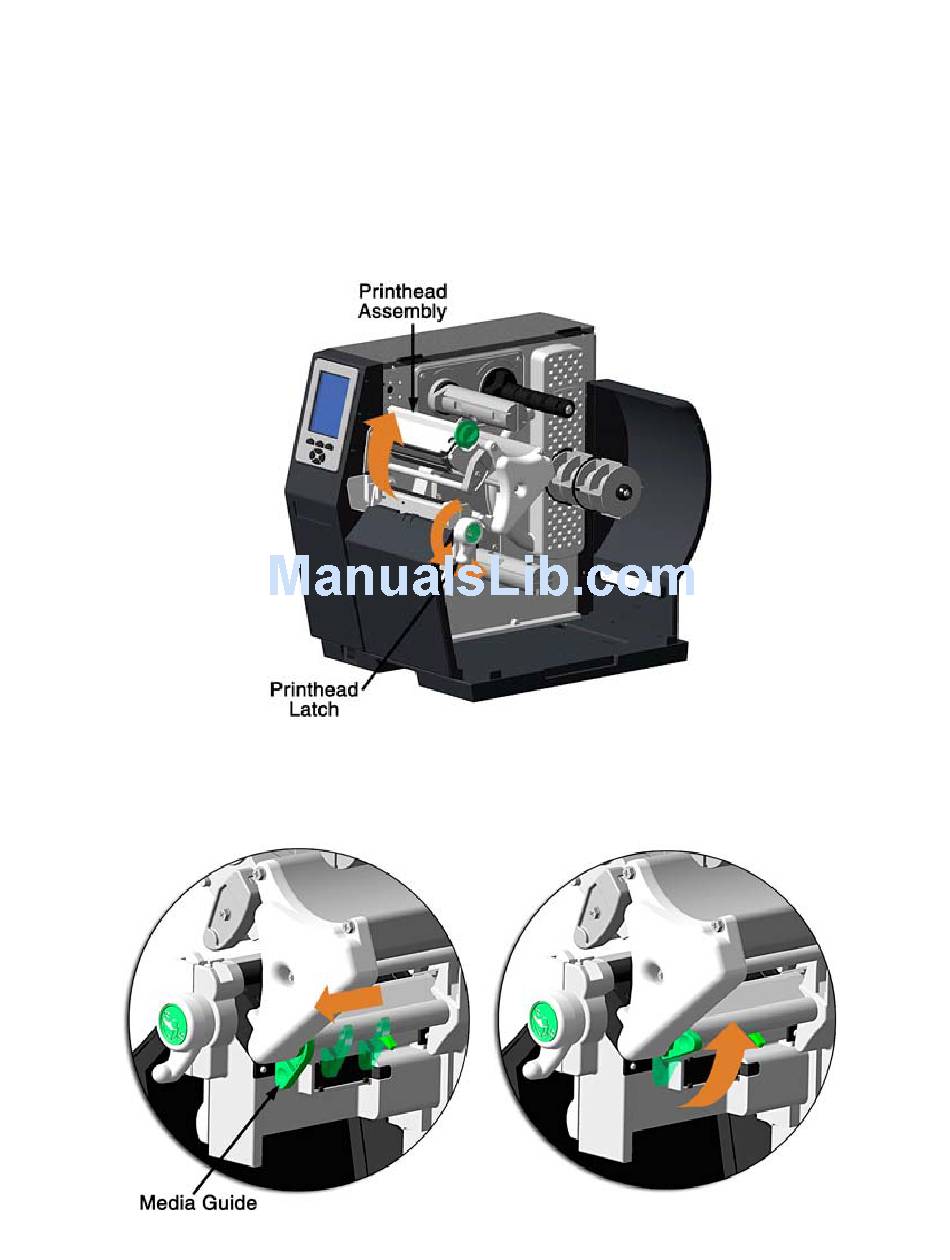

1. Rotate the Printhead Latch in a counterclockwise direction then raise the Printhead
Assembly.
2. Slide the Media Guide toward you (outward), and then rotate the Media Guide
counterclockwise into an UP position.
Slid Outward Rotated Up
21
