92-2443-01 Rev.F
RFID Option

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-Class and is the answer not in the manual?

Questions and answers

Related Manuals for Datamax H-Class

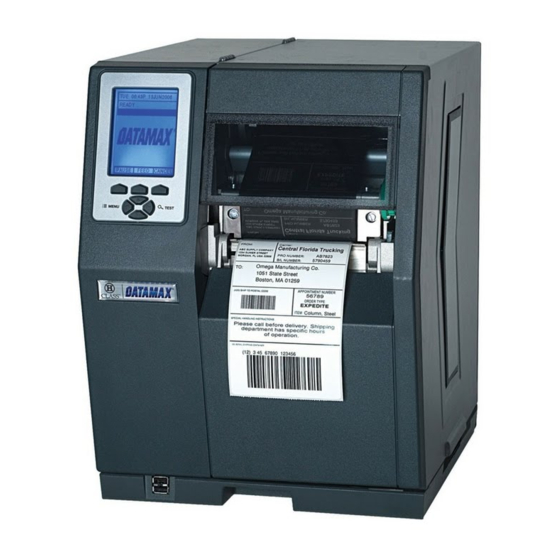

Summary of Contents for Datamax H-Class

  • Page 1 92-2443-01 Rev.F RFID Option...
  • Page 3 20cm from printer extremity. • Any changes or modifications to this RFID module not expressly approved by Datamax-O’Neil Corporation will void the user’s authority to operate the equipment. • Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
  • Page 4 These definitions are referenced while looking down onto the labeling side of the media, and from the leading edge of the label (or tag) as it moves forward through the printer.  Note: If you have questions regarding selection, contact a Datamax-O’Neil Media Representative at (407) 523-5650.
  • Page 5 Step 2: Know the Printer For easy setup and configuration, most RFID settings can be modified via the Control Panel. Depending upon your RFID hardware option, the factory default settings are as follows:  HF RFID Default Settings (RFID MODE = HF): RFID POSITION = 1.10 WED 09:32A 14MAR 2006 OFFLINE...
  • Page 6 To complete the setup, encoded data can be exported to a host device (with proper cabling) by enabling OPTION FEEDBACK. The data is contained in the form <A;B;C;D;E;F>[CR] where: A - Is the device type: R = RFID; and, S = Linear Scanner. B - Is the status: C = entire label complete;...
  • Page 7 • Quick RFID Calibration – WED 09:32A 24MAR2006 With the printer at READY, simultaneously press FEED READY RFID and TEST; CONFIGURATION PAUSE FEED CANCEL FEED Key & TEST Button – or – • Standard RFID Calibration – WED 09:32A 14MAR 2006 OFFLINE RFID 1) From the ADVANCED MENU, press MENU.
  • Page 8 This is the optimum RFID TAG REPORT power level and tag WED 09:52AM 12 APR2006 position that was POWER LEVEL established and set in the printer during RFID POSITION 1.41in. the RFID Calibration OUTCOME OUTCOME POSITION POWER process. 1.10in. 1.14in. -4dB 1.18in.
