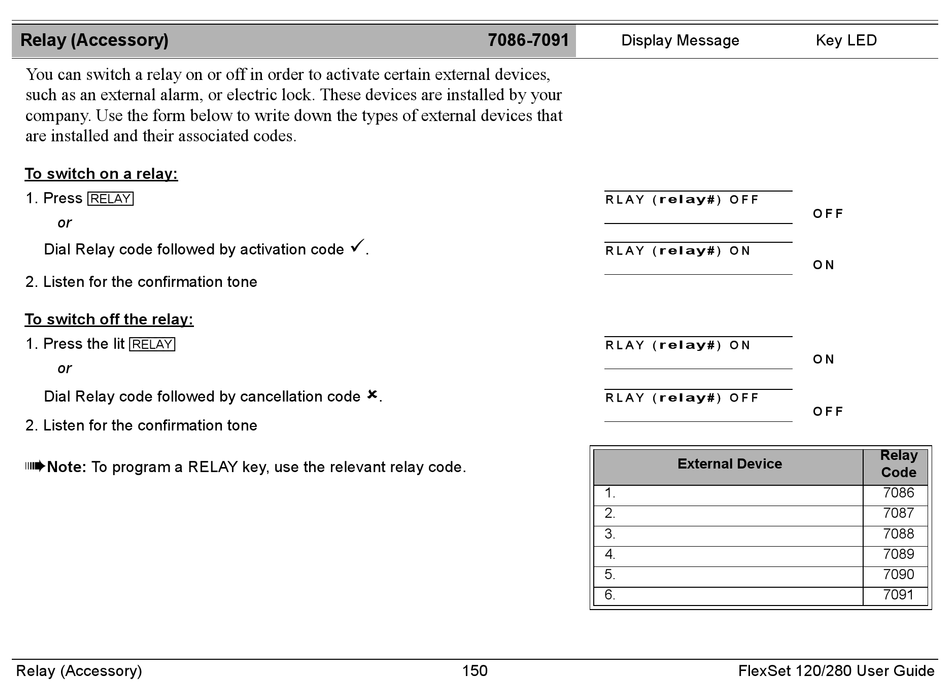

Relay (Accessory)

You can switch a relay on or off in order to activate certain external devices,
such as an external alarm, or electric lock. These devices are installed by your
company. Use the form below to write down the types of external devices that
are installed and their associated codes.
To switch on a relay:
[RELAY]
1. Press
or
Dial Relay code followed by activation code
2. Listen for the confirmation tone
To switch off the relay:
[RELAY]
1. Press the lit
or
Dial Relay code followed by cancellation code
2. Listen for the confirmation tone

Note: To program a RELAY key, use the relevant relay code.
Relay (Accessory)
7086-7091
.
.
150
Display Message
R L A Y ( relay# ) O F F
R L A Y ( relay# ) O N
R L A Y ( relay# ) O N
R L A Y ( relay# ) O F F
External Device
1.
2.
3.
4.
5.
6.
FlexSet 120/280 User Guide
Key LED
O F F
O N
O N
O F F
Relay
Code
7086
7087
7088
7089
7090
7091
