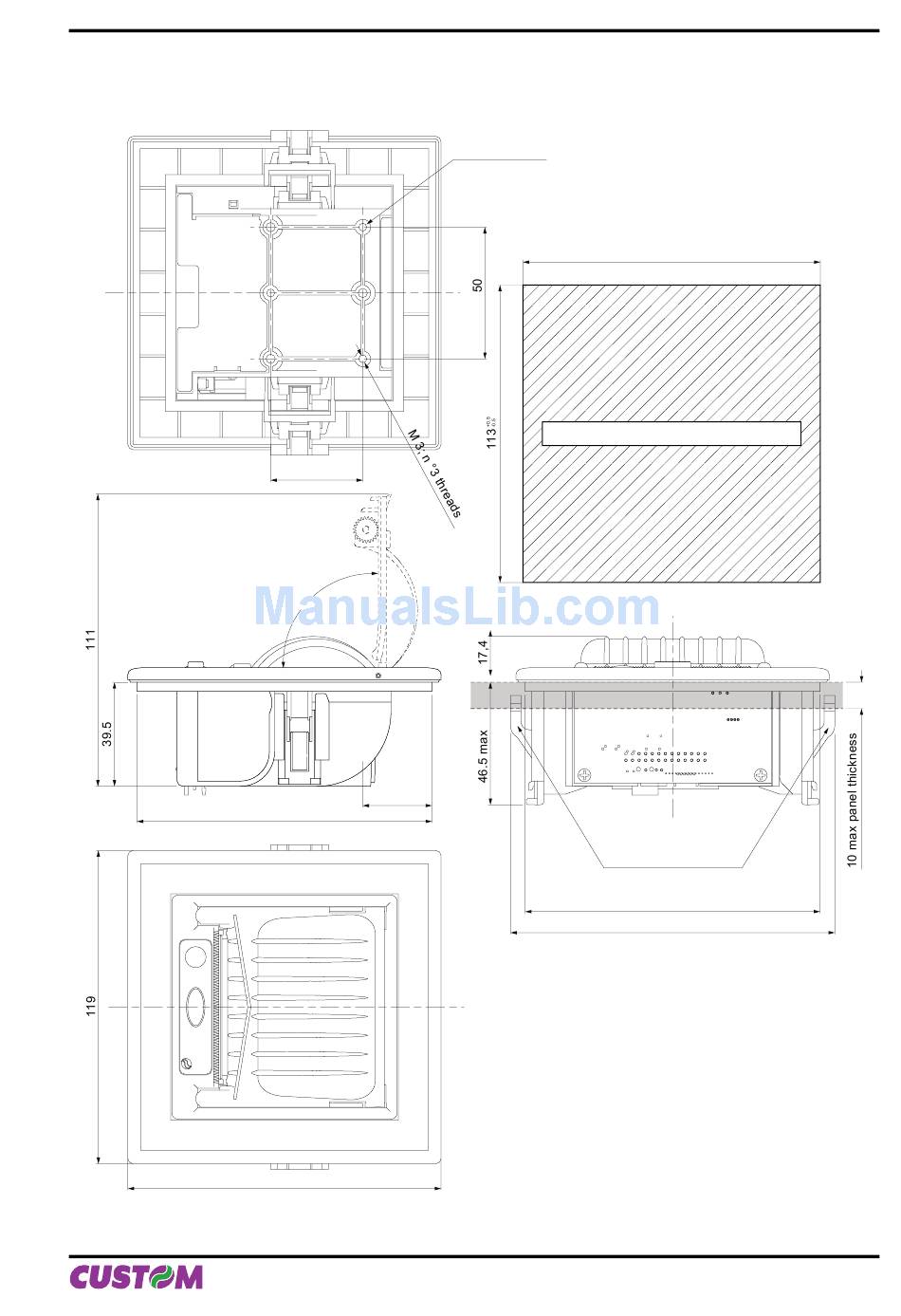

The fi g.A.8 illustrates the dimensions of PLUS II models assembled with the frame.
APPENDIX A - ACCESSORIES AND SPARE PARTS
35
90°
26.3
112
119
N °3 screws Ø3
for plastic
Mounting seat in the panel
(Fig.A.8)
113
+0.5
-0.5
Clips for
panel fixing
112
123.2
PLUS II A-5
