1.2 CONNECTIONS OF PLUS II-S AND PLUS II-T

1.2.1 Power supply

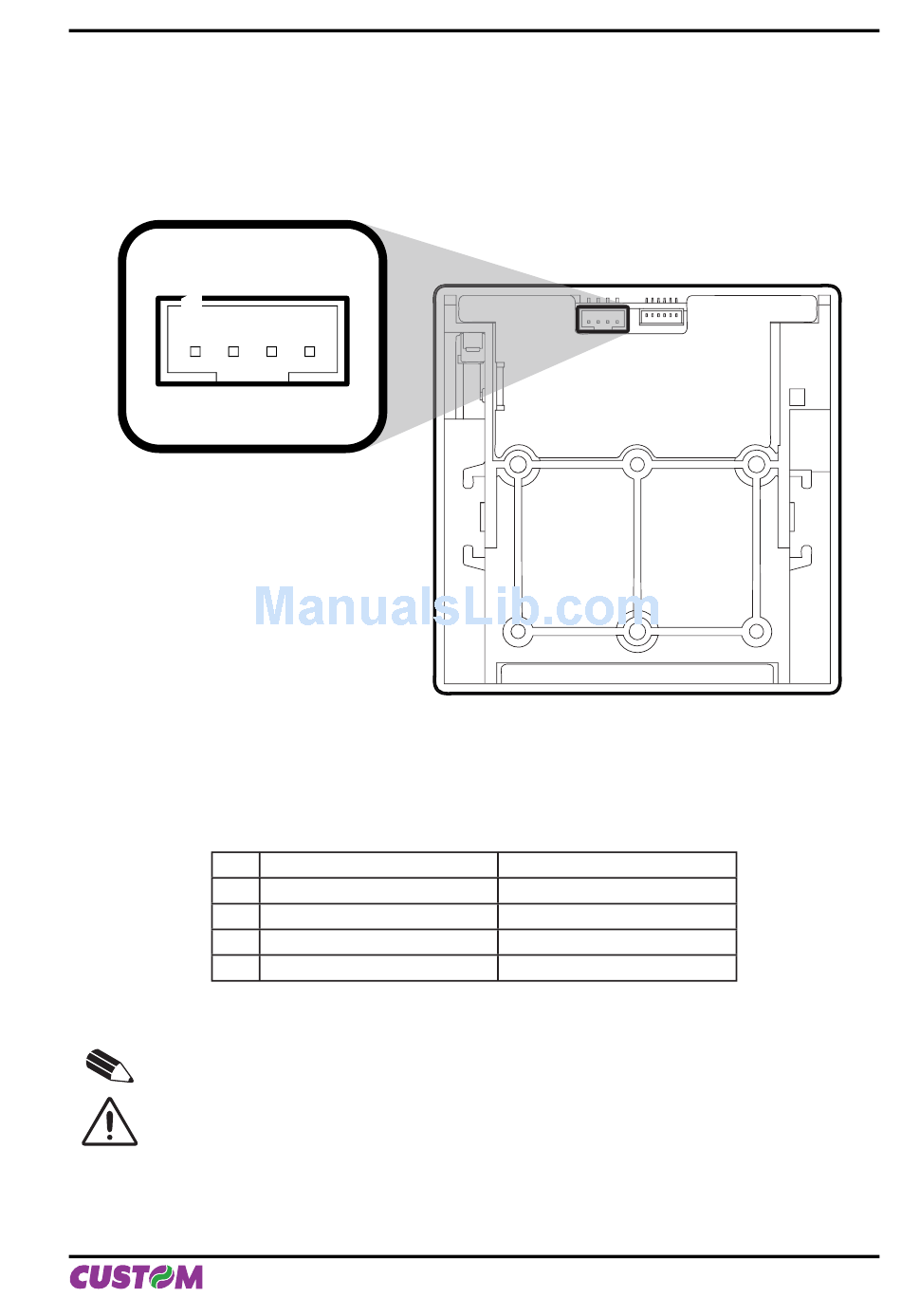

The printer is equipped with a 4 pin JST male connector (90°) for the power supply. The signals on the con-
nector pins are as follows:
1
Model no. type:
Header: S4B-PH-K-S 90° (JST)
Housing: PHR-4 (JST) or equivalent
PIN
1
2
3
4
NOTE
(*) For the electrical specifi cations see Chapter 3.
WARNING
Respect the polarity of the power supply.
(Fig.1.3)
SIGNAL
GND
GND
+Vin*
+Vcc*
1. INSTALLATION AND USE
DESCRIPTION
Ground signal
Ground signal
Head voltage
Logic supply voltage
User Manual
PLUS II 1-3
