Summary of Contents for Custom Engineering TG35/58-T

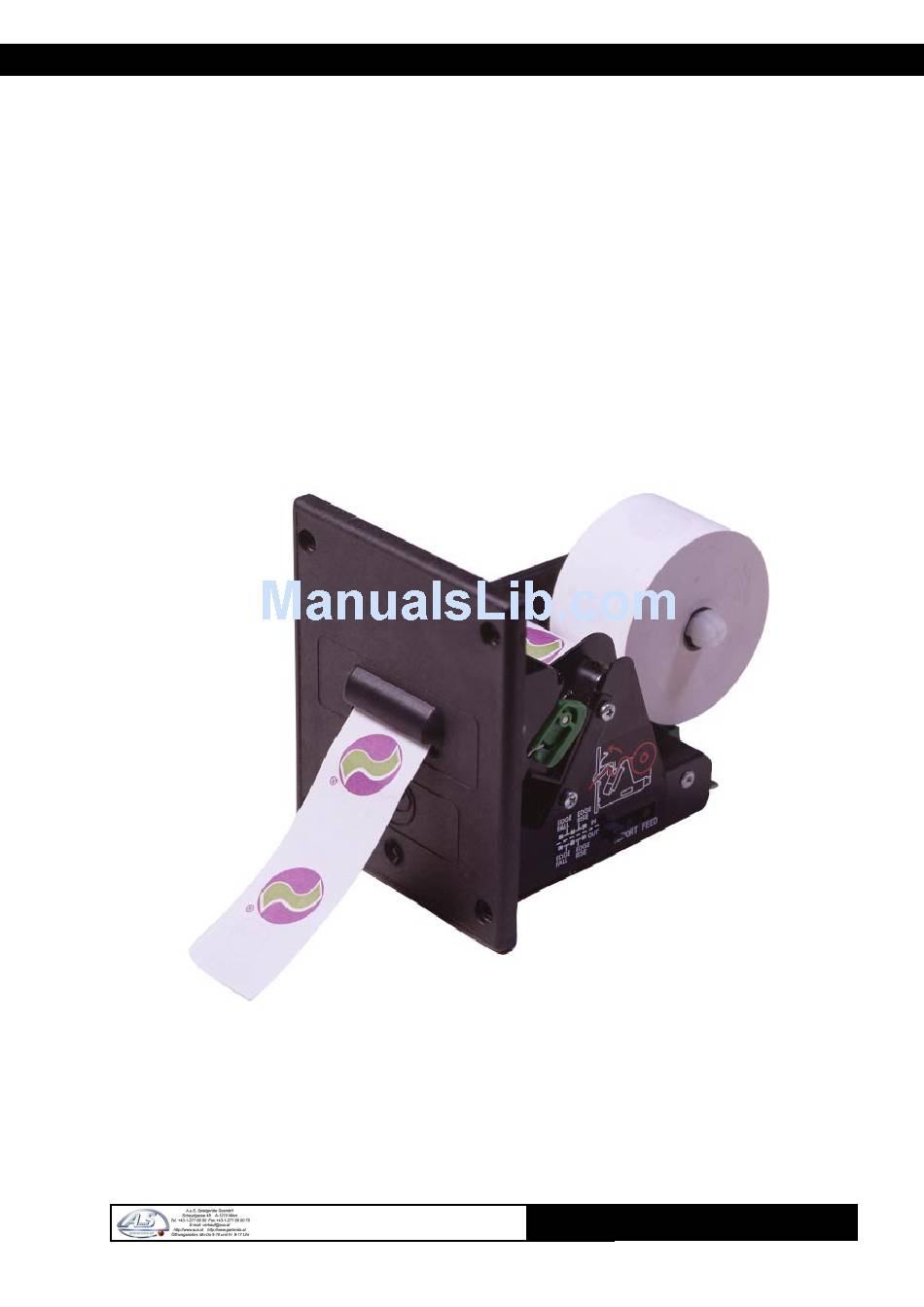

  • Page 1: User Manual

    TG35/58-T Printer version User Manual www.custom.it TG35/58-T...
  • Page 2 Str. Berettine 2 - 43010 Fontevivo (PARMA) - Italy Phone : +39 0521-680111 - Fax : +39 0521-610701 http: www.custom.it http: www.smice.com To contact our Technical Support : Phone. : +39 0521-680163 - Fax : +39 0521-680146 Email : support@custom.it TG35/58-T...
  • Page 3 PRINTER COMPONENTS A. TG35/58-T - exterior view 1- Printing mechanism 2- Report “Key” 3- Feed “Key” 4- Paper roll support 5- Case 6- Front panel 7- Led 8- Paper output TG35/58-T...
  • Page 4 B. TG35/58-T - rear view 1- Power supply connector 2- Power supply connector and additional signals 3- TTL serial interface connector TG35/58-T...
  • Page 5: Table Of Contents

    1.5.1 Using the control discs ..............1-4 1.5.2 Changing the paper roll ..............1-4 2. INTERFACES 2.1 TTL SERIAL ..................2-1 3. PRINTER FUNCTIONS 3.1 COMMAND DESCRIPTIONS .............. 3-1 3.1.1 ESC/POS Emulation ..............3-1 4. TECHNICAL DATA 4.1 TECHNICAL DATA................4-1 4.2 DIMENSIONS ..................4-2 TG35/58-T...
  • Page 6 TABLE OF CONTENTS APPENDIX A - ACCESSORIES AND SPARE PARTS A.1 ACCESSORIES................... A-1 A.1.1 Power supply ................. A-1 A.1.2 RS232 cable adaptation ..............A-2 A.2 SPARE PARTS ..................A-5 TG35/58-T...
  • Page 7: Introduction

    • Do not operate the printer near water. • When positioning the printer, make sure its cables will not be damaged. • Use the type of electrical power supply indicated on the printer label. If uncertain, contact your dealer. • Do not block the ventilation openings. TG35/58-T...
  • Page 8: Unpacking The Printer

    Manual (or CD-rom) Printer Discs control of paper roll MAIN CHARACTERISTICS The TG35/58-T printer is the ideal solution for : • Gaming machines • Vending machines • Self-service machines • Paper tear-off and anti-paper jam system.
  • Page 9: Printer Description

    35/58 mm; it has a TTL serial interface (optional RS232 cable) and is also equipped with a calendar clock (Real Time Clock). The TG35/58-T printer consists of a case (5) onto which the following components are fitted: thermal print mechanism (1), paper roll pin (4) front panel (6) in PPO for installation on Gaming/Vending Machines.
  • Page 10 The check is carried out“on line”, i.e. in the event of a malfunctioning, the LED will starts flashing as follows: (Tab.1) t n i t n i – s t l a l f t l i a l f TG35/58-T...
  • Page 11: Installation And Operation

    Pin 1 Pin 1 1.1.1 Power supply and Input/Output As regards the power supply, the printer TG35/58-T is equipped with a Tic- ket Outlet-compatible 4-pin male connector (J3). The signals on the pins of the feed connector are as follows:...
  • Page 12: Setup

    1. INSTALLATION AND OPERATION As regards the power supply and additional signals, the TG35/58-T printer is equipped with a 5-pin screw terminal connector (J8). The signals on the connector pins are as follows: (Tab.1.2) P N I P N I...
  • Page 13: Configuration Of Report And Feed Keys

    • Do not drag the carriage manually when the printer is on. • Do not allow any foreign bodies to become trapped inside the printer. • Safeguard all parts of the printer from blows, both during and subsequent to installation. TG35/58-T...
  • Page 14: Maintenance

    Position the paper roll (1), so that it rotates in the direction shown (fig.1.4); Insert the end of the paper roll in the print mechanism (2) and wait until the roll loads automatically; Remove the ticket from the mouth paper output; TG35/58-T...
  • Page 15 1. INSTALLATION AND OPERATION (Fig.1.4) WARNING Before inserting the paper, (Fig.1.5) ensure that it is cut evenly. TG35/58-T...
  • Page 16: Interfaces

    1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 5 5 5 5 5 6 6 6 6 6 7 7 7 7 7 8 8 8 8 8 TG35/58-T...
  • Page 17: Printer Functions

    ..l a t t i s t n i TG35/58-T...
  • Page 18 Given below are more detailed descriptions of each command. [Name] Back space [Format] ASCII Decimal [Description] Moves print position to previous character. TG35/58-T...
  • Page 19 [Format] ASCII Decimal [Description] Prints the data in the buffer and feeds one line based on the current line spacing. [Notes] • Sets the print position to the beginning of the line. [Default] [Reference] ESC 2, ESC 3 [Example] TG35/58-T...
  • Page 20 = 2 transmit off-line status n = 3 transmit error status n = 4 transmit paper roll sensor status n=1: Printer status . f f . f f . f f n i l - f f n i l . f f TG35/58-T...
  • Page 21 Error status . f f . f f . f f n=4: Paper roll sensor status . f f . f f . f f . f f [Notes] • This command is executed when the data buffer is full. TG35/58-T...
  • Page 22 When the characters are enlarged, the right side character spacing is m (2 or 4) times the normal value. • The horizontal and vertical motion units are specified by GS P. Changing the horizontal or vertical motion units does not affect the current right side spacing. TG35/58-T...
  • Page 23 HT, ESC $, ESC \ and 90° rotated characters. • When characters are enlarged to different heights on one line, the characters are aligned at the baseline or topline (see GS ~). • This command resets the left and right margin at default TG35/58-T...
  • Page 24 • In standard mode, the horizontal motion unit (x) is used. • If the setting is outside the printing area width, it sets the absolute print position, but the left or right margin is set at default value. TG35/58-T...
  • Page 25 Turns underline mode on or off, based on the following val- ues of n: n = 0, 48 Turns off underline mode n = 1, 49 Turns on underline mode (1-dot thick) n = 2, 50 Turns on underline mode (2-dot thick) TG35/58-T...
  • Page 26 ESC 0 Decimal [Description] Selects 1/8-inch line spacing [Notes] [Default] [Reference] ESC 2, ESC 3 [Example] [Name] Select 1/6-inch line spacing [Format] ASCII ESC 2 Decimal [Description] Selects 1/6-inch line spacing. [Notes] [Default] [Reference] ESC 0, ESC 3 [Example] TG35/58-T...
  • Page 27 [Notes] • The printer can print any character in italic mode. • When italic mode is turned off by setting the value of n to 0 or 48, the data which follows is printed in normal mode. TG35/58-T...
  • Page 28 [Notes] • When the printer is disabled, it ignores all transmitted data until the printer is enabled through this command. [Default] n = 1 [Reference] [Example] [Name] Initialize printer [Format] ASCII Decimal TG35/58-T...
  • Page 29 • ESC D NUL cancels all horizontal tab positions. • The previously specified horizontal tab position does not change, even if the character width is modified. [Default] Default tab positions are set at intervals of 8 characters (col- TG35/58-T...
  • Page 30 • When the LSB of n is 1, the double-strike mode is on. [Notes] • Only the LSB of n is effective. • Printer output is the same in double-strike and emphasized mode. [Default] n = 0 [Reference] ESC E TG35/58-T...
  • Page 31 [Default] [Reference] GS P [Example] [Name] Select an international character set [Format] ASCII ESC 1B 52 n Decimal 27 82 n 0 ≤ n ≤ 12 [Range] [Description] Selects the international character set n according to the table below: TG35/58-T...
  • Page 32 0 ≤ nL ≤ 255 [Range] 0 ≤ nH ≤ 255 [Description] Sets the print starting position based on the current position by using the horizontal or vertical motion unit. Sets the distance from the current position to [(nL+ nH × 256) TG35/58-T...
  • Page 33 • This command is only enabled when inserted at the begin- ning of a line. • Lines are justified within the specified printing area. • Spaces set by HT, ESC $ and ESC \ will be justified ac- cording to the previously-entered mode. [Default] n = 0 TG35/58-T...
  • Page 34 0 ≤ n ≤ 1, 48 ≤ n ≤ 49 [Range] [Description] Sets and resets red printing mode. Function 0, 48 Reset red printing mode 1, 49 Set red printing mode [Notes] • The printer prints only entire lines in red, not individual char- TG35/58-T...
  • Page 35 See character code tables [Example] [Name] Transmit paper sensor status [Format] ASCII ESC v Decimal [Description] When this command is received, transmit the current status of the paper sensor. The status to be transmitted is shown in the table below: TG35/58-T...
  • Page 36 • After the paper autoload all buffers (receive and print) are cleared. [Default] [Reference] DLE EOT [Example] [Name] Selects speed/current mode [Format] ASCII ESC x Decimal 120 n 0 ≤ n ≤ 2 [Range] [Description] Selects printing speed/current mode. [Notes] [Default] n = 0 [Reference] [Example] TG35/58-T...
  • Page 37 + xH × 256 specifies the starting dotline ( 1 ÷ 85). yL + yH × 256 specifies the number of lines to print. • If (xL + (xH × 256)) > 85 the printer does not execute the [Notes] TG35/58-T...
  • Page 38 • Bits 0 to 3 low Nibble: to select character height (see table • Bits 4 to 7 Higth Nibble: to select character width (see table 1 t i 2 t i [Notes] • This command is effective for all characters (except HRI TG35/58-T...
  • Page 39 • This command does not affect white space between lines. • White/black reverse mode has a higher priority than under- line mode. Even if underline mode is on, it will be disabled (but not cancelled) when white/black reverse mode is se- lected. [Default] n = 0 [Reference] [Example] TG35/58-T...
  • Page 40 . f f [Notes] • This command is executed when the data is processed in the data buffer. Therefore, there could be a time lag between command reception and data transmission, depending on data buffer status. [Default] [Reference] [Example] TG35/58-T...
  • Page 41 [Default] If font A : nL = nH = 0 If font B : nL = 14 nH = 0 [Reference] GS P, GS W [Example] TG35/58-T...
  • Page 42 Set printing area width [Format] ASCII Decimal 0 ≤ nL, nH ≤ 255 [Range] [Description] Sets the printing area width to the area specified by nL and • The left margin is set to [(nL + nH × 256) × (horizontal mo- TG35/58-T...
  • Page 43 Sets height during printing based on following values of n: When you print a dot line if n=0 height is set to one n ≠ 0 (default value) height is set to two When n ≠ 0 (default value) each dotline is twice replicated [Notes] TG35/58-T...
  • Page 44 1D 72 n Decimal 114 n [Range] n = 1, 2, 49, 50 [Description] Transmits the status specified by n as follows: Function 1, 49 Transmits paper sensor status (as for ESC v). 2, 50 Transmits connector drawer status. TG35/58-T...
  • Page 45 • This command is executed when the data is processed in the data buffer. Therefore, there may be a time lag between receiving the command and transmitting the status, depend- ing on data buffer status. [Default] [Reference] DLE EOT, ESC v [Example] TG35/58-T...
  • Page 46 Sets printing density. n specifies printing density as follows: t n i y t i g i l [Notes] • Printing density reverts to the default value when the printer is reset or turned off. [Default] n = 2 [Reference] [Example] TG35/58-T...
  • Page 47: Technical Data

    4. TECHNICAL DATA 4.1 TECHNICAL DATA Table 4.1 lists the main technical features of the printer. (Tab.4.1) l a i l a i t n i ° ° i t a y t i ° 5 ° 0 y t i TG35/58-T...
  • Page 48: Dimensions

    4. TECHNICAL DATA 4.2 DIMENSIONS The Figure 4.1 illustrates the overall dimensions for the TG35/58-T printer. (Fig.4.1) 118.5 Carta Paper TG35/58-T...
  • Page 49 4. TECHNICAL DATA The Figures 4.2 and 4.3 illustrates the overall dimensions for the frontal panel of TG35-T and TG58-T printer. (Fig.4.2) TG35-T frontal panel 44.7 ø (Fig.4.3) TG58-T frontal panel 67.7 ø TG35/58-T...
  • Page 50: A.1 Accessories

    ATTACHMENT A - ACCESSORIES AND SPARE PARTS A.1 ACCESSORIES A.1.1 Power supply The following figure shows the 12V power supply, manufactured by Custom Engineering, that can be used to operate the TG35/58-T printer. (Fig.A.1) GND chassis LED on 0V 12V (Tab.A.1)
  • Page 51: A.1.2 Rs232 Cable Adaptation

    To connect the printer with the RS232 interface use this connection cable and proceed as follows: • connect the cable RJ45 connector to the J9 connector located at the back of the printer (see fig. A.3); • connect the 9-pin female connector (fig. A.3) to the serial port. TG35/58-T...
  • Page 52 ATTACHMENT A - ACCESSORIES AND SPARE PARTS (Fig.A.3) TG35/58-T...
  • Page 53 6 6 6 6 6 o i t i t c ) g i 7 7 7 7 7 r o f a r t 8 8 8 8 8 i t c 9 9 9 9 9 TG35/58-T...
  • Page 54: A.2 Spare Parts

    ATTACHMENT A - ACCESSORIES AND SPARE PARTS NOTE: In the table fig. A.3 Description and IN/OUT columns always are related to signal printer A.2 SPARE PARTS (Tab.A.4) (Tab.A.5) s l l i n i TG35/58-T...
