1. INSTALLATION AND USE
5
(Fig.1.21)

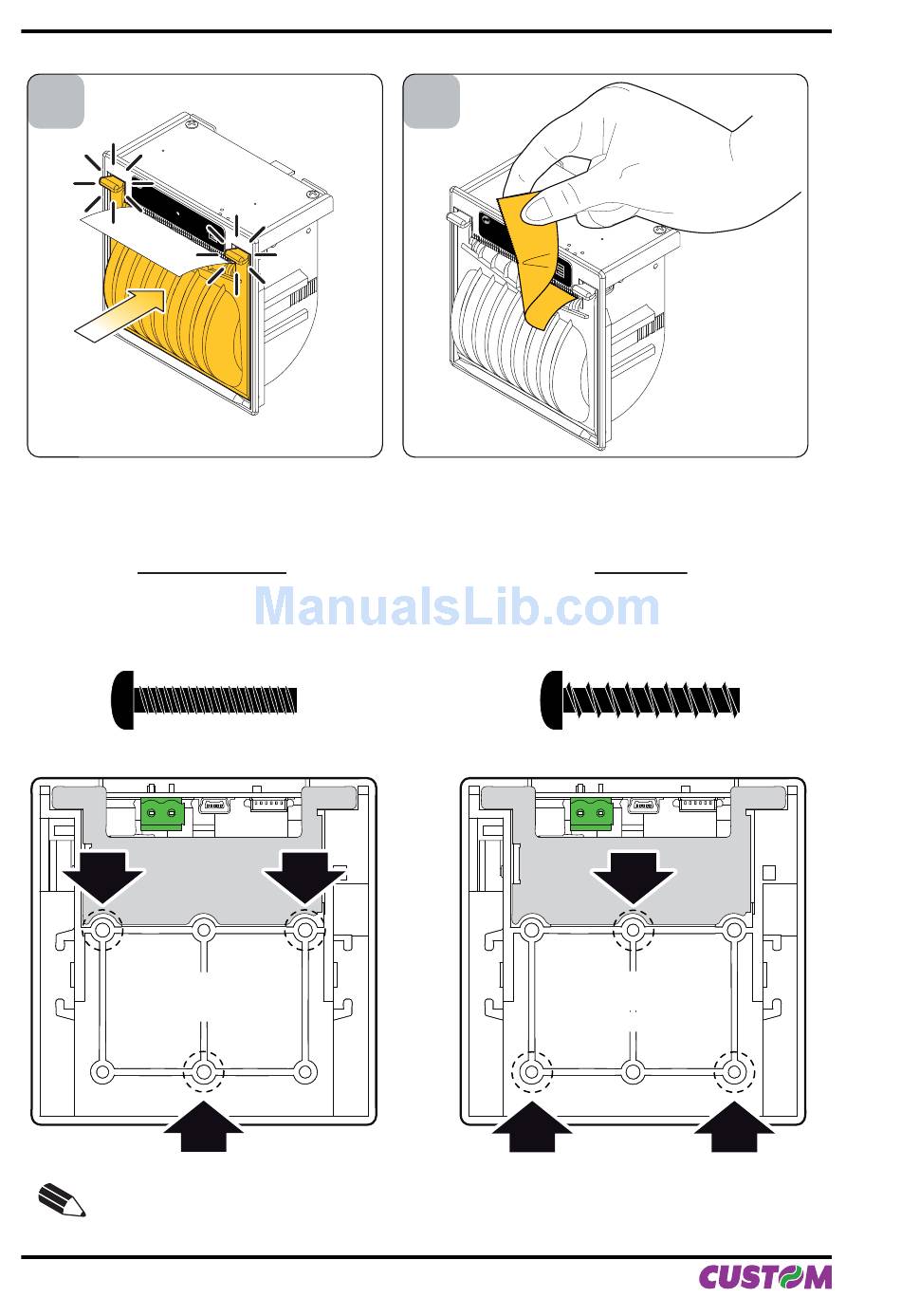

1.10.2 Notes about the installation

Fixing to the panel
Fix the printer in the 3 holes as shown in the scheme
(A) (see fi g.1.23), using M3 tapping screws (n.3).
(Fig.1.23)
A
NOTE:
The mounting operations are valid for all the PLUS II models.
1-16 PLUS II
User Manual
6
(Fig.1.22)
Fix the printer in the 3 holes as shown in the
scheme (B) (see fi g.1.24), using 3 screws for plastic
d=3 (6 mm usable length).
(Fig.1.24)
Fixing back
B
