1.4.2 Setting serial interface

The JP2 and JP1 jumpers on controller board (see Fig.1.8) manages the setting of parallel interface as indicated:
• If JP1 and JP2 are closed:
• If JP1 and JP2 are open:

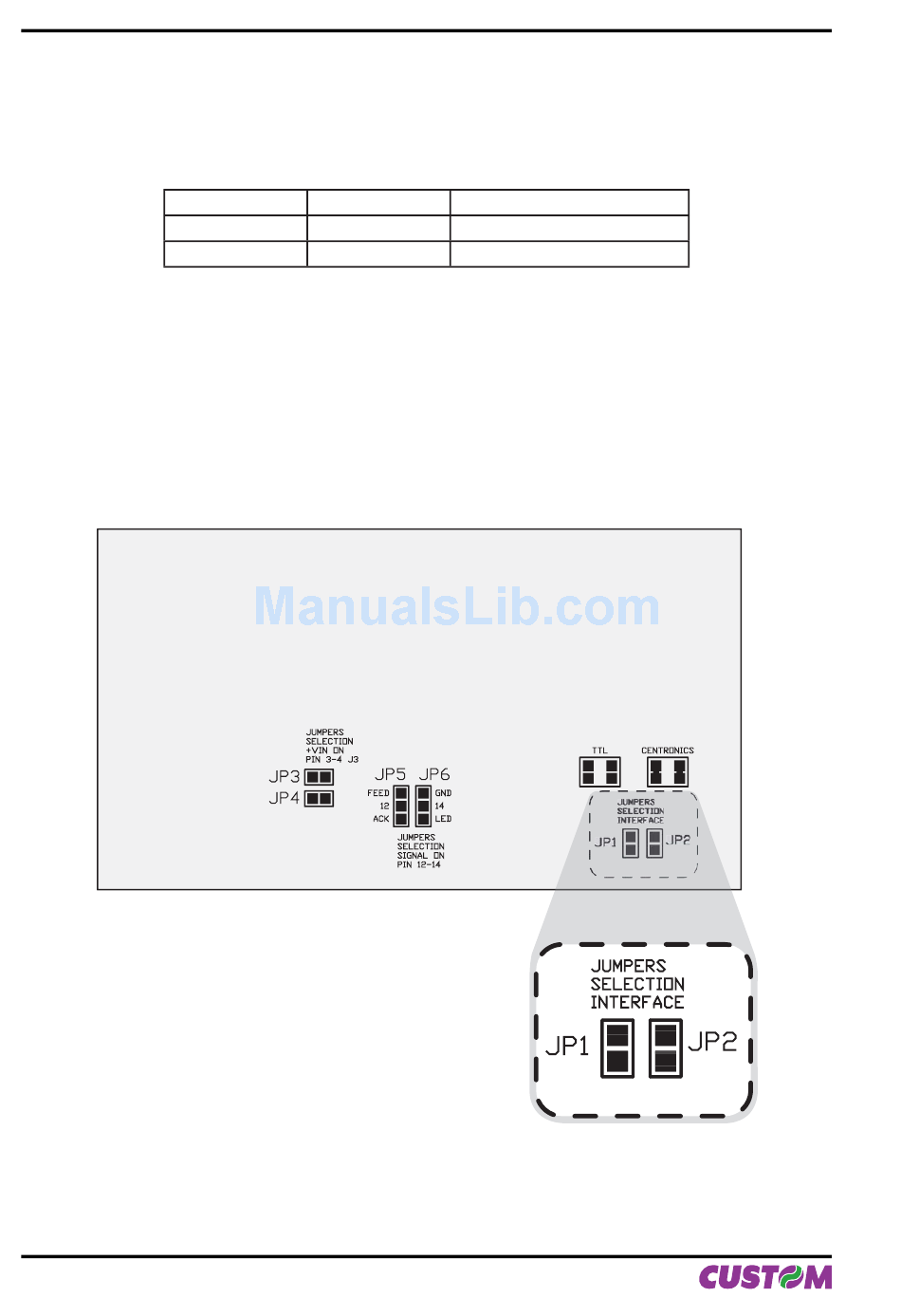

Refer to Fig.1.8 for the JP1 and JP2 jumpers position.
1-8 PLUS II
User Manual
JP1 JP2
CLOSED CLOSED
OPEN OPEN
the Centronics parallel interface is selected.
the TTL parallel interface is selected.
JUMPERS
SELECTION
+VIN ON
PIN 3-4 J3
JP3
FEED
JP4
PARALLEL INTERFACE SELECTION
Centronics
JP5 JP6
GND
12 14
ACK LED
JUMPERS
SELECTION
SIGNAL ON
PIN 12-14
TTL
(Fig.1.8)
TTL CENTRONICS
JUMPERS
SELECTION
INTERFACE
JP2
JP1
