GENERAL FEATURES

PLUS II is the new ultra-compact thermal panel printer, paper width 57,5 mm, with "SIXLOAD" easy paper loading
system. PLUS II is performing and versatile, able to satisfy any printing requirements for industrial automation
and garage equipment. In particular, PLUS II is suitable for measurement instrument applications, analysis and
check, weighing systems, gas analyser, anti-theft devices, autoclaves, Pos.
PLUS II is provided with the innovative fi xing system "EASYLOCK": this system allows to fi t the printer to any
panel thickness. Moreover PLUS II can be equipped with a plastic surround which makes mechanically com-
patible with CUSTOM F and P series panel printers.
PLUS II is available with serial RS232/TTL interface, parallel Centronics/TTL, USB and paper sensor. It's
equipped with a 204 dpi thermal printing mechanism, using 57,5 mm-wide paper rolls. It can print 24, 32, 40 or
42 characters per line according to the printer's model and to the selection made at the Setup stage or through
a software command. Printer manage LINERLESS paper.

PRINTER DESCRIPTION

The printer has an ABS casing with a front cover which opens to allow access to the paper roll and print head.

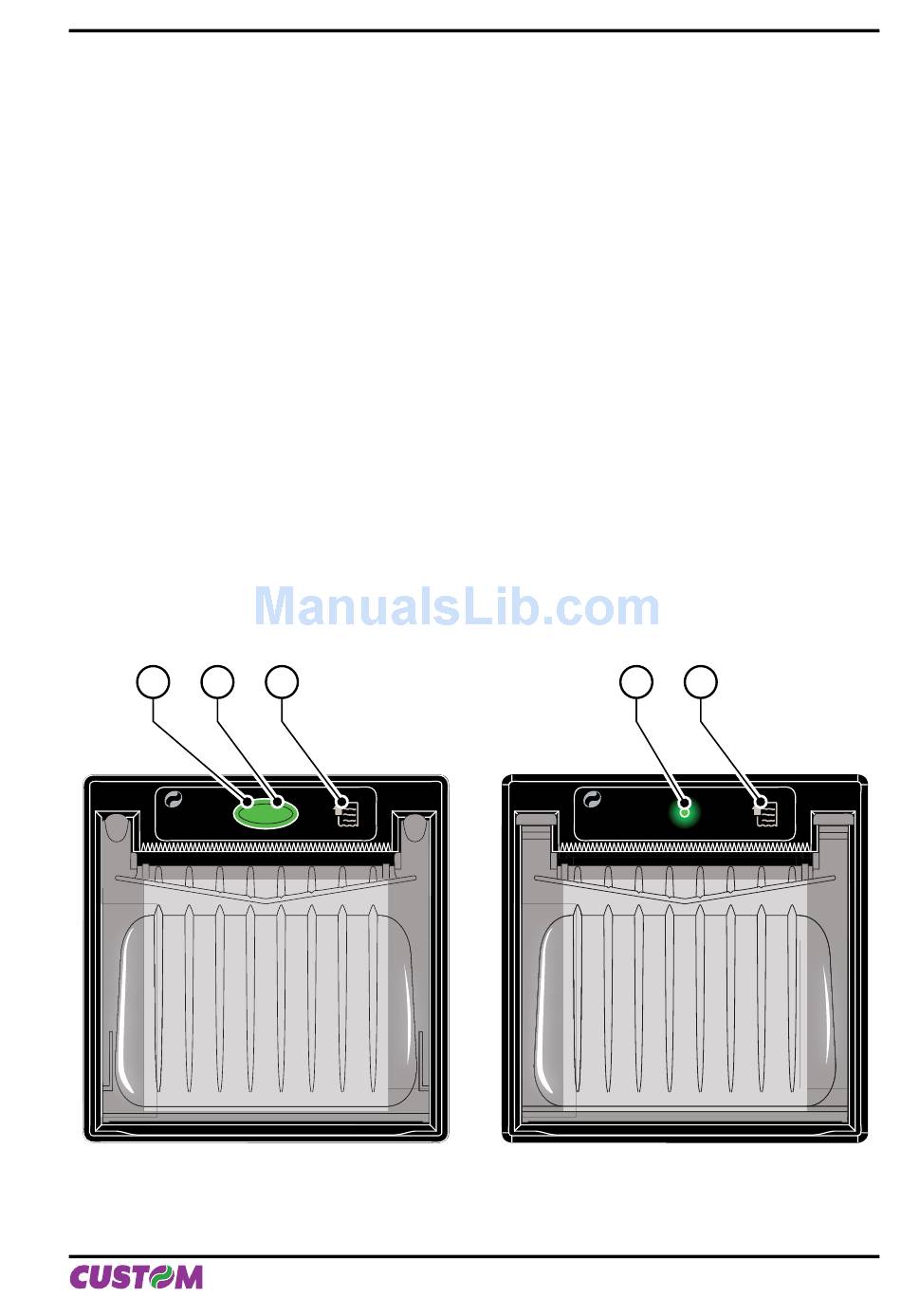

The control panel is located on the front (see fi g.2) and has a FEED key (3) and an OPEN key (1) for paper
roll compartment opening. The OPEN key is made of transparent plastic material so it works also a STATUS
Led (2).
In the PLUS II model with the OPTION -0128, the OPEN key is not present because the front panel is opened
by the two plastic hooks (see fi g.3).
1 2
PLUS II
3
(Fig.2)
INTRODUCTION
2 3
PLUS II (OPTION -0128)
User Manual
(Fig.3)
PLUS II 3
