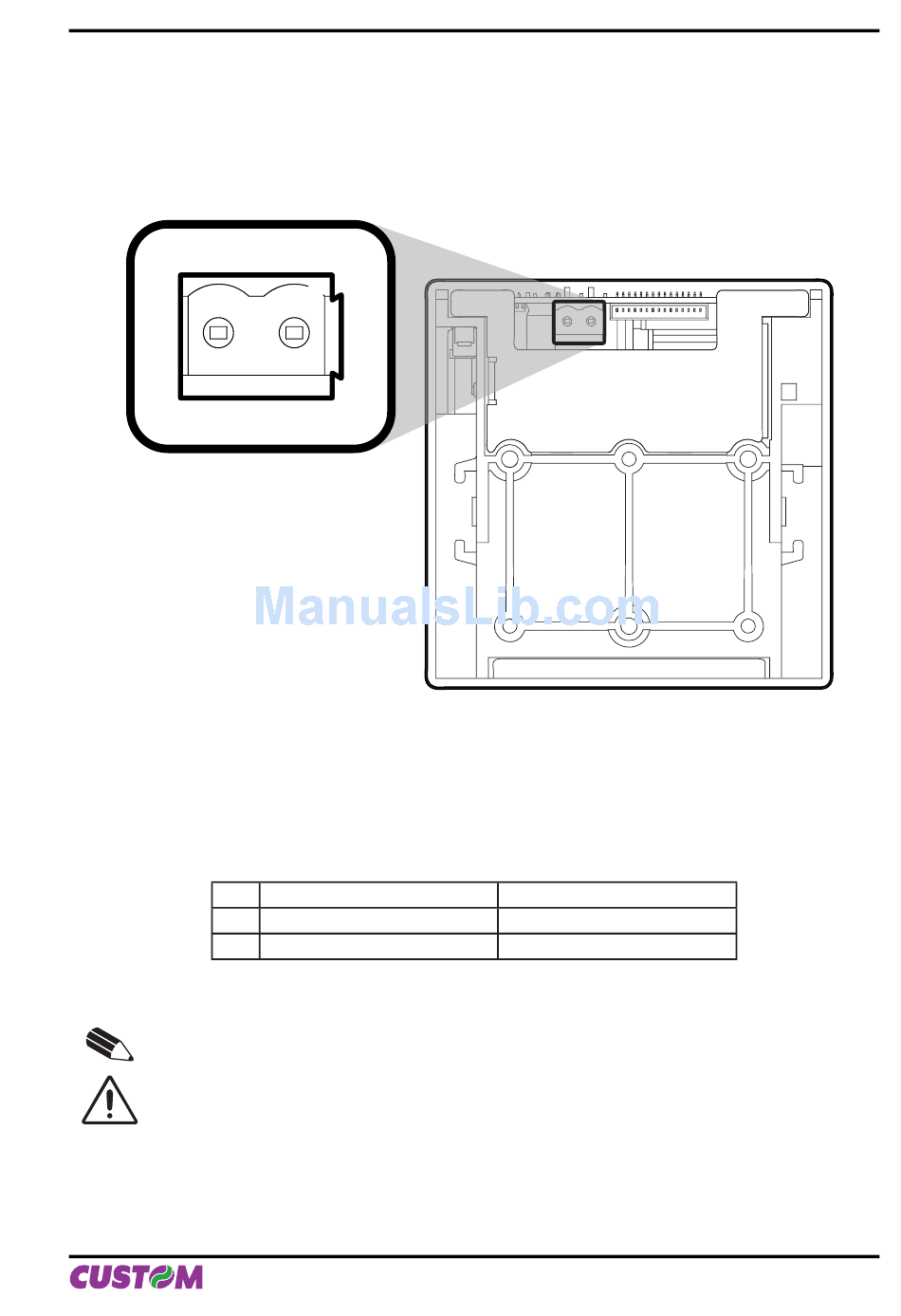

1.5 CONNECTIONS OF PLUS II-C-0004

1.5.1 Power supply

The printer is equipped with a 2 pin male connector terminal block (90°) for the power supply. The signals on
the connector pins are as follows:
Model no. type:
Header: 90° Terminal block
(pitch 5.08mm)
Housing: Terminal block
(AWG 20-14)
PIN
1
2
NOTE
(*) For the electrical specifi cations see Chapter 3.
WARNING
Respect the polarity of the power supply.
1
(Fig.1.9)
SIGNAL
GND
+Vin*
1. INSTALLATION AND USE
DESCRIPTION
Ground signal
Logic supply voltage
