Custom Engineering s'print User Manual

Portable thermal
Hide thumbs Also See for s'print:
Table of Contents

Advertisement

Quick Links

User Manual
Portable thermal printer
s'print
www.custom.biz
DPT100-B/I/BT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the s'print and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Custom Engineering s'print

Summary of Contents for Custom Engineering s'print

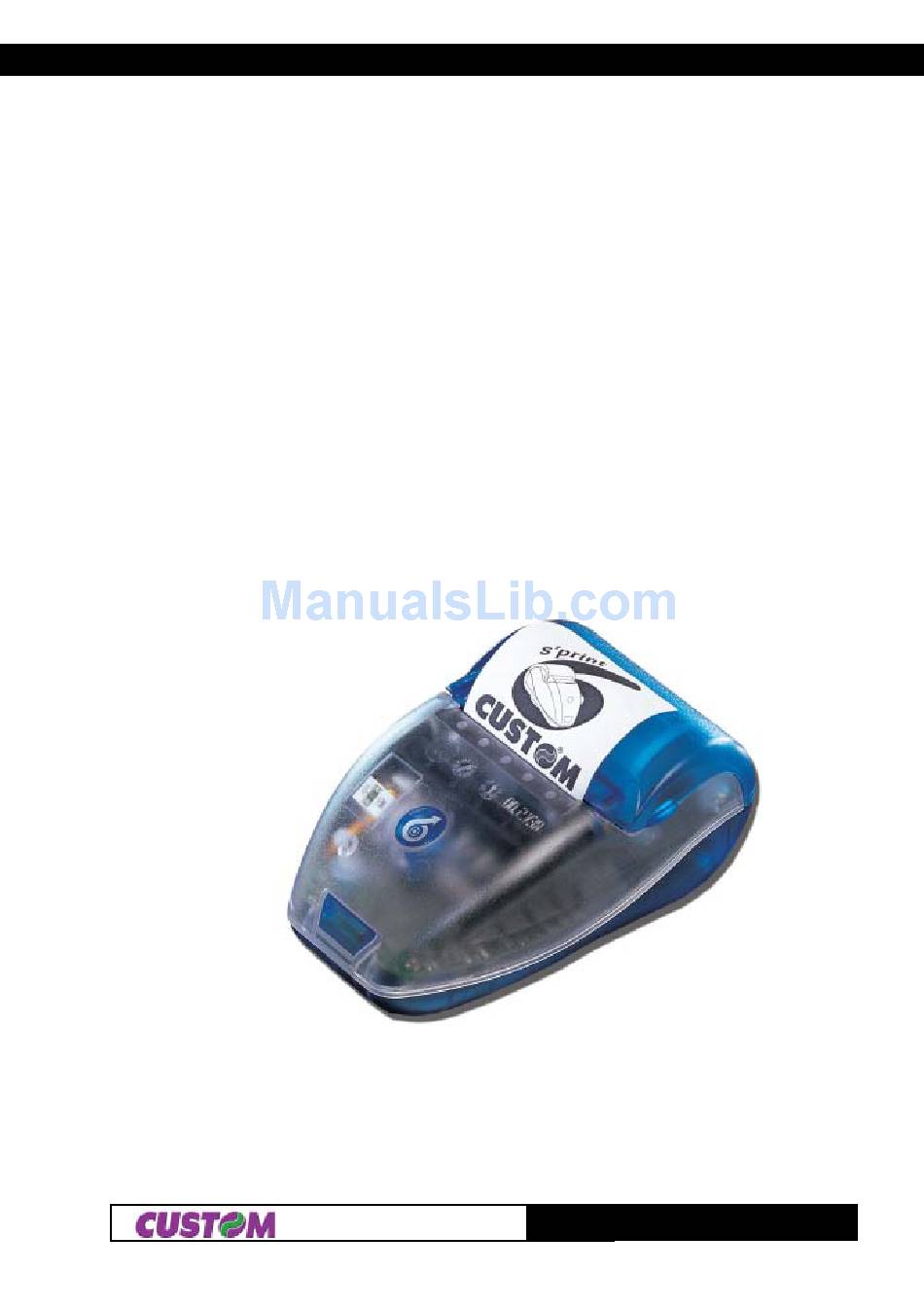

  • Page 1 User Manual Portable thermal printer s’print www.custom.biz DPT100-B/I/BT...
  • Page 2 All rights reserved. Total or partial reproduction of this manual in whatever form, whether by printed or electronic means, is forbidden. While guaranteeing that the information contained in it has been carefully checked, CUSTOM ENGINEERING SPA and other entities utilized in the realization of this manual bear no responsibility for how the manual is used.
  • Page 3 PRINTER COMPONENTS A. DPT100-B – Front external view 1- Printer base 2- Cover 3- Paper holder 4- Printing mechanism 5- Multi-function + ON key 6- Paper exit slot 7- Infrared device DPT100-B/I/BT...
  • Page 4 B. DPT100-B – Under view 1- Serial connector and battery recharger 2- Battery compartment DPT100-B/I/BT...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION MANUAL CONTENTS ............................1 EXPLANATORY NOTES USED IN THIS MANUAL ................... 1 GENERAL SAFETY INFORMATION ........................ 1 UNPACKING THE PRINTER ........................... 2 PRINTER FEATURES ............................2 PRINTER DESCRIPTION ..........................3 1. INSTALLATION AND USE 1.1 CONNECTIONS ............................. 1-1 1.1.1 Battery recharger ..........................
  • Page 6 TABLE OF CONTENTS 4. TECHNICAL SPECIFICATIONS 4.1 TECHNICAL SPECIFICATIONS ......................4-1 4.2 ADAPTOR SPECIFICATIONS ........................ 4-4 4.3 DIMENSIONS ............................4-5 5. CHARACTER FONTS 5.1 CHARACTER SETS ..........................5-1 APPENDIX A - ACCESSORIES AND SPARE PARTS A.1 TICKET ALIGNMENT ..........................A-1 A.1.1 Ticket alignment ..........................

  • Page 7: General Safety Information

    INTRODUCTION MANUAL ORGANIZATION In addition to the Introduction which includes a description of the explanatory notes used in the manual, general safety information, how to unpack the printer and a brief description of the printer including its basic features, this manual is organized as follows: Chapter 1: Contains the information required for correct printer installation and its proper use, as well as interface specifications...

  • Page 8: Unpacking The Printer

    OPP (Object Push Profile) enabling the print-out of vCard format objects (business cards). It is important to note that s’ print is the first Custom printer designed with “sixload” easy paper load, making it simpler and more convenient to use.

  • Page 9: Printer Description

    INTRODUCTION NOTE: The 40 column version is downloadable on the Support/Download/Firmware section from www.custom.it web site. PRINTER DESCRIPTION The printers consists of a ABS-V0 casing (1) equipped with a cover (2) under which is housed the paper roll and print mechanism. On the front is the multi-function key (3) and red LED (4).
  • Page 10 INTRODUCTION Blank page DPT100-B/I/BT...

  • Page 11: Installation And Use

    1. INSTALLATION AND USE 1.1 CONNECTIONS (Fig.1.1) 1.1.1 Battery Recharger For the Battery Recharger/Power Supply and serial connection, the printer is equipped with a connecting cable (fig. 1.2) that comes packed with the printer and has a double connection system. On one side is a 9-pin female connector (fig.

  • Page 12: Batteries

    1. INSTALLATION AND USE Turning the printer On and Off using software commands If the printer is off, sending a characters set on the serial line will turn it on . Follow the instructions shown (2)(3) in the diagram below: (Fig.1.3) START NOTE...

  • Page 13: Information Regarding Battery Use

    Only utilize batteries that conform to specifications and only recharge them using battery rechargers approved by CUSTOM ENGINEERING SPA. When the battery recharger is not in use, unplug it from the electrical mains. If not used, even a completely- charged battery will automatically discharge over time.
  • Page 14 1. INSTALLATION AND USE (Fig.1.5) remove the battery pack (2) by lifting the battery removal tape (1) (see fig. 1.6). (Fig.1.6) insert the 5 batteries inside the compartment following the layout indicated in fig. 1.7 and re-position the battery removal tape; Note: when inserting the batteries, make sure the + and –...

  • Page 15: Disposing Of Batteries

    1. INSTALLATION AND USE 1.2.4 Disposing of batteries • The crossed-out wheeled bin symbol indicates that the disposing of batteries must not be run through the normal cycle of waste disposal. • Batteries must be recycled or disposed of properly. Do not throw batteries away as part of normal refuse disposal.

  • Page 16: Configuration Mod. Dpt100-Bt

    1. INSTALLATION AND USE (for example 1.5 msec at 9600 bps). The reason is for Half Duplex type of infrared line communication. As a result the Busy condition check must be waited when transmitting data to the printer. If said condition would slow down print-out, it is alternatively possible to transmit the bytes to be printed in fixed length blocks (for example 16 bytes at a time) and to wait for the necessary time to receive a likely XON/XOFF.
  • Page 17 1. INSTALLATION AND USE (Fig.1.10) SETUP DEFAULT : Test = OK NAME = S’print-BT = 12345 (13) ADDR = 00:0E:6D:CE:39:8D HEAD TEMP. [°C] = 27.5 BATT TEMP. [°C] = 25 HEAD VOLT = 6.2 Interface Bluetooth Name ID : NO ID Authenticat : Enabled (13)

  • Page 18: Hexadecimal Dump

    1. INSTALLATION AND USE NOTE: The Name ID is used to diversify one printers from another that have the same name, (15) inside the same area. The index will be added at the end of the name (example: S’print-BT #1). It’s possible that some BlueTooth wireless remote device don’t update immediately printer name, but only at the beginning of new connection.

  • Page 19: Maintenance

    1. INSTALLATION AND USE (Fig.1.11) 1.6 MAINTENANCE 1.6.1 Changing the paper roll To change the roll of paper, proceed as follows: Open the printer cover (see fig. 1.12) levering on the cover lateral projections and position the paper roll so that it unrolls in the direction shown in figure 1.13; (Fig.1.12) (Fig.1.13) DPT100-B/I/BT...

  • Page 20: Cleaning

    1. INSTALLATION AND USE Pull up on the edge of the paper and close the cover (fig. 1.14); (Fig.1.14) Tear off the paper. The printer is now ready (fig.1.15). (Fig.1.15) 1.6.2 Cleaning To clean the printer, use a vacuum cleaner or soft cloth. Before cleaning the printer, unplug its electrical cord and make sure that the printer is off.
  • Page 21 1. INSTALLATION AND USE 1.6.3 Cleaning the printing head WARNING • Do not touch the head printing line with bare hands or metal objects. • Do not perform any operation inside the printer immediately after printing because the head and motor tend to become very hot.
  • Page 22 1. INSTALLATION AND USE 1.6.4 Cleaning the rubber roll To clean the rubber roll proceed as follows: • Turn the printer off briefly pressing the multifunction key, located on the front, two times. • Lift the paper compartment cover. • Clean the rubber roll using a medium-stiff brush to avoid them being scratched (see fig.

  • Page 23: Interfaces

    2. INTERFACES (Fig.2.1) 2.1 RS232 SERIAL The printer is equipped with an RS232 serial interface with RJ11 connector (fig. 2.1) located underneath the printer. For serial connection, a connecting cable (fig. 2.2) with double connection system is packed with the printer.
  • Page 24 2. INTERFACES RJ11 connector DPT100 (fig. 2.1) (Tab.2.1) a t l 9-pin female connector (fig. 2.2.A) (Tab.2.2) i r r c i f v i t l a i l a i v i t v i t The diagrams below show a sample connection between printer and Personal Computer using a 9- and 25-pin female connector.

  • Page 25: Infrared Bidirectional Serial

    2. INTERFACES SIGNAL GND (Fig.2.3) 9-pin connector (s’print cable) 2.2 INFRARED BIDIRECTIONAL SERIAL (only DPT100-B model) The printer has a serial interface for bidirectional data exchange. The infrared port is centered on the power part of the front (see fig. 2.4); it uses the encode method bits as described in the IrDA physical layer, for speeds up to 115.2 kbps (a 3/16th optical pulse time of bit time).

  • Page 26: Standard Mode

    START COMMAND. EXAMPLE: To use this protocol to print the text “CUSTOM” in double height and width, send the following data to the printer NOTE:The LED is always switched on (not flashing) when using the infrared port.
  • Page 27 IDJOB field and repeat the transmission. EXAMPLE: To use this protocol to print the text “CUSTOM” in double height and width, send the following data to the printer : DPT100-B/I/BT...

  • Page 28: Printing Instructions

    2. INTERFACES 2.2.3 Printing instructions To use the printer’s infrared port, a computer or Personal Digital Assistant (PDA) with IR port is required. Position a computer conforming to the specifications in point 2) not more than a meter away from the printer’s infrared port.

  • Page 29: Irda Data Protocols Supported

    2. INTERFACES • IrCOMM • IrMC • IrDA Lite Figure 2-6 shows the IrDA data protocol stack and which components are implemented by the printer. (Fig.2.6) Printer Application IrTran-P IrObex IrLan IrComm IrMC LM-IAS Tiny Transport protocol (Tiny TP) IR Link Access Protocol (IrLAP) Asynchronous Synchronous Synchronous...

  • Page 30: Irlap

    2. INTERFACES 2.3.1.2 IrLAP The IrLAP protocol provides: • Management of communication processes on the link between devices. • A device-to-device connection for the reliable, ordered transfer of data. • Device discover procedures. • Hidden node handling. Figure 2-6 identifies the key parts and hierarchy of the IrDA protocols. The bottom layer is the Physical layer, IrPHY.

  • Page 31: Link Management-Information Access Service

    2. INTERFACES 2.3.1.4 Link Management-Information Access Service (LM-IAS) Each LM-IAS entity maintains an information data base to provide: • Information on service for other devices that contain the IrDA standard feature (Discovery) • Information on service for the device itself •...

  • Page 32: Ias Entry And Hint Bits

    2. INTERFACES • 3-Wire raw uses an IAS entry with classname IrDA:IrCOMM and at least two parameters. Its IAS definition may be modified or extended over time. IrLPT has classname IrLPT, only one parameter, and the IAS definition isfixed. IAS entry formats are defined in the next section. Beyond these two distinctions, 3-Wire raw and IrLPT are the same.

  • Page 33: Serial Port Profile

    2. INTERFACES (Fig.2.10) Printer Application Object Push Serial Port Profile (OPP) Profile (SPP) OBEX RFCOMM L2CAP Host Controller Interface Link Manager Link Controller Radio 2.4.1.1 Serial Port Profile The Serial Port Profile provides RS232 serial cable emulation for Bluetooth wireless technology devices. In this way, legacy applications do not have to be modified to use Bluetooth technology;...
  • Page 34 2. INTERFACES Blank page DPT100-B/I/BT...

  • Page 35: Printer Functions

    3. PRINTER FUNCTIONS 3.1 CONTROL CHARACTERS The command table lists all the commands for the management of the printer functions. These commands can be transmitted to the printer with the serial interface. The commands can be transmitted to the printer at any moment, but they will only be carried out when the characters previously transmitted have been printed or the commands previously transmitted have been carried out.
  • Page 36 3. PRINTER FUNCTIONS n i l g i l r i f n i l The following pages provide a more detailed description of each command. [Name] Small character printing [Format] ASCII Decimal [Description] The printer prints in small characters (normal) [Notes] •...
  • Page 37 3. PRINTER FUNCTIONS [Name] Expanded printing [Format] ASCII Decimal [Description] The printer prints in expanded character mode [Notes] • commands $00 - $09 do not cancel the print buffer • the commands which modify the dimensions of the characters are only active at the beginning of the line [Default] Setting in the option register by means of the front keys...
  • Page 38 3. PRINTER FUNCTIONS [Example] [Name] Forward feeds (n) lines [Format] ASCII Decimal [Description] Carries out the number of line feeds specified in (n) [Notes] •The number must be ASCII and between 0 and 9 (when n=0 the command is ignored) •...
  • Page 39 3. PRINTER FUNCTIONS [Description] Enables graphic mode: a line in 24 column mode corresponds to 144 horizontal dots divided into 24 blocks of 6 dots each; a line in 40 column mode corresponds to 240 horizontal dots divided into 40 blocks of 6 dots each.
  • Page 40 3. PRINTER FUNCTIONS • After the command execution the printer ignores all the characters received from the communication port until to the next $1B $02 reception. • After receiving this command the infrared led is functioning, as usual. [Default] [Reference] $1B $02 [Example] [Name]...
  • Page 41 3. PRINTER FUNCTIONS which was enabled at the moment of switching on [Notes] • Same as hardware reset • After the command has been transmitted, 1.5 seconds elapse before the printer is enabled [Default] [Reference] [Example] This can be useful during switching on in order to avoid the sending of false characters during initialization by the master device.
  • Page 42 3. PRINTER FUNCTIONS devices ( for example mobile phone), which allow PINs entered, will not support alphanumeric entry, devices sold with fixed PINs should be sold with a note of the PIN given as decimal digits. [Default] [Reference] [Example] • To reads the BT Name assigned to the printer send the following command : The printer’s answer is as follows (if BT Name is S’print BT) : Printer [ASCII]...
  • Page 43 3. PRINTER FUNCTIONS [Example] [Name] Enable underlined printing [Format] ASCII Decimal [Description] After this command has been received, the characters are printed underlined [Note] [Default] [Reference] $1B $71 [Example] [Name] Set reverse mode printing [Format] ASCII Decimal [Description] Selects printing in reverse mode: the receipt feeds out of hte printer with the printing in normal mode running from left to right.
  • Page 44 3. PRINTER FUNCTIONS [Example] [Name] Management of bar code printing [Format] ASCII ESC c [code] [height] [position] [options] [length] [data] Decimal [Description] This command executes a barcode printing depending on the following parameters: [code] = Type of bar code (ASCII character) VALUES: Interleved 2/5 Code 39...
  • Page 45 3. PRINTER FUNCTIONS o i t o i t [maximum length] Interleaved 2/5 = 12 characters Code 39 = 10 characters CodaBar = 10 characters EAN8 = 8 characters EAN13 = 13 characters [data] = Expressed in ASCII. [Notes] [Default] [Reference] [Example] In the following example is listed the command sequence to print a barcode :...
  • Page 46 3. PRINTER FUNCTIONS [Name] Disables underlined printing [Format] ASCII Decimal [Description] Annuls underlined printing [Notes] [Default] [Reference] $1B $51 [Example] [Name] Transmits the next character in serial [Format] ASCII Decimal [Description] Transmits the next character it receives on the serial port [Notes] [Default] [Reference]...
  • Page 47 3. PRINTER FUNCTIONS 0 1 , y l r a t l a t l [Default] [Reference] [Example] [Name] Set absolute shift into a graphic line. [Format] ASCII Decimal [Range] 0 n 47 [Description] Set the print beginning position into a graphic line based on the current value of n that indicate the byte number of shift from left margin.
  • Page 48 3. PRINTER FUNCTIONS there could be a time lag between command reception and data transmission, depending on data buffer status. [Default] [Reference] [Example] [Name] Resets the printer parameters to default. [Format] ASCII Decimal [Description] Resets the printer parameters to the default configuration. [Notes] •...
  • Page 49 3. PRINTER FUNCTIONS [Example] To print a logo on a ticket that is 25 mm long with the hole (or notch) at the end of the ticket, the following command must be sent: $1D, $F6, $FF, $7B (perform alignment) $1B, $FA, $00, $55 (print logo) In this example, nH and nL are expressed in module 2 so that the motor will recede.

  • Page 50: Technical Specifications

    -20°C ÷ +70°C / 10 %Rh ÷ 90 %Rh Dimensions 145.96mm x 88.18mm x 64.61mm Weight 370 g (without paper roll) Note : STANDARD CUSTOM receipt and 1300 mAh battery. It depends by the battery status, the printing typology and the environment temperature. DPT100-B/I/BT...
  • Page 51 -20°C ÷ +70°C / 10 %Rh ÷ 90 %Rh Dimensions 145.96mm x 88.18mm x 64.61mm Weight 370 g (without paper roll) Note : STANDARD CUSTOM receipt and 1300 mAh battery. It depends by the battery status, the printing typology and the environment temperature. DPT100-B/I/BT...
  • Page 52 Note: The 40 column version is downloadable on the Support/Download/Firmware section from www.custom.it web site. Note: Support v. 1.1 of the BlueTooth Specification. LED safety The infrared port on the front of the printer conforms to Class 1 for LED devices (light-emitting diode), on the basis of international standard IEC 825-1 (EN 60825-1).

  • Page 53: Adaptor Specifications

    4. TECHNICAL SPECIFICATIONS 4.2 ADAPTOR SPECIFICATIONS 220Vac Adaptor (Tab.4.4) 120Vac Adaptor (Tab.4.5) DPT100-B/I/BT...

  • Page 54: Dimensions

    4. TECHNICAL SPECIFICATIONS 4.3 DIMENSIONS Printer dimensions are shown below. (Fig.4.1) 213,9 88,18 64,61 DPT100-B/I/BT...
  • Page 55 4. TECHNICAL SPECIFICATIONS Blank page DPT100-B/I/BT...

  • Page 56: Character Sets

    5. CHARACTER SETS 5.1 CHARACTER SETS The printer has a 224-character font, a print-out of which is shown below. (Fig.5.1) DPT100-B/I/BT...
  • Page 57 5. CHARACTER SETS Blank page DPT100-B/I/BT...

  • Page 58: Appendix A - Accessories And Spare Parts

    APPENDIX A - ACCESSORIES AND SPARE PARTS A.1 TICKET ALIGNMENT A.1.1 Ticket alignment Paper stock with alignment marks is permitted so that tickets of a fixed length or with pre-printed areas may be utilized.To guarantee proper alignment, the “Alignment” parameter must be enabled under setup using the key (see: setting configuration parameters) The notch mark must be placed on the termic side of the ticket itself (printable area);...

  • Page 59: Alignment Description

    APPENDIX A - ACCESSORIES AND SPARE PARTS A.1.2 Alignment Description The $1D $F6 command searches for the reference notch on the paper and move the label with the value of nH e nL parameters. For move in the exact point for printing on the label just give the right values to parameters nH and nL.

  • Page 60: Accessories

    APPENDIX A - ACCESSORIES AND SPARE PARTS A.2 ACCESSORIES A.2.1 Belt coupler In the s’print-B battery model, there is a support kit available for the printer that consists of a belt and fastening screws. The figure below illustrates how the belt coupler is attached underneath the printer. (Fig.A.3) A.3 SPARE PARTS (Tab.A.2)
