2. INTERFACES

2.2 INTERFACE OF PLUS II-S-0004

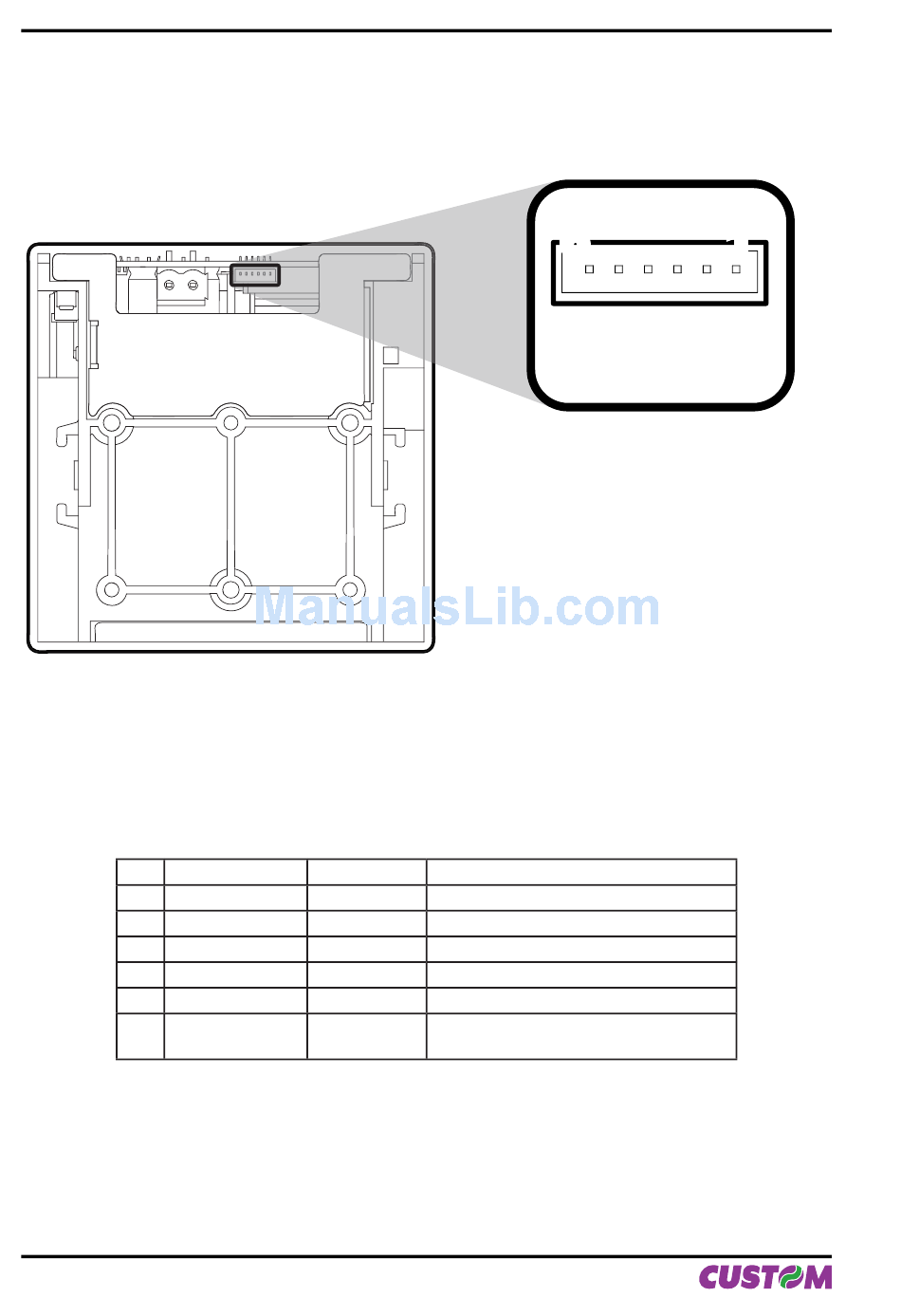

The printer with RS232 interface has a 6-pin male connector AMP-MODU II (90°). Refer to the table below for
the connector pin signals:
Model no. type:
Header: AMP-MODU II (no. 280379-2)
Housing: AMP-MODU II (no. 280360)
PIN
1
2
3
4
5
POWER-ON
6
2-4 PLUS II
User Manual
SIGNAL IN / OUT
DTR OUT
TX OUT
RX IN
GND
RESET IN
IN
6
RS232
(Fig.2.3)
DESCRIPTION
Data terminal ready
Data transmission
Data reception
Ground signal
Reset signal (active at a low level)
Power-On signal (an impulse of at least
500 m/sec. active at a high level)
1
(Tab.2.2)
