Appendix A - Accessories And Spare Parts; Accessories; Power Supply - Custom Engineering PLUS II User Manual

A.1 ACCESSORIES
A.1.1 Power supply

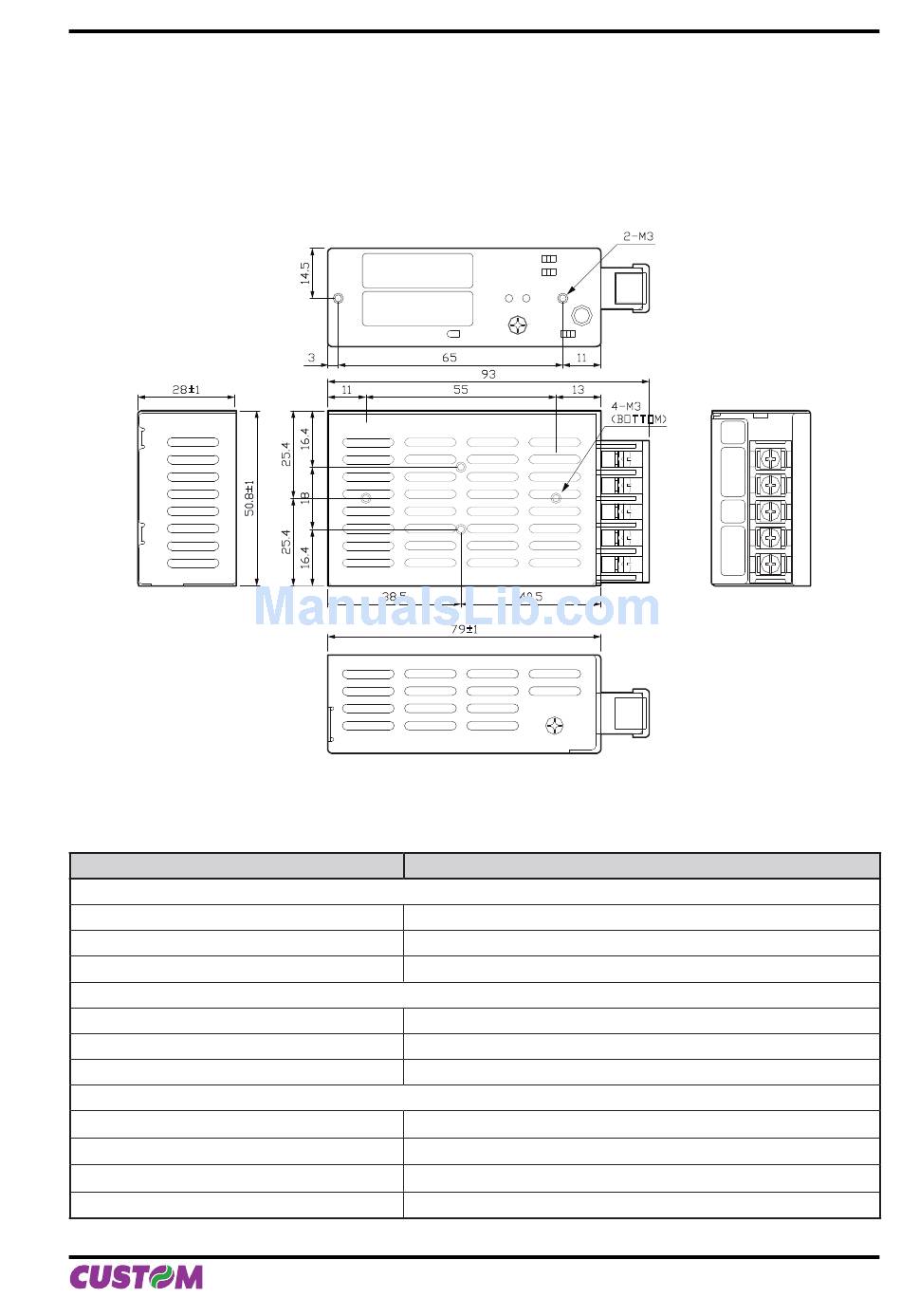

The fi g.A.1 illustrates the power supply provided by Custom to be used for printer operation of PLUS II-S, PLUS
II-S-0004, PLUS II-T, PLUS II-C, PLUS II-C-0004, PLUS II-P. The tab.A.1 gives the main technical specifi ca-
tions for power supply.
28±1
PPSPS-0025-05
Input specifi cations
Input voltage
Current
Input frequency
Output specifi cations
Output voltage
Output current min.-max.
Effi ciency min.
Environmental conditions
Operating temperature
Humidity
Storage temperature / Humidity
Protection devices:

APPENDIX A - ACCESSORIES AND SPARE PARTS

3 65
11 55
38.5
79±1
1. TERMINAL BLOCK: 5P, PITCH 7.62 mm WITH PC COVER
2. UNIT: mm
2-M3
11
93
13
4-M3
(BOTTOM)
40.5
Switching power supply 5V 25W
AC: 85 ÷ 264 V
0.8 A max at 100 V AC input
47 ÷ 63 Hz
5 V
5 A
72%
- 25 °C ÷ 70 °C
20 ÷ 85 %
- 25 ÷ 75 °C / 10 ÷ 95 % Rh (w/o condensation)
Short-circuit, overload and overvoltage.
60-460-175-1.2
60-465-175-1.2
+V
-V
PE
N
L
(Fig.A.1)
(Tab.A.1)
DC: 120 ÷ 375 V
