TG35-58
WWW.CUSTOM.IT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ticket Gaming TG35 and is the answer not in the manual?

Questions and answers

Related Manuals for Custom Engineering Ticket Gaming TG35

Summary of Contents for Custom Engineering Ticket Gaming TG35

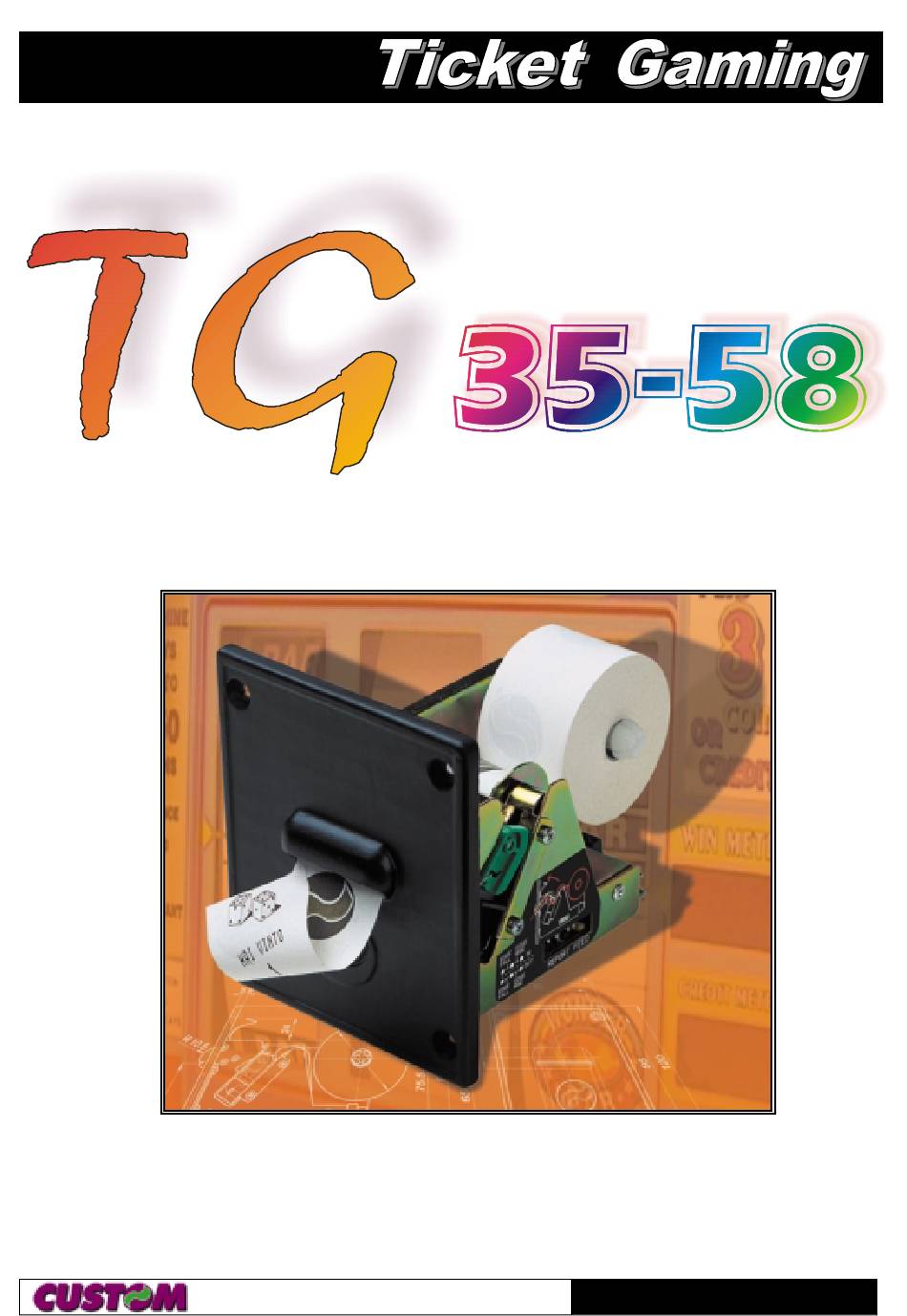

  • Page 1 TG35-58 WWW.CUSTOM.IT...

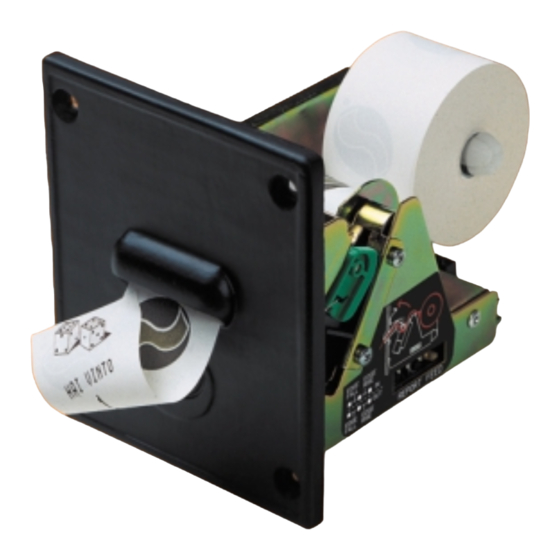

  • Page 2 Parts of the printer 1 - Print mechanism 2 - “Report” key 3 - “Feed” key 4 - Paper roll support 5 - Case 6 - Front panel (optional) 7 - Feed connector 8 - Token unit coupling connector 9 - TTL serial interface connector 10 - Led TG35-58...
  • Page 3 All rights reserved. The reproduction of this manual, either totally or partially, in any form whatsoever, whether it be on paper or through computer processes, is strictly prohibited. Custom Engineering s.r.l. and the resource teams employed in the making of this manual will not be held responsible for any problems arising as a result of improper use of this manual, as they guarantee that the information contained in it has been subjected to careful inspection.
  • Page 4 Declaration of Conformity “CE” N°: DC0390999 According to ISO/IEC Guide 22 and EN 45014 Manufacture’s Name: Custom Engineering s.r.l. Manufacture’s Address: Strada Berettine 2 Fontevivo (Parma) Italy Declare the product: Product name: Ticket gaming Product type: Model: TG35, TG58 Conform to the following directives: Electromagnetic Compatibility Directive 89/336/EEC;...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION GENERAL FEATURES DESCRIPTION OF THE PRINTER 1. INSTALLATION AND USE 1.1 CONNECTIONS 1.1.1 Power Supply and Input/Output 1.2 CONFIGURATION BY REPORT AND FEED KEYS 1.3 AUTOTEST 1.4 CAUTIONS 1.5 TICKET CHARACTERISTIC 2. TECHNICAL SPECIFICATIONS 2.1 TECHNICAL SPECFICATIONS 2.2 DIMENSIONS APPENDIX A –...

  • Page 6: Introduction

    INTRODUCTION GENERAL FEATURES The TG35-58 printer is the ideal solution for : • Gaming machines • Vending machines • Self-service machines • It does not require pre-printed and pre-numbered Tickets. The printer automatically prints the heading on the receipt, which can be completely customized, with date, time of day and progressive number. The TG35-58 printer resolves the following problems : •...

  • Page 7: Description Of The Printer

    INTRODUCTION DESCRIPTION OF THE PRINTER It is equipped with a 200 dpi thermal print mechanism that uses paper rolls with a width of 35 mm (58mm optional); it has a TTL serial interface and is also equipped with a calendar clock (Real Time Clock). The TG35-58 printer consists of a case (5) onto which the following components are fitted: thermal print mechanism (1), paper roll pin (4) front panel (6) in PPO for installation on Gaming Machines.

  • Page 8: Installation And Use

    1. INSTALLATION AND USE 1.1 CONNECTIONS 1.1.1 Power Supply and Input/Output (Fig. 1) Pin 1 Pin 1 As regards the power supply, the printer TG35-58/40 is equipped with a Ticket Outlet-compatible 4-pin male connector (J3). The signals on the pins of the feed connector are as follows: WARNING Respect the polarity of the power supply: SIGNAL...
  • Page 9 1. INSTALLATION AND USE The printer TG35-58 is equipped with a jumpers row (JP5) for setting Input/Output signals level. Jumpers for setting Input/Output signals level Pin-Out of JP5 jumpers row. The upper row select the input level The lower row select the output level Jumpers setting is as follows : JP5 Setting...

  • Page 10: Configuration By Report And Feed Keys

    1. INSTALLATION AND USE 1.2 Configuration of REPORT and FEED keys If, when the printer is switched on, both of the above-mentioned keys are held down, the printer enters configuration mode and prints the first modifiable parameter. At this point, each time the REPORT key is pressed, the parameter changes and its current value is printed.

  • Page 11: Ticket Characteristic

    1. INSTALLATION AND USE 1.5 TICKET CHARACTERISTIC The ticket has the following features : • 10 fields in which the data personal to the company can be entered; • the automatic printing of a progressive number indicating the number of tickets issued. YOU HAVE WON FREE DRINK...

  • Page 12: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.1 TECHNICAL SPECIFICATIONS The TG35-58 printer is equipped with : • a Ticket Outlet-compatible connector • an input signal connector from token unit and banknote reader • a serial communication port for downloading data from the PC and customizing the ticket •...

  • Page 13: Dimensions

    2. TECHNICAL SPECIFICATIONS 2.2 DIMENSIONS The dimensions of the TG35-58 printer are shown in the figure below. 2 - 2 TG35-58...

  • Page 14: Appendix A. Accessories And Spare Parts

    APPENDIX A. ACCESSORIES AND SPARE PARTS A.1 ACCESSORIES A.1.1 Power Supply The following figure shows the switching 12V power supply, manufactured by Custom Engineering, that can be used to operate the TG35-58 printer. GND chassis LED on 0V 12V Input specifications...
