APPENDIX A - ACCESSORIES AND SPARE PARTS

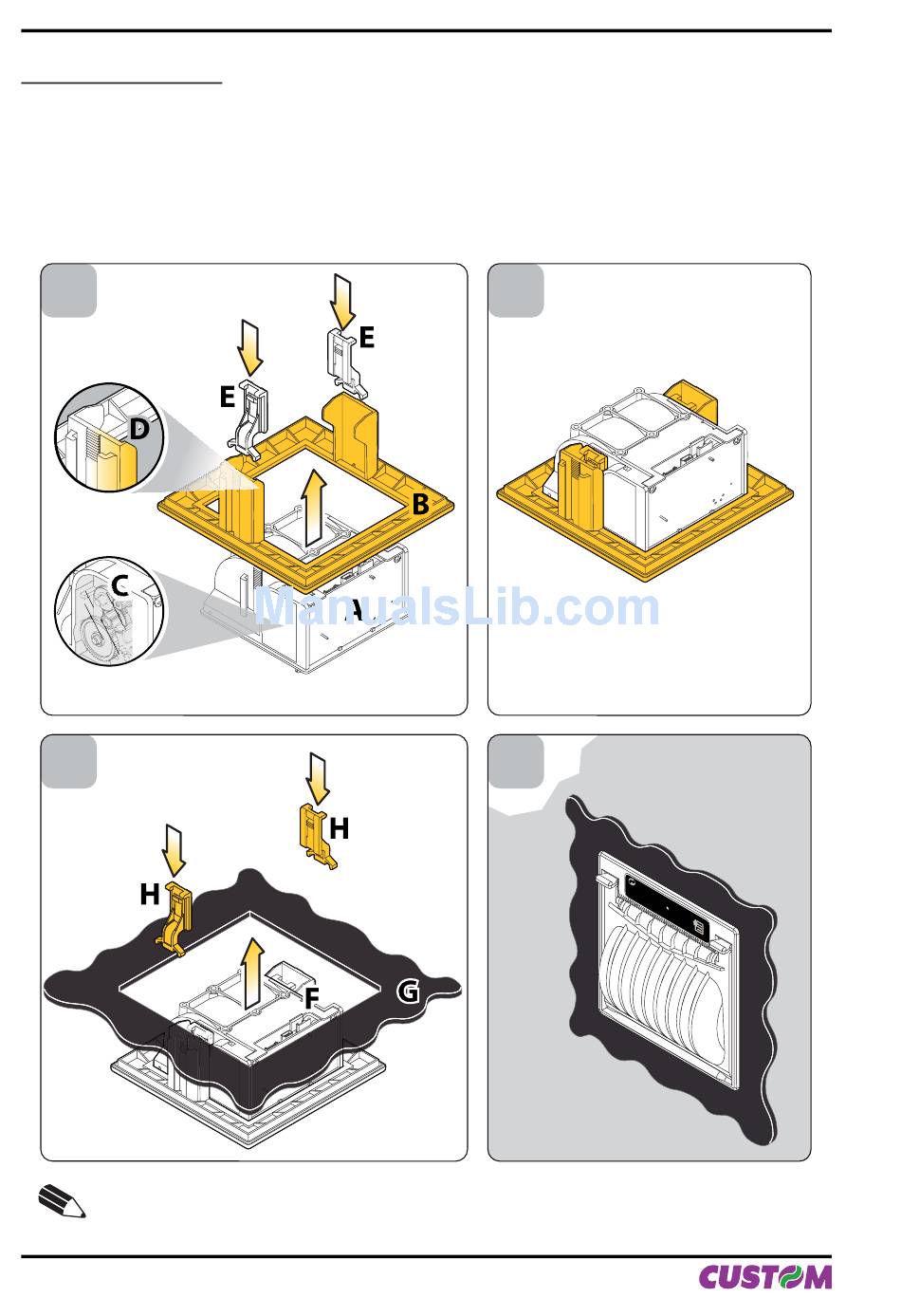

Assembling instructions
• Fit the printer (A) into the adaptor frame (B), making sure that the side of the printer with carter gears (C)
is aligned with the hooking slide of the frame with the smoothed corner (D), not the side with two hooks.
Fix the printer to the frame using the 2 hooks (E) included with the printer (see fi g.A.4).
• The printer/frame unit is assembled (see fi g.A.5).
• Fit the printer/frame unit (F) into the panel (G) and fi x it using the 2 hooks (H), included in the assembling
kit (see fi g.A.6).
• The printer/frame unit is installed on panel (see fi g.A.7).
1
(Fig.A.4)
3
(Fig.A.6)
NOTE:
The mounting operations are valid for all the PLUS II models.
