Troubleshooting; Trouble Items; When The Recorder Dose Not Work At All - Toho Electronics TRM-10C Instruction Manual

10.1

Troubleshooting

10.1.1

Trouble Items

Trouble
Dose not work at all
Big error
Recording
error
Chart paper
feed error
10.1.2

When the Recorder Dose not Work at All

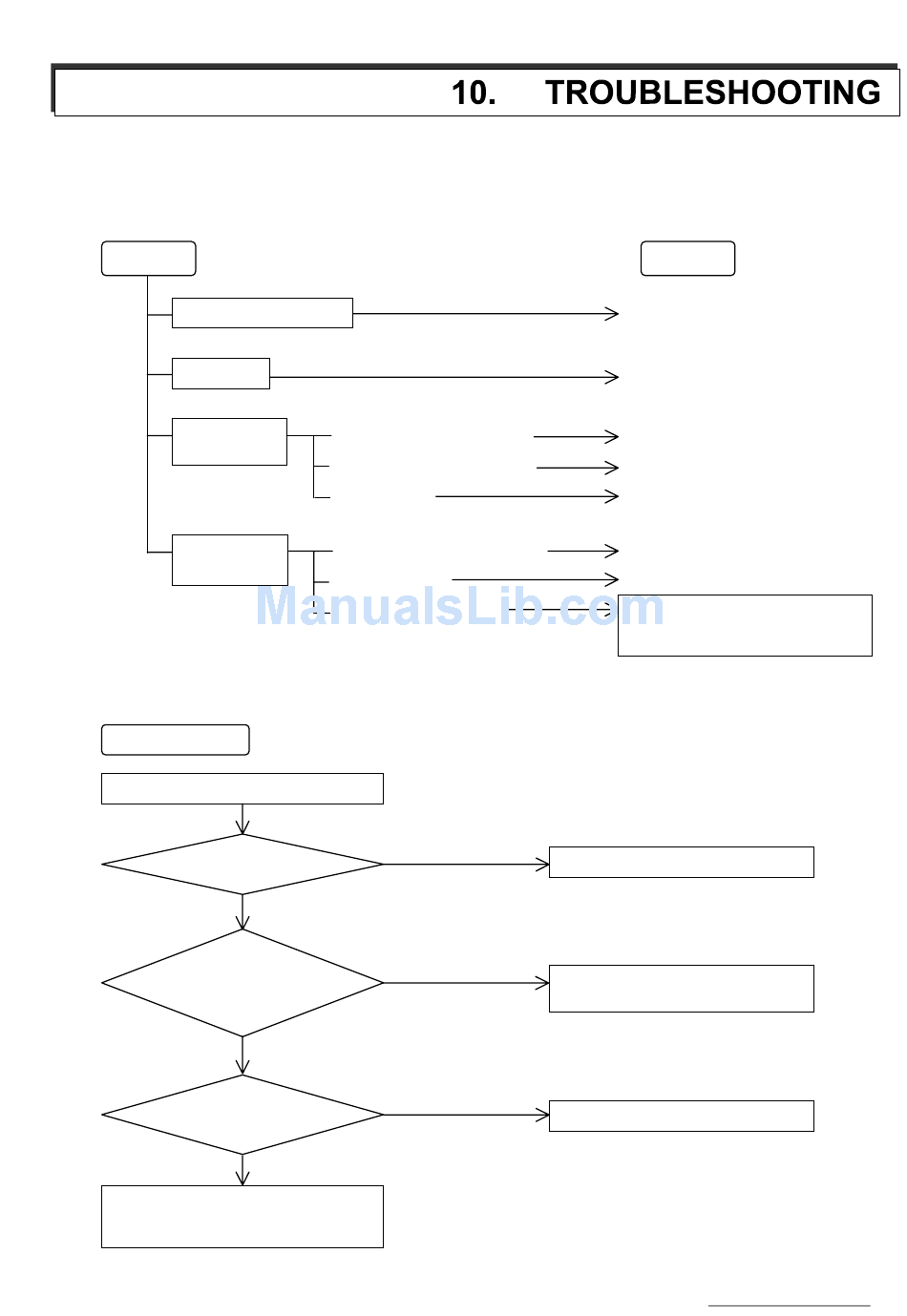

Flow chart 1
Dose not work at all
Power turned on?
‚ x ‚ d ‚ r
Power terminal
connected
properly?
‚ x ‚ d ‚ r
Power supplied
properly?
‚ x ‚ d ‚ r
Contact our dealer where you
purchased the instrument, or our
sales representative.
Trend recording deflected
Nothing is recorded at all
Faint printing
Chart paper is not fed at all
Improper feed
Inaccurate feed rate
‚ m ‚ n
‚ m ‚ n
‚ m ‚ n
94• \
Remedy
Flow chart 1 (Page 94)
Flow chart 2 (Page 95)
Flow chart 3 (Page 95)
Flow chart 4 (Page 96)
Flow chart 5 (Page 96)
Flow chart 6 (Page 97)
Flow chart 7 (Page 97)
Contact our dealer where you
purchased the instrument, or
our sales representative.
Turn on the power
Connect properly
(See 4.1 on Page 15)
Supply properly
85 to 264VAC
45 to 65Hz
HXPRM10mnCT001E
