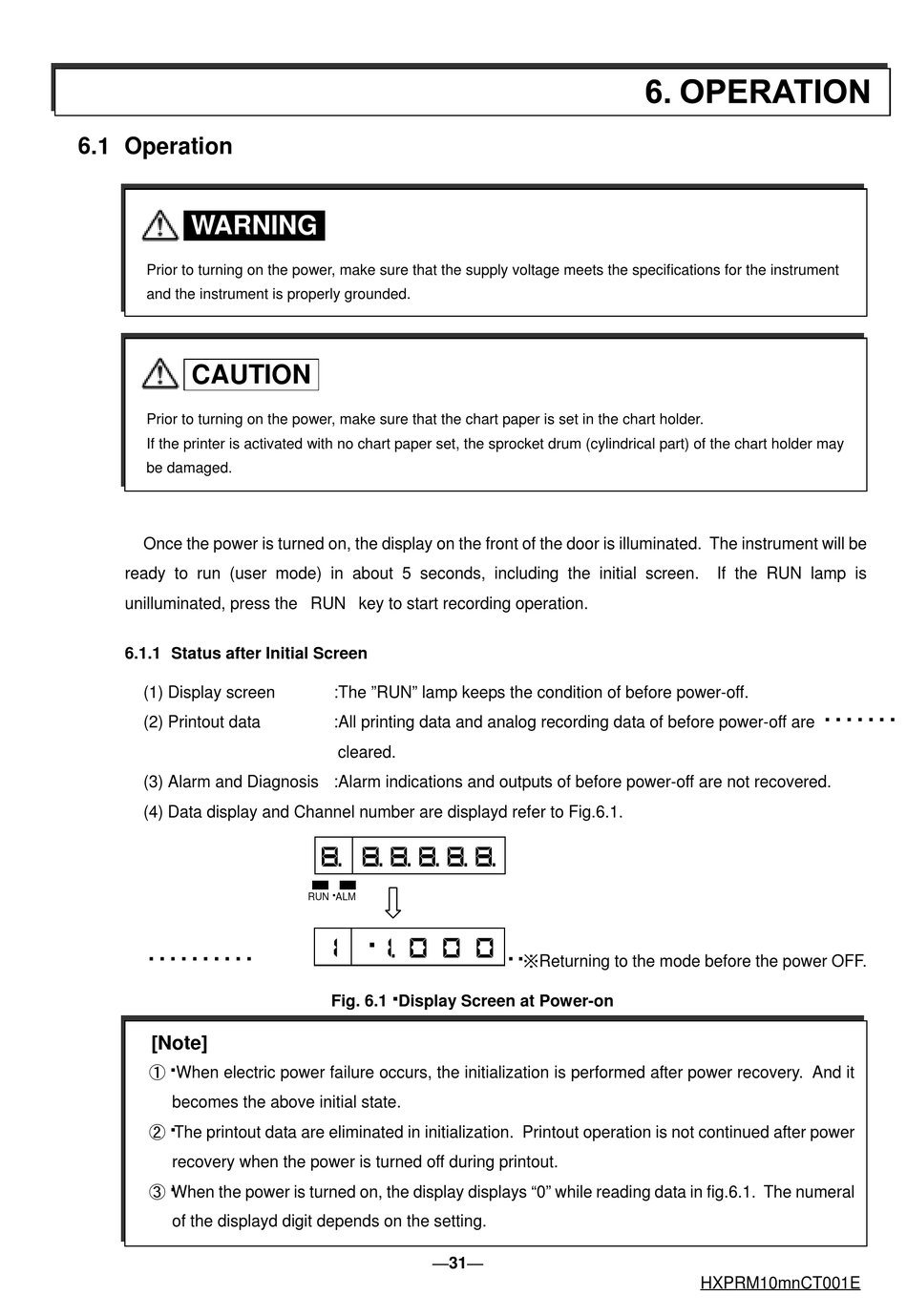

6.1 Operation

WARNING
Prior to turning on the power, make sure that the supply voltage meets the specifications for the instrument
and the instrument is properly grounded.
CAUTION
Prior to turning on the power, make sure that the chart paper is set in the chart holder.
If the printer is activated with no chart paper set, the sprocket drum (cylindrical part) of the chart holder may
be damaged.
Once the power is turned on, the display on the front of the door is illuminated. The instrument will be
ready to run (user mode) in about 5 seconds, including the initial screen.
unilluminated, press the • g RUN• h key to start recording operation.

6.1.1 Status after Initial Screen

(1) Display screen
(2) Printout data
(3) Alarm and Diagnosis :Alarm indications and outputs of before power-off are not recovered.
(4) Data display and Channel number are displayd refer to Fig.6.1.
• @ • @ • @ • @ • @ • @ • @ • @ • @ • @
[Note]
‡ @ • @ When electric power failure occurs, the initialization is performed after power recovery. And it
becomes the above initial state.
‡ A • @ The printout data are eliminated in initialization. Printout operation is not continued after power
recovery when the power is turned off during printout.
‡ B • @ When the power is turned on, the display displays "0" while reading data in fig.6.1. The numeral
of the displayd digit depends on the setting.
:The "RUN" lamp keeps the condition of before power-off.
:All printing data and analog recording data of before power-off are • @ • @ • @ • @ • @ • @ • @
cleared.
     
RUN• @ ALM
 • @    
• @ • @ • ¦ • @ • @ • @ • @ • @ • @ • @ • @ • @ • @
Fig. 6.1• @ Display Screen at Power-on
31• \
Returning to the mode before the power OFF.
