Bearing-frame inspection

Checklist
Check the bearing frame for these conditions:
• Visually inspect the bearing frame and frame foot for cracks.
• Check the inside surfaces of the frame for rust, scale, or debris. Remove all loose and foreign material.
• Make sure that all lubrication passages are clear.
• If the frame has been exposed to pumped fluid, inspect the frame for corrosion or pitting.
• Inspect the inboard-bearing bores.
If any bores are outside the measurements in the Bearing fits and tolerances table, replace the bearing
frame.
Surface inspection locations

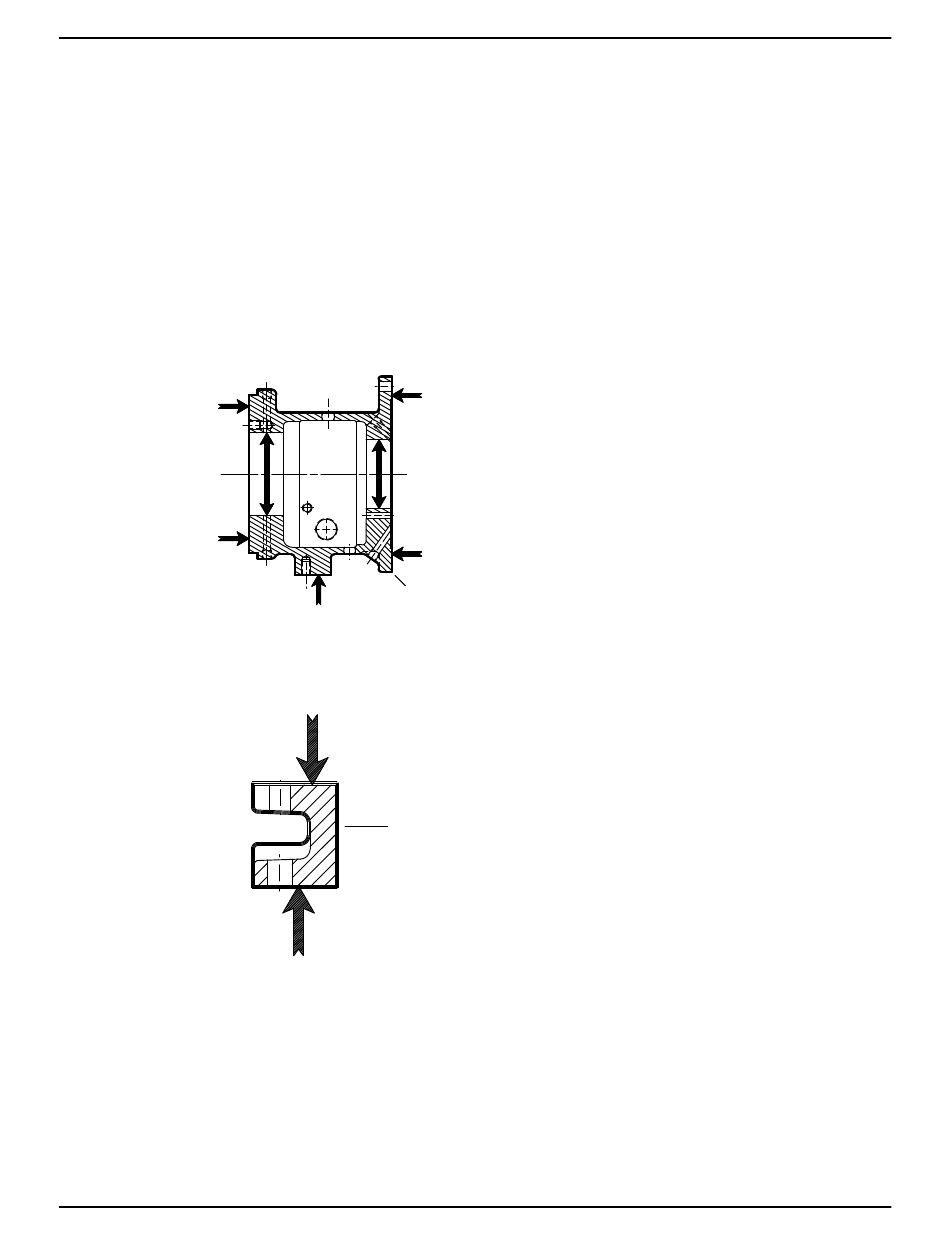

This figure shows the areas to inspect for wear on the bearing frame outside surface.
Figure 20: Outside surface inspection locations
This figure shows the areas to inspect for wear on the bearing frame inside surface.
Figure 21: Inside surface inspection locations

C-face adapter inspection

Checklist
• Visually inspect the C-face adapter (340) for cracks.
• Check all surfaces for rust, scale, or debris and remove all loose and foreign material.
• Check for corrosion or pitting.
This figure shows the areas to inspect for cracks on the C-face adapter.
