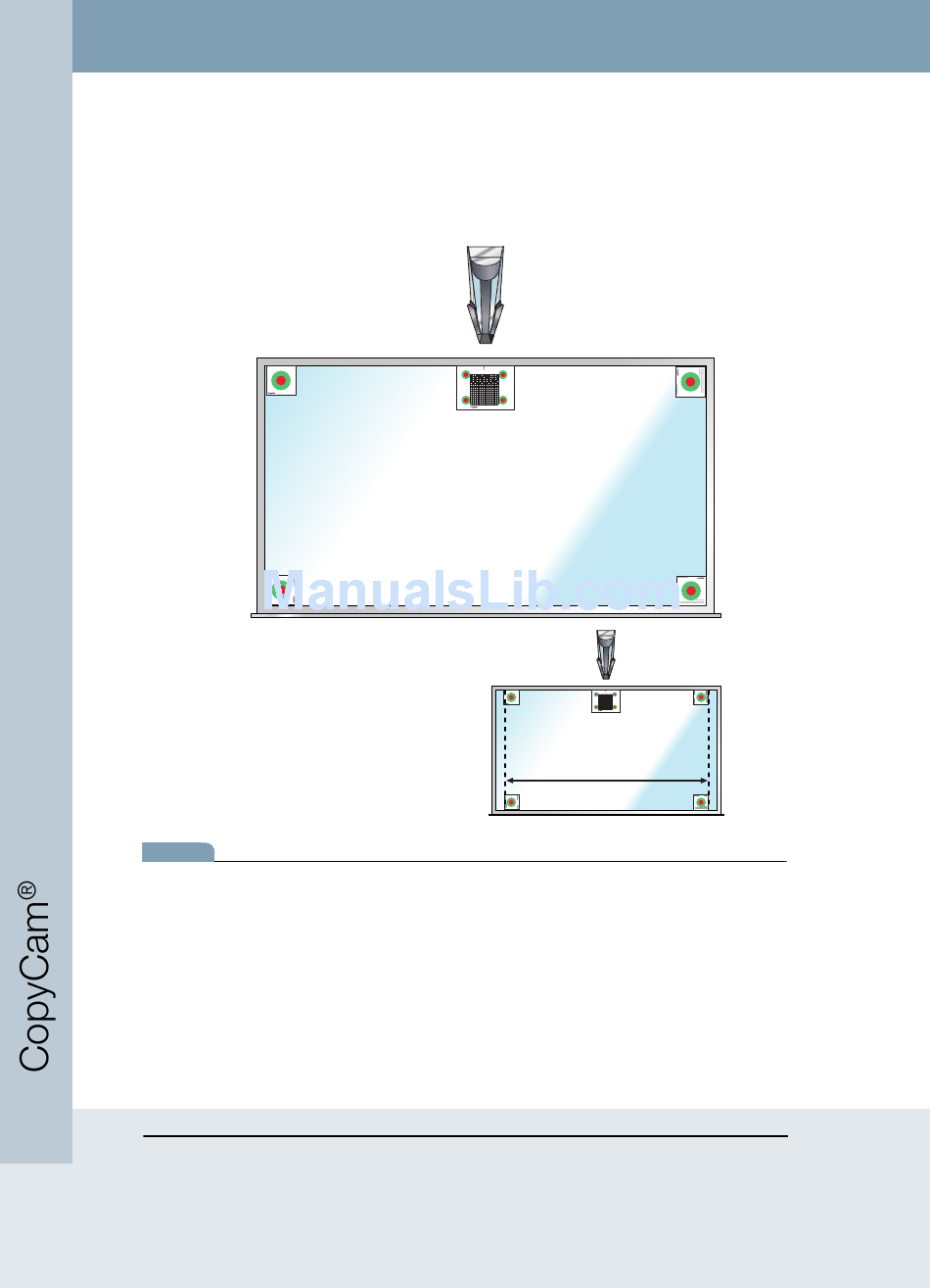

2 Position the four corner calibration sheets within the 4' x 8' (1200mm x
2400mm) limit as shown below. If your board is 4' x 8' (1200mm x
2400mm) or less, put the four matching calibrations sheets in the
corners.
If your board is 4' x 8'
(1200mm x 2400mm)
or smaller, place the
sheets in the corners.
Place four of these on the writing area. Align each corner of the writing
area with this corner on each sheet. Use four pieces of type to ensure
that each sheet lies flat.
Corner Calibration Sheet
If your board is larger than
4' x 8' (1200mm x 2400mm),
place the sheets within the
4' x 8' (1200mm x 2400mm)
limits.
note: NOTE:
To attach the sheets to the board, use low gloss tape or put tape on the
BACK of each sheet. Be sure that all four corners are taped securely.
reflective tape can prevent the camera from seeing the targets.
3 Choose one of the two larger calibration sheets based on the type of
board: whiteboard or blackboard (or any other dark-colored board).
The calibration sheets are clearly labeled. Position this fifth calibration
sheet at the top center of the board, as shown.
30
Center arrow at top of writing area,
under CopyCam arm.
Top Center Calibration Sheet
Place four of these on the writing area. Align each corner of the writing
that each sheet lies flat. area with this corner on each sheet. Use four pieces of type to ensure
Center arrow at top of writing area,
under CopyCam arm.
Corner Calibration Sheet
Top Center Calibration Sheet
8' (2400mm)
Calibrating CopyCam
