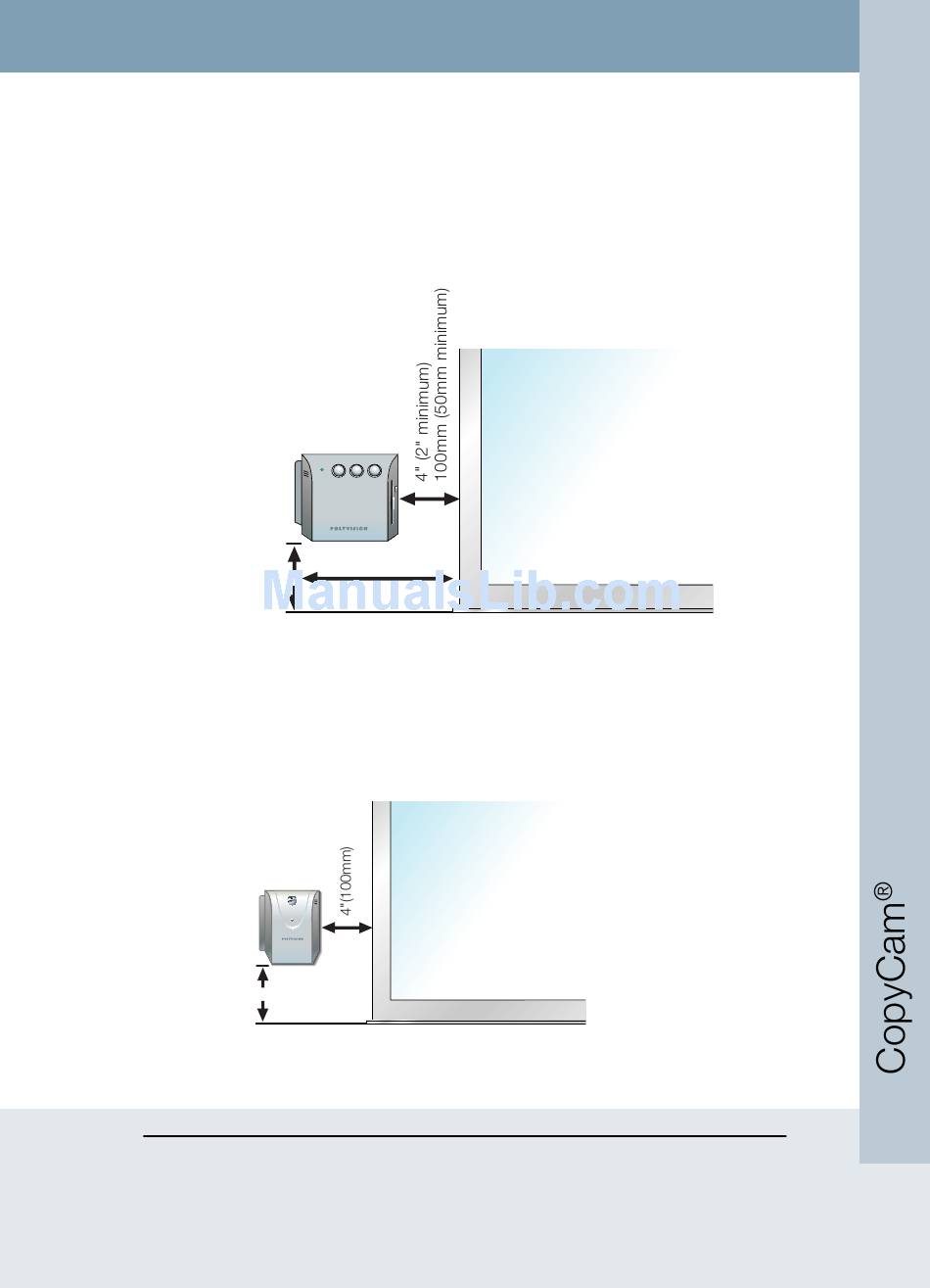

The CopyCam Pro control pad includes a floppy diskette drive that the user
accesses from the right. The preferred location for the control pad is four
inches (100mm) to the left of the board, and about five inches (120mm)
above the bottom of the board, as shown below.
5"
(120mm)
C C E C
OPY AM
The preferred location for the CopyCam E control pad is four inches
(100 mm) to the left of the board, and about five inches (120mm) above the
bottom of the board, as shown below.
5" (120mm)
