M
OUNTING THE
Expect to spend about two hours on this installation.

Planning for Wiring

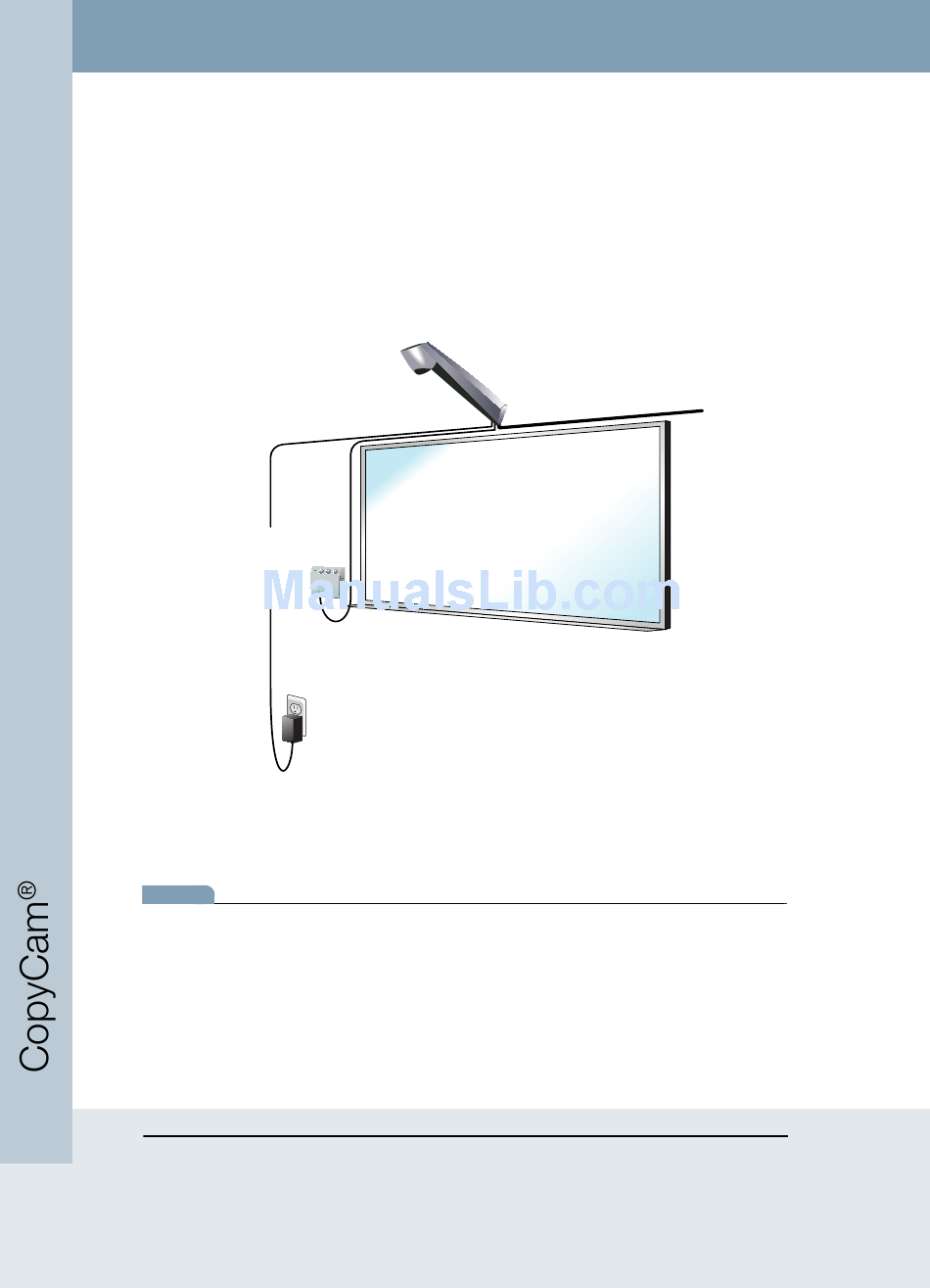

CopyCam has three cable connections that converge in the camera arm,
as shown below for CopyCam Pro.
Camera arm
Control pad
CopyCam wiring can be either:
against a wall, the typical approach for adapting an existing facility, or
•
within a wall, a potential for new construction or renovation
•
NOTE: note:
Use the positioning templates provided to assure proper location of the
control pad and camera arm. Failure to do so may result in inhibited access
to the floppy disk drive in the control pad, or in incomplete copies of the
board.
Instructions below provide details for routing cables against the wall. Refer
to "Routing Cables Within the Wall" on page 23 for differences when
installing cables within a wall.
8
C P
ONTROL AD AND
Power
adapter
C A
AMERA RM
e rn e t
1 0 0 B a s e T E th
CopyCam Installation
