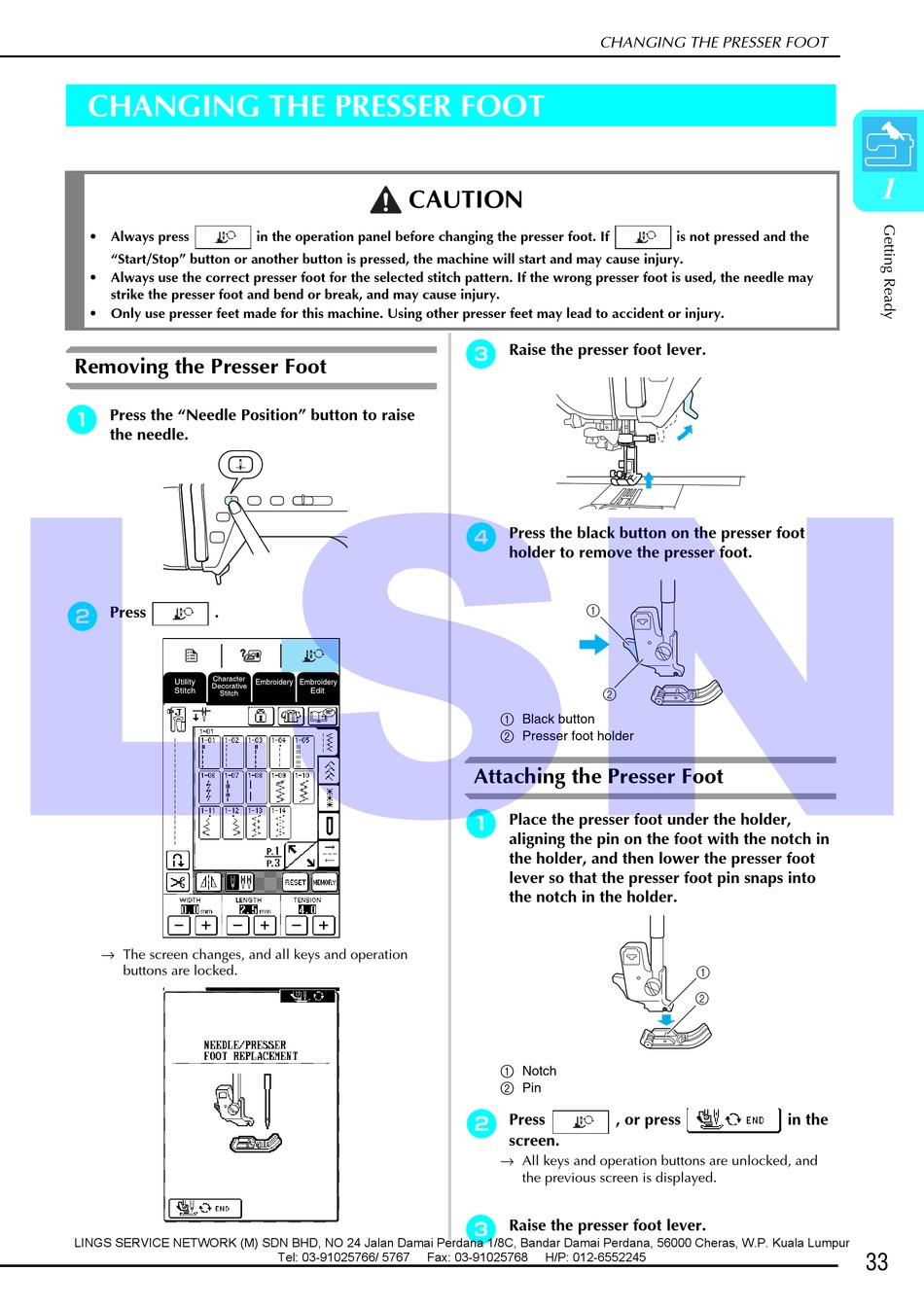

CHANGING THE PRESSER FOOT

• Always press
"Start/Stop" button or another button is pressed, the machine will start and may cause injury.
• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the needle may
strike the presser foot and bend or break, and may cause injury.
• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.

Removing the Presser Foot

LSN
a
Press the "Needle Position" button to raise
the needle.
b
Press
→ The screen changes, and all keys and operation
buttons are locked.
LINGS SERVICE NETWORK (M) SDN BHD, NO 24 Jalan Damai Perdana 1/8C, Bandar Damai Perdana, 56000 Cheras, W.P. Kuala Lumpur
in the operation panel before changing the presser foot. If
.
Tel: 03-91025766/ 5767
CAUTION
c
Raise the presser foot lever.
d
Press the black button on the presser foot
holder to remove the presser foot.
a
Black button
b
Presser foot holder

Attaching the Presser Foot

a
Place the presser foot under the holder,
aligning the pin on the foot with the notch in
the holder, and then lower the presser foot
lever so that the presser foot pin snaps into
the notch in the holder.
a
Notch
b
Pin
b
Press
screen.
→ All keys and operation buttons are unlocked, and
the previous screen is displayed.
c
Raise the presser foot lever.
Fax: 03-91025768 H/P: 012-6552245

CHANGING THE PRESSER FOOT

is not pressed and the
a
b
a
b
, or press
1
in the
