Sewing The Stitches; Straight Stitches - Brother computerized sewing and embroidery machine Operation Manual

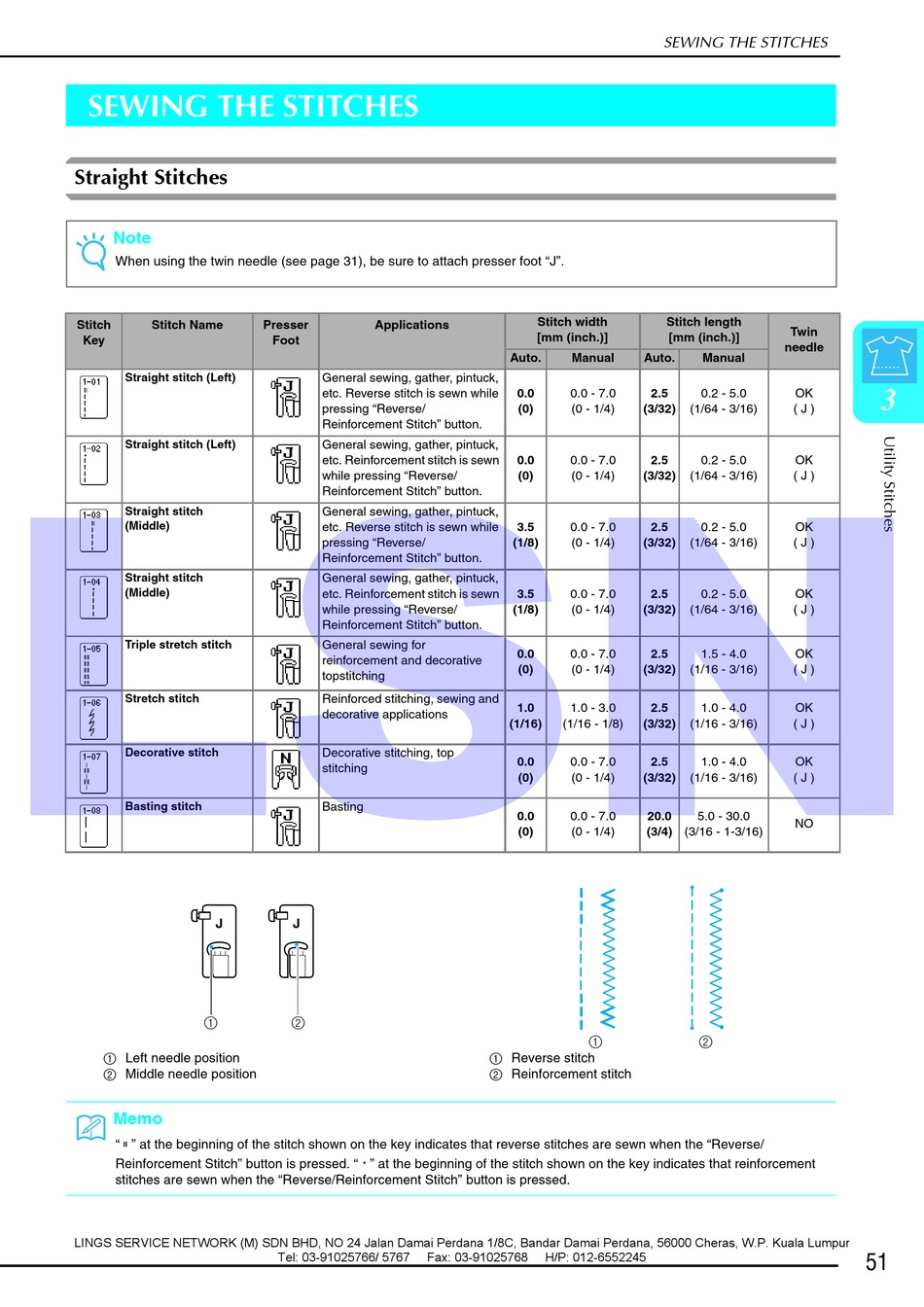

SEWING THE STITCHES

Straight Stitches

Note
When using the twin needle (see page 31), be sure to attach presser foot "J".
Stitch Stitch Name
Key
LSN
Straight stitch (Left)
Straight stitch (Left)
Straight stitch
(Middle)
Straight stitch
(Middle)
Triple stretch stitch
Stretch stitch
Decorative stitch
Basting stitch
.
a Left needle position
b Middle needle position
Memo
" " at the beginning of the stitch shown on the key indicates that reverse stitches are sewn when the "Reverse/
Reinforcement Stitch" button is pressed. " " at the beginning of the stitch shown on the key indicates that reinforcement
stitches are sewn when the "Reverse/Reinforcement Stitch" button is pressed.
LINGS SERVICE NETWORK (M) SDN BHD, NO 24 Jalan Damai Perdana 1/8C, Bandar Damai Perdana, 56000 Cheras, W.P. Kuala Lumpur
Presser Applications
Foot
General sewing, gather, pintuck,
etc. Reverse stitch is sewn while
pressing "Reverse/
Reinforcement Stitch" button.
General sewing, gather, pintuck,
etc. Reinforcement stitch is sewn
while pressing "Reverse/
Reinforcement Stitch" button.
General sewing, gather, pintuck,
etc. Reverse stitch is sewn while
pressing "Reverse/
Reinforcement Stitch" button.
General sewing, gather, pintuck,
etc. Reinforcement stitch is sewn
while pressing "Reverse/
Reinforcement Stitch" button.
General sewing for
reinforcement and decorative
topstitching
Reinforced stitching, sewing and
decorative applications
Decorative stitching, top
stitching
Basting
J J
a b
Tel: 03-91025766/ 5767
Stitch width
[mm (inch.)]
Auto. Manual
0.0 0.0 - 7.0
(0) (0 - 1/4)
0.0 0.0 - 7.0
(0) (0 - 1/4)
3.5 0.0 - 7.0
(1/8) (0 - 1/4)
3.5 0.0 - 7.0
(1/8) (0 - 1/4)
0.0 0.0 - 7.0
(0) (0 - 1/4)
1.0 1.0 - 3.0
(1/16) (1/16 - 1/8)
0.0 0.0 - 7.0
(0) (0 - 1/4)
0.0 0.0 - 7.0
(0) (0 - 1/4)
a
a Reverse stitch
b Reinforcement stitch
Fax: 03-91025768 H/P: 012-6552245

SEWING THE STITCHES

Stitch length
Twin
[mm (inch.)]
needle
Auto. Manual
2.5 0.2 - 5.0 OK
(3/32) (1/64 - 3/16) ( J )
2.5 0.2 - 5.0 OK
(3/32) (1/64 - 3/16) ( J )
2.5 0.2 - 5.0 OK
(3/32) (1/64 - 3/16) ( J )
2.5 0.2 - 5.0 OK
(3/32) (1/64 - 3/16) ( J )
2.5 1.5 - 4.0 OK
(3/32) (1/16 - 3/16) ( J )
2.5 1.0 - 4.0 OK
(3/32) (1/16 - 3/16) ( J )
2.5 1.0 - 4.0 OK
(3/32) (1/16 - 3/16) ( J )
20.0 5.0 - 30.0
NO
(3/4) (3/16 - 1-3/16)
b
3
51
