Calibrate Settings
Step 8 — Calibrate Settings
Quadrus EZ image settings can be
adjusted automatically for optimum read-
ability by either the EZ setup button or ESP.
During the calibration routine, the reader
will flash its LEDs while searching through
various IP (image processing) settings and
matching them with the highest read rates.

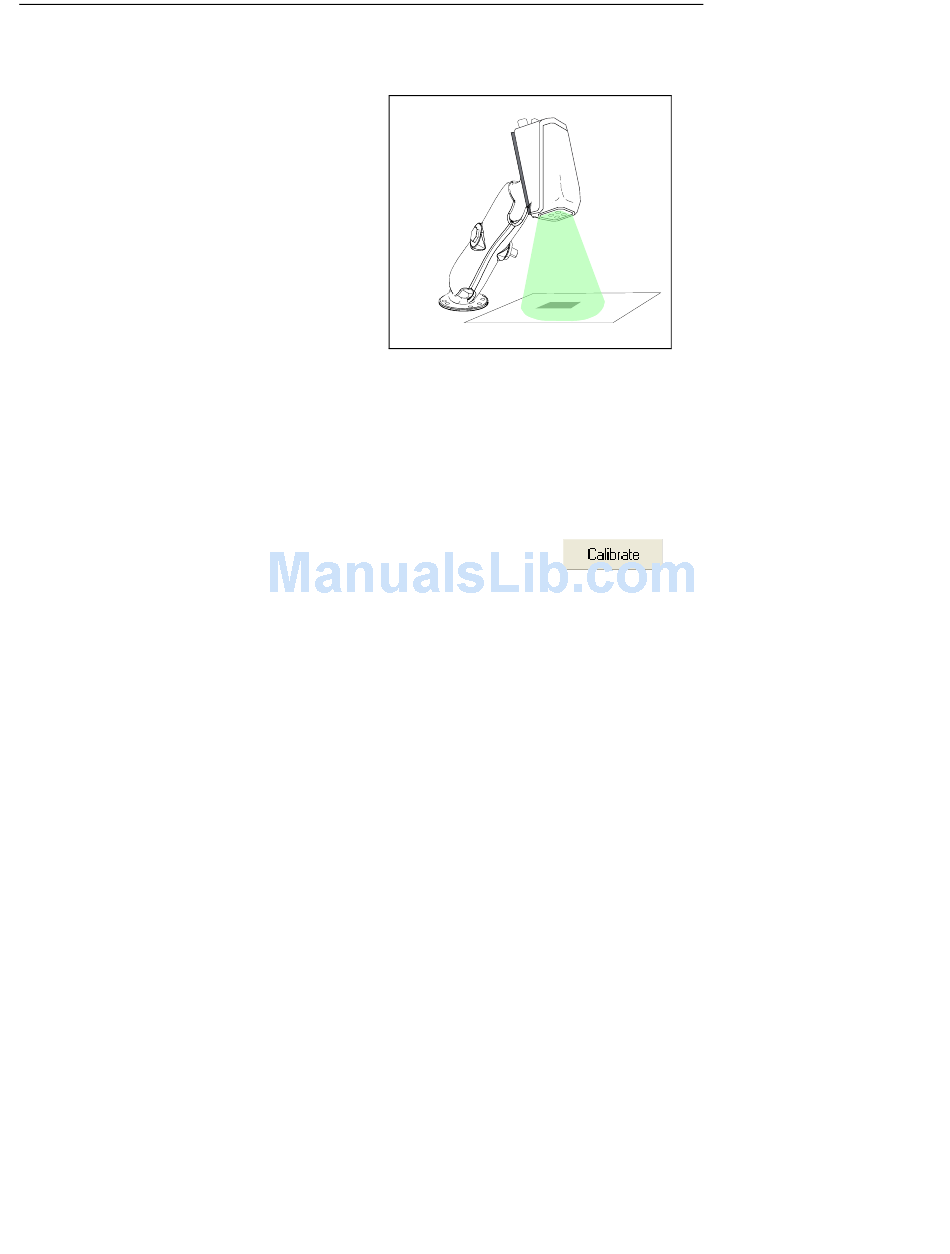

Upon successful completion of this routine,
a green LED pattern will flash brightly and
illuminate the symbol. If unsuccessful, the
reader will emit 5 short beeps and stop
searching.

Calibrate by EZ Button

1. Hold down the EZ
2 seconds and release when you hear two short beeps.
2. The reader will search through various IP settings and match them with the highest
read rates.
Note: To end all EZ button functions, press the EZ button and quickly release.

Calibrate by ESP

1. Click the Calibrate
2. The reader will search through various IP settings and match
them with the highest read rates.
A successful calibration will display a green frame around the
symbol. Following this, a message, "Uploading all reader parameters" will appear.
After a moment the symbol's data and related features will be presented under the
"Symbol Information" box below the image display window.
Calibrate by Serial Command
Send <op,6,1> to begin calibration. Send
1-10
setup button about
button.
<op,6,0> to end calibration.
