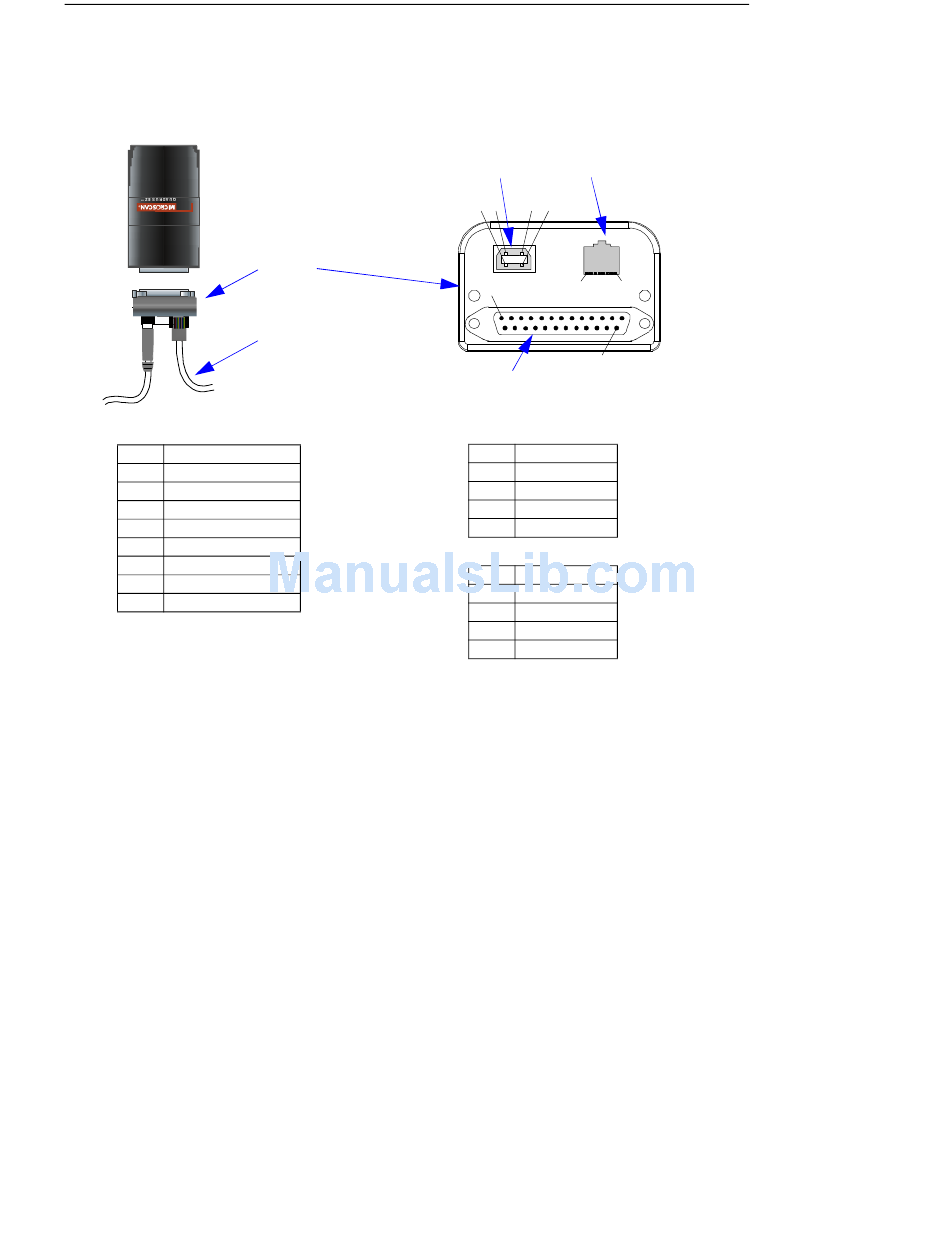

IB-151 Ethernet/USB Interface
USB (USB-B) and standard Ethernet (RJ-45) connections can be made through the
IB-151 interface which plugs directly into the host port of the Quadrus EZ. The IB-151 has
an second 25-pin port to pass through all but the RS-422/485 connections.
Quadrus EZ
IB-151 Ethernet
Pin Ethernet Port
1 Ethernet TX (+)
2 Ethernet TX (–)
3 Ethernet RX (+)
4 NC
5 NC
6 Ethernet RX (–)
7 NC
8 NC
Important Notes
For ethernet connection, the IB-151 is recommended for the following reasons:
• Protection components are installed within the IB-151 to address ethernet susceptibility to line transients
and electrostatic discharge (ESD) that can cause communication dropouts and connection termination.
• The IB-150's matching cable does not provide the proper matched impedance that the standard CAT 5
cable provides, thus allowing higher emission levels which exceed Class A CE limits and possible further
signal degradation.
Quadrus EZ Reader User's Manual
IB-151
Category 5 cabling less
than 50 m in length is rec-
ommended
USB Connector Ethernet
(socket)
(socket)
3 2 1 4
8 1
1
25
Host Connector
(plug)
IB-151 USB
Pin USB Port
1 +5VDC
2 Data (–)
3 Data (+)
4 GND
IB-151 Host
a
Pin Host Port
13 NC
14 NC
16 NC
19 NC
a. All other pins are as shown on
the reader port of the IB-150.
