Using DHCP to Configure the Reader

This assumes that the Quadrus EZ is connected to a network on which resides a DHCP
server. RS-232 configuration is required to enable the reader's DHCP client (default "IP
address mode" setting is "static", which disables DHCP).
1. Do Receive Reader
2. Under Network in the ESP Commu-
nications menu, double click on
Address Mode and change Static to
DHCP.
3. Right click on the Communications
menu and do Save to Reader/Send
no Save.
4. Do Receive Reader

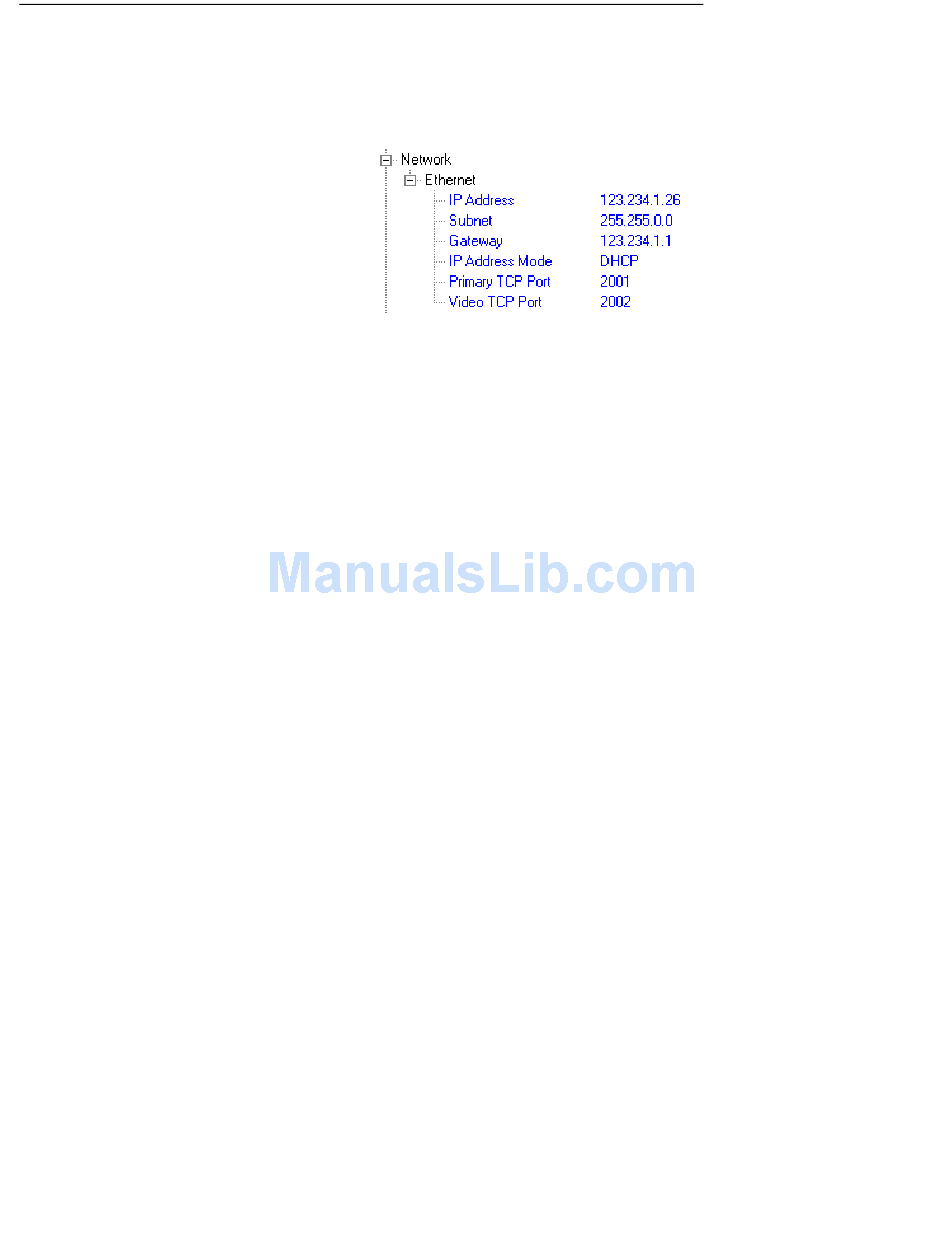

5. Notice that the network will have assigned new numbers to the IP Address, Subnet,
and Gateway, as shown here:
(If the numbers have not changed, contact your IS department.)
6. Go to Step 3, Communicating in Ethernet.
15-6
Settings.
IP
Settings.
Quadrus EZ Reader User's Manual
