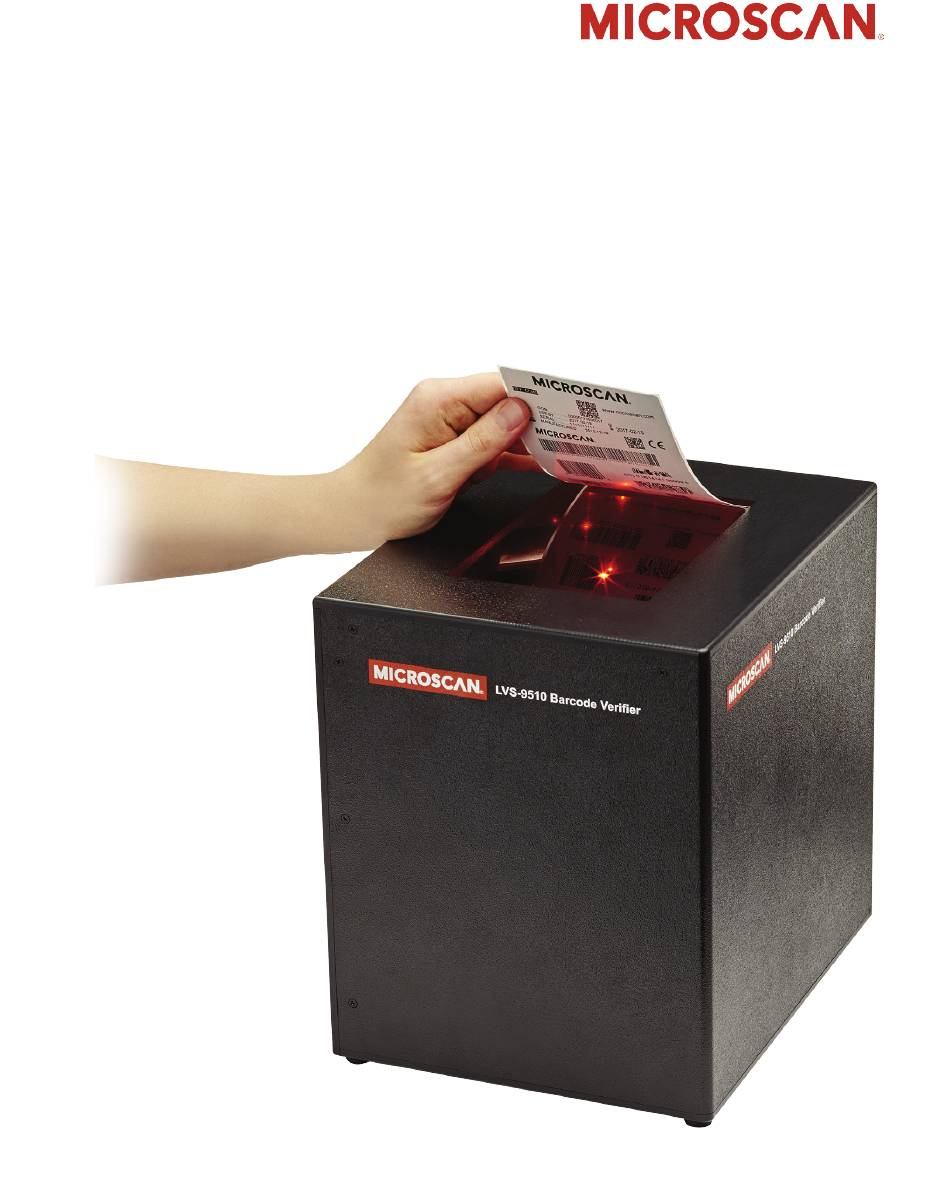

- Page 1 9510 ® Information Book P/N 83-9310003-02 Rev A...
- Page 2 All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.
-
Page 3: Table Of Contents
Table of Contents Features ..........................4 Supported Symbologies ......................5 Configurations .........................7 Engineering Specifications .....................8 Auxiliary Readhead .........................9 Supported Standards ......................11 Software Overview ........................12 Our Products .........................16 3 of 18 LVS-9510 Information Book... -
Page 4: Features

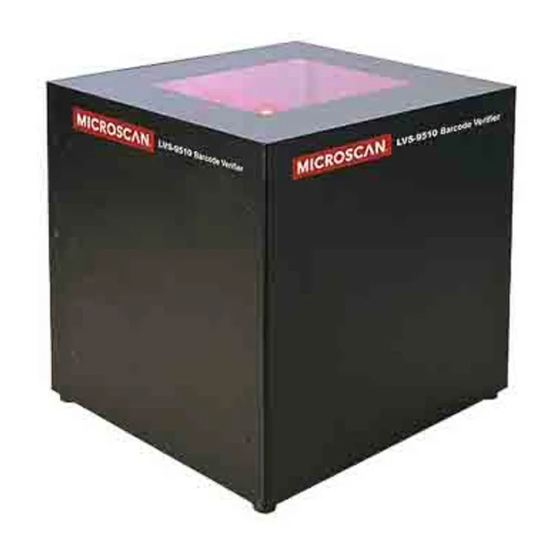

Features The LVS-9510 is for offline verification of bar codes to ISO/IEC standards. The LVS-9510 is unique in the world of ISO verification due to its ease of use and ability to verify linear (1D) and two-dimensional (2D) codes without any change of equipment; autodiscriminate the symbology, narrow bar width and aperature to be used to evaluate the code;... -
Page 5: Supported Symbologies
Supported Symbologies Below are just a few of the Symbologies and Standards supported by the LVS-9510. Contact Microscan for a full list of supported Symbologies and Standards. 1D (Linear) Codes: 2D (Two-Dimensional) Codes: • Codabar Note: Composite Components are abbreviated as CC •... - Page 6 Installation of the LVS-9510 is easy! Simply install the LVS-9510 software (located on the Installation CD) on a customer-supplied computer. The onscreen instructions guide you through each step of the software installation process. Next, connect a USB cable (included with purchase) from the LVS-9510 to the customer-supplied computer. An onscreen Hardware Wizard appears, guiding you through each hardware installation step.
-
Page 7: Configurations
• NIST traceable Calibrated Conformance Test Card used for calibrating the LVS-9510. The test card is provided by GS1 to ensure the LVS-9510 is always within a known calibration standard. The type of test card received is based on the selected field of view. Test cards include EAN/UPC and GS1-128. -
Page 8: Engineering Specifications
Test Card • 800 x 600 Resolution • GS1-128 Calibrated Conformance Test • One available USB 2.0 port (additional Card ports required for each Auxiliary Readhead in use) Specifications subject to change without notice. 8 of 18 LVS-9510 Information Book... -
Page 9: Auxiliary Readhead
X dimension or cell size than the main INTEGRA Barcode Verifier. The Auxiliary Readhead connects to the LVS-9510 and a customer-supplied computer installed with LVS-95XX software via a USB cable. Simply place a bar code on the view- ing stage and the results are displayed on the computer screen. - Page 10 Test cards include Data Matrix (2D), EAN/UPC, GS1-128 and GS1 DataBar (formally called RSS). The test card used to calibrate the Auxiliary Reader may be different than the test card used to calibrate the LVS-9510 unit. 10 of 18 LVS-9510 Information Book...
-
Page 11: Supported Standards
Supported Standards Below are a few of the standards supported by the LVS-9510. Contact Microscan for a full list of supported standards. Application Standards • PPN Code • AIAG/DAMA/JAPIA/Odette • PZN-big, normal, small (German Pharmacode) • ALDI • PZN 7 and PZN 8 •... -
Page 12: Software Overview
Tabs Welcome Tab The Welcome tab is the first tab to appear when logging onto the LVS-9510. This tab provides the version number and allows the user to select the desired software language. The LVS-9510 currently supports 14 languages. - Page 13 Defects Indicates elements on the correct side of the global threshold but have deviation in reflectance. Verifies the human readable portion of a bar code. Zoom Allows you to zoom in on an image. 13 of 18 LVS-9510 Information Book...
- Page 14 Archive Tab When a bar code image is captured, the LVS-9580 analyzes the image and determines if the image is different from the last bar code image collected. If the image is different, the 14 of 18 LVS-9510 Information Book...
- Page 15 • Recent Reports (last 30 days) • Audit Trail Report • Delete Prior to Specific Date • Browse Backup database • Software Version History File • Calibration Report (History) • Reference Report • Export reference data 15 of 18 LVS-9510 Information Book...
-
Page 16: Our Products
Our Products Microscan provides vision inspection systems for both off-line and in-line applications. Off-line solutions include the LVS-95XX Series of bar code verifiers which validate the quality and data within 1D and 2D bar code symbologies to ISO, ANSI and GS1 standards. - Page 17 The LVS-7500 provides a cost-effective means to identify defects, avoid liability, reduce re-work, and control waste resulting from labeling LVS-7300 or print quality errors. LVS-7500 17 of 18 LVS-9510 Information Book...
- Page 18 SAFETY CERTIFICATIONS DESIGNED FOR FCC, CE, UL (Pending) ROHS COMPLIANT QMS CERTIFICATION www.microscan.com/quality ©2016 Microscan Systems, Inc. Warranty – For current warranty information about this product, please visit www.microscan.com/warranty. ISO 9001 Registered www.microscan.com 18 of 18 LVS-9510 Information Book...
