Microscan QX-830 Quick Start Manual

Quick Start Guide

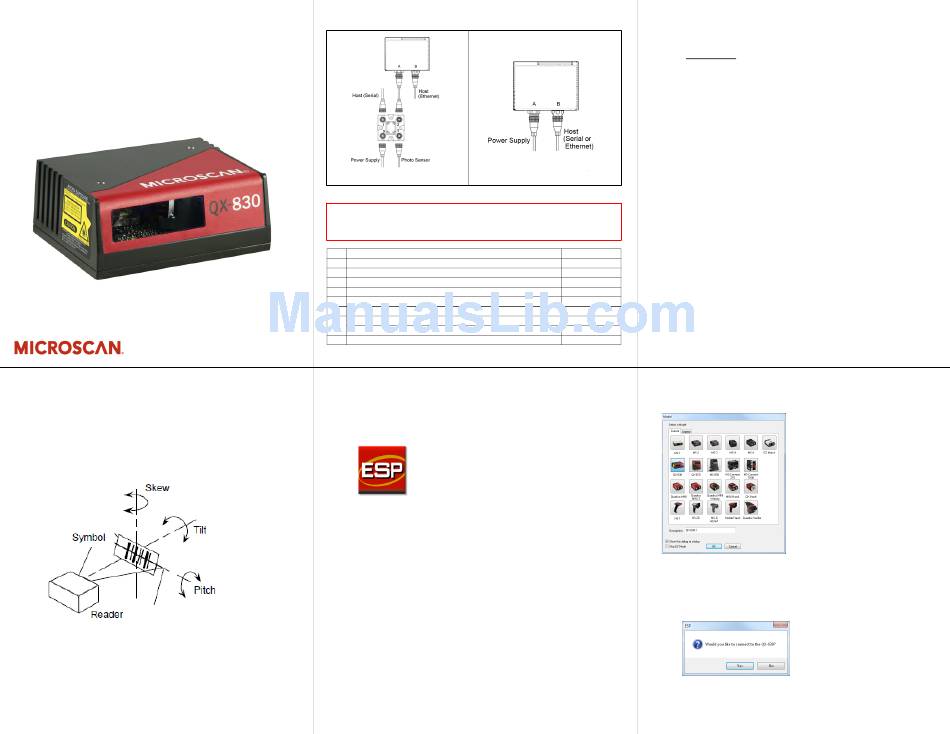

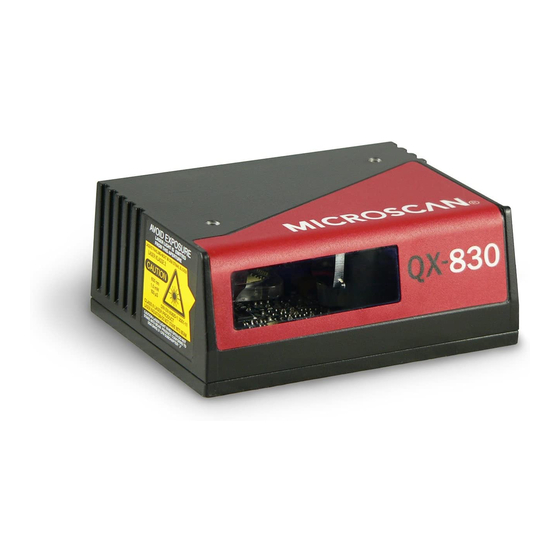

QX-830 Compact
Industrial Scanner
Step 3 — Position Scanner
1. Place a test symbol in a location with as little ambient light
as possible.
2. Position the scanner at the focal distance used in your
application.
3. Align the test symbol with the scanner's field of view.
4. Tip the scanner relative to the test symbol to avoid glare
from specular reflection.
Copyright ©2015 Microscan Systems, Inc.
Step 1 — Check Hardware
1
5
2
6
Standalone (with QX-1)
Caution: Be sure that all connections are secure BEFORE applying
power. Always power down BEFORE disconnecting any cables.
Item
1 QX-830 Compact Industrial Scanner
2 QX-1 Interface Device
3 QX Cordset, Common, M12 12-pin Socket to M12 12-pin Plug, 1 m
4 QX Cordset, Host, Serial, M12 12-pin Plug to DB9 Socket, 1 m
5 QX Cordset, Host, Serial, M12 12-pin Socket to DB9 Socket, 1 m
6 QX Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
7 QX Cordset, Host, Ethernet, M12 8-pin Plug (Ultra-Lock) to RJ45, 1 m 61-000160-01
or QX Cordset, Host, Ethernet, M12 8-pin Plug (Screw-On) to RJ45, 1 m 61-000160-02
8 QX Photo Sensor, M12 4-pin Plug, NPN, Dark On, 2 m
P/N 83-110830-04 Rev A
Note: Additional cordsets and accessories are available in the Product Pricing Catalog.
Step 4 — Install ESP
ESP Software can be found on the Microscan Tools Drive that is
packaged with the QX-830.
1. Follow the prompts to install ESP from the Tools Drive.
2. Click on the ESP icon to run the program.
Note: ESP can also be installed from the Download Center at
www.microscan.com.
Refer to the QX-830 Compact Industrial Scanner User Manual for
detailed information about using ESP to configure the QX-830.
Minimum System Requirements
• 233 MHz Pentium PC
• Windows 8, 7, Vista, or XP operating system (32-bit or 64-bit)
• Internet Explorer 6.0 or higher
• 128 MB RAM or greater
• 160 MB free disk space
• 800 x 600 256 color display (1024 x 768 32-bit color recommended)
1
7
3
4 or 7
6
8
Standalone (without QX-1)
Hardware Required
Description Part Number
FIS-0830-XXXXG
98-000103-02
61-000162-02
61-000152-02
61-000153-02
97-000012-01
99-000020-02
Step 2 — Connect the System
Important: If you are connecting Ultra-Lock cordsets to the QX-830
and QX-1, align the pins first and then push the connector into
place. Do not twist the connectors, as this will bend the pins.
Important: Do not attempt to power more than four scanners
with a single power supply in a daisy chain configuration. Add a
QX-1 and one power supply for every four additional scanner in
the daisy chain.
Note: The configuration instructions below are for simple, direct
connections to an RS-232 or Ethernet host. The QX-1 can be
added to RS-232 or Ethernet configurations in which greater
flexibility and complexity are required. The first diagram in Step 1
shows a standalone configuration that includes the QX-1.
RS-232 Standalone (without QX-1)
1. Connect the Serial Communication Cable from "B" on the
QX-830 to the host.
2. Connect the power supply to "A" on the QX-830.
3. Plug in the power supply.
Ethernet Standalone (without QX-1)
Important: Configure Ethernet-enabled scanners off-line and
then connect to network when ready for dynamic use.
1. Connect the Ethernet Communication Cable from "B" on
the QX-830 to the host network.
2. Connect the power supply to "A" on the QX-830.
3. Plug in the power supply.
Step 5 — Select Model
When you start ESP, the model menu will appear:
1. Click the button showing the QX-830.
2. Click OK.
Note: You can also simply double-click the button showing
your scanner to make your selection.
Click Yes when this dialog appears:
3.
Note: If you need to select another model later, click the
Switch Model button near the top of the screen or use
Model > New Model in the menu toolbar.
