Trend Analysis Mode - Microscan Quadrus EZ Reader User Manual

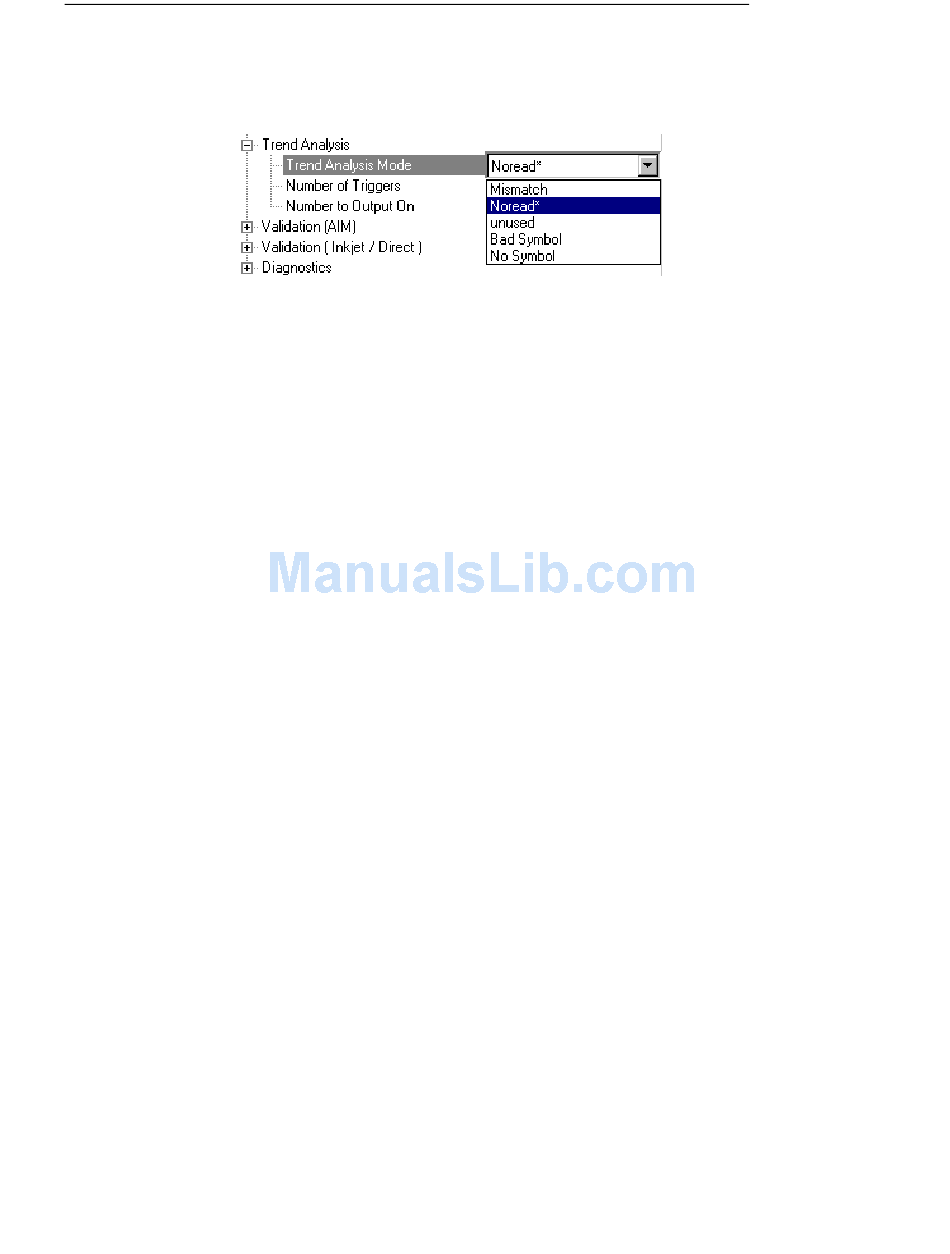

Trend Analysis Mode

Sets the trend condition (Mismatch, Noread, or Reads/Trigger) that will
activate the output.
Definition:
Serial Cmd: <K780,trend analysis
Default: Noread
0 = Mismatch
Options:
3 = Bad Symbol
Mismatch
Output will be activated when the number of Mismatches equals the value entered for
Number to Output On within the trigger window selected in Number of Triggers.
Noread
Output will be activated when the number of noreads equals the value entered for Number
to Output On within the trigger window selected in Number of Triggers.
Bad Symbol
Output will be activated when the number of Bad Symbol occurrences equals the value
entered for Number to Output On within the trigger window selected in Number of
Triggers.
No Symbol
Output will be activated when the number of No Symbol occurrences equals the value
entered for Number to Output On within the trigger window selected in Number of
Triggers.
Quadrus EZ Reader User's Manual
mode,number of triggers,number to output on>
1 = Noread
4 = No Symbol
I/O Parameters
2 = Unused
5-43
