Assigning An Ip Address - GeoVision GV-Video Server User Manual

2.2 Assigning an IP Address

Designed for use on the network, the GV-Video Server must be assigned an IP address to
make it accessible.
Note: The GV-Video Server has a default address of 192.168.0.10. The computer used to
set the IP address must be under the same network or IP sequence assigned to the unit.
1. Open your Web browser, and type the default IP address
2. In both Login and Password fields, type the default value admin. Click Apply.
3. In the left menu, select Network and then LAN to begin the network settings.
4. Select Static IP address. Type IP Address, Subnet Mask, Router/Gateway, Primary DNS
and Secondary DNS in the Configure connection parameters section.
5. Click Apply. The GV-Video Server is accessible by entering the assigned IP address on
the Web browser.
14
http://192.168.0.10

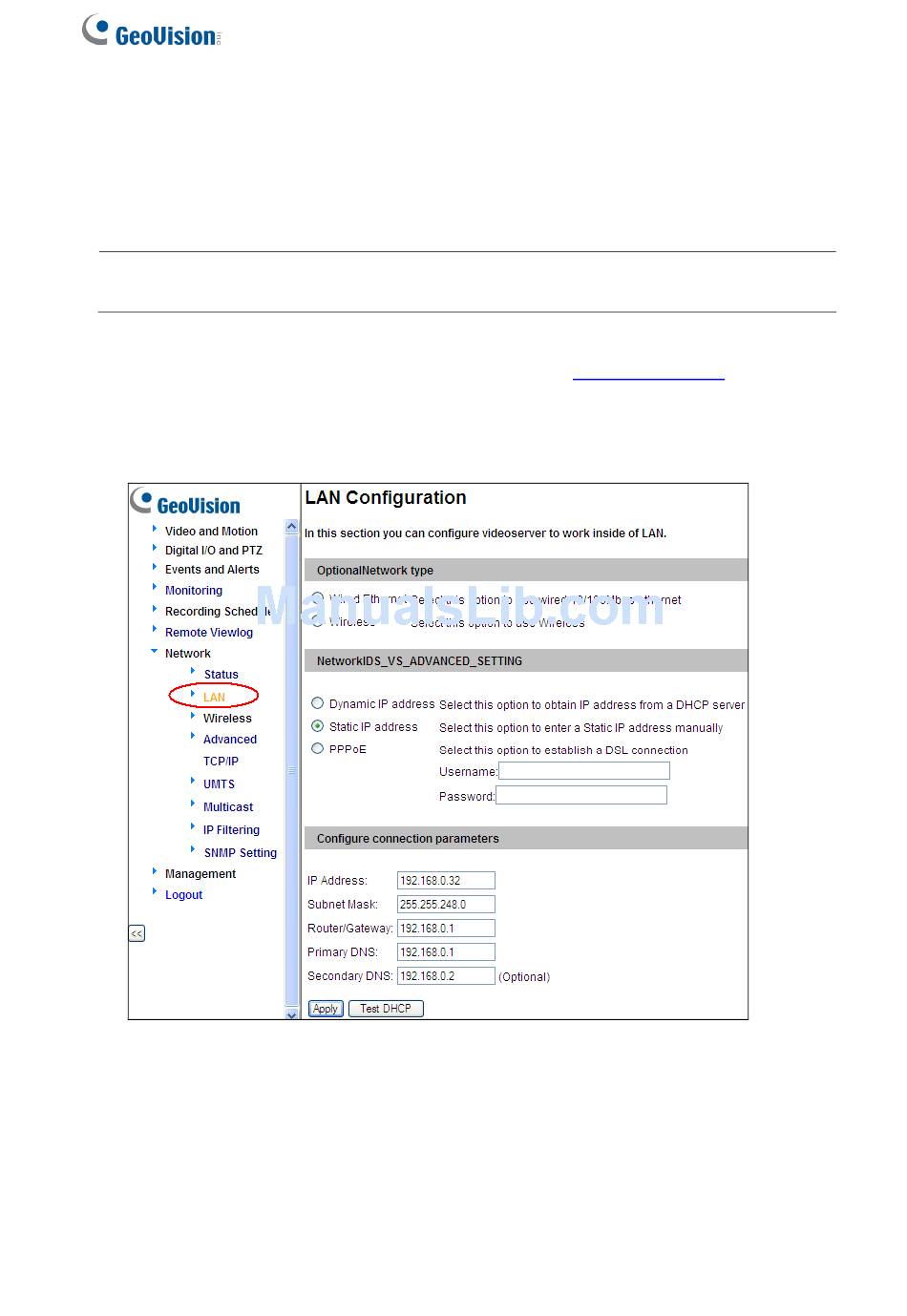

Figure 2-2
