Visual Automation - GeoVision GV-Video Server User Manual

4.1.7 Visual Automation

This intuitive feature helps you automate any electronic device by triggering the connected
output device. When you click on the image of the electronic device, you can simply
change its current state, e.g. light ON.
1. Select the Enable option.
2. Drag an area on the image of the electronic device. This dialog box appears.

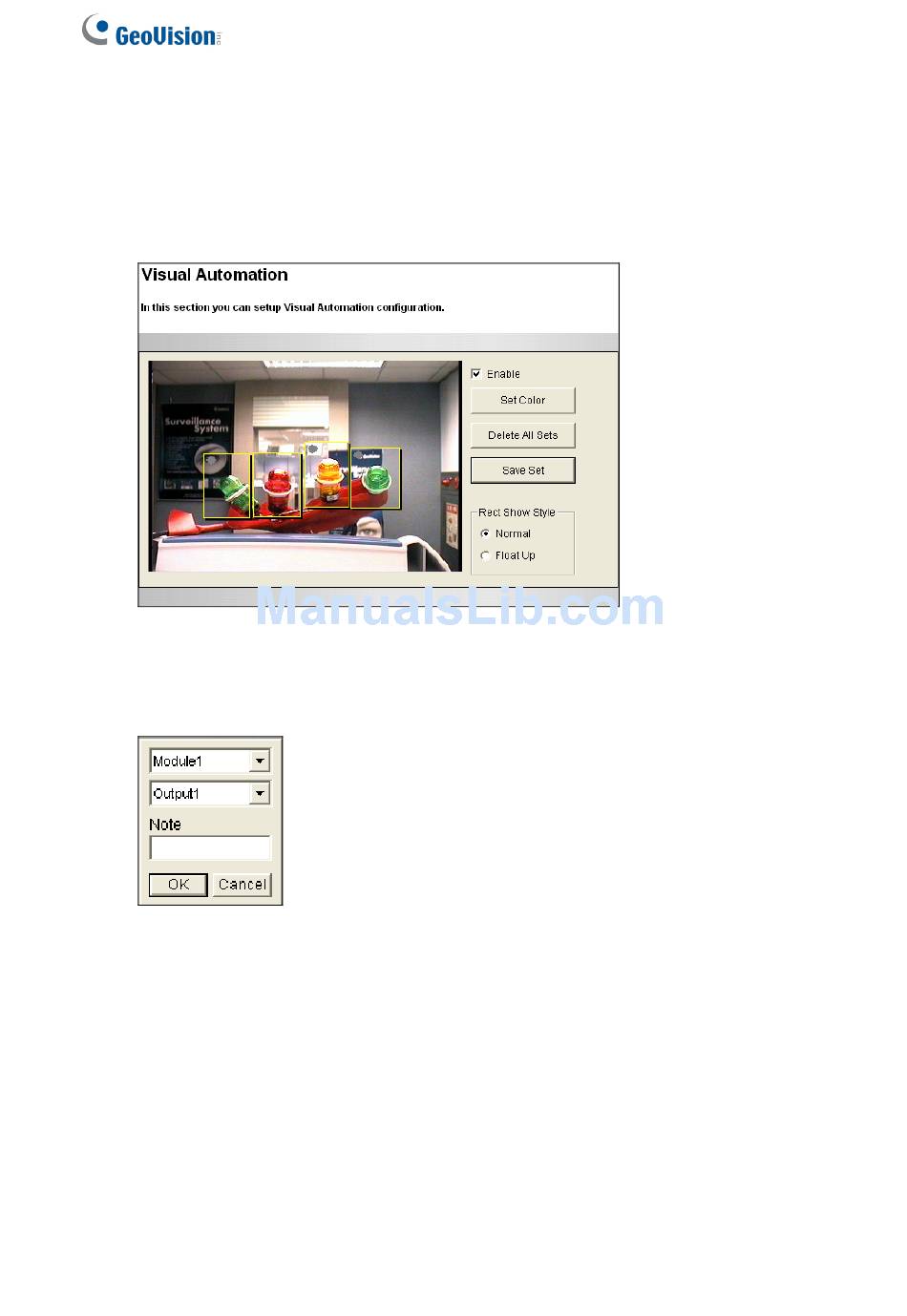

Figure 4-10
3. Assign the connected module and output device. In the Note filed, type a note to help
you manage the device. Click OK to save the settings.
4. To change the frame color of the set area, click the Set Color button.
5. To emboss the set area, select Float Up; or keep it flat by selecting Normal.
6. Click the Save Set button to apply the settings.
To perform the function, see 3.2.14 Visual Automation.
44
Figure 4-9
