Receiving Cardholder Data From Video Server - GeoVision GV-Video Server User Manual

7.2 Receiving Cardholder Data from Video Server

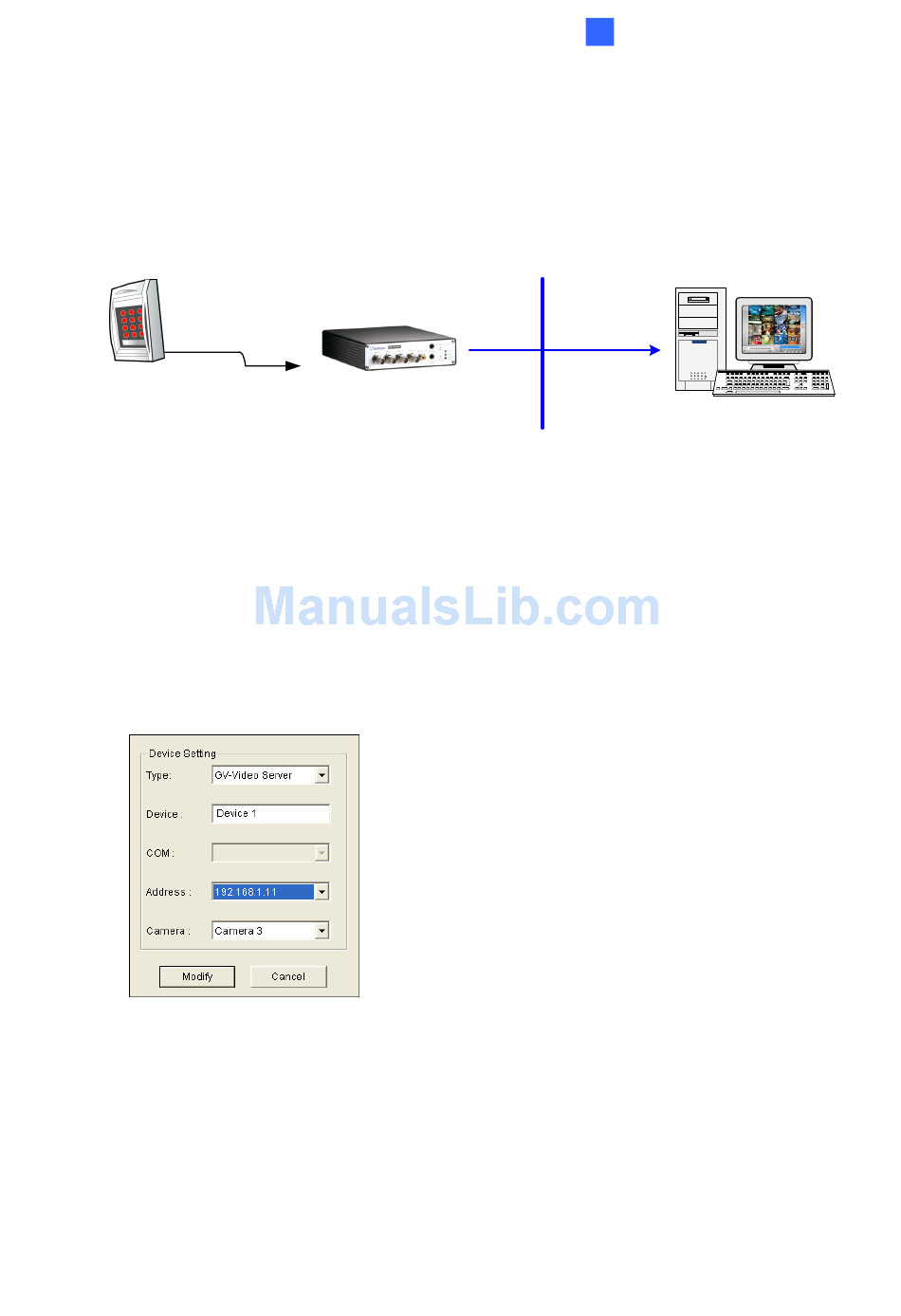

Over the network, GV-System can receive cardholder data from the Wiegand-interface
card reader. This transmission is made possible through GV-Video Server.
Wiegand In
Card Reader
To receive cardholder data from Video Server, follow these steps:
1. Add the GV-Video Server to the GV-System. See 7.1 Setting Up GV-Video Server.
2. Click the Configure button, point to Accessories and select GV Wiegand Capture
Device Setting. The GV-Wiegand Capture Setup dialog box appears.
3. Click the New button. This dialog box appears.
Figure 7-9
4. Select GV-Video Server from the Type drop-down list, enter a descriptive name for
the Video Server, select the IP address of the video server from the Address drop-
down list, and then select the camera to be mapped with.
5. Click Add to add the Wiegand card reader to the system.
GV-Video Server
Figure 7-8
DVR Configurations
7
/
TCP IP
Video Data
Text Data
GV-System
121
