GV-Video Server
User's Manual
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
VS2420-2400-A

Advertisement

Table of Contents
loading

Related Manuals for GeoVision GV-VS04H

Summary of Contents for GeoVision GV-VS04H

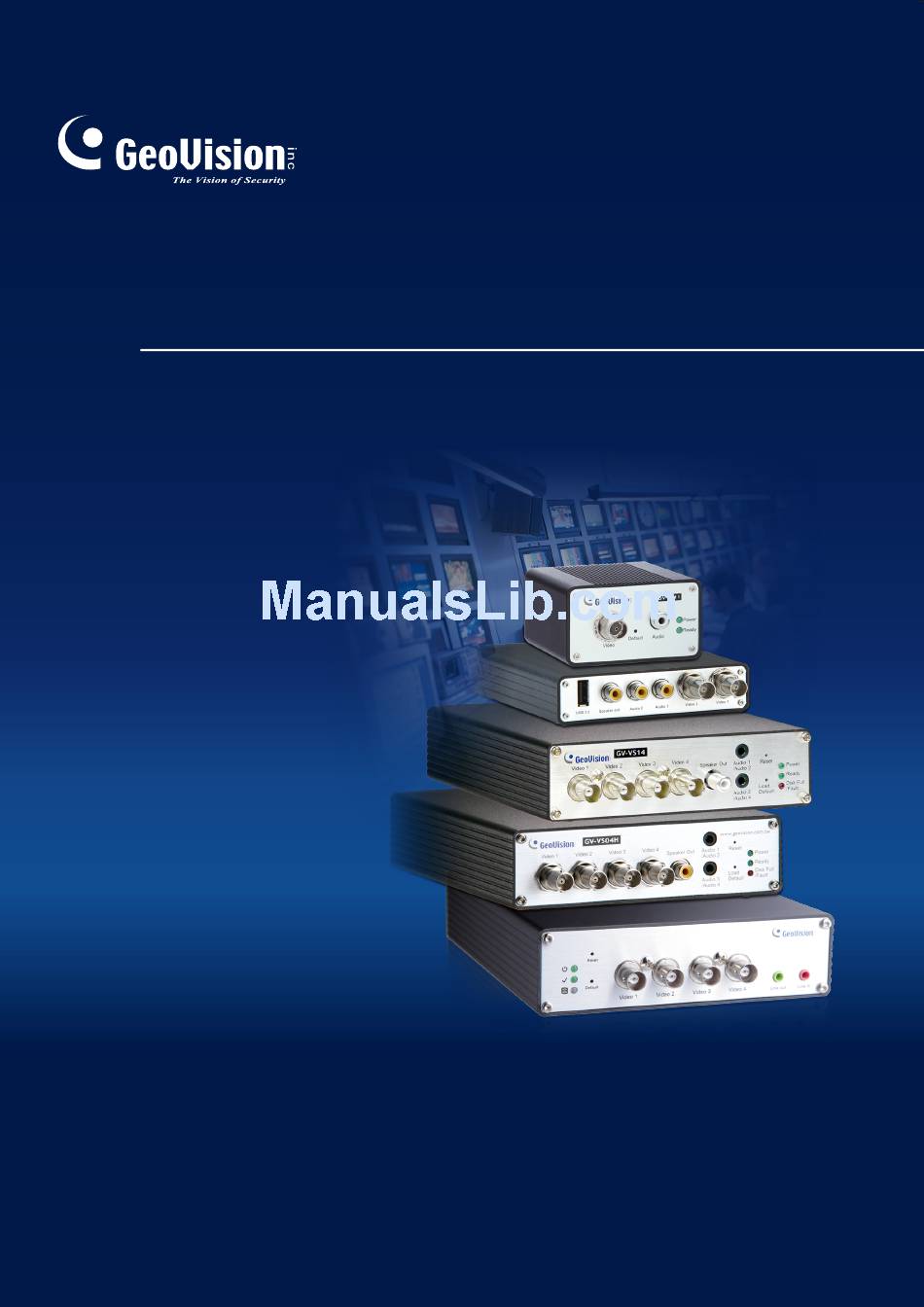

  • Page 1 GV-Video Server User's Manual Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. VS2420-2400-A...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 The GV-Video Server has a series of models designed to meet different needs. Each model has its own firmware that can only be used on the specific model. This Manual is designed for the following models and firmware version: Model Firmware Version GV-VS04H 1.08 GV-VS11 1.05 GV-VS12 1.09...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction ............1 Models and Features..................... 1 1.2 Packing List ......................3 1.2.1 GV-VS04H / GV-VS14 ................3 1.2.2 GV-VS11....................3 1.2.3 GV-VS12....................4 1.2.4 GV-VS2420 / 2400 ..................4 1.3 Compatible Products and System Requirements ........... 5 1.3.1 Compatible GeoVision Software..............
  • Page 5 3.2.8 Remote Configuration ................31 3.2.9 Camera Name Display................32 3.2.10 Image Enhancement................32 3.2.11 PTZ Control ....................33 3.2.12 Visual PTZ ....................34 3.2.13 I/O Control ....................35 3.2.14 Visual Automation...................36 3.2.15 Network Status ..................36 Chapter 4 Administrator Mode ...........37 4.1 Video and Motion....................40 4.1.1 Multicast ....................40 4.1.2 Video Settings ...................41 4.1.3 Motion Detection..................47 4.1.4 Privacy Mask ....................49...
  • Page 6 4.6 Remote ViewLog ....................82 4.7 Network ........................83 4.7.1 LAN ......................83 4.7.2 Wireless-Client Mode................85 4.7.3 Advanced TCP/IP ..................87 4.7.4 UMTS .......................91 4.7.5 Multicast ....................93 4.7.6 IP Filter .....................94 4.7.7 SNMP Setting ...................95 4.8 Management......................96 4.8.1 Date and Time Settings ................96 4.8.2 GPS Maps Settings ..................98 4.8.3 Storage Settings ..................99 4.8.4 User Account ..................102 4.8.5 Log Information..................103...
  • Page 7 Chapter 8 CMS Configurations.........141 8.1 Center V2 ......................141 8.2 Vital Sign Monitor....................143 8.3 Dispatch Server ....................144 Chapter 9 Auxiliary Device Connectors ......145 9.1 GV-VS04H, GV-VS14, and GV-VS2420 / 2400...........145 9.1.1 Pin Assignment..................146 9.1.2 Relay Output...................147 9.2 GV-VS11 ......................148 9.3 GV-VS12 ......................149 9.3.1 Pin Assignment..................149...
  • Page 8 Appendix………………………………………………………152 A. Settings for Internet Explore 8 or later...............152 B. Supported Wireless LAN USB Adaptor .............152 C. Supported Mobile Broadband Device..............153 D. The RTSP Command..................153 E. The Supported PTZ Cameras ................154 F. The CGI Command...................156 G. Default Port Value.....................156...

  • Page 9: Chapter 1 Introduction

    The GV-Video Server has the following models: - 4-channel video inputs - Records up to120 (NTSC) / 100 (PAL) fps at the D1 resolution - H.264 video compression GV-VS04H - Two-way audio - GPS tracking / Wiegand access control support - 1-channel video input - Records up to 30 (NTSC) / 25 (PAL) fps at the D1 resolution - H.264, MEPG4 and MJPEG video compression...
  • Page 10 4-channel video inputs Records up to120 (NTSC) / 100 (PAL) fps at AHD 1080p resolution GV-VS2420 H.264 (AHD) Two-way audio Dual streams 4-channel video inputs Records up to120 (NTSC) / 100 (PAL) fps at HD-TVI 1080p resolution GV-VS2400 H.264 (TVI) Two-way audio Dual streams...

  • Page 11: Packing List

    Introduction 1.2 Packing List 1.2.1 GV-VS04H / GV-VS14 GV-VS04H / GV-VS14 AC Power Cord x 1DC Male-to-Male Cable (for powering on the camera through GV-Video Server) x 1 Power Adaptor x 1 Wall Hook x 1 Conical Anchor x 4 Screw x 4 3.5 mm Stereo to RCA Cable x 2...

  • Page 12: Gv-Vs12

    1.2.3 GV-VS12 1. GV-VS12 2. AC Power Cord x 1 3. Power Adaptor x 1 4. I/O Cable with RJ-45 Connector x 1 5. Wall Hook x 1 6. Conical Anchor x 4 7. Screw x 4 8. Sticker (for positioning conical anchors) x 1 9.

  • Page 13: Compatible Products And System Requirements

    To access the Web interface of the GV-Video Server, ensure your PC is in good network connection and use one of the following Web browsers: For GV-VS04H and GV-VS11 / 12 / 14 Microsoft Internet Explorer 7.x or later For GV-VS2420 / 2400 Microsoft Internet Explorer 8.x or later...

  • Page 14: Poe Support

    Attached with the GV-GPS Receiver, the GV-Video Server allows you to perform vehicle tracking on Google Maps. The models supporting GPS function include: • GV-VS04H, GV-VS12 and GV-VS14. Different models of the GV-Video Server support different interfaces: • UART: GV-VS04H and GV-VS14 •...

  • Page 15: Options

    The GV-PA191 is designed to provide power to the IP GV-PA191 PoE Adaptor device through a single Ethernet cable. The GV- PA191 is only supported by GV-VS04H and GV-VS12. With the GV-VR605A, you can install GV-Video Server GV-VR605A DC Voltage in the car.
  • Page 16 The GV-Video Server can work with the Wiegand-interface card reader to send cardholder data to the central monitoring stations Center V2 and Vital Sign Monitor, as well as GV- System(GV-DVR/ NVR). The following devices are only supported by GV-VS04H and GV- VS14.

  • Page 17: Physical Description

    Introduction 1.7 Physical Description This section identifies the various components of the GV-Video Server. 1.7.1 Front View 1.7.1.1 GV-VS04H / GV-VS14 Figure 1-1...
  • Page 18 No. Name Function Video Input 4 plugs for video inputs. Speaker Output A plug for the speaker device. Audio Input Each plug is for 2 audio inputs. It reboots the GV-Video Server, and keeps all current Reset configurations. It resets all configurations to their factory settings. See 6.4 Default Button Restoring to Factory Default Settings.
  • Page 19 Introduction 1.7.1.4 GV-VS12 Figure 1-3 No. Name Function USB Port 1 USB port for installing the portable storage device. Speaker Output A plug for the speaker device. Audio Input 2 plugs for audio inputs. Video Input 2 plugs for video inputs.
  • Page 20 1.7.1.5 GV-VS2420 / 2400 Figure 1-4 No. Name Function Video Input 4 plugs for video inputs. Line Out A plug for Video 1 speaker device. Line In A plug for Video 1 audio input. It reboots the GV-Video Server, and keeps all current Reset configurations.

  • Page 21: Rear View

    Introduction 1.7.2 Rear View 1.7.2.2 GV-VS04H / GV-VS14 Figure 1-5 No. Name Function USB Port 2 USB ports for installing portable storage devices. The connectors for digital input, relay output, PTZ camera, Terminal Block Wiegand device and GPS module control. See Chapter 9 Auxiliary Device Connectors.
  • Page 22 1.7.2.3 GV-VS11 Figure 1-6 No. Name Function USB Port 1 USB port for installing portable storage device. A plug for inserting an Ethernet cable to build the network Ethernet Port connection. The connectors for digital input, digital output and PTZ camera Terminal Block control.
  • Page 23 Introduction 1.7.2.5 GV-VS2420 / 2400 Figure 1-8 No. Name Function USB Port 2 USB ports for installing portable storage devices. The connectors for digital input, relay output, and PTZ camera. See Terminal Block Chapter 9 Auxiliary Device Connectors. Gigabit Ethernet A plug for a 10/100/1000 Base-T Ethernet Port A plug to power on the camera, by using the optional DC Male-to-...

  • Page 24: Chapter 2 Getting Started

    2.1 Installing on a Network These instructions describe the basic connections to install the GV-Video Server on the network. Here we use GV-VS04H as the example to demonstrate the steps. Figure 2-1 1. Connect your camera’s video output to the BNC video input.

  • Page 25: Getting Started

    1. The GV-VS11 / 14 and GV-VS2420 / 2400 do not support PoE function. 2. The DC Male-to-Male Cable and 3.5 mm Stereo to RCA Cable are only supplied for GV-VS04H and GV-VS14. Optionally purchase these accessories for GV-VS2420 / 2400.

  • Page 26: Checking The Ip Address

    2.2 Checking the IP Address By default, an unused IP address is automatically assigned by the DHCP server to the GV-Video Server when connecting to the network. Follow the steps below to look up the IP address and access the Web interface. Install the GV-IP Device Utility program included on the Software CD/DVD.

  • Page 27: Changing The Ip Address

    Getting Started 2.3 Changing the IP Address To assign a static IP address or establish a connection to your ISP, log in the Web interface to access the network setting page. Note: If your router does not support DHCP, the default IP address will be 192.168.0.10. In this case, it is strongly suggested to modify the IP address to avoid the IP address conflict with other GV-IP device on the same LAN.

  • Page 28: Configuring The Basic

    IMPORTANT: • PPPoE should only be enabled if you know which IP address the GV-Video Server will get from the ISP. Otherwise, you must use the Dynamic DNS service to obtain a domain name linked to the GV-Video Server’s changing IP address first.

  • Page 29: Chapter 3 Accessing The Gv-Video Server

    Accessing the GV-Video Server Chapter 3 Accessing the GV-Video Server Two types of users are allowed to log in the GV-Video Server: Administrator and Guest. The Administrator has unrestricted access to all system configurations, while the Guest has the access to live images and network status only. 3.1 Accessing Your Surveillance Images Once installed, your GV-Video Server is accessible on a network.
  • Page 30 Connect to access the full functioning user interface. Note: 1. GV-VS04H and GV-VS11 /12 / 14 are only supported by Microsoft Internet Explorer 7.x or later. 2. To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a one-time installation of GeoVision’s ActiveX component onto your computer.

  • Page 31: Functions Featured On The Main Page

    ▼ Network ► Status Figure 3-2 Main page of GV-VS04H in Guest Mode For GV-VS11 / 14 and GV-VS2420 / 2400 users, you can process one video stream in two different image settings. In the Administrator mode, both streams are available. Click Streaming 1 or Streaming 2 in the left menu to access the live view.

  • Page 32: The Live View Window

    3.2.1 The Live View Window In the left menu, click Live View, and then select the desired Camera to see live video. . 2 3 4 5 6 7 Figure 3-3 No. Name Function Play Plays live video. Stop Stops playing video. Microphone Talks to the surveillance area from the local computer.

  • Page 33: The Control Panel Of The Live View Window

    Accessing the GV-Video Server Change Camera Sets the desired camera for display. Brings up these functions: Alarm Notify, Video and Audio Configuration, Remote Config, Show Camera Name and Image Enhance. --- See 3.2.6 Alarm Notification, 3.2.7 Video Show System Menu and Audio Configuration, 3.2.8 Remote Configuration, 3.2.9 Camera Name Display and 3.2.10 Image Enhancement respectively.
  • Page 34 [I/O Control] Provides a real-time graphic display of the input and output status. You can force the output to be triggered by double-clicking its icon. [Alarm Notify] Displays the captured images by sensor triggers and/or motion detection. For this function to work, you must configure the Alarm Notify settings first. See 3.2.6 Alarm Notification.

  • Page 35: Snapshot Of A Live Video

    Accessing the GV-Video Server 3.2.3 Snapshot of a Live Video To take a snapshot of live video, follow these steps: 1. Click the Snapshot button (No. 5, Figure 3-3). The Save As dialog box appears. 2. Specify Save in, type the File name, and select JPEG or BMP as Save as Type. You may also choose whether to display the name and date stamps on the image.
  • Page 36 Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video. Navigation box Inset window Figure 3-5 1. Select PIP. An inset window appears. 2. Click the insert window. A navigation box appears. 3.
  • Page 37 Accessing the GV-Video Server Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 3-6 Select PAP. A row of three inset windows appears at the bottom. Draw a navigation box on the image, and this selected area is immediately reflected in one inset window.

  • Page 38: Alarm Notification

    3.2.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live video Captured images Figure 3-7 To configure this function, click the Show System Menu button (No. 11, Figure 3-3), and select Alarm Notify.

  • Page 39: Video And Audio Configuration

    Accessing the GV-Video Server 3.2.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 11, Figure 3-3), and select Video and Audio Configuration. Note: 1.

  • Page 40: Camera Name Display

    3.2.9 Camera Name Display To display the camera name on the image, click the Show System Menu button (No. 11, Figure 3-3), and select Show Camera Name. 3.2.10 Image Enhancement To enhance the image quality of live video, click the Show System Menu button (No. 11, Figure 3-3), and select Image Enhance.

  • Page 41: Ptz Control

    Accessing the GV-Video Server 3.2.11 PTZ Control To open the PTZ control panel, click the PTZ Control button (No. 9, Figure 3-3) and select PTZ Control Panel. Different PTZ devices have different functions, so the features included in the Option button may vary. This feature is only available when the PTZ is set ahead by the Administrator.

  • Page 42: Visual Ptz

    3.2.12 Visual PTZ In additional to the PTZ control panel, you can display a visual PTZ control panel on the image. This feature is only available when the PTZ is set ahead by the Administrator. For details, see 4.2.1 PTZ Settings. Figure 3-12 To access this feature, click the PTZ Control button (No.

  • Page 43: I/O Control

    Accessing the GV-Video Server 3.2.13 I/O Control The I/O Control window provides real-time graphic displays of camera and I/O status, and alarm events. Additionally, you can force output to be triggered. Figure 3-13 To display the I/O control window, click the I/O Control button (No. 8, Figure 3-3). The Alarm List is displayed in three levels.

  • Page 44: Visual Automation

    3.2.14 Visual Automation The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator. For details, see 4.1.7 Visual Automation.

  • Page 45: Chapter 4 Administrator Mode

    Administrator Mode Chapter 4 Administrator Mode The Administrator can access the system configuration via the Internet. E ight categories of configurations are involved in the system configuration: Video and Motion, Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network, and Management.
  • Page 46 List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. The available options vary among v ideo server models. 4.1.1 Multicas 4.1.2 Video Settings 4.1.3 Moti on Detection 4.1.4 Privacy Mask 4.1 Video and Motion 4.1.5 Text Ove rlay...
  • Page 47 The options or functions on the left menu of the Web interface (Figure 4-1 ) may vary depended on mo dels. The table below provides the information of major differences in supported functions. Model GV-VS04H GV-VS11 -VS1 G -VS14 GV-VS2420 (FW V1.03 or (FW V1.0...

  • Page 48: Video And Motion

    Automation and Video Channel Source Settings. 4.1.1 Multicast Note this function is only available for GV-VS04H (Firmware Version 1.03 or later), GV- VS11, GV-VS12 (Firmware Version 1.05 or later) and GV-VS14. The Multicast view allows the GV-Video Server receiving video and audio streams from a multicast group.

  • Page 49: Video Settings

    Administrator Mode 2. Expand the Host folder and drag the desired cameras to the screen for display. If the host has already set a password, you will be promoted to enter it at this step. 3. To receive audio broadcasting, first ensure a speaker is properly insta lled on the local computer.
  • Page 50 Figure 4-3...
  • Page 51 GV-VS2420 / The sup ported codecs vary from model to model. Model Codec H.264 GV-VS04H H.264, MPEG4 , MJPEG (Streaming 1 and 2) GV-VS11 H.264, MPEG4 , MJPEG GV-VS12 H.264 (Streaming 1), MJPEG (Streaming 2) GV-VS14 H.264 (Streaming 1 and 2)
  • Page 52 NTSC Models 704 x 480 704 x 576 704 x 480 de-interla 704 x 576 de-interlace GV-VS04H, 352 x 240 352 x 288 GV-VS11 / 12 / 14 x 14 NTSC NTSC HD, AHD...
  • Page 53 8192 kbps, 6144 kbps, 4096 kbps, 2048 kbps, 1024 kbps, 512 kbps. 2400 [GOP Structure and Length] Set the maximum number of seconds between every key frame. For, GV-VS04H and GV- VS11 / 12 / 14, selec t Customized in the Connection Template section before setting the length of GOP structure.
  • Page 54 Overlaid with the GPS speed: Includes the vehicle speed in live and rec orded videos. Note this function is on ly available for GV-VS04H (Firmware Version 1.05 or later), GV- VS12 (Firmware Version 1.05 or later) and GV-VS14. Overlaid with digital input description name: Includes the names of s elected inputs on live and recorded videos.

  • Page 55: Motion Detection

    Administrator Mode 4.1.3 Motion Detection Motion detection is used to generate an alarm whenever movement o ccurs in the video image. Y ou can configure up to 8 areas with different sensitivity values for motion detection. Figure 4-4...
  • Page 56 1. The default sensitivity value for the whole area is 2 for GV-VS04H and GV-VS11 / 12 / 14, and the value is 9 for GV-VS2420 / 2400. To define a different sensitivity value, click Reset. 2. Select the desired sensitivity by moving t he slider to set the value.

  • Page 57: Privacy Mask

    Administrator Mode 4.1.4 Privacy Mask The Privacy Mask can block out sensitive areas from view, covering the area s with dark boxes in both live view and recorded clips. This feature is ideal for locatio ns with displays, keyboard seque nces (e.g.

  • Page 58: Text Overlay

    4.1.5 Text Overlay Note this option is available for GV-VS04H (Firmware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware Version 1.02 or later), GV-VS14, and GV-VS2420 / 2400. . The T ext Overlay function allows you to type any text in any place on the camera view. Up to 16 text messages can be created.

  • Page 59: Tampering Alarm

    Administrator Mode 4.1.6 Tampering Alarm Note this option is available for GV-VS04H (Firmware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware Version 1.02 or later), GV-VS14, and GV-VS2420 / 2400. The Tampering Alarm is used to detect when a camera is being physically tam pered.
  • Page 60 When the camera has been tampered, the output device and system buzzer can be activated. To turn off the output device and system buzzer immediately, r eturn to this setting page, and click Restart Detection. Note: The system buzzer is only supported by GV-VS04H (Firmware Version 1.03 or later). .

  • Page 61: Visual Automation

    Administrator Mode 4.1.7 Visual Automation This intuitive feature helps you automate any electronic device by trigge ring the connected output device. When you click o n the image of the electronic device, you can simply change its current state, e.g. light ON. Figure 4-9 1.

  • Page 62: Video Channel Source Settings

    4.1.8 Video Channel Source Settings Note this option is only available for GV-VS04H (Firmware Version 1.03 or l ater). The function allows you to assign the video input to the desired video channel for display. Figure 4-11...

  • Page 63: Digital I/O & Ptz

    GPS control on the rear panel of GV-VS12 (see Figure 1-12). On the rear panels of GV-VS04H, GV-VS11 /14 and GV-VS2420 / 2400, all t he functions for auxiliary device control are included in a terminal block. For details, see Chapter 9 Auxiliary Device Connectors.

  • Page 64: Input/Output Settings

    4.2.2 Input/Output Settings The number of input and output devices the GV-Video Server can connect to vary from model to model. The GV-VS04H, GV-VS14, and GV-VS2420 / 2400 can c onnect up to 4 input and 4 output devices, GV-VS11 can con...

  • Page 65: Output Setting

    Administrator Mode Input off: Direct the PTZ camera to another preset point when the triggered input is off. Duration to set preset after input off x seconds: Specify the amount of time the PTZ camera stays in “Input on” preset point before moving to “Input off” preset point. For related PTZ settings, see 4.2.1 PTZ Settings.
  • Page 66 Important: The input/output settings only function after you start I/O Monitor manually or by schedule. To configure the I/O monitoring, see 4.4 Monitoring.

  • Page 67: Gps/Wiegand

    PS or Wiegand function for use. The two functions cannot be enabled at the same time. Figure 4-15 GPS Function Note this function is only available for GV-VS04H , GV-VS12 and GV-VS14. The GV-Video Server supports the Global Position System (GPS) for active v ehicle tracking and location ve rification.
  • Page 68 GV-GIS and removed from the storage device. For the setup of GV-GIS c onnection, see 4.3.5 GV-GIS. Note this function is only available fo r GV-VS04H (Firmware V1.03 or later), GV-VS12 (Firmware Version 1.04 or later) and GV-VS14. Sync GPS Time: Synchronizes the time of GV-Video Server with the GPS time once GV-Video Server receives GPS signals.
  • Page 69 Administrator Mode Wiegand Function Note this function is only available for GV-VS04H and GV-VS14. The GV-Video Server can work in conjunction with the Wiegand-interface car d reader to send video and cardholder data to the central monitoring stations Center V2...

  • Page 70: Buzzer

    Cardholder Dat a from Video Server. 4.2.4 Buzzer Note this function is only available for GV-VS04H (Firmware Version 1.03 or later). The system buzzer can be activated automatically under these condition s: video lost, input device triggered, motion detected, disk full, disk write error and ta mpering alarm.

  • Page 71: Events & Alerts

    Administrator Mode 4.3 Events & Alerts For the eve nts of motion detection or I/O trigger, the Administrator can set up the two trigger actions: 1. Send a captured still image by e-mail or FTP. 2. Notify Center Monitoring Station, Center V2, Vital Sign Monitor or GV-GIS, by video or text alerts.
  • Page 72 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the SMTP Server’s URL address or IP address. Server Port: Type the SMTP Server’s port num ber. Or keep the default value 25. From email address: Type the sender’s e-mail address. Send to: Type the e-mail address(s) you want to send alerts to.

  • Page 73: Ftp

    Administrator Mode 4.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 4-20 [Upload to a FTP Server] Enable: Select to enable the FTP function. Server URL/IP Address: Type the URL address or IP address of the FTP Server. Port Number: Type the port number of the FTP Server.
  • Page 74 [Alarm Settings] Motion Detection: Once the motion is detected on the selected camera, a still image will be sent to the FTP Server as a notification. Continuously send images upon trigger events (motion): A sequence o snapshot imag es are uploaded to the FTP Server when motion is detected on the selected camera.

  • Page 75: Center V2

    Administrator Mode 4.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station C enter V2 can get notified by live videos and text alerts. Up to two Center V2 servers c an be connected simultaneously. For live monitoring thr ough Center V2, you must already have a subscriber account on each Center V2 server.
  • Page 76 To enable the Center V2 connection: 1. Activate Link: Enable the monitoring through Center V2. 2. Host Name or IP Address: Type the host name or IP address of Center 3. Port Number: Match the port to Port 2 on Center V2. Or keep the default value 5551. For details, see 8.1 Center V2.

  • Page 77: Vital Sign Monitor

    Administrator Mode 4.3.4 Vital Sign Monitor After a motion or an I/O triggered event, the central monitoring station V ital Sign Monitor can get notified by text alerts. Up to two Vital Sign Monitor servers can be connected simultaneously. For live monitoring through V ital Sign Monitor, you must already have a subscriber account on each Vital Sign Monitor server.
  • Page 78 7. To establish the connection to the second Vital Sign Monitor server, click the Connection 2 tab and repeat above steps for setup. These options you can also find on this Vital Sign Monitor setting page: from: Stops notifying Vital Sign Monitor of Cease motion detection messages motion detection from the selected camera.

  • Page 79: Gv-Gis

    Administrator Mode 4.3.5 GV-GIS Note the GV-GIS with two connections is only available on G V-VS04H (Firmware Version 1.03 or later), GV-VS12 (Firmware Version 1.02 or later) and GV-VS14. Through the Internet connection, the GV-Video Server with enabled-GPS fun ction can send GPS data and live video to the GV-GIS ge ographic information system for the services of vehicle tracking, location verification and live monitoring.
  • Page 80 To enable the GV-GIS connection: 1. Activate Link: Enable the monitoring through GV-GIS. 2. Host Name or IP Address: Type the host name or IP address of GV-G 3. Po rt Number: Match the communication port on GV-GIS. Or keep the default value 3356.

  • Page 81: Backup Center

    Administrator Mode 4.3.6 Backup Center Note the function is only available for GV-VS04H (Firmware Version 1.03 or later), GV- VS11, GV-VS12 (Firmware Version 1.02 or later) GV-VS14 and GV-VS2420 / 2400. The connection to GV-Backup Center allows you to back up another copy of...
  • Page 82 6. Click Apply. Note: The Backup Video, Compact Video and Resend all files functions are available for GV-VS04H (Firmware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware Version 1.02 or later), GV-VS14 and GV-VS2420 / 2400.

  • Page 83: Video Gateway/Recording Server

    Administrator Mode 4.3.7 Video Gateway/Recording Server Note the function is only available on GV-VS04H (Firmware Version 1.0 3 or later), GV- VS11, GV-VS12 (Firmware Version 1.02 or later), GV-VS14 and GV-VS2420 / 2400. The GV-Video Gateway / GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments.
  • Page 84 The GV-Video Server can connect up to two GV-Video Gateway / GV-Rec ording Server. To send the v ideo images to the GV-Video Gateway or GV-Recording Server, follow the steps below. 1. Activate Link: Enable the connection to GV-Video Gateway / GV-Recording Ser ver.

  • Page 85: Viewlog Server

    Administrator Mode 4.3.8 ViewLog Server The ViewLog Server is designed for remote playback function. This server al lows you to remotely access the recorded files saved at the GV-Video Server and play back video with the player ViewLog. Select Enable to activate the built-in server. Keep the default port 5552 or modify it if necessary.

  • Page 86: 3Gpp/Rtsp

    4.3.9 3GPP/RTSP The 3 GPP / RTSP Server enables video and audio streaming to your 3G-enabled mobile phone. Figure 4-27 Activate Link: Enable the 3GPP / RTSP service. RTSP/TCP Port: Keep the default value 8554, or modify it if necessary. RTP/UDP Port: Keep the default range from 17300 to 17319, or modify it if necessary.

  • Page 87: Monitoring

    Administrator Mode 4.4 Monitoring You can start recording manually, by schedule or by input trigger. Figure 4-28 [Manual] Manually activates motion detection and input monitoring. Select one of the following options and then click the Start button. Select all: Manually start recording and input monitoring as well. Camera x: Manually start recording.
  • Page 88 [Start monitoring by Input X] This function is not supported by GV-VS2 420 / 2400. Start monitoring by the assigned input. When the assigned input is triggered, t he system will respond based on your recording or input monitoring settings in above Manual or Schedule options.

  • Page 89: Recording Schedule

    Administrator Mode 4.5 Recording Schedule e schedule is provided to activate recording and I/O monitoring on a specific time each day. 4.5.1 Recording Schedule Settings You can set up different monitoring schedules for each camera. Figure 4-29 Span 1- Span 3: Set a different recording mode for each time frame dur ing the day.

  • Page 90: I/O Monitoring Settings

    4.5.2 I/O Monitoring Settings You can set the schedule for I/O monitoring to start. Figure 4-30 Span 1-3: Set different time frames during the day to enable I/O mon itoring. Each day can be divided into 3 time frames, represented by Span 1 to Span 3 .

  • Page 91: Network

    Administrator Mode 4.7 Network The Network section includes some basic but imp ortant network configurations that enable the GV-Video Server to be connected to a TCP/IP network. 4.7.1 LAN According to your network environment, select among Static IP, DHCP and PPPoE. Figure 4-31 [OptionalNetwork type] According to the network environment, select Wired or Wireless.
  • Page 92 [LAN Configuration] Dynamic IP address: The network environment has a DHCP server. B y default the GV-Video Server will be automatically assigned a dynamic I P address by the DHCP server. To check the current IP address, click the Test DHCP button. Static IP address: Assign a static IP or fixed IP to the GV-Video Ser ver.

  • Page 93: Wireless-Client Mode

    Administrator Mode 4.7.2 Wireless-Client Mode To use the wireless function, a wir eless LAN USB adaptor is required. For supported wireless LAN adaptors, see Appendix B. Figure 4-32 Network type: Select the network mode Ad Hoc or Infrastructure. Infrastructure: Via the Access Point to connect to the Interne t.
  • Page 94 WEP (Wired Equivalent Privacy): A type of data encryption. Type u p to four WEP Keys in HEX or AS CII format. Note that if you use HEX format, only digits 0-9 and letters A-F, a-f are valid. K-TKIP and WPA2PSK-TKIP: Type WPA-PSK (Pre-Shared Key) for data WPAPS encryption.

  • Page 95: Advanced Tcp/Ip

    Administrator Mode 4.7.3 Advanced TCP/IP This section introduces the adva nced TCP/IP settings, including DDNS Server, HTTP port, HTTPS port, streaming port and UPnP. Figure 4-33...
  • Page 96 . The Web interface will be restarted and you will need to log in again. Note this function is available for GV-VS04H (Firmware V1.03 or later), GV-VS11 and GV- VS12 (Firmware Version 1.04 or later), GV-VS14 and GV-VS2420 / 2400.
  • Page 97 GV-VS2420 / 2400. The DLNA function is only supported with Windo ws Media Player version 1.1 or later. You must have installed GeoVision codec from the Software CD/DVD or have accessed the GV-Video Server Web interface on the computer with Windows Media Player.
  • Page 98 Note this function is available for GV-VS04H (Firmware Version 1.05 or later), GV-VS11, GV-VS12 (Firmware Version 1.05 or later), and GV-VS14 and GV-VS2420 / 2400.

  • Page 99: Umts

    Administrator Mode 4.7.4 UMTS UMTS stands for Universal Mobile Telephone System. UMTS is a third-ge neration (3G) broadband, packet-based transmission of text, digitized voice, video, and mult imedia at data rates up to 2 megabits per second. UMTS offers a consiste nt set of services to mobile computer and phone users, no matter where they are located in the world.
  • Page 100 PIN number: Type the PIN number that is provided by your netwo rk operator. t Name (APN): Type Access Point Name that is provided by your Access Poin network operator. ame: Type a valid username to enable the UMTS service from your network Usern operator.

  • Page 101: Multicast

    Administrator Mode 4.7.5 Multicast Note this function is available for GV-VS04H (Fir mware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware Version 1.05 or later) and GV-VS14. The multicast provides a mechanism for sending a single video and au dio stream to a group of hosts.

  • Page 102: Ip Filter

    Multicast Audio: Select the audio to send its audio through multicast ing. Enable Encryption: Enable this option and type the Encryption Ke y to secure multicast streams. The hosts i n the multicast group will need to enter the Key to access the video and audio streams.

  • Page 103: Snmp Setting

    The Simple Network Management Protocol (SNMP) allows you to monitor t he status of the camera through SNMP network management software. Note this function is available for GV-VS04H (Firmware Version 1.05 or later), GV-VS11, GV-VS12 (Firmware Version 1.05 or later) GV-VS14 and GV-VS2420 /2400. Figure 4-37 1.

  • Page 104: Management

    4.8 Management The Management section includes the settings of data and time, USB ma ss storage device and user account. Also you can view the firmware version and execute certain system operations. 4.8.1 Date and Time Settings The date and time settings are used for date and time stamps on the image. Figure 4-38...
  • Page 105 Administrator Mode [Date & Time on Video server] Displays the current date and time on the GV-Video Server. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Sa ving Time to automatically adjust the GV-Video Server for daylight saving time. Type the St art Time and End Time to enable the daylight saving function.

  • Page 106: Gps Maps Settings

    4.8.2 GPS Maps Settings Note this function is only available for GV-VS04H, GV-VS12 and GV-VS14. The GV-Video Server supports the Global Position System (GPS) for acti ve vehicle tracking and location verification. The vehicle location will be tracked by Google Maps.

  • Page 107: Storage Settings

    The GV-Video Server does not support the USB2.0 to SATA / IDE ca ble for external USB storage connection. GV-VS04H and GV-VS11 / 12 / 14 support up to 2 TB hard disk, and GV-VS2420 / 2400 supports up to 4 TB hard disk.
  • Page 108 Figure 4-40 [Storage Settings] If the Enable recycling option is checked, when the space of the USB ma ss storage device is lower than the specified space, the system will either write the dat a to another device or overwrite the oldest recorded files. If the Enable recycling option is not checked, the system will stop recor ding when the specified space is reached.
  • Page 109 Administrator Mode [Disk Information] This section shows the details of the attached storage devices. [Partition Information] This section shows the partition details of the attached storage devices. To add a USB mass storage device: 1. Attach the device to the GV-Video Server. 2.

  • Page 110: User Account

    4.8.4 User Account can change the login name and password of Administrator, Guest and FTP Server User. • The default Administrator login name and pass word are admin. The default Guest login name and password are guest. • • To allow a Guest user log in without entering name and passwor d, select Disable authentication for guest account.

  • Page 111: Log Information

    Administrator Mode 4.8.5 Log Information The Startup time log section contains every start time of the GV-Video Se rver. The start time is recorded on the local storage device, so the information is only available when a storage device is connected to the GV-Video Server. The Debug Messages section contains dump data that is used by service personnel for analyzing problems.

  • Page 112: System Log

    4.8.6 System Log Note the function is only available on GV-VS04H (Firm ware Version 1.03 or later), GV- VS11, GV-VS12 (Firmware Version 1.02 or later) and GV-VS14. The System Log records the events in the four types of logs: System Eve...

  • Page 113: Tools

    Administrator Mode 4.8.7 Tools This sect ion allows you to execute certain system operations and view the firmware version. Figure 4-45...
  • Page 114 Reboot Time: Use the drop-down lists to specify the time for automati c reboot. Note this function is available for GV-VS04H (Firmware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware V1.04 or later), GV-VS14 and GV-VS2420 / 2400. [Repair Record Database] Click Apply to repair the database when errors occur while playing back the recordings with the Remote ViewLog player.

  • Page 115: Language

    Administrator Mode 4.8.8 Language You can select the language for the Web interface. Figure 4-46 Use the Language drop-down list to select a language for the Web interface. By default, the language on the Web interface will be the same with the one used for the operating system.

  • Page 116: Chapter 5 Recording And Playback

    Chapter 5 Recording and Playback The GV-Video Server can record down video/audio directly to the attached USB mass storage device. And you can play back the recorded files on the GV-System (GV-DVR/ NVR) and GV-VMS or over the TCP/IP network. 5.1 Recording To enable the recording function: 1.

  • Page 117: Playback Using Usb Mass Storage Device

    Recording and Playback 5.2.1 Playback Using USB Mass Storage Device You can play back the files recorded at the GV-Video Server by attaching the USB mass storage device to the GV-System (GV-DVR/NVR) and GV-VMS. However, the GV-System (GV-DVR/NVR) and GV-VMS are run on Windows system while the files recorded at GV- Video Server are of Linux file system.
  • Page 118 3. Access the recording files from the specified disk drive of your computer. 4. Run ViewLog. 5. Click the Advanced button , select Reload Database and click Video Server/Compact DVR. This dialog box appears. Figure 5-2 6. Click Add to assign the disk drive. 7.

  • Page 119: Playback Over Network

    With the Remote ViewLog function, you can play back the files recorded at the GV-Video Server over TCP/IP network. Installing Remote ViewLog For first-time users, install Remote ViewLog from the software DVD or GeoVision Website. Once installed, you can access this option from GV-Video Server’s Web interface. Downloading from Software DVD 1.
  • Page 120 Type the GV-Video Server’s IP address, login ID and password. Keep the default port 5552 or modify it if necessary. Figure 5-3 In the Host Type field, select Video Server. Click Connect to access the files of the GV-Video Server for playback. For DST events, a separate DST subfolder will be displayed as illustrated below.

  • Page 121: Playback Of Gps Tracks

    Recording and Playback 5.2.3 Playback of GPS Tracks On GV-System (GV-DVR/NVR), you can retrieve the GPS tracks from GV-Video Server for playback. You can also attach the USB mass storage device with the GPS data to GV- System (GV-DVR/NVR) for playback. The following instructions describe how to retrieve the GPS tracks from GV-Video Server over Internet.
  • Page 122 To play back GPS tracks, click the Tools button and select Display GIS Window. The first-time user will be prompted for a License Agreement. Read through the license terms before you click I understand and agree to continue. Select the events with GPS tracks from the Video Event list, select the desired video mode, and click the Play button to start.

  • Page 123: Chapter 6 Advanced Applications

    This chapter introduces more advanced applications. 6.1 Upgrading System Firmware GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the GV-Video Server by using the Web interface or the GV-IP Device Utility included on the Software CD/DVD.

  • Page 124: Using The Web Interface

    6.1.1 Using the Web Interface 1. In the Live View window, click the Show System Menu button (No. 11, Figure 3-3), select Remote Config. This dialog box appears. Figure 6-1 2. Click the Browse button to locate the firmware file (.img) saved at your local computer. 3.

  • Page 125: Using The Ip Device Utility

    Advanced Applications 6.1.2 Using the IP Device Utility The IP Device Utility provides a direct way to upgrade the firmware to multiple GV-Video Servers. 1. Insert the Software CD/DVD, select IP Device Utility, and follow the onscreen instructions to install the program. 2.

  • Page 126: Backing Up And Restoring Settings

    5. Click the Firmware Upgrade tab. This dialog box appears. Figure 6-4 6. Click the Browse button to locate the firmware file (.img) saved at your local computer. 7. If you like to upgrade all the GV-Video Servers in the list, check Upgrade all devices. 8.

  • Page 127: Restoring The Settings

    Advanced Applications 3. Click the Export Settings button. This dialog box appears. Figure 6-5 4. Click the Browse button to assign a file path. 5. Type Password, and click Export Settings to save the backup file. 6.2.2 Restoring the Settings 1.

  • Page 128: Gps Tracking

    6.3 GPS Tracking Note this function is only available for GV-VS04H, GV-VS12 and GV-VS14. The GV-Video Server supports the Global Position System (GPS) for active vehicle tracking and location verification. The vehicle location will be tracked by Google Maps. To track the location of your GV-Video Server: 1.

  • Page 129: Advanced Applications

    Advanced Applications 5. To track the GV-Video Server on Google Maps, click Open. A warning message appears. Figure 6-8 6. Right-click the warning message and select Allow Blocked Content. The map will be displayed. The icon indicates the location of your GV-Video Server. At the upper right corner you have options for viewing different map formats, such as Satellite and Hybrid.

  • Page 130: Restoring To Factory Default Settings

    To restore to default settings, use the Reset and Load Default buttons on the front panel. For the location of the two buttons see 1.7 Physical Description. GV-VS04H and GV-VS14 1. Press and then release the Reset button immediately. 2. Press and hold the Load Default button until all 3 LEDs (Power, Ready and Disk Full/Fault) are on.

  • Page 131: Verifying Watermark

    Advanced Applications 6.5 Verifying Watermark Note this function is only available for GV-VS04H (Firmware Version V1.03 or later), GV- VS11, GV-VS12 (Firmware Version V1.02 or later), GV-VS14 and GV-VS2420 / 2400. The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation.

  • Page 132: The Watermark Proof Window

    6.5.3 The Watermark Proof Window Figure 6-10 The controls in the window: No. Name Description Open File Opens the recorded file. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.

  • Page 133: Chapter 7 Dvr Configurations

    • The compatible version of GV-System (GV-DVR / NVR) / GV-VMS for each model: Compatible version of GV-System GV-VMS version Model (GV-DVR / NVR) 8.4.3 or later GV-VS04H 8.5.3 or later GV-VS11 14.10 8.3.2 or later GV-VS12 8.5.5 or later GV-VS14 8.6.2 with patch files or later...
  • Page 134 The maximum number of streams that a GV-Video Server allows is 8 (GV-VS04H) / 16 (GV-VS14 and GV-VS2420 / 2400 ) / 4 (GV-VS11 / 12 ). For GV-VS04H and GV-VS12, when a channel is connected to GV-System / GV-VMS, IE browser, or any other application, it takes up 1 stream.

  • Page 135: Setting Up Gv-Video Server On Gv-System

    To manually set up an IP camera, follow steps 2 to 7. Click Add Camera. This dialog box appears. Figure 7-3 Type the IP address, username and password of the GV-Video Server. Modify the default HTTP port if necessary. Select GeoVision from the Brand drop-down list and...
  • Page 136 GV-Video Server model from the Device drop-down list. The following dialog box appears. For GV-VS04H / GV-VS12: Figure 7-4 Click Query to detect the GV-Video Server. When it is detected, its available camera options will be displayed in the Camera List section.
  • Page 137 DVR Configurations • Take GV-VS14 for example, if you want to enable dual streams, click the Dual Stream button to set up the H.264 codec and 704 x 480 resolution for recording and the MPEG4/MJEPG codec and 352 x 240 for live viewing. Click Apply.

  • Page 138: Customizing Gv-Video Server Settings

    7.1.1 Customizing GV-Video Server Settings After the GV-Video Server is connected and assigned with a display position, you can configure the GV-Video Server’s settings such as frame rate or resolution. Right-click the desired GV-Video Server to see the following list of options: Figure 7-7 Change Resolution: Note this function is only available for GV-VS11.
  • Page 139 Recording Codec Format: Specifies whether to record in standard or GeoVision type of MJPEG, MPEG4 or H.264 codec. GIS Setting: Note this function is only available for GV-VS04H, GV-VS12 and GV- VS14. Records the video with the GPS data. To record the GPS data, remember to also enable the GIS function of the GV-System (GV-DVR / NVR) (Configure button <...

  • Page 140: Setting Up Gv-Video Server On Gv-Vms

    7.2 Setting Up GV-Video Server on GV-VMS To set up the cameras from the GV-Video Server on the GV-VMS, follow these steps: Note: The following instructions are based on GV-VMS V14.10 software and user interfaces. To access the IP Device Setup page, click Home , select Toolbar , click and select Camera Install.
  • Page 141 DVR Configurations default HTTP port 80 if necessary. Select GeoVision and model name from the Brand drop-down list and select the GV-Video Server model from the Device drop-down lists. The following dialog appears. For GV-VS04H / GV-VS12: Figure 7-10 Click Query to detect the GV-Video Server. When it is detected, its available camera options will be displayed in the Camera List section.
  • Page 142 • Take GV-VS14 for example, if you want to enable dual streams, click the Dual Stream button to set up the H.264 codec and 704 x 480 resolution for recording and the MPEG4/MJEPG codec and 352 x 240 for live viewing. B.

  • Page 143: Receiving Cardholder Data From Video Server

    DVR Configurations 7.3 Receiving Cardholder Data from Video Server This function is only available for GV-VS04H and GV-VS14. Over the network, GV-System (GV-DVR / NVR) can receive cardholder data from the Wiegand-interface card reader. This transmission is made possible through GV-Video Server.
  • Page 144 Select GV-Video Server from the Type drop-down list, enter a descriptive name for the Video Server, select the IP address of the video server from the Address drop- down list, and then select the camera to be mapped with. Click Add to add the Wiegand card reader to the system. Note the cardholder data will not be overlaid on the mapped camera.

  • Page 145: Remote Monitoring With Multi View

    DVR Configurations 7.4 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the cameras and I/O devices connected to the GV-Video Server. This function is not available for GV-VS2420 / 2400. Note: Multi View is not supported by GV-VMS. Connecting to GV-Video Server The Multi View program is available in the GV-System (GV-DVR / NVR) applications, and also included on the Software CD/DVD as an independent program.
  • Page 146 6. Select GV-Video Server from the Device drop-down list. Type the host name, IP address, user name and password of the GV-Video Server. Modify the default VSS port 10000 if necessary. Figure 7-16 7. Click Save to establish connection. For details on the Multi View functions, see “Multi View Viewer”, Chapter 8, GV-DVR User’s Manual on the Surveillance System Software CD/DVD.

  • Page 147: Remote Monitoring With E-Map

    DVR Configurations 7.5 Remote Monitoring with E-Map You can use the Remote E-Map to monitor and manage the cameras and I/O devices connected to the GV-Video Server. Creating an E-Map for the GV-Video Sever With the E-Map Editor, you can create an E-Map for the cameras and I/O devices connected to the GV-Video Server.
  • Page 148 For details on creating an E-Map file on the E-Map Server, see “E-Map Application”, GV- DVR User’s Manual or GV-VMS User’s Manual on the Surveillance System Software CD/DVD. Connecting to GV-Video Server Depending on where you save the created E-Map file (GV-DVR / NVR / VMS, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly.

  • Page 149: Chapter 8 Cms Configurations

    CMS Configurations Chapter 8 CMS Configurations This section introduces the related settings to enable connecting to the GV-Video Server in the central monitoring stations Center V2, Vital Sign Monitor and Dispatch Server. 8.1 Center V2 The Center V2 can monitor and manage the cameras and I/O devices connected to the GV-Video Server.
  • Page 150 To define how to display the received video on motion detection and input trigger from the GV-Video Server, click the Preference Setting button and select System Configure. This dialog box appears. Figure 8-3 Manual close channel: Closes the triggered camera view manually. Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops.

  • Page 151: Vital Sign Monitor

    CMS Configurations 8.2 Vital Sign Monitor The Vital Sign Monitor is designed to monitor and manage the cameras and I/O devices connected to the GV-Video Server under low bandwidth network. TCP/ IP GV-Video Server Text Data Vital Sign Monitor GV-Video Server Figure 8-4 To set the appropriate port connecting to the GV-Video Server, click Configure on the window menu, and select System Configure to display this dialog box.

  • Page 152: Dispatch Server

    8.3 Dispatch Server The Dispatch Server minimizes overloading of Center V2 Servers by re-distributing GV- Video Server subscribers to the least busy Center V2 server. TCP/ IP GV-Video Server Center V2 Video Data Text Data Dispatch Server GV-Video Server Center V2 Figure 8-6 To set the appropriate port connecting to the GV-Video Server, click the Server Setting button on the toolbar, and enable Allow GV IP devices to login as...

  • Page 153: Chapter 9 Auxiliary Device Connectors

    Auxiliary Device Connectors Chapter 9 Auxiliary Device Connectors 9.1 GV-VS04H, GV-VS14, and GV-VS2420 / 2400 GV-VS04H and GV-VS14 The 16-pin terminal block, located on the rear panel, provides interfaces for four digital inputs, four relay outputs, an RS-485 interface, a Wiegand interface, a GPS interface and auxiliary power.

  • Page 154: Pin Assignment

    9.1.1 Pin Assignment The table below lists the pin assignment for the terminal block. GV-VS04H and GV-VS14 Function Function Relay Output 1 DC 5V Out for GV-Relay Module, or GPS Module Digital Input 1 Ground, or GPS Ground Relay Output 2...

  • Page 155: Relay Output

    Auxiliary Device Connectors 9.1.2 Relay Output The relay outputs on the terminal block only drives a maximum load of 5 volts. Working in conjunction with the GV-Relay V2 module, it is capable of driving heavier loads. Refer to the figure and table below to connect the GV-Relay V2 module to the GV-Video Server. Note: The GV-Relay module is an optional product.

  • Page 156: Gv-Vs11

    9.2 GV-VS11 The terminal block on the rear panel of GV-VS11 provides one digital input and output, an RS-485 interface and auxiliary power. RS-485 + 5V DI DO G Figure 9-3 Function RS-485- RS-485- RS-485+ RS-485+ DC 5V Out Digital Input Digital Output Ground...

  • Page 157: Gv-Vs12

    Auxiliary Device Connectors 9.3 GV-VS12 Owing to the model size, GV-VS12 provides the I/O Cable with RJ-45 Connector for the extensible connection to other I/O devices and PTZ cameras. A RJ-45 connector and a bundle of shielded wires are on the each end of the cable. Strip the desired wires first, and connect the auxiliary devices with the right wires according to the following pin assignment in the section 9.2.1.

  • Page 158: Terminal Block

    9.3.2 RS-232 Terminal Block The RS-232 terminal block on GV-VS12 is mainly used for the connection to a GPS module. RS232 Figure 9-5 Function GPS RX (Receive) GPS TX (Transmit) Ground DC 5V Out Note: To ensure the connection to the GV-VS12, the GPS RX must be connected to the TX pin, and the GPS TX must be connected to the RX pin.

  • Page 159: Chapter 10 Mobile Phone Connection

    Chapter 10 Mobile Phone Connection With the mobile phone capable of GPRS, 3G and Wi-Fi, you can receive live videos from your GV-Video Server using GV-Eye V2.0 or later. To download the latest GV-Eye or see the full installation guide, visit http://www.geovision.com.tw/english/5_8_App.asp.

  • Page 160: Appendix

    1. Set the Security to Medium-high (default). 2. Enable Allow previously unused ActiveX controls to run without prompt. 3. Disable Only allow approved domains to use ActiveX without prompt. B. Supported Wireless LAN USB Adaptor GV-VS04H, GV-VS12 / 14, GV-VS2420 / 2400 Vendor Model D-Link...

  • Page 161: Supported Mobile Broadband Device

    C. Supported Mobile Broadband Device GV-VS04H, GV-VS12 / 14, GV-VS2420 / 2400 Vendor Model Bandluxe C320, C501 E156, E156B, E169, E220, E1692, E1750, E1752, E1756, E1756C, Huawei EC169C, EC189 USB Modem (HSDPA/UMTS/EDGE/GPRS/GSM) Novatel MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM) Onda MSA523HS Sierra...

  • Page 162: The Supported Ptz Cameras

    E. The Supported PTZ Cameras The following table shows the supported PTZ cameras. PTZ Model and Protocol AcutVista (SSD-7971D) Ademco (Jupiter) Bosch (G3) Bosch (TC700 / 8560) Canon (VCC4 / VCC5i) CBC GANZ (ZC-S120 Series) Chiper (CPT-V9KRV) COP (15-CD53W) - Pelco D COP (15-CD55TW) - Pelco D COP (15-CD55W) - Pelco D COP (CD55X) - Pelco D...
  • Page 163 Lilin (PIH-7625) – MLP1 Lilin (PIH-820) – MLP1 MESSOA (SDS600 Series) MESSOA (D-700 Series) Minking Dome Mintron (54G2AHN / P) NanWang (NVD 2300PNT) NanWang V4.1 (NVD 2300PNT) Panasonic (WV-CS850) Panasonic (WV-CW960) Pelco Dome Pelco (Spectra III) Pelco Spetra Mini Dome (SD4-WO) Pishion (22X) PTZ in I/O RX214D...

  • Page 164: The Cgi Command

    F. The CGI Command Note this function is supported by GV-VS04H (Firmware Version 1.03 or later), GV-VS11, GV-VS12 (Firmware Version 1.04 or later) GV-VS14, and GV-VS2420 / 2400. You can use the CGI command to obtain a snapshot of the live view or access the User Account Web interface.

This manual is also suitable for:

Gv-vs11Gv-vs14Gv-vs12Gv-vs2400Gv-vs2420

Table of Contents
