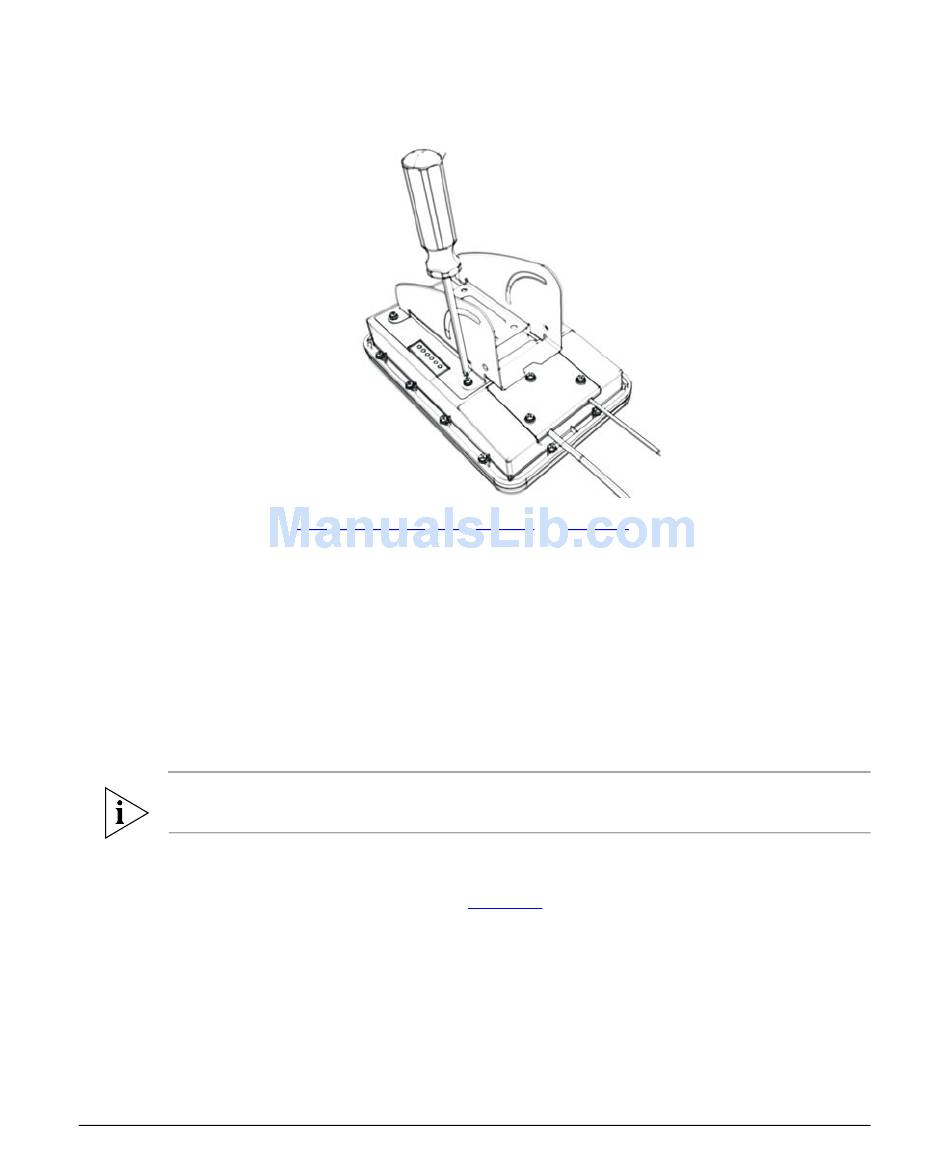

3. Using a 6mm Phillips screwdriver, tighten the four machine screws to fasten the bracket
to the Access Point. Screw torque value must be 4kg-5kg.
4. Continue to
8

Mounting the Access Point

To mount the Access Point, you will need to join the two mounting brackets that you
attached earlier to the device and the mounting surface. For this procedure, you will need
the following items:
Hex bolts
■
10mm ratchet wrench
■
NOTE: Figures in this section show mounting on a vertical pole. Procedures for mounting
on a flat surface or horizontal surface are similar.
To join the two mounting brackets together:
1. Join the two brackets as shown in
• The dynamic bracket (attached to the Access Point) encloses the static bracket
(attached to the mounting surface).
• (For mounting on a vertical pole) The side of the Access Point with the antenna
connector is at the bottom, especially if you are planning to install an external
antenna.
• (For mounting on a horizontal pole) The side of the Access Point with the RJ45 port
is toward the building. This will help ensure that the Ethernet cable or DC cable
will not create any signal interference for the antenna.
"Deploying the Access Point"
Figure
Mounting the Access Point
Step 2: Attach the Dynamic Bracket to the Access Point
on page 32.
34. Make sure that:
