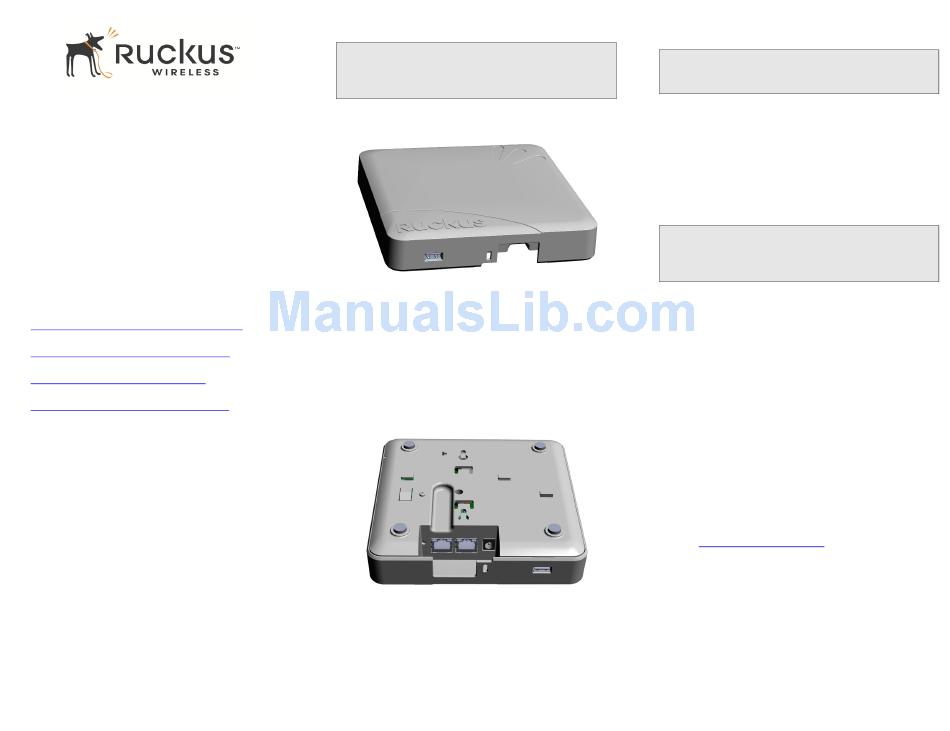

Ruckus Wireless ZoneFlex 7352 Quick Setup Manual

ZoneFlex 7352/7372 802.11n
Multimedia Wi-Fi Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless ZoneFlex Access
Point. After completing the steps described in this Guide,
you will be able to place the Access Point (AP) at your site
and provide wireless network access to users.
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty available at
http://support.ruckuswireless.com/warranty
P C
ACKAGE ONTENTS

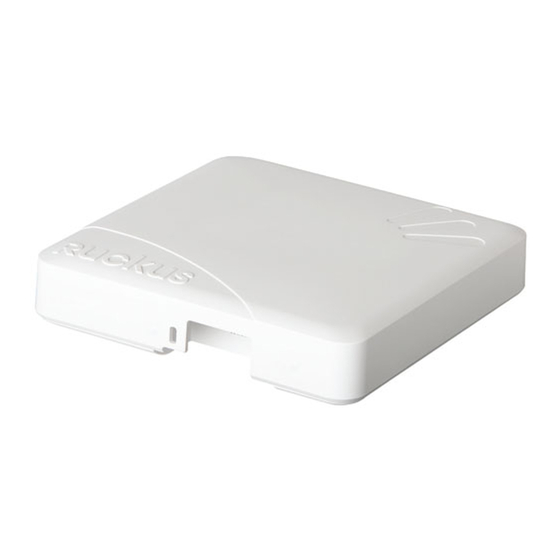

• ZoneFlex 7352/7372 Access Point
• Mounting screws and anchors (2)
• Security screw
• Regulatory flyer
• This Quick Setup Guide
S R
ETUP EQUIREMENTS
• A computer running Windows 7 (procedures for other OS's
are similar)
• One or more of the following:
• A modem (DSL or cable), broadband router, or other
device provided by your Internet Service Provider
that brings Internet access to your site.
• A network switch or a DSL/Internet gateway device.
• Two Ethernet cables (Cat5e or better for PoE in)
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
IMPORTANT!
If the AP is deployed with a ZoneDirector, follow the
ZoneDirector Quick Setup Guide, and connect the AP to your
local network.
S 1: C
TEP
1
After removing your Ruckus Wireless AP from its package,
place it next to your computer.
.
2 Using an Ethernet cable, connect your computer's network
port to the 10/100/1000 port on the AP.
.
3 Using the AC adapter (sold separately), connect the AP to a
convenient (and protected) power source.
.
• Alternatively, connect the 10/100/1000 port to a PoE
. injector or PoE switch for both power and network
connectivity.
4
Verify that the Power LED on the external enclosure is a
steady green.
Published August 2012, Part Number 800-70415-001
AP Y C
ONNECT THE TO OUR OMPUTER
Copyright © 2012 Ruckus Wireless, Inc.
S 2: P Y C
TEP REPARE OUR OMPUTER FOR
S
ETUP
NOTE:
The following procedures assume Windows 7 as the operating
system. Procedures for other OS's are similar.
1
On your Windows 7 computer, configure your network
adapter from the Local Area Connection settings as follows:
• Start > Control Panel > Network and Sharing
Center > Change Adapter Settings
2 Edit the TCP/IPv4 address settings as follows:
• Local Area Connection > Properties > Internet
Protocol Version 4 (TCP/IPv4) > Properties
The TCP/IPv4 Properties dialog box appears.
IMPORTANT!
Write down all of the currently active settings so you can
restore your computer to its current configuration later (when
this process is complete).
Use the following IP address
3 Select
selected) and then make the following entries:
IP address
• : 192.168.0.22 (or any address in the
192.168.0.x network)
• Subnet mask : 255.255.255.0
• Default gateway : 192.168.0.1
Leave the DNS server fields empty.
OK
4 Click to save your changes.
Your changes are put into effect immediately.
S 3: L I AP
TEP OG NTO THE
As specified earlier, the AP should be directly connected to
your computer (through the Ethernet port) and powered on,
ready for setup.
1
On your computer, open a Web browser window.
2
In the browser, type this URL to connect to the AP:
https://192.168.0.1
3
Press <Enter> to initiate the connection. When a security
OK/Yes
alert dialog box appears, click
4 When the Ruckus Wireless Admin login page appears, enter
the following:
Username
• : super
Password
• : sp-admin
Login
5 Click .
AP
(if it is not already
to proceed.
