Ruckus Wireless ZoneFlex 2741 802.11g Getting Started Manual page 21

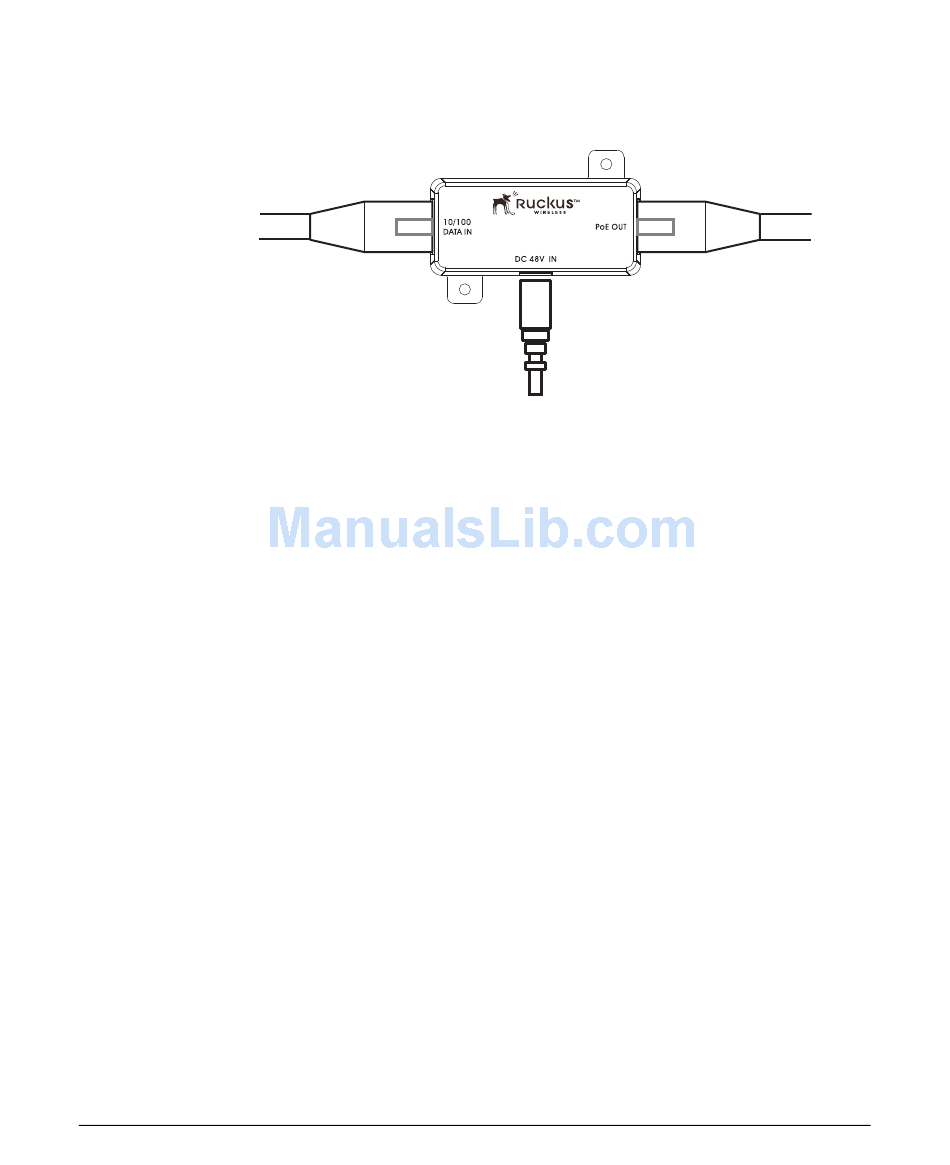

Figure 9. Connect the Ethernet cables and power adapter to the PoE injector
To Admin Computer
You have completed connecting the Access Point to the administrative computer and to
a PoE power source.
Use DC Power
To use DC to power the Access Point, you need to connect a DC cable (not supplied with
the Access Point) to the DC terminal block.
1. Connect one end of an Ethernet cable to the RJ45 port on the Access Point, and then
connect the other end to the administrative computer's Ethernet port.
2. Take out the DC terminal block from the small plastic bag that contains the bottom
cover of the Access Point.
3. Connect the DC cable's ground wire to V- terminal. If you are looking at the terminal
block with the wiring terminal screws on top, the V- terminal is on the left side.
4. Connect the DC cable's +12v DC wire to the V+ terminal. If you are looking at the
terminal block with the wiring terminal screws on top, the V+ terminal is on the right
side.
Configuring for Management by ZoneDirector
To AC Power Source
Configuring the Access Point
To Access Point
17
