Configuring the Access Point
Configuring for Management by ZoneDirector

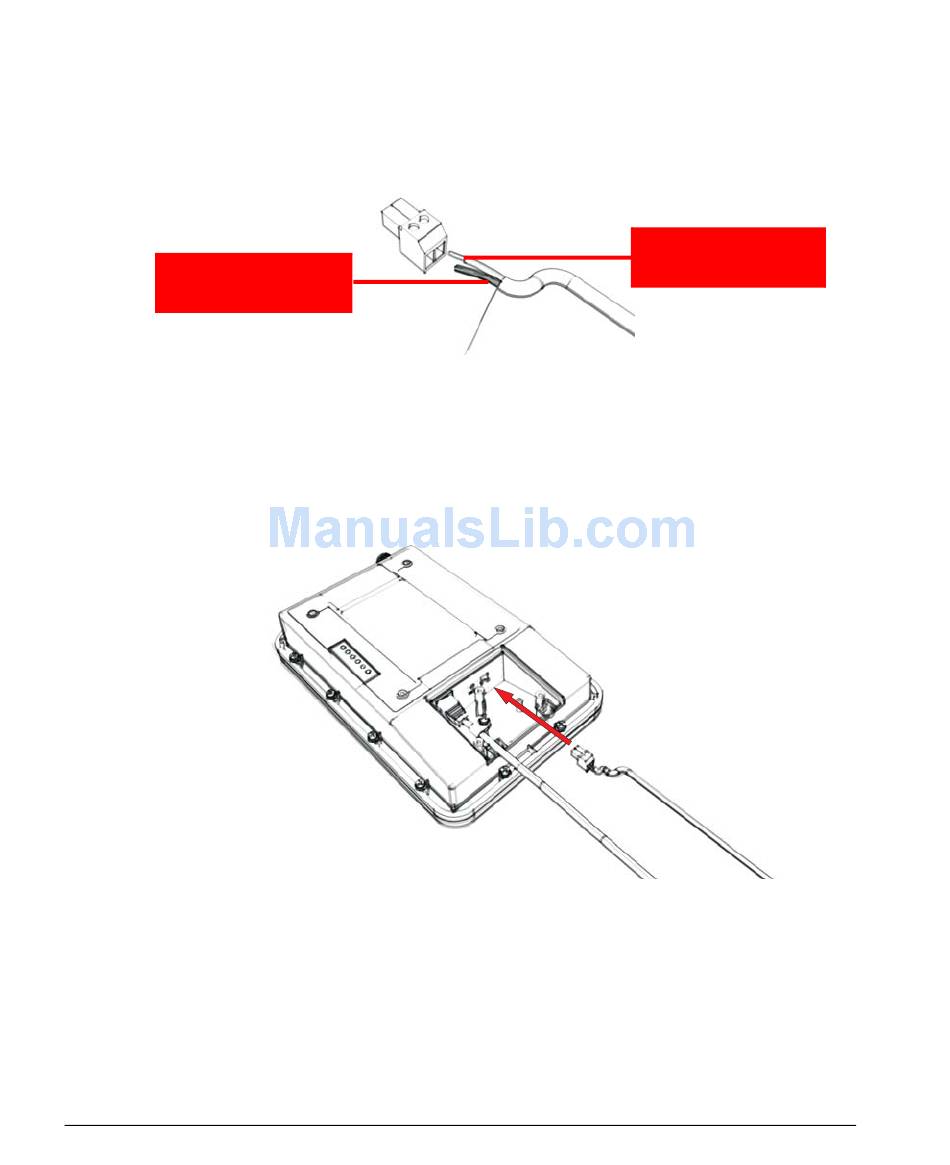

Figure 10.
Ground Wire to
V- Terminal
5. Using a 3mm Phillips screw, tighten the wiring terminal screws. Screw torque value must
be 4kg-5kg.
6. Connect the DC terminal block to the 12V DC port on the Access Point.
Figure 11.
7. Connect the DC cable to a DC power source (for example, a battery).
You have completed connecting the Access Point to the administrative computer and to
a DC power source.
18
Connect the ground wire to the V- terminal and the +12v DC wire to the V+
terminal
Connect the DC terminal block to the 12V DC port
12V DC Wire to
V+ Terminal
