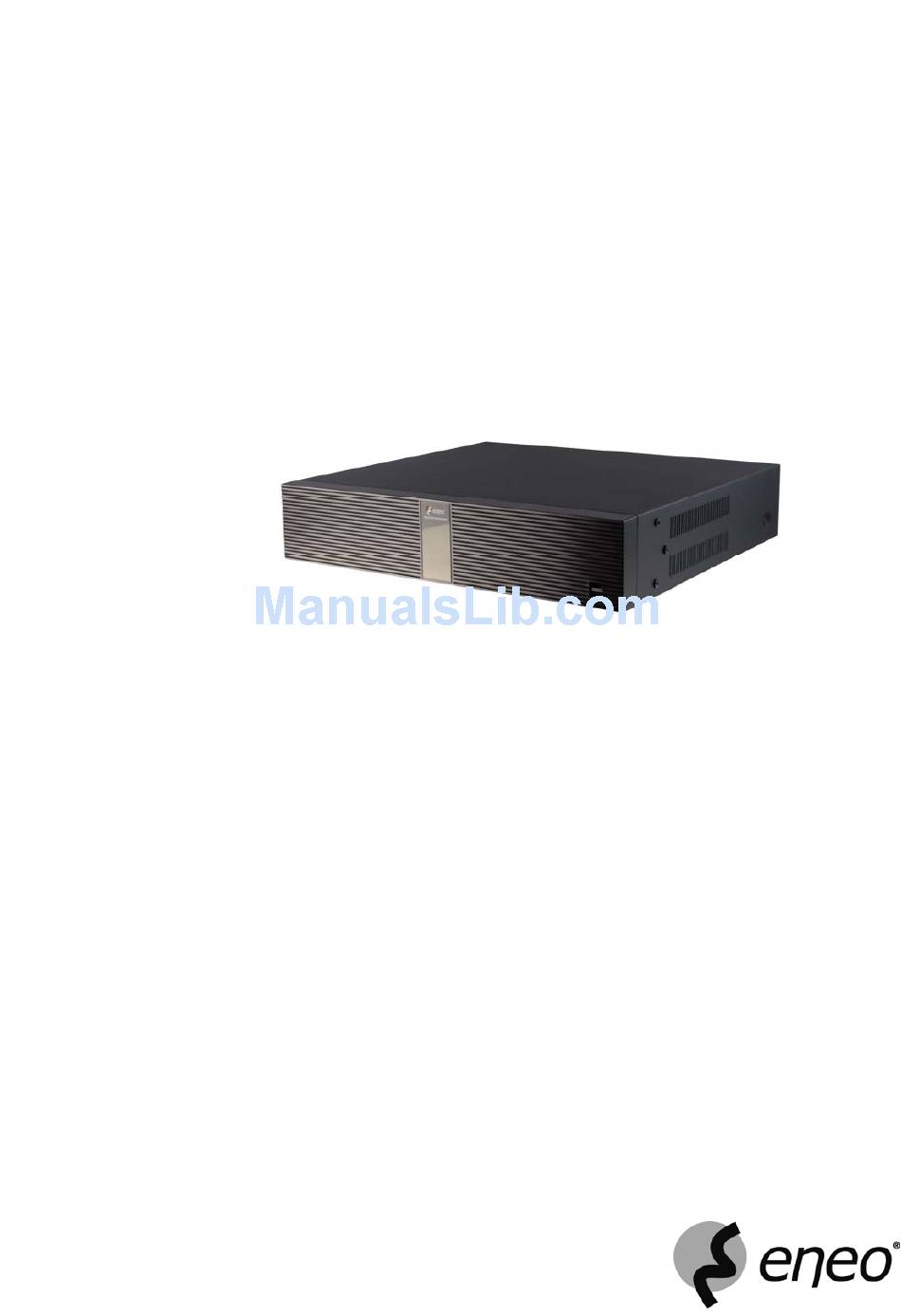

- Page 1 Operating Instructions Digital Video Recorder Model: DIR-4108H/xx DIR-4116H/xx...
- Page 2 Operating Instructions...
- Page 3 Digital Video Recorder Safety Instructions / Maintenance • Read these safety instructions and the operation manual first before you install and commission the unit. • Keep the manual in a safe place for later reference. • The system may only be commissioned and maintained by personnel authorized to do this and it must only be carried out in accordance with relevant standards and guidelines.
-
Page 4: Table Of Contents
Operating Instructions Table of Contents Chapter 1 — Introduction..................3 Features ......................3 Package Contents ....................4 Chapter 2 — Installation & Configuration ..............5 Rear Panel Connectors ..................5 Front Panel Controls................... 8 Infrared Remote Control ..................9 Turning on the Power ..................11 Main Setup ....................... -
Page 5: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction FEATURES Your color digital video recorder (DVR) provides recording capabilities for 8 or 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 8 or 16 Composite Input Connectors Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources Auto Detection for NTSC and PAL Auto Detection for VGA Monitor... -
Page 6: Package Contents
Operating Instructions PACKAGE CONTENTS The package contains the following: Digital Video Recorder Power Cord USB Mouse Infrared Remote Control and Batteries Rack-mount Kit RAS Software CD and Operating Instructions (This document) Digital Video Recorder Power Cord USB Mouse IR Remote Control and Batteries (AAA Type) Rack-mount Kit RAS Software CD and Operating Instructions... -
Page 7: Chapter 2 - Installation & Configuration
Digital Video Recorder Chapter 2 — Installation & Configuration REAR PANEL CONNECTORS No special tools are required to install the DVR. Refer to the installation manuals for the other components that make up part of your system. Your DVR should be completely installed before proceeding. 16-Channel DVR rear panel Video In Video Out... - Page 8 Operating Instructions If you prefer to use a standard CCTV monitor, connect it to the Video Out connector. NOTE: The DVR does not support simultaneous operation of a CCTV and a VGA monitor. Connecting to the RS232C Port The RS232C port can be used to control PTZ (pan, tilt, zoom) cameras. Connecting Alarms NOTE: To make connections on the Alarm Connector Strip, press and hold the button and insert the wire in the hole below the button.
- Page 9 Digital Video Recorder Connecting to the Network Port The DVR can be networked using the 10/100Mb Ethernet connector. Connect a Cat5 cable with an RJ-45 jack to the DVR connector. The DVR can be networked with a computer for remote monitoring, searching, configuration and software upgrades.
-
Page 10: Front Panel Controls
Operating Instructions FRONT PANEL CONTROLS Alarm LED HDD LED LAN LED Power LED USB Port Alarm LED The Alarm LED is lit when alarm output or internal buzzer is activated. HDD LED The HDD LED flickers when the DVR is recording or searching video on the hard disk drive. LAN LED The LAN LED is lit when the unit is connected to a network via Ethernet. -
Page 11: Infrared Remote Control
Digital Video Recorder INFRARED REMOTE CONTROL ID Button DISPLAY Button SEQUENCE Button FREEZE Button ALARM Button CAMERA Buttons PTZ Control Buttons (FOCUS, PRESET, ZOOM) MENU Button PTZ Mode Button Arrow Buttons Enter Button ZOOM Mode Button PLAYBACK Buttons (Stop, Pause, Play, RW, FF, Previous, Next) ID Button If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional entries. -
Page 12: Freeze Button
Operating Instructions FREEZE Button Pressing the FREEZE button freezes the current live screen. ALARM Button Pressing the ALARM button resets the DVR’s outputs including the internal buzzer during an alarm. CAMERA Buttons (1 to 16) Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also used to enter passwords. -
Page 13: Turning On The Power
Digital Video Recorder PLAYBACK Buttons Stop: Stops playback and enters the Live Monitoring mode. Pause: Pauses the video. displays on the screen when in the Pause mode. Play: Plays back images at regular speed. The screen displays when the DVR is playing back video. RW (Rewind): Plays video backward at high speed. -
Page 14: Main Setup
Operating Instructions MAIN SETUP The Main Setup screen gives you to access to all the DVR’s setup screens. Your DVR can be set up using various screens and dialog boxes. Throughout the screens you will see . Selecting the and pressing the button on the remote control gives you the opportunity to reset that screen to its default settings. -
Page 15: System Setup
Digital Video Recorder SYSTEM SETUP System Settings (SYSTEM System Tab) System ID: Set the system ID. Use the Up and Down arrow buttons or scroll the mouse wheel to increase or decrease the number. NOTE: It is possible to have multiple DVRs with the same System ID in the same area. In this case, all DVRs with the same System ID will be controlled at the same time when using the infrared remote control for that ID number. - Page 16 Operating Instructions NOTE: Even after changing the DVR settings by importing saved settings, the time-related settings (Date/Time, Time Zone and Daylight Saving Time) will NOT be changed. CAUTION: The USB device must be FAT16 or FAT32 format. Show System Log…: Displays the system logs (up to 5,000 from the latest). The icon will be displayed in the last column for system activities of remote sites.
- Page 17 Digital Video Recorder NOTE: Selecting the Authority box toggles between all authority levels being turned On an Off. Selecting the individual authority level boxes toggles between that authority level being turned On and Off. Shut Down – The user can shut the system down on a local system. Upgrade –...
- Page 18 Operating Instructions Time: Set the system time, and select the time format. Time Zone: Select your time zone. Enable Daylight Saving Time: Selecting the box sets the system to enable daylight saving time. Time Sync…: Set up the time synchronization between the DVR and standard time servers that are available in most time zones and countries, or between the DVR and another DVR.
-
Page 19: Record Setup
Digital Video Recorder Disk Bad – Displays the damage status of the storage drive. (Not Formatted (The device is not formatted), Good (%) (The device is working properly though some portion (%) of the storage is damaged.) or Bad (More than 90% of the storage is damaged.)) Temperature –... - Page 20 Operating Instructions General Settings (RECORD General Tab) Recycle When Disk Full: Selecting this box records over the oldest video data once all available storage space has been used. When the box is not checked, the DVR stops recording once all available storage has been used. Codec: Select the codec between H.264 and MPEG-4.
- Page 21 Digital Video Recorder Setting up the Basic Schedule Mode… Schedule Type: Select the Basic schedule mode. Record Mode: Select the desired recording mode. ( : Time (Time-lapse) recording, : Event recording, Time & Event recording) Record Schedule: Set the recording schedule. Time Record ips: Set the images per second for Time recording.
-
Page 22: Event Setup
Operating Instructions : Adds a schedule item. Up to 20 schedules can be registered. No. – Indicates a schedule number. The higher the number, the higher its priority. Day – Select the days that the recording will take place. Range – Set the time range that the recording will take place. Mode –... - Page 23 Digital Video Recorder Zone: Define the area of the image where you want to detect motion; e.g., a doorway. The Motion Detection Zone screen is laid over the video from the selected camera. You can set up motion zones one block at a time in groups of eight individual block groups.
- Page 24 Operating Instructions Daytime Setup…: Select the button and set the Daytime range. The DVR will consider the remaining time range as the nighttime. Alarm-In Event Settings (EVENT Alarm-In Tab) No.: Selecting the box toggles each alarm input On and Off. Title: Change the name of all or each alarm input.
- Page 25 Digital Video Recorder NOTE: The system performance might be affected when a large quantity of text inputs are detected from several channels at the same time. Port – Select the port from None, RS232, RS485 and USB-Serial (1~8). If you have set the Port as None, you will not be able to make any changes to the screen.
- Page 26 Operating Instructions System Event Settings (EVENT System Tab) Settings: Set up the DVR to run self-diagnostics. System – Select the interval that you want the DVR to run self-diagnostics on the system. Check Recording – Selecting the column allows you to set up the check recording schedule by selecting Schedule On. Selecting allows you to add a check recording schedule by setting the day, time range and interval that you want the DVR to run self-diagnostics on the recorder.
-
Page 27: Network Setup
Digital Video Recorder NETWORK SETUP General Settings (NETWORK General Tab) Remote Watch – bps/ips: Set the transfer speed, and select the unit of measure for the transfer speed between bps (bit per second) and ips (image per second). Remote Watch – Quality: Select the quality of the transferred image. NOTE: The local recording speed might be affected by various network bandwidth (Transfer Speed) conditions. - Page 28 Operating Instructions Network Settings (NETWORK Network Tab) Type: Select the type of network configuration from: Manual, DHCP and ADSL (with PPPoE). Manual – You can select Manual when using a static IP address for network connection. Set up LAN parameters manually. Set the numbers of the IP Address, Gateway and Subnet Mask.
- Page 29 Digital Video Recorder DVRNS Settings (NETWORK DVRNS Tab) NOTE: The DVRNS (DVR Name Service) allows you to connect to the DVR remotely with the dynamic IP address or the domain name. When using this feature, you can access your DVR remotely by using the DVR name instead of IP address.
-
Page 30: Device Setup
Operating Instructions Enable: The DVR can be set up to send an e-mail when an event occurs. Selecting the box enables the Mail function. You will only be able to change the settings if Mail is enabled. SMTP Server: Set the SMTP server IP address or domain name obtained from your system administrator. NOTE: You will need to get the IP address or domain name of the SMTP server from your network administrator. -
Page 31: Display Setup
Digital Video Recorder Covert: Select the camera usage from Normal, Covert 1 or Covert 2 to determine which camera will display on the monitors. NOTE: When selecting the Covert 1, the DVR displays the camera title and status icons on the covert video. When selecting the Covert 2, the DVR displays only camera title on the covert video. - Page 32 Operating Instructions OSD Settings (DISPLAY OSD Tab) Status/Camera: Check each OSD item box to turn it On or Off. Remote Control – The icon displays when the DVR can be controlled using the infrared remote control. Zoom – The icon displays on the enlarged video. Network –...
- Page 33 Digital Video Recorder Sequence – Mode: Select the sequence mode between Full Sequence and Cameo Sequence. (8- and 16-channel Model Only) Selecting the Sequence menu icon at the top of the screen or pressing the SEQUENCE button on the remote control causes the DVR to sequence cameras. The DVR can sequence cameras in two modes: “Full” and “Cameo.”...
-
Page 34: Chapter 3 - Operation
Operating Instructions Chapter 3 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapter 2. LIVE MONITORING As soon as the DVR completes its initialization process, it will begin displaying live video on the attached monitor. The default mode is to display all cameras at once. -
Page 35: Camera Menu
Digital Video Recorder NOTE: Full Sequence for the full sequence monitoring and the Cameo Sequence for the cameo sequence monitoring should be selected in the Display setup screen (Main Monitor tab). Camera Menu Selecting the (Camera Menu) icon displays the following Camera Menu. PTZ: Selecting PTZ and choosing the camera number allows you to control the selected camera as long as it has Pan, Tilt and Zoom capabilities. -
Page 36: Display Menu
Operating Instructions Login/Logout Selecting the icon accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting the icon displays the Logout screen asking you to confirm whether or not you want to log out the current user. -
Page 37: Event Monitoring
Digital Video Recorder Selecting the (OSD) icon toggles OSD On and Off. EVENT MONITORING When an event occurs, the DVR will display the camera associated with that event if Event Monitoring On is selected in the Display setup screen (OSD tab). How the cameras are displayed depends on the number of cameras associated with the event. -
Page 38: Recording Video
Operating Instructions You can save camera position settings as “presets” so that you can go directly to desired views. Once you have the camera at the desired settings, press the button, and the Set Preset dialog box will appear. Select the number you want to assign to the preset and press the button on the remote control. -
Page 39: Playing Recorded Video
Digital Video Recorder PLAYING RECORDED VIDEO While in the Live Monitoring, pressing the MENU button on the remote control displays the menu icons on the screen. Selecting the (Search Mode) icon at the top of the screen exits the Live Monitoring mode and enters the Search mode. Once video has been recorded, you can view it by pressing the (Play) button on the remote control in the Search mode. -
Page 40: Searching Video
Operating Instructions SEARCHING VIDEO While in the Search mode, pressing the MENU button on the remote control displays the following menu icons at the top of the screen. Pressing the MENU button again hides the menu icons. Search Go To Export Camera Menu Alarm Off... -
Page 41: Search
Digital Video Recorder Alarm Off: Resets the DVR’s outputs including the internal buzzer during an alarm. Selecting the icon is the same as pressing the ALARM button on the remote control. Data Source: Selects the data source to be searched. Selecting Record searches recorded data on primary storage installed in the DVR, and selecting Other searches recorded data on storage used for another DVR then installed in this DVR. -
Page 42: Record Table Search
Operating Instructions To: Pressing the button toggles between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be to the last recorded image. Check Time Overlap: Selecting the box and pressing the button toggles between On and Off. -
Page 43: Motion Search
Digital Video Recorder Selecting located at the bottom zooms the record table. Selecting displays eight hours (1-minute based), and selecting displays 24 hours (3-minute based) at once. To move to earlier or later times that are not shown in the current record table screen, select the arrows located at the end of the times by using the arrow buttons on the remote control. - Page 44 Operating Instructions You also can narrow your event search by selecting Option… and setting up new search conditions. From: Pressing the button toggles between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. To: Pressing the button to toggles between On and Off.
-
Page 45: Go To
Digital Video Recorder Pressing the button will extract the video associated with the Text Input and display the first image of the event. Pressing the (Play) button on the remote control button will start playing the “event” video segment. If you want to return to live monitoring, press the MENU button on the remote control and select the (Exit) icon at the top of the screen. -
Page 46: Export
Operating Instructions Go to the Date/Time You can use the Left and Right arrow buttons on the remote control to select the year, month, day, hours, minutes and seconds. Use the Up and Down arrow buttons to change to the date and time you want to search for video. Once you have set the date and time, press the button. -
Page 47: Webguard
Digital Video Recorder NOTE: When naming a file, you cannot use the following characters: \, /, :, *, ?, “, <, >, |. Include Text-In Data: Pressing the button toggles between On and Off. When this feature is On, you can include text-in data when copying video if the video was recorded with text-in data. - Page 48 Operating Instructions Select between the WEBWATCH (Web monitoring) and WEBSEARCH (Web search) modes and enter the appropriate port number of the program. Entering ID and PASSWORD and clicking the [LOGIN] button logs in using the selected mode. Selecting Save ID saves the ID you entered. You will need to enter the DVR IP address in the DVR ADDRESS field when running the WebGuard program by entering http://www.dvronline.net.
-
Page 49: Web Monitoring
Digital Video Recorder WEB MONITORING WebWatch is a remote web monitoring program that allows you to monitor live video transmitted in real-time from the remote DVR. ① Click the icon to log out of the WebGuard program ② Click the icon to access the web search mode. -
Page 50: Web Search
Operating Instructions Change Camera Title: Changes the camera name. Aspect Ratio: Changes the image aspect ratio. Deinterlacing: Using a deinterlace filter for interlaced video enhances image display quality by eliminating horizontal scan lines and noise in areas with motion. Anti-Aliasing Screen: Enhances image display quality by eliminating stair stepping (aliasing) effects in the enlarged image. - Page 51 Digital Video Recorder ⑧ Click the icon to enter the time-lapse search mode which allows you to search for recorded data by time and then play back images found within the time parameters. The Timetable window located at the bottom displays the time information for the image of the date selected on the calendar. If there is more than one video stream in the same time range, you can select the video stream you want to search.
-
Page 52: Text-In Search Examples
Operating Instructions TEXT-IN SEARCH EXAMPLES Search Example I 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) | $ 2.20 Fanta 2.20 | 1(s) | $ 2.20 Hotdog 3.50 | 3(s) | $ 10.50 Pepsi 1.95 | 1(s) | $ 1.95 ================================================== total : $... -
Page 53: Search Example Ii
Digital Video Recorder Search Example II 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) 2.20 Fanta 2.20 | 1(s) 2.20 Hotdog 3.50 | 3(s) 10.50 Pepsi 1.95 | 1(s) 1.95 ================================================== total : $ 16.85 Thank you~~ In the above text-in data, you can find that the comparison value is located at 17 (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40... -
Page 54: Appendix
Operating Instructions Appendix FACTORY DEFAULT SETTINGS MENU ITEM PARAMETER DEFAULT SETTING System ID Language English System User Management Administrator admin Operator None Date Format YYYY/MM/DD SYSTEM Time Format HH:MM:SS Time Zone GMT-05:00 Eastern Time (US & Canada) Enable Daylight Saving Time Date/Time Time Sync…... - Page 55 Digital Video Recorder Title. Alarm-In 1 to Alarm-In 16 Type Alarm-In Actions Alarm-Out… Alarm-Out, Beep Notify… None None Setup None Title Actions Text-In Record None Alarm-Out… Beep Notify… None None Settings EVENT System Never Check Recording Check Alarm-In Disk Almost Full Disk Bad Disk Temperature Actions...
- Page 56 Operating Instructions Title CAM1 to CAM16 Covert Normal None Camera PTZ Port None Setup… Baud Rate 9600 Data Bit DEVICE Stop Bit Parity None Port None Setup… Baud Rate 9600 Remote Data Bit Control Stop Bit Parity None Remote Control Product Remote Control Status Remote Control...
-
Page 57: Error Code Notices
Digital Video Recorder ERROR CODE NOTICES SYSTEM UPGRADE RELATED CLIP COPY RELATED Description Description Unknown error. Unknown error. File version error. Device error. Operating system version error. Mounting failed. Software version error. File already existed. Kernel version error. Not enough space. Upgrade device mounting failed. -
Page 58: Troubleshooting
Operating Instructions TROUBLESHOOTING PROBLEM POSSIBLE SOLUTION Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. Check camera lens settings. -
Page 59: Specifications
Digital Video Recorder SPECIFICATIONS Type DIR-4108H/xx DIR-4116H/xx Art. No. 72795, 72829, 72831 72802, 72832, 72833 Series eneo DIR Operation mode Quadplex Video standard PAL/NTSC (automatic selection) Video inputs (amount) Video inputs 1Vp-p, (C)VBS, 75ohms, BNC Main exits CVBS, VGA Video outputs... -
Page 60: Optional Accessories
Remote configuration via Web browser Interfaces external storage USB, 2x USB 2.0 Serial interfaces RS-232, RS-485, RS-485 for telemetry control (proved protocols: eneo Fastrax, Pelco P&D) Text insertion interface RS-232 Security User groups access rights programmable for each group Supply voltage... - Page 62 Videor E. Hartig GmbH ® Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Deutschland V1.2 Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Technical changes reserved.
