Summary of Contents for Eneo DLR-2016/500V

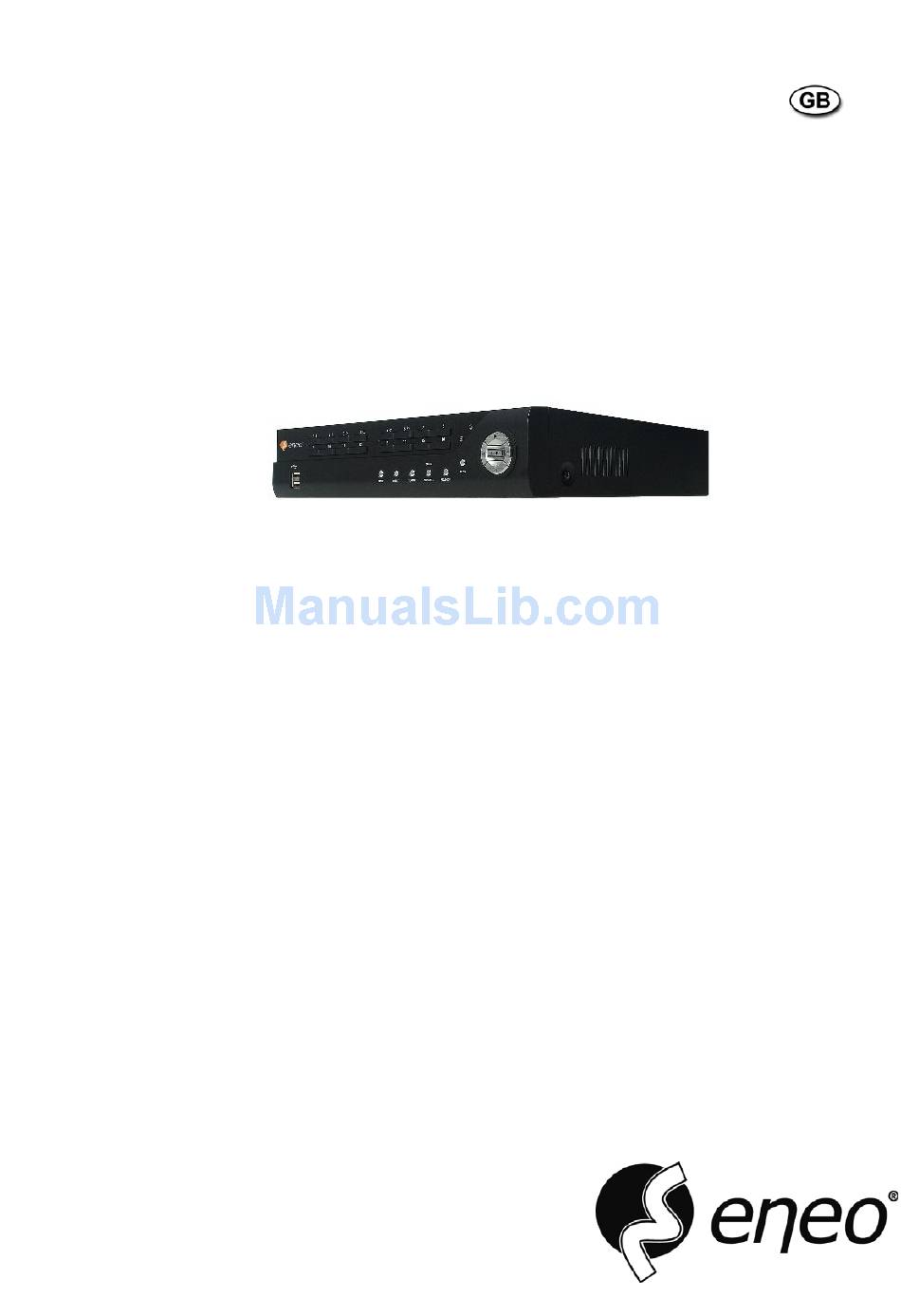

  • Page 1 Operating Instructions Digital Video Recorder, 16-channel, H.264 DLR-2016/500V...
  • Page 3: Compliance Notice Of Fcc

    16-Channel Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
  • Page 4: Important Safeguards

    User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2.
  • Page 5: Table Of Contents

    16-Channel Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ..........................1 Technical Overview......................1 Chapter 2 — Installation......................3 Package Contents........................3 Required Installation Tools....................3 Video Input ........................3 Video Out......................... 4 Power Cord Connector ....................4 RS232 Port ........................4 RS485 Port ........................
  • Page 6 User’s Manual Initial Unit Setup......................... 12 Setup Screen ........................13 System Setup........................13 Information........................14 Date/Time ........................15 Storage .......................... 16 User ..........................18 Wizard ........................... 19 Shutdown........................22 Network Setup ........................24 Network ......................... 24 Notification........................27 Devices Setup........................29 Camera.......................... 29 Alarm-Out ........................30 Display...........................
  • Page 7 16-Channel Digital Video Recorder Appendix ..........................62 USB Hard Disk Drive Preparation ..................62 Preparing the USB hard disk drive in Windows 2000............. 62 Preparing the USB hard disk drive in Windows 98............62 Text-In Search Examples....................63 Search Example I ......................63 Search Example II ......................
  • Page 8 User’s Manual Figure 33 — Display OSD screen......................31 Figure 34 — Main Monitor screen......................31 Figure 35 — VGA screen.........................32 Figure 36 — Remote Control setup screen....................32 Figure 37 — Record menu........................33 Figure 38 — Record Settings screen.......................33 Figure 39 —...
  • Page 9: Chapter 1 - Introduction

    16-Channel Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 16 Composite Video Input Connectors Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources Auto Detection for NTSC and PAL H.264 Codec...
  • Page 10: Figure 1 - Typical Dvr Installation

    User’s Manual Figure 1 — Typical DVR installation.
  • Page 11: Chapter 2 - Installation

    16-Channel Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Adaptor and Power Cord User’s Manual (This Document) RAS Software CD and User’s Manual Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. Refer to the installation manuals for the other items that make up part of your system.
  • Page 12: Video Out

    User’s Manual Video Out Connect the main monitor to the Video Out connector. A VGA connector is provided so that you can use a standard, multi-sync computer monitor as your main monitor. Use the cable supplied with your monitor to connect it to the DVR. NOTE: The VGA and Video Out (BNC) connectors may be connected to individual monitors for simultaneous operation.
  • Page 13: Alarm Input/Output

    16-Channel Digital Video Recorder Alarm Input/Output NOTE: To make connections on the Alarm Connector Strip, press and hold the button and insert the wire in the hole below the button. After releasing the button, tug gently on the wire to make certain it is connected. To disconnect a wire, press and hold the button above the wire and pull out the wire.
  • Page 14 User’s Manual...
  • Page 15: Chapter 3 - Configuration

    16-Channel Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3 — DVR front panel. Camera Buttons HDD LED Alarm LED Arrow Buttons Group/Sequence Button Play/Pause Button Menu Button...
  • Page 16: Arrow Buttons

    User’s Manual Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. These buttons are also used to control Pan and Tilt when in the PTZ mode.
  • Page 17: Search Button

    16-Channel Digital Video Recorder Search Button Pressing the button enters the search mode, and pressing the button again exits the search mode. When entering SEARCH the search mode, video is paused. Pressing the (Play/Pause) button plays back video at regular speed. The screen displays when the DVR is in the Pause mode and the screen displays when the DVR is playing back video.
  • Page 18: Remote Control Buttons

    User’s Manual Remote Control Buttons ID Button Camera Buttons Sequence Button Freeze Button Arrow Buttons Menu Button Playback Buttons Panic Button Layout Button Zoom Button PTZ Button Enter Button Alarm Button PTZ Control Buttons Back Up Button Calendar Button Figure 4 — Infrared remote control. NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons.
  • Page 19: Arrow Buttons

    16-Channel Digital Video Recorder Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. These buttons are also used to control Pan and Tilt when in the PTZ mode.
  • Page 20: Alarm Button

    User’s Manual Alarm Button Pressing the button resets the DVR’s outputs including the internal buzzer during an alarm. ALARM PTZ Control Buttons While in the PTZ mode, the buttons are used to save Presets and load a Preset View, the buttons are used PRESET ZOOM...
  • Page 21: Setup Screen

    16-Channel Digital Video Recorder NOTE: To log the user out of the system, press the button or move the mouse pointer to the top of the MENU screen and then select (Logout) in the Live Monitoring menu. The Logout screen displays asking you to confirm whether or not you want to log out the current user.
  • Page 22: Information

    User’s Manual Information Highlight Information and press the button. The Information screen appears. In the Information screen, you can name the site location, assign a System ID number, select the language the screens are displayed in, display software version number, upgrade the software, show the System Log, display recorded time data, and clear all data.
  • Page 23: Date/Time

    16-Channel Digital Video Recorder NOTE: Even after changing the DVR settings by importing saved settings, the time-related settings (Date/Time, Time Zone and Daylight Saving Time) will NOT be changed. CAUTION: The USB device must be FAT16 or FAT32 format. Highlight Show System Log… and press the button to display the System Log.
  • Page 24: Storage

    User’s Manual Highlight Use Daylight Saving Time and press the button. Pressing the button toggles between On and Off. Highlight the Holiday tab, and the Holiday setup screen appears. You can set up holidays by highlighting + and pressing the button.
  • Page 25: Figure 13 - Storage Information Screen

    16-Channel Digital Video Recorder The information in the Type column describes the storage device. The capacity of the storage device is displayed in the Capacity column. The Format column displays whether the device is used for recording (Record) or not (Not Using). Not formatted indicates the device is not formatted.
  • Page 26: User

    User’s Manual The S.M.A.R.T. column displays “Good”, “Bad” or “N/A”, depending on storage conditions. Good – The storage condition is normal. Bad – Data cannot be written on or read from the storage device. N/A – Storage conditions are normal, however, the S.M.A.R.T. monitoring is not working or supported. NOTE: When the storage condition is “Bad”, the Event Status –...
  • Page 27: Wizard

    16-Channel Digital Video Recorder Alarm-Out Control – The user can reset the DVR’s outputs including the internal buzzer during an alarm by pressing the any button on a local system or alarm-out control button on a PC running RAS. Covert Camera View – The user can view video from cameras set as Covert while in the Live Monitoring or Search mode on a local system or a PC running RAS.
  • Page 28: Figure 17 - Quick Setup Wizard Screen

    User’s Manual If you selected the Quick wizard, selecting the Next button starts the Quick Setup Wizard Figure 17 — Quick Setup wizard screen. Date/Time Setup Date: Set the system date and select the date format. Time: Set the system time and select the time format. Time Zone: Select your time zone.
  • Page 29: Figure 18 - Network Setup Wizard Screen

    16-Channel Digital Video Recorder NOTE: The recording quality and recording speed of each camera channel will be set as shown below according to the Record Method and Record Video Quality you set. HVQPP* SRP* LRTPP* Motion Event Record Very High / 30 ips High / 5 ips Standard / 3 ips Continuous &...
  • Page 30: Shutdown

    User’s Manual LAN Setup Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test button to test the network configuration you selected. NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway, Subnet Mask and DNS Server address).
  • Page 31: Figure 19 - Shutdown Screen

    16-Channel Digital Video Recorder Figure 19 — Shutdown screen.
  • Page 32: Network Setup

    User’s Manual Network Setup Figure 20 — Network menu. Network Highlight Network in the Network menu and press the button. Highlight the first box beside Remote Watch – bps/ips. Press the Up and Down arrow buttons to set the Transfer Speed from 50Kbps to 100Mbps.
  • Page 33: Figure 22 - Lan (Manual) Setup Screen

    16-Channel Digital Video Recorder Highlight the box beside Type and press the button. You can select the type of network configuration from: Manual, DHCP and ADSL (with PPPoE). Select the desired type and press the button. Selecting Manual from the Type allows you to set up LAN parameters manually.
  • Page 34: Figure 23 - Dvrns Setup Screen

    User’s Manual Selecting ADSL (with PPPoE) allows you to set up the ADSL network. Highlight the box beside ID and press the button. A virtual keyboard appears allowing you to enter the ID for ADSL connection. Highlight the box beside Password and press the button.
  • Page 35: Notification

    16-Channel Digital Video Recorder Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTPS is enabled. Highlight the box beside RTSP Port and press the button.
  • Page 36: Figure 26 - Notification Mail Setup Screen

    User’s Manual Highlight Enable and press the button to toggle between On and Off. You will only be able to change the settings if Mail is enabled. Highlight the box beside SMTP Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the SMTP server.
  • Page 37: Devices Setup

    16-Channel Digital Video Recorder Devices Setup Figure 28 — Devices menu. Camera Highlight Camera in the Devices menu and press the button. The Camera setup screen appears. You can turn the camera number On or Off, and you can change the Title of each camera using the virtual keyboard. You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from a drop-down list in the Use column.
  • Page 38: Alarm-Out

    User’s Manual You can assign IDs to each camera by highlighting the box under the ID heading and pressing the button. Change the number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The PTZ ID number can be set from 0 to 256.
  • Page 39: Display

    16-Channel Digital Video Recorder Display Highlight Display in the Devices menu and press the button. The Display screen allows you to select what information will be displayed on the monitor. Highlighting an item and pressing the button toggles that item On and Off. When an item is On, there is a checkmark in the box beside it.
  • Page 40: Remote Control

    User’s Manual NOTE: Sequence cannot be used in the 4x4 display mode. You can adjust the display dwell time by highlighting the box beside Interval and pressing the button. You can select dwell intervals ranging from 1 second to 1 minute. Highlight Event Monitoring On and press the button.
  • Page 41: Recording Setup

    16-Channel Digital Video Recorder Recording Setup Figure 37 — Record menu. Record Highlight Record in the Record menu and press the button. The Record setup screen appears. Highlighting Recycle and pressing the button toggles between On and Off. In the Recycle mode, the DVR records over the oldest video data once all available storage space has been used.
  • Page 42: Schedule

    User’s Manual Highlighting Use Panic Recording and pressing the button toggles between On and Off. Highlight the Panic Recording – Duration box and set the duration of panic recording. Panic recording will stop automatically after the preset duration as long as the PANIC button is not pressed to stop the panic recording.
  • Page 43: Figure 41 - Schedule - Settings (Advanced Mode) Setup Screen

    16-Channel Digital Video Recorder Highlight the box under the Range heading and press the button to change the time range that the scheduled recording will take place. The smallest time segment you can use is 15 minutes. Highlight the box under the Mode heading and press the button to change the recording mode that will be used.
  • Page 44: Pre-Event

    User’s Manual Highlighting boxes under Resolution and pressing the button allows you to set the recorded image resolution for Time and Event recording. You can select from: Very High (D1), High (Half D1) and Standard (CIF). Highlighting boxes under Dwell and pressing the button allows you to set the length of time you would like to record for the associated event.
  • Page 45: Figure 44 - Alarm-In Settings Screen

    16-Channel Digital Video Recorder The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up each input on the Alarm-In screen. You can turn each input On or Off by highlighting the alarm number and pressing the button.
  • Page 46: Motion Detection

    User’s Manual Motion Detection Highlight Motion Detection in the Event menu and press the button. The Motion Detection setup screen appears. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Figure 46 —...
  • Page 47: Video Loss

    16-Channel Digital Video Recorder NOTE: The record action for motion events will not be affected by the Motion Ignoring function. Highlighting Daytime Setup and pressing the button allows you to set up the Daytime range. Highlight the box beside Daytime and press the button.
  • Page 48: Video Blind

    User’s Manual Highlighting the box under the Video Loss Interval heading allows you to set the duration of a signal loss before the DVR will report a Video Loss. The DVR will not consider any signal loss from a camera to be a Video Loss if the detected signal loss is shorter than the interval set on this screen.
  • Page 49: Figure 50 - Video Blind Settings Screen

    16-Channel Digital Video Recorder The DVR checks to see if anything is blinding a camera. Figure 50 — Video Blind Settings screen. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive).
  • Page 50: Text-In

    User’s Manual NOTE: For the Notify action, the notify item you select should be enabled in the Notification setup screen and the DVR should be registered in the RAS (Remote Administration System). Highlight the desired box under the PTZ heading, and press the button.
  • Page 51: System Event

    16-Channel Digital Video Recorder Highlight the box beside Line Delimiter, and press the button. Use the virtual keyboard to enter the character(s) that the device uses to indicate the end of a line. Special characters can be created using ^ and a capital letter; e.g., ^J for NL (New Line), ^M for CR (Carriage Return).
  • Page 52: Figure 55 - Health Check Screen

    User’s Manual The DVR can be configured to run self-diagnostics and report the results. Highlighting the box beside System and pressing the button allows you to select the interval that you want the DVR to run self-diagnostics on the system. You can select from 1 hr.
  • Page 53: Event Status

    16-Channel Digital Video Recorder The DVR can be set to react to system events. System events can be associated with an Alarm-Out connector, sound the DVR’s internal buzzer, and/or notify a number of different devices. Highlight the Alarm-Out box beside the desired event (Check Recording, Check Alarm-In, Disk Almost Full, Disk Full, Disk Bad, Disk Temperature, or Disk S.M.A.R.T.), and press the...
  • Page 54: Chapter 4 - Operation

    User’s Manual Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video.
  • Page 55: Live Monitoring Menu

    16-Channel Digital Video Recorder Live Monitoring Menu Freeze Selecting (Freeze) in the Live Monitoring menu will freeze the current image on the screen until you select again. It is the same as pressing the (Play/Pause) button. Pressing any button except for the buttons MENU PANIC...
  • Page 56: Active Cameo Mode

    User’s Manual Panic Selecting (Panic) in the Live Monitoring menu starts panic recording of all cameras, and displays on the screen. Selecting again stops panic recording. It is the same as pressing the button. PANIC Setup Selecting (Setup) in the Live Monitoring menu enters the Main Setup screen. Refer to Chapter 3 ─ Configuration for detailed descriptions of system setup.
  • Page 57: Figure 60 - Ptz Select Camera Menu

    16-Channel Digital Video Recorder To use the front panel buttons, press the Left and Right arrow buttons to pan left and right. Press the Up and Down arrow buttons to tilt the camera up and down. Press the button to zoom in, and press the button to zoom out.
  • Page 58: Event Monitoring

    User’s Manual Event Monitoring When an event occurs, the DVR will display the camera associated with the event if Event Monitoring On is selected in the Display setup screen (Main Monitor tab). How the cameras are displayed depends on the number of cameras associated with the event. If one camera is associated with the event, the DVR will display the camera full screen.
  • Page 59: Recording Video

    16-Channel Digital Video Recorder PIP, 2x2, 1+5, 1+7, 3x3, 4x4 Selecting (PIP, 2x2, 1+5, 1+7, 3x3 or 4x4) in the Mouse Display menu displays the cameras in the selected multiview screen mode (PIP, 2x2, 1+5, 1+7, 3x3 or 4x4). Selecting each display mode is the same as pressing the button or scrolling the mouse wheel up and down when in one of the multiview formats (i.e., DISPLAY...
  • Page 60: Figure 63 - Select Playback Camera Menu

    User’s Manual The DVR supports the Triplex function: monitoring, recording and playing back at the same time. Pressing the SEARCH button when in one of the multi-view formats enters the Triplex mode and displays the Select Playback Camera menu. Selecting All Channels plays back video of all cameras. The DVR maintains the same display format as it does in the live mode except for the PIP format.
  • Page 61: Searching Video

    16-Channel Digital Video Recorder Go to the previous image Play/Pause Go to the next image Fast backward play Fast forward play Searching Video While in the search mode, pressing the button displays the following Search menu at the top of the screen. Pressing MENU button again hides the menu.
  • Page 62: Event Log Search

    User’s Manual Export Selecting (Export) in the Search menu displays the following Export menu. See the following Clip Copy section for details. A–B Clip-Copy: Selecting A–B Clip-Copy will set the starting point of the video to be clip copied, and the icon displays at the bottom-left corner of the screen.
  • Page 63 16-Channel Digital Video Recorder NOTE: It is possible that no recorded image displays on the current screen. Press the button and change DISPLAY the screen mode to 4x4. You will be able to easily see the camera have recorded video during target time. You can also narrow your event search by selecting the Option…...
  • Page 64: Record Table Search

    User’s Manual Record Table Search Recording information about video images currently displayed on the screen displays on the recording status bar. A grey < Compact View > vertical line indicates the current search position. To search specific video, move the vertical line by using the Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment.
  • Page 65: Calendar Search

    16-Channel Digital Video Recorder Calendar Search Days with recorded video display on the calendar with white numbers. You can highlight the days with recorded video by using the arrow buttons. Once you have highlighted a day, press the (Play/Pause) button to select it. A time bar displays at the bottom of the calendar.
  • Page 66: Text-In Search

    User’s Manual Highlight the box beside Type and press the button. You can select between Motion Search and Museum Search. Motion Search detects motion in the defined area. Museum Search detects if a defined object has moved. Highlight the box beside Zone and press the button.
  • Page 67: Clip-Copy

    16-Channel Digital Video Recorder Highlight the Text Input Device box and press the button. Select your Text Input Device from the list. Highlighting the + and pressing the button allows you to add a new set of search parameter. Set up the desired search parameter.
  • Page 68 User’s Manual The DVR automatically assigns a file name to the video clip. However, you can give the video clip file a different name. Highlight the box beside File Name and press the button. A virtual keyboard appears. Enter a file name for the video you are backing up and select Close.
  • Page 69 16-Channel Digital Video Recorder...
  • Page 70: Appendix

    User’s Manual Appendix USB Hard Disk Drive Preparation Preparing the USB hard disk drive in Windows 2000 NOTE: Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. Turn on your computer.
  • Page 71: Text-In Search Examples

    16-Channel Digital Video Recorder Text-In Search Examples Search Example I 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) | $ 2.20 Fanta 2.20 | 1(s) | $ 2.20 Hotdog 3.50 | 3(s) | $ 10.50 Pepsi 1.95 | 1(s) | $ 1.95 ==================================================...
  • Page 72: Webguard

    User’s Manual For example, if you want to search for Coke with a Qty (Quantity) of more than 1 and Hotdog with an amount totaling over $8, the following search condition can be set. WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere.
  • Page 73: Web Monitoring Mode

    16-Channel Digital Video Recorder NOTE: Do NOT close the LOGIN window during the WebGuard operation, otherwise, it will cause a script error when switching between Web monitoring and Web search modes, and you will need to restart the WebGuard program. When running the updated WebGuard for the first time, Internet Explorer might occasionally load the information of the previous version.
  • Page 74 User’s Manual ④ The DVR information window displays the login information of WebGuard.
  • Page 75: Web Search Mode

    16-Channel Digital Video Recorder ⑤ Click the screen format to select the desired display mode. When changing the screen format, the selected camera on the current screen will be located in the first cell of the new layout. ⑥ Click the camera button to select the camera to be viewed. ⑦...
  • Page 76 User’s Manual...
  • Page 77: Time Overlap

    16-Channel Digital Video Recorder ① Click the to log out the WebGuard program. ② Click the to access to the web monitoring mode. ③ Position the mouse pointer on the WebSearch logo to see the version of the WebGuard program. ④...
  • Page 78 User’s Manual...
  • Page 79: System Log Notices

    16-Channel Digital Video Recorder You can search overlapping video streams by selecting a specific time or time range. If you want to search recorded video at four o’clock during the overlapping time range using a search menu such as Go to the Date/Time, select the segment you want to search.
  • Page 80: Error Code Notices

    User’s Manual Error Code Notices System Upgrade Related Clip Copy Related Description Description Unknown error. Unknown error. File version error. Device error. Operating system version error. Mounting failed. Software version error. No media. Kernel version error. Invalid media. Upgrade device mounting failed. File already existed.
  • Page 81: Map Of Screens

    16-Channel Digital Video Recorder Map of Screens...
  • Page 82: Specifications

    User’s Manual Specifications VIDEO Signal Format NTSC or PAL (Auto Detect) Video Input Composite: 16 inputs, 1 Vp-p, auto-terminating, 75 Ohms Composite: 1 BNC, 1 Vp-p, 75 Ohms Monitor Outputs VGA: 1 Composite: 720x480 (NTSC), 720x576 (PAL) Video Resolution VGA: 800x600, 1024x768, 1280x1024 @ 60Hz Record Speed Real-time: 480ips (NTSC), 400ips (PAL) @ CIF (images per second)
  • Page 84 User’s Manual ® eneo is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Technical changes reserved.
