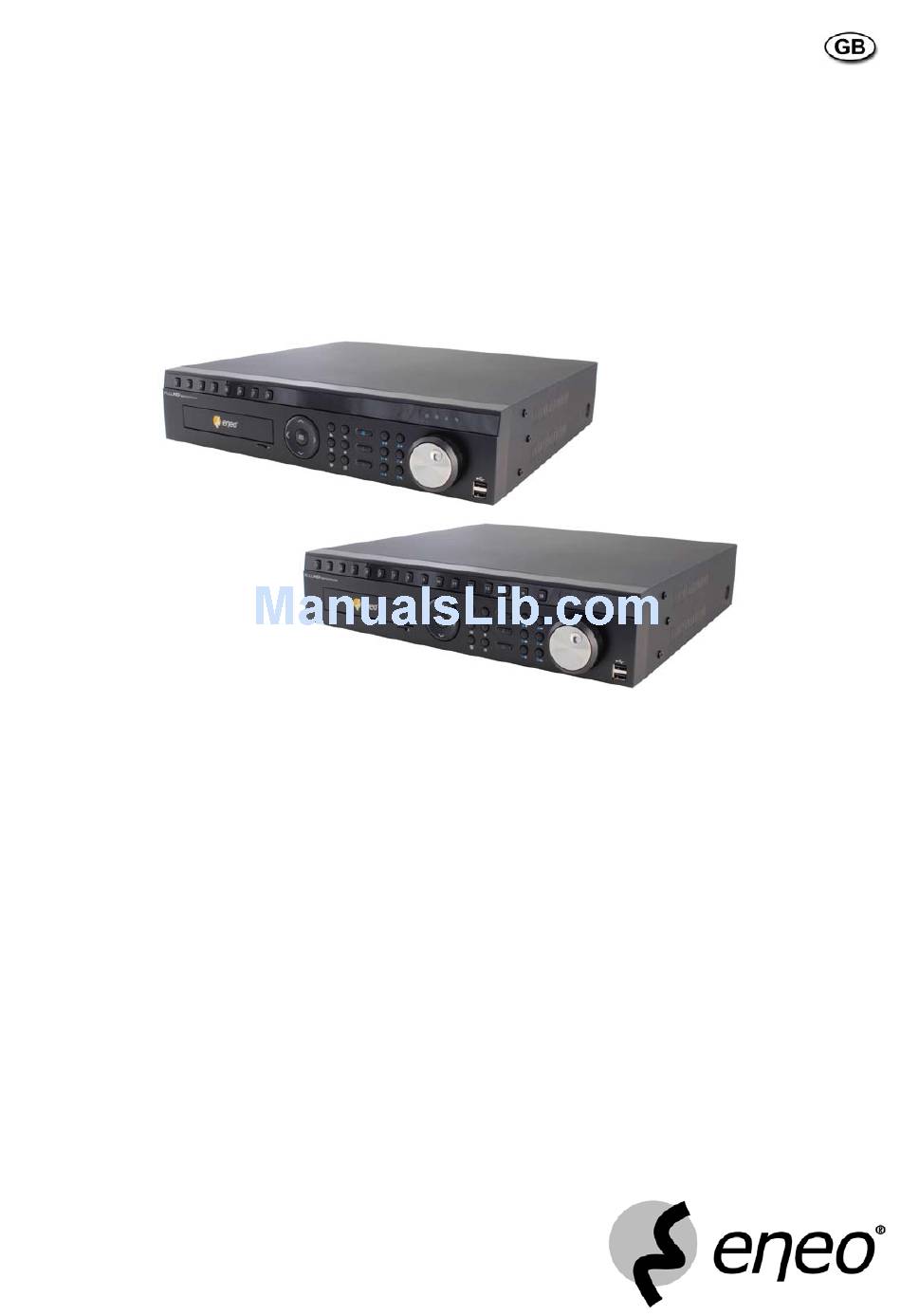

- Page 1 Operating Instructions Digital Video Recorder, H.264 Models: DMR-5008/500 (8-Channel) DMR-5016/500 (16-Channel)
-
Page 3: Compliance Notice Of Fcc
Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Important Safeguards
User’s Manual Important Safeguards 1. Read Instructions 14. Damage requiring Service All the safety and operating instructions should be read before the Unplug this equipment from the wall outlet and refer servicing to appliance is operated. qualified service personnel under the following conditions: A. -
Page 5: Table Of Contents
Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ..........................1 Technical Overview......................1 Chapter 2 — Installation......................3 Package Contents........................3 Required Installation Tools....................3 Video Input ........................3 Video Loop Through ......................4 Factory Reset Switch .......................4 HD/SD Out Selector......................4 Network Port ........................4 iSCSI Port........................4 eSATA Port........................ - Page 6 User’s Manual Account.......................... 17 Storage .......................... 19 Monitoring........................20 Recording Setup ........................21 General.......................... 21 Schedule........................23 Pre-Event........................25 Archive........................... 25 Network Setup ........................26 General.......................... 26 IP Address ........................27 DVRNS ..........................29 RTSP ..........................30 Notification........................31 iSCSI ..........................32 Event Setup ........................34 Motion..........................
- Page 7 Digital Video Recorder Searching Video......................... 56 Search Menu ......................... 56 Event Log Search ......................58 Record Table Search ..................... 59 Motion Search........................ 61 Text-In Search ....................... 62 Bookmarks........................64 Clip-Copy........................64 Print ..........................66 Disk Mirroring........................67 Appendix ..........................68 USB Hard Disk Drive Preparation ..................
- Page 8 User’s Manual Figure 16 : Record – Pre-Event setup screen..................25 Figure 17 : Record – Archive setup screen.....................25 Figure 18 : Network – General setup screen...................26 Figure 19 : Network – IP Address (Manual) setup screen...............27 Figure 20 : Network – DVRNS setup screen...................29 Figure 21 : Network –...
-
Page 9: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for eight or 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 8 or 16 Composite Video Input Connectors Compatible with Color (NTSC or PAL) and B&W (CCIR and EIA-170) Video Sources Auto Detection for NTSC and PAL H.264 Codec... -
Page 10: Figure 1 : Typical Dvr Installation
User’s Manual Your DVR uses a proprietary encryption scheme making it nearly impossible to alter video. You can view video and control your DVR remotely by connecting via Ethernet. There are eSATA and iSCSI ports that can be used to record or archive (eSATA interface only) video to external hard disk drives, and there are two USB ports that can be used to upgrade the system or copy video clips to external hard disk and flash drives. -
Page 11: Chapter 2 - Installation
Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Cord User’s Manual (This Document) RAS Software CD and User’s Manual Rack-mount Kit Assembly Screws for Adding Hard Disk Drives SATA Cables Audio Extension Cable Infrared Remote Control Required Installation Tools... -
Page 12: Video Loop Through
User’s Manual Video Loop Through If you would like to connect your video source to another device, you can use the Loop BNC connectors. NOTE: The Loop BNC connectors are auto terminated. Do NOT connect a cable to the Loop BNC unless it is connected to a terminated device because it will cause poor quality video. -
Page 13: Esata Port
Digital Video Recorder CAUTION: If the iSCSI device is shut down while the device is operating, the DVR system might not operate normally. eSATA Port An eSATA port is provided to connect external storage devices for recording or archiving video. Connect the external eSATA hard disk drive (RAID) cable to the eSATA port. -
Page 14: Audio In/Out
User’s Manual Audio In/Out Your DVR can record audio from up to 16 sources. Connect the audio sources to Audio In 1 to Audio In 16 as needed using RCA jacks. Connect Audio Out to your amplifier. Use the provided audio extension cable to connect the audio sources to Audio In 5 to 16. -
Page 15: Power Cord Connector
Digital Video Recorder Power Cord Connector Connect the AC power cord to the DVR and then to a wall outlet. WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD. MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET. -
Page 16: Chapter 3 - Configuration
User’s Manual Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3 : 16-Channel DVR front panel. Camera Buttons Enter Button Arrow Buttons Menu Button Zoom Button PTZ Button Panic Button Display Button... -
Page 17: Camera Buttons (1 To 16)
Digital Video Recorder Figure 4 : Infrared remote control. NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons. Camera Buttons (1 to 16) Pressing the individual camera buttons will cause the selected camera to display full screen. Buttons 1 to 9 are also used to enter passwords. -
Page 18: Zoom Button
User’s Manual ZOOM Button Pressing the button zooms the current image on the screen. A PIP with a rectangle temporarily displays showing ZOOM what area of the screen has been enlarged. You can use the arrow buttons to move the rectangle to another area. NOTE: Entering the zoom mode will NOT be supported while in the SD display mode. -
Page 19: Jog Dial, Shuttle Ring
Digital Video Recorder Forward: When in the pause mode, pressing the button moves to the previous image. The button is also used to Zoom In while in the PTZ mode. Rewind: Pressing the button plays video backward at high speed. Pressing the button again toggles the playback speed from . -
Page 20: Turning On The Power
User’s Manual Turning on the Power Connecting the power cord to the DVR turns on the unit. The unit takes approximately 60 seconds to initialize. Initial Unit Setup Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as time and date, display language, camera, remote control, record mode, network and password. -
Page 21: Setup Screen
Digital Video Recorder Setup Screen System Record Network Event Device Display Status Camera Figure 7 : Setup screen. Press the button or move the mouse pointer to the top of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. -
Page 22: System Setup
User’s Manual System Setup General Highlight General and press the button, and the General screen appears. Figure 8 : System – General setup screen. In the General screen, you can name the site location, assign a System ID number, select the language the screens are displayed in, display software version number, upgrade the software, show the System Log, display recorded time data, and clear all data. - Page 23 Digital Video Recorder CAUTION: The USB device must be FAT16 or FAT32 format. You can import saved DVR settings or export the current DVR settings. To import saved DVR settings, connect the USB device containing the setup file (.dat) to the DVR. Highlight Setup – Import… and press the button.
-
Page 24: Date/Time
User’s Manual NOTE: When opening the saved .txt file, setting to the proper character encoding and using fixed width fonts will be required to read the file properly. Highlighting Clear All Data and pressing the button will clear all video data. You will be asked to verify that you wish to clear all data before the DVR erases the video data. -
Page 25: Account
Digital Video Recorder Highlight the box beside Automatic Sync. and press the button. This toggles between On and Off. Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. - Page 26 User’s Manual The +/– column is used to collapse and expand user groups. If there is a + or – in this column, it indicates the item is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of the User Names within that group are displayed below the Group Name.
-
Page 27: Storage
Digital Video Recorder Highlighting the box beside Auto Login allows you to select a User to be automatically logged in when the DVR is powered up. It can also be set to never automatically login a user. Highlighting the box beside Auto Logout allows you to select from a list of times that the user will be automatically logged out. -
Page 28: Monitoring
User’s Manual If you want to erase recorded data on the selected device, highlight Clear and press the button. You will be asked whether or not you want to delete the data. If you want to use a USB hard disk drive, highlight Use and press the button after connecting the device. -
Page 29: Recording Setup
Digital Video Recorder Highlight the Settings box beside Check Alarm-In and press the button. You can select the interval that you want the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never. Highlight the Settings box beside Disk Almost Full, and press the button. - Page 30 User’s Manual NOTE: The video signal has a time difference of 1/60 second (1/50 second for PAL) between odd and even fields because it is composed of 60 interlaced fields per second (50 fields for PAL). When recording video with Very High (D1) resolution, video is made up of frame units combining two fields –...
-
Page 31: Schedule
Digital Video Recorder Schedule Highlight Schedule and press the button, and the Schedule setup screen appears. < Simple Mode > < Advanced Mode > Figure 14 : Record – Schedule setup screen. You can program the DVR to record only during certain times based on time, day of the week, and holidays. The smallest time segment you can use is 15 minutes. -
Page 32: Figure 15 : Schedule - Settings (Advanced Mode) Setup Screen
User’s Manual Highlight the box under the Settings heading and press the button to define the recording settings. Figure 15 : Schedule – Settings (Advanced Mode) setup screen. You can set the ips, Quality and Resolution (ips, Quality, Resolution and Dwell for Advanced Mode setup) of the recording for any modes you set up in the Mode column. -
Page 33: Pre-Event
Digital Video Recorder Pre-Event Highlight Pre-Event and press the button, and the Pre-Event setup screen appears. If you do not have Event set up in the Record Schedule, a message will display alerting you to this fact. Figure 16 : Record – Pre-Event setup screen. When the DVR is in the Event Record mode it is possible to have it record images before the event occurs. -
Page 34: Network Setup
User’s Manual Highlight Archive On and press the button to toggle between On and Off. NOTE: If you have not set up a storage device for archiving, a message appears notifying you of this. Select the Days and Time Range you want archived. You can accept the Archive Data Range by leaving the default checkmarks in the Last Archived and Continue boxes. -
Page 35: Ip Address
Digital Video Recorder NOTE: When limiting the network bandwidth, the remote watch image on the PC running RAS or WebGuard might not be displayed properly. The DVR supports two-way audio communication between a local system and a PC running RAS. Highlighting the box beside Remote Audio Channel and pressing the button allows you to select the audio channel that sends audio to the remote site. - Page 36 User’s Manual Highlight the box beside DNS Server. Press the Up and Down arrow buttons to set the IP address of the DNS server. Highlight the Port Number Setup… box and press the button. The Port Number Setup screen appears. NOTE: You will need to get the appropriate Port Numbers for each RAS and WebGuard related program (Admin, Callback, Watch, Search and Audio) from your network administrator.
-
Page 37: Dvrns
Digital Video Recorder DVRNS Highlight DVRNS and press the button, and the DVRNS setup screen displays. Figure 20 : Network – DVRNS setup screen. Highlight Use DVR Name Service and press the button to toggle between On and Off. NOTE: The DVRNS (DVR Name Service) allows the DVR to use Dynamic IP addresses for remote connection. When this feature is On, you can access your DVR remotely using the DVR name instead of its IP address. -
Page 38: Rtsp
User’s Manual RTSP Highlight RTSP and press the button. The RTSP setup screen displays. Figure 21 : Network – RTSP setup screen. Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTSP is enabled. Highlight the box beside RTSP Port and press the button. -
Page 39: Notification
Digital Video Recorder Notification Highlight Notification and press the button. The Notification setup screen displays. The DVR can be set up to contact a computer running RAS (Remote Administration System) or to send an email when an event occurs. Figure 22 : Network – Notification setup screen. Highlight Callback Enable and press the button to toggle between On and Off. -
Page 40: Iscsi
User’s Manual Highlight the box beside Sender and enter the sender’s e-mail address. Use the virtual keyboard to enter the e-mail address. NOTE: The e-mail address must include the “@” character to be a valid address. Highlight the box beside Recipient and enter the recipient’s e-mail address. Use the virtual keyboard to enter the e-mail address. - Page 41 Digital Video Recorder Highlight the iSCSI – Target Nodes box and press the button, and the Target Nodes screen appears. Highlighting Discover and pressing the button. Proper iSCSI settings will display the list of iSCSI hard disk drives currently connected to the DVR in the Target Node Name list, and selecting a specific device from the list displays its full name in the Full Node Name box.
-
Page 42: Event Setup
User’s Manual Event Setup Motion Highlight Motion and press the button, and the Motion setup screen appears. Figure 24 : Event – Motion setup screen. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime... -
Page 43: Alarm-In
Digital Video Recorder NOTE: Displaying the detection zone is supported only in the HD display mode. You can adjust the minimum number of detection blocks that must be activated to trigger a motion alarm. Highlighting the box under the Min. Blocks heading and pressing the button allows you to adjust the minimum number of detection blocks for Daytime and Nighttime independently. -
Page 44: Video Loss
User’s Manual connector, sound the DVR’s internal buzzer, notify a number of different devices, move PTZ cameras to preset positions, and/or display a camera on a SPOT monitor. Video Loss Highlight Video Loss and press the button, and the Video Loss setup screen appears. Figure 26 : Event –... -
Page 45: Text-In
Digital Video Recorder You can turn individual cameras On or Off for video blind detection by highlighting the camera number and pressing the button. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind from 1 (least sensitive) to 10 (most sensitive). -
Page 46: Figure 29 : Text-In Device Screen
User’s Manual Figure 29 : Text-In Device screen. Highlight the box beside Port, and press the button. Select from None, RS232, RS485, USB-Serial (1~8) and LAN (1~4). NOTE: If you have set the Port as None, you will not be able to make any changes to the screen. When using the USB to serial text-in device, do NOT remove the USB cable from the port while the system is running. -
Page 47: Device Setup
Digital Video Recorder input can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, move PTZ cameras to preset positions, and/or display a camera on a SPOT monitor. Device Setup Audio Highlight Audio and press the button, and the Audio setup screen appears. -
Page 48: Remote Control
User’s Manual Highlighting the box beside Dwell Time and pressing the button allows you to set the dwell time of the alarm output. Dwell times range from 5 seconds to 15 minutes. Each alarm output can be given its own title by highlighting Title… and pressing the button. -
Page 49: Display Setup
Digital Video Recorder Display Setup Highlight OSD and press the button. The OSD screen allows you to select what information will be displayed on the monitor. Figure 33 : Display – OSD setup screen. Highlighting an item and pressing the button toggles that item On and Off. -
Page 50: Primary Monitor
User’s Manual Primary Monitor Highlight Primary Monitor and press the button, and the Primary Monitor setup screen appears. Figure 34 : Display – Primary Monitor setup screen. Highlight the box beside Mode and press the button. You can select between Full Sequence and Cameo Sequence. Pressing the button on the remote control or selecting (Sequence) in the Live Monitoring menu causes... -
Page 51: Secondary Monitor
Digital Video Recorder Highlight the box beside HDMI Mode and press the button toggles between On and Off. button. Pressing the When it is On, the DVR will optimize the HDMI video out. NOTE: The system restarts automatically after changing the resolution settings. If the system restarts when the monitor is not connected, the resolution will be set to 1280x1024@60Hz as default without saving your changes. -
Page 52: Spot Monitor
User’s Manual Spot Monitor Highlight Spot Monitor and press the button, and the Spot Monitor setup screen appears. Figure 36 : Display – Spot Monitor setup screen. Highlight the box in the Channels column and press the button. You can define which cameras display sequentially on the Spot Monitor when in the single-screen display format. -
Page 53: Status Setup
Digital Video Recorder Status Setup Event Highlight Event and press the button, and the Event setup screen appears. Figure 37 : Status – Event setup screen. The Event Status screen displays the status of the DVR’s systems and inputs. Events will be highlighted, and related channels or events will flicker for five seconds when detected. -
Page 54: Storage
User’s Manual Storage Highlight Storage and press the button, and the Storage setup screen appears. Figure 38 : Status – Storage setup screen. The Type column displays the type of storage device. The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted. The Temperature column displays the temperature of the storage device. -
Page 55: Camera Setup
Digital Video Recorder Camera Setup General Highlight General and press the button, and the General setup screen appears. Figure 39 : Camera – General setup screen. You can turn the camera number On or Off, and you can change the Title of each camera using the virtual keyboard. You can also determine which cameras will display on the monitors by selecting Normal, Covert 1 or Covert 2 from a drop-down list in the Use column. - Page 56 User’s Manual NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button.
-
Page 57: Chapter 4 - Operation
Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video. -
Page 58: Live Monitoring Menu
User’s Manual Live Monitoring Menu Login/Logout Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting (Logout) in the Live Monitoring menu displays the Logout screen asking you to confirm whether or not you want to log out the current user. -
Page 59: Active Cameo Mode
Digital Video Recorder < Full Sequence > < Cameo Sequence > Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be excluded from the sequence. -
Page 60: Zoom Mode
User’s Manual Zoom Mode You can enlarge an area of the video by pressing the button. For a few seconds after pressing the button, ZOOM ZOOM a rectangle displays on the screen. A rectangle shows the area that will be enlarged. You can move the rectangle around using the arrow buttons. -
Page 61: Event Monitoring
Digital Video Recorder While in the PTZ mode, pressing the button and selecting (Advanced PTZ) in the menu MENU displaying at the top of the screen displays the Advanced PTZ menu. Set the feature you wish to control by selecting it from the menu. Refer to the camera manufacturer’s instructions for the proper settings. -
Page 62: Spot Monitoring
User’s Manual Spot Monitoring The multiview screen display (2x2 or 4x4) and sequence monitoring will be supported on a Spot Monitor. Selecting Spot after pressing the button or selecting (Monitor) in the Live Monitoring menu allows you to control a MONITOR Spot Monitor. -
Page 63: Figure 44 : Select Playback Camera Menu
Digital Video Recorder Selecting All Channels plays back video of all cameras. The DVR maintains the same display format as it does in the live mode. You can also change the screen layout in the same way as you do in the live mode. -
Page 64: Searching Video
User’s Manual Go to the previous image Play/Pause Go to the next image Fast backward play Fast forward play Searching Video While in the search mode, pressing the button displays the following Search menu at the top of the screen. MENU Pressing the button again hides the menu. -
Page 65: Camera Menu
Digital Video Recorder Bookmark: Selecting (Go To) → Bookmark adds the current playback point to the bookmark list. See the following Bookmarks section for details. Display Camera: Selecting (Display) → Camera and choosing the camera number displays the selected camera full screen. -
Page 66: Event Log Search
User’s Manual Data Source (Data Source) in the Search menu allows you to select the data source to be searched. Selecting Record Selecting searches recorded data on primary storage installed in the DVR, and selecting Archive searches archived data on secondary storage installed in the DVR. -
Page 67: Record Table Search
Digital Video Recorder You can search video from the first to last recorded images, or you can set the start and stop times and dates. Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. -
Page 68: Figure 47 : Record Table Search Screen
User’s Manual < Expanded View > Figure 47 : Record Table Search screen. Recording information about video images currently displayed on the screen displays on the recording status bar. A grey vertical line indicates the current search position. To search specific video, move the vertical line by using the Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment. -
Page 69: Motion Search
Digital Video Recorder Selecting located at the bottom displays the Search menu. Go To: Displays the first or last recorded image, searches by date and time, or adds the current playback point to the bookmark list (see the previous Searching Video – Go To and Bookmarks sections of this chapter for more details). -
Page 70: Text-In Search
User’s Manual Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. Highlight the box beside To and press the button to toggle between On and Off. - Page 71 Digital Video Recorder NOTE: It is possible that no recorded image displays on the current screen. Press the button and change DISPLAY the screen mode to 4x4. You will be able to easily see the camera have recorded video during target time. Text Input information will be overlaid on the image while the recorded video is played at regular speed.
-
Page 72: Bookmarks
User’s Manual Bookmarks The Bookmarks screen can also be accessed by pressing the button when in playback mode. BOOKMARK Highlight the Add Current Position box and press the button to add the current playback point to the bookmark list. Highlight the Title box and enter the name of the registered bookmark. - Page 73 Digital Video Recorder You can search video from the first to last recorded images, or you can set the start and stop times and dates. Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time.
-
Page 74: Print
User’s Manual NOTE: During Clip Copy, you cannot shut the system down, clear data on the storage device, or format the storage device. CAUTION: Do NOT disconnect the USB cable or the power from the external drive while copying video clips. If the external drive is shut down or the USB cable is disconnected while copying video clips, THE DVR SYSTEM MAY NOT WORK NORMALLY OR THE EXTERNAL DRIVE COULD BE DAMAGED, and you will get an error message the next time you try to copy video clips. -
Page 75: Disk Mirroring
Digital Video Recorder Disk Mirroring The DVR supports disk mirroring to prevent unexpected loss of recorded video data that might be caused by disk damage or corruption. You can set up disk mirroring by highlighting Storage in the System menu and pressing the button. -
Page 76: Appendix
User’s Manual Appendix USB Hard Disk Drive Preparation Preparing the USB hard disk drive in Windows 2000 NOTE: Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. Turn on your computer. -
Page 77: Text-In Search Examples
Digital Video Recorder Text-In Search Examples Search Example I 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) | $ 2.20 Fanta 2.20 | 1(s) | $ 2.20 Hotdog 3.50 | 3(s) | $ 10.50 Pepsi 1.95 | 1(s) | $ 1.95 ================================================== total : $... -
Page 78: Webguard
User’s Manual In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40 (amount) characters (including spaces) from the left, but the value of amount category is located on a different line from Item. -
Page 79: Web Monitoring Mode
Digital Video Recorder You will need to enter the DVR IP address in the DVR ADDRESS field when running the WebGuard program by entering http://www.dvronline.net. Selecting the Use DVRNS option allows you to enter the DVR name registered on the DVRNS server instead of the IP address. You must enter the DVRNS server address and port number in the SETUP setting when selecting the Use DVRNS option. - Page 80 User’s Manual ① Click the to log out the WebGuard program. ② Click the to access to the web search mode. ③ Position the mouse pointer on the WebWatch logo to see the version of the WebGuard program. ④ The DVR information window displays the login information of WebGuard. ⑤...
-
Page 81: Web Search Mode
Digital Video Recorder Web Search Mode WebSearch is a remote web search program that allows you to search recorded video on the remote DVR. NOTE: The remote site connection in the Web Search mode will automatically be disconnected if there is no activity for 30 minutes. -
Page 82: Time Overlap
User’s Manual ⑪ Click the to set up the image drawing mode and OSD display. You can adjust the display speed by changing the image drawing mode, and select OSD information to be displayed on the screen. ⑫ Click the to reload the recording data. -
Page 83: System Log Notices
Digital Video Recorder System Log Notices Boot Up Clear Disk Shutdown Format Disk Restart Disk Full Upgrade Auto Deletion Upgrade Fail Search Begin Power Failure Search End Time Change Clip-Copy Begin Time Zone Change Clip-Copy End Time Sync Clip-Copy Cancel Time Sync Fail Clip-Copy Fail Disk Bad... -
Page 84: Connector Pin Outs
User’s Manual System Upgrade Related Clip Copy Related Description Description Invalid package. Database has been changed. ODD firmware upgrade failed. Appending failed. Remote connection failed. Bad sector. Remote network error. No executable file. Remote upgrade is not authorized. Opening executable file failed. Saving remote package failed. -
Page 85: Map Of Screens
Digital Video Recorder Map of Screens... -
Page 86: Troubleshooting
User’s Manual Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. Check camera lens settings. - Page 87 Digital Video Recorder INPUTS/OUTPUTS Alarm Input 8 or 16 terminal, programmable as NC or NO, 2.4V (NC) or 0.3V (NO) threshold, 5VDC Alarm Output 4 relay output, programmable as NC or NO, 2A@125VAC, 1A@30VDC Alarm Reset Input 1 TTL, terminal block Internal Buzzer 80dB at 10cm Network Connectivity...
- Page 88 ® eneo is a registered trademark of Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Technical changes reserved.
