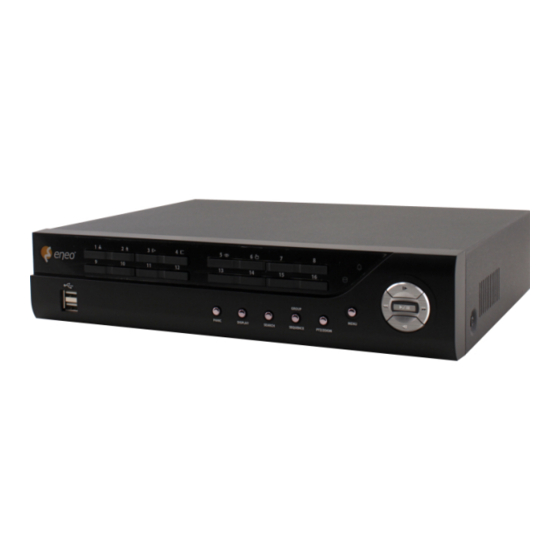

- Page 1 Operating Instructions Digital Video Recorder, H.264 Model: DLR-2116/1.0TBV (16-Channel)
-
Page 3: Compliance Notice Of Fcc
Digital Video Recorder WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 4: Important Safeguards
User’s Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. in the risk of fire or electric shock. 2. -
Page 5: Table Of Contents
Digital Video Recorder Table of Contents Chapter 1 — Introduction ......................1 Feature ........................... 1 Technical Overview ........................ 1 Chapter 2 — Installation ......................3 Package Contents ........................3 Required Installation Tools ....................3 Video Input......................... 3 Alarm Input/Output ......................4 Factory Reset Switch ...................... - Page 6 User’s Manual Initial Unit Setup ........................11 Setup Screen ........................12 System Setup ........................13 General ..........................13 Date/Time ........................21 User ..........................22 Storage ..........................24 System Event ........................25 Recording Setup ........................26 General ..........................26 Schedule .......................... 27 Pre-Event .........................
- Page 7 Digital Video Recorder Panic Recording ......................57 Playing Recorded Video ...................... 58 Searching Video ........................59 Search Menu ........................59 Event Log Search ......................62 Record Table Search ....................... 63 Motion Search ......................... 65 Text-In Search ......................... 66 Bookmarks ........................68 Clip-Copy .........................
- Page 8 User’s Manual Figure 22: Camera – General setup screen.................... 35 Figure 23: Camera – PTZ setup screen....................36 Figure 24: Device – Alarm-Out setup screen..................37 Figure 25: Device – Remote Control setup screen................. 38 Figure 26: Network – General setup screen.................... 38 Figure 27: Network –...
-
Page 9: Chapter 1 - Introduction
Digital Video Recorder Chapter 1 — Introduction Feature Your color digital video recorder (DVR) provides recording capabilities for 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: 16 Composite Video Input Connectors ... -
Page 10: Figure 1: Typical Dvr Installation
User’s Manual Figure 1: Typical DVR installation. -
Page 11: Chapter 2 - Installation
Digital Video Recorder Chapter 2 — Installation Package Contents The package contains the following: Digital Video Recorder Power Adaptor and Power Cord User’s Manual (This Document) RAS Software CD and User’s Manual Infrared Remote Control Required Installation Tools No special tools are required to install the DVR. -
Page 12: Alarm Input/Output
User’s Manual Alarm Input/Output NOTE: To make connections on the Alarm Connector Strip, press and hold the button and insert the wire in the hole below the button. After releasing the button, tug gently on the wire to make certain it is connected. To disconnect a wire, press and hold the button above the wire and pull out the wire. -
Page 13: Network Port
Digital Video Recorder Network Port The DVR can be networked using the 10Mb/100Mb/1Gb Ethernet connector. Connect a Cat5 cable with an RJ-45 jack to the DVR connector. The DVR can be networked with a computer for remote monitoring, searching, configuration and software upgrades. See Chapter 3 ─ Configuration for configuring the Ethernet connections. - Page 14 User’s Manual...
-
Page 15: Chapter 3 - Configuration
Digital Video Recorder Chapter 3 — Configuration NOTE: Your DVR should be completely installed before proceeding. Refer to Chapter 2 — Installation. Front Panel Controls Figure 3: DVR front panel. Camera Buttons HDD LED Alarm LED Arrow Buttons Play/Pause Button Menu Button PTZ/Zoom Button Group/Sequence Button... -
Page 16: Arrow Buttons
User’s Manual Arrow Buttons These buttons are used to navigate through menus and GUI. You can also use them to change numbers by highlighting a number in the menu and using the Up and Down arrow buttons to increase or decrease the number’s value. These buttons are also used to control Pan and Tilt when in the PTZ mode. -
Page 17: Display Button
Digital Video Recorder Display Button Pressing the button toggles between different display formats. The available formats are: PIP, 2x2, 1+5, 1+7, DISPLAY 3x3 and 4x4. Panic Button Pressing the button starts panic recoding of all camera channels, and displays on the screen. Pressing the PANIC button again will stop panic recording. -
Page 18: Id Button
User’s Manual NOTE: For simplicity, the button descriptions in this manual refer to the front panel buttons. ID Button If a DVR System ID is set to 0, the infrared remote control will control that DVR without any additional operations. (Refer to the System –... -
Page 19: Panic Button
Digital Video Recorder Panic Button Pressing the button starts panic recoding of all camera channels, and displays on the screen. Pressing the PANIC button again will stop panic recording. Layout Button Pressing the button toggles between different display formats. The available formats are: 4x4, 3x3, 1+7, 1+5, LAYOUT 2x2 and PIP. -
Page 20: Setup Screen
User’s Manual Throughout the screens you will see . Highlighting the and pressing the button gives you the opportunity to reset that screen to its default settings. Highlighting This page or All pages and pressing the button resets the current page or all pages of the screen to its or their default settings. -
Page 21: System Setup
Digital Video Recorder Press the button or move the mouse pointer on the right edge of the screen and then select (Setup) in the Live MENU Monitoring menu to enter the setup screen. While setting up the DVR, there will be many opportunities to enter names and titles. When making these entries, a Virtual Keyboard will appear. - Page 22 User’s Manual The box beside Version displays the software version of the DVR. To upgrade the software, connect a USB device containing the upgrade package file to the DVR. Highlight Upgrade… and press the button. The Upgrade screen appears. The screen displays the upgrade package file names that are available. The “.rui” indicates that the file is for software upgrades.
- Page 23 Digital Video Recorder The System Log screen lists system activities (up to 5,000 from the latest) that have occurred along with the time and date. The icon will be displayed in the last column for system activities of the remote site. You can scroll through the log pages by using the Up and Down arrows, or you can go directly to a log page by entering the log page number in the box at the bottom left of the screen.
- Page 24 User’s Manual Select either Quick wizard or Network wizard and select the Next button to start the selected setup wizard. NOTE: Selecting the Cancel button throughout the screens exits the Quick Setup Wizard without saving your changes and returns to the main setup screen. If you selected the Quick wizard, selecting the Next button starts the Quick Setup Wizard.
- Page 25 Digital Video Recorder Record Method Setup Select the desired recording mode from: – Motion Event Record (Recommended) – Continuous & Motion Event Record – Continuous Record NOTE: You should understand each recording mode before setting the DVR’s recording method. Record Video Quality Setup ...
- Page 26 User’s Manual NOTE: The recording quality and recording speed of each camera channel will be set as show below according to the Record Method and Record Video Quality you set. HVQPP* SRP* LRTPP* Motion Event Record Very High / 30 ips High / 5 ips Standard / 3 ips Continuous &...
- Page 27 Digital Video Recorder Internet Connection Select whether or not your DVR is connected to the Internet. LAN Setup Select between Auto Configuration and Manual Configuration for network configuration, and then select the Test button to test the network configuration you selected. NOTE: Selecting Auto Configuration allows the DVR to automatically obtain LAN parameters (IP address, Gateway, Subnet Mask and DNS Server address).
- Page 28 User’s Manual FEN Setup FEN Name: Enter the DVR name to be registered on the DVRNS (DVR Name Service) server. NOTE: The FEN Name you entered should be checked by selecting Test, otherwise the FEN changes will not be saved. When entering no name or a name already registered on the DVNRS server, an error message displays.
-
Page 29: Date/Time
Digital Video Recorder Date/Time Figure 9: System – Date/Time setup screen. Highlight the first box beside Date and press the button. The individual sections of the date will highlight. Use the Up and Down arrow buttons to change the number. Use the Left and Right arrow buttons to move between month, date and year. -
Page 30: User
User’s Manual Highlight the box beside Time Server and press the button. A virtual keyboard appears that you can use to enter the IP address or domain name of the time server. Highlighting allows you to select your time server from a list of registered time servers. - Page 31 Digital Video Recorder The +/– column is used to collapse and expand user groups. If there is a + or – in this column, it indicates the item is a Group Name. If there is a – in front of the Group Name, it indicates that the group has been “expanded” and all of the User Names within that group are displayed below the Group Name.
-
Page 32: Storage
User’s Manual To add a User, highlight the + User… box and press the button. A virtual keyboard appears allowing you to enter the User Name. Enter the name and assign the User to a Group and password. You can use camera buttons 1 to 9 on the front panel to assign the password. -
Page 33: System Event
Digital Video Recorder You will be able to check the model name, serial number and the time information about recorded data of the selected storage device. If you want to erase recorded data on the selected device, highlight Clear and press button. -
Page 34: Recording Setup
User’s Manual Highlight the Settings box beside Check Alarm-In and press the button. You can select the interval that you want the DVR to run self-diagnostics on Alarm Inputs. You can select from 1 hr. to 30 days or Never. Highlight the Settings box beside Disk Almost Full, and press the button. -
Page 35: Schedule
Digital Video Recorder Highlight the slide bar beside Limit Time-Lapse Recording, and use the Left and Right arrow buttons to adjust the length of the maximum storage time for time-lapse recording from 1 to 99 days. The Limit Time-Lapse Recording feature will function when the storage device has enough space to record video data longer than the preset period. -
Page 36: Figure 15: Schedule - Settings (Advanced Mode) Setup Screen
User’s Manual Highlight the box under the Day heading and press the button to change the days that the scheduled recording will take place. Choose from: Sun, Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All. Highlight the box under the Range heading and press the button to change the time range that the scheduled recording will take place. -
Page 37: Pre-Event
Digital Video Recorder Highlight the box under the heading and press the button to delete the recording settings. You will be asked to confirm that you want to delete the settings. Highlight Default… and press the button. The Default screen appears. Highlighting boxes under ips and pressing the button allows you to set the images per second for Time and Event recording. -
Page 38: Event Setup
User’s Manual Event Setup Motion Figure 17: Event – Motion setup screen. Your DVR has built-in video motion detection. Video motion detection can be turned On or Off for each camera. Highlighting the box under the Sensitivity heading and pressing the button allows you to adjust the DVR’s sensitivity to motion for Daytime and Nighttime independently. -
Page 39: Alarm-In
Digital Video Recorder You can adjust the minimum number of detection blocks that must be activated to trigger a motion alarm. Highlighting the box under the Min. Blocks heading and pressing the button allows you to adjust the minimum number of detection blocks for Daytime and Nighttime independently. -
Page 40: Video Loss
User’s Manual Video Loss Figure 19: Event – Video Loss setup screen. Highlighting the box under the Video Loss Interval heading allows you to set the duration of a signal loss before the DVR will report a Video Loss. The DVR will not consider any signal loss from a camera to be a Video Loss if the detected signal loss is shorter than the interval set on this screen. -
Page 41: Text-In
Digital Video Recorder The DVR checks to see if anything is blinding a camera. Highlighting the box under the Sensitivity heading allows you to adjust the DVR’s sensitivity to video blind for Black and White independently from 0 (Never) and 1 (least sensitive) to 15 (most sensitive). NOTE: Video blind might NOT be detected for a camera with a very noisy image especially when set for low sensitivity values. - Page 42 User’s Manual Highlight the box beside Port, and press the button. Select from None, RS232, RS485, USB-Serial (1~8) and LAN (1~16). NOTE: If you have set the Port as None, you will not be able to make any changes to the screen. When using the USB to serial text-in device, do NOT remove the USB cable from the port while the system is running.
-
Page 43: Camera Setup
Digital Video Recorder Each input can be given a title. Highlight the desired Title box and press the button. A virtual keyboard appears allowing you to enter a title name. Highlight the box under the Actions and press the button. The DVR can be set to react to text input. Text input can be associated with cameras, trigger an Alarm-Out connector, sound the DVR’s internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions. -
Page 44: Ptz
User’s Manual Figure 23: Camera – PTZ setup screen. NOTE: You will only be able to set up PTZ devices if the PTZ port is set to RS232 or RS485. Highlight the box in the Product column for the PTZ camera you wish to configure and press the button. -
Page 45: Device Setup
Digital Video Recorder Device Setup Alarm-Out Figure 24: Device – Alarm-Out setup screen. Highlighting the box beside Dwell Time and pressing the button allows you to set the dwell time of the alarm output. Dwell times range from 5 seconds to 30 minutes. Each alarm output can be given its own title by highlighting Title…... -
Page 46: Remote Control
User’s Manual Remote Control Figure 25: Device – Remote Control setup screen. Highlight the box beside Port and select from None, RS232 and RS485. If the RS232 port and RS485 port are in use for PTZ control, networking or text input, the remote keyboard cannot be configured. Highlight Setup…... -
Page 47: Lan
Digital Video Recorder Highlight the first box beside Remote Watch – bps/ips. You can select the Transfer Speed from 50Kbps to 1Gbps. Highlight the second box beside Remote Watch – bps/ips. You can select the unit of measure for the transfer speed between: bps and ips. - Page 48 User’s Manual Change the numbers by highlighting them and using the Up and Down arrow buttons to increase or decrease the number. The factory default LAN settings are: IP Address: 192.168.1.129 Gateway: 192.168.1.254 Subnet Mask: 255.255.255.0 NOTE: You will need to get the appropriate IP Address, Gateway and Subnet Mask from your network administrator.
-
Page 49: Fen
Digital Video Recorder NOTE: Selecting Auto will only be enabled when the DVR is configured for DHCP or an ADSL network. Selecting ADSL (with PPPoE) allows you to set up the ADSL network. Highlight the box beside ID and press the button. -
Page 50: Rtsp
User’s Manual The box beside Status displays the current information of the Rendezvous server and NAT (Network Address Translation) device. RTSP Figure 29: Network – RTSP setup screen. Highlight Enable RTSP (Real-Time Streaming Protocol) and press the button to toggle between On and Off. You will be able to change the settings if Enable RTSP is enabled. -
Page 51: Webguard
Digital Video Recorder WebGuard Figure 30: Network – WebGuard setup screen. Highlight Use WebGuard Service and press the button to toggle between On and Off. See Appendix – WebGuard for detailed descriptions of the WebGuard service. Highlight the box beside Port and press the button. -
Page 52: Notification Setup
User’s Manual Highlight the box beside Password and press the button. A virtual keyboard appears allowing you to enter the password for VNC connection. NOTE: Up to three users at a time can access a DVR remotely via VNC service. When controlling the DVR remotely using a keyboard, shortcut keys perform the following functions as described below: Function... -
Page 53: Mail
Digital Video Recorder Highlight the IP Address box that you want to change and press the button. Use the arrow buttons to enter the IP address of the computer you want contacted during an event. You can enter up to five IP addresses. Highlight the box beside Retry and enter the number of times you would like the DVR to try contacting the computer. - Page 54 User’s Manual Highlight Use and press the button to toggle between On and Off. Assign the Recipient to a Group and enter the Recipient’s Display Name. Highlight the box beside Address and enter the recipient’s e-mail address and mail server provider. Highlighting allows you to select the mail server provider from a list of registered SMTP mail server...
-
Page 55: Sns
Digital Video Recorder Figure 34: Notification – SNS setup screen. The DVR can be set up to post a message via SNS (Social Network Service) when an event occurs. You can add and edit the SNS account on this screen. The SNS account can be turned On or Off by highlighting the boxes under the No. -
Page 56: Schedule
User’s Manual Schedule Figure 35: Notification – Schedule setup screen. You can add and edit notification schedules on this screen. Highlight the + and press the button to add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you to edit the information in those boxes. -
Page 57: Display Setup
Digital Video Recorder Display Setup Figure 36: Display – OSD setup screen. Highlighting an item and pressing the button toggles that item On and Off. When an item is On, there is a checkmark in the box beside it. The following items can be turned On or Off: ... -
Page 58: Main Monitor
User’s Manual Main Monitor Figure 37: Display – Main Monitor setup screen. Highlight the box beside Mode and press the button. You can select between Full Sequence and Cameo Sequence. Pressing the button causes the DVR to sequence cameras, and the DVR can sequence cameras in two SEQUENCE modes: “Full”... -
Page 59: Chapter 4 - Operation
Digital Video Recorder Chapter 4 — Operation NOTE: This chapter assumes your DVR has been installed and configured. If it has not, please refer to Chapters 2 and 3. The DVR’s controls are similar to a VCR. As with a VCR, the main functions are recording and playing back video. However, you have much greater control over recording and playing back video. -
Page 60: Live Monitoring Menu
User’s Manual Live Monitoring Menu Login/Logout Selecting (Login) in the Live Monitoring menu accesses the Login screen, and you will be asked to select a User and enter the password to log into the system. Selecting (Logout) in the Live Monitoring menu displays the Logout screen asking you to confirm whether or not you want to log out the current user. -
Page 61: Camera Menu
Digital Video Recorder < Full Sequence > < Cameo Sequence > Selecting again in the Live Monitoring menu exits the Sequence mode. While in the Sequence mode, the icon displays in bottom-left corner if Sequence is selected in the Display setup screen (OSD tab). If all the cameras in a page are Off, or have lost video or are set to Covert (unless the user has authority to view covert cameras), that page will be excluded from the sequence. -
Page 62: Active Cameo Mode
User’s Manual Active Cameo Mode You can enter the Active Cameo mode by selecting Edit Group from the Live Monitoring – Camera menu or pressing and holding the button for three seconds or longer in any multi-view format. The yellow outline surrounding MENU the video indicates the active cameo, and pressing the arrow buttons moves the active cameo. -
Page 63: Event Monitoring
Digital Video Recorder You can save camera position settings as “presets” so that you can go directly to desired views. Once you have the camera at the desired settings, press the button, and the Set Preset dialog box will appear. Select the number you want to assign to the preset and press the (Play/Pause) button. -
Page 64: Covert Camera
User’s Manual Covert Camera If a camera is set up as Covert 1 in the Camera setup screen (General tab), that camera will not be displayed unless a user with Covert Camera View authority logs into the system. However the camera title and status icons will be displayed on the monitor. -
Page 65: Recording Video
Digital Video Recorder Highlighting the Storage tab will display the hard disk drive status. Figure 42: Event Status – Storage screen. The Type column displays the type of storage device. The Disk Bad column displays the percentage of bad sectors. Not formatted indicates the device is not formatted. The Temperature column displays the temperature of the storage device. -
Page 66: Playing Recorded Video
User’s Manual NOTE: When the DVR is not in the Recycle mode and all available storage space has been used, panic recording will not operate. Playing Recorded Video If a user who has Search authority logs into the system, the user can view recorded image. Once video has been recorded, you can view it by pressing the button. -
Page 67: Searching Video
Digital Video Recorder Group Button: Pressing the button changes the screen from the current camera group to the next camera GROUP group, and the screen displays page number. You can use a mouse for convenient playback control. Position the mouse pointer on the playback screen, and the following Record Table Search (Compact View Mode) screen will display. - Page 68 User’s Manual Go To Go to the First: Selecting (Go To) → Go to the First displays the first recorded image. Go to the Last: Selecting (Go To) → Go to the Last displays the last recorded image. ...
- Page 69 Digital Video Recorder Camera Menu Zoom: Selecting (Camera Menu) → Zoom and choosing the camera number zooms the current playback image of the selected camera on the screen. It is the same as pressing the button. Selecting Zoom again exits the ZOOM Zoom mode.
-
Page 70: Event Log Search
User’s Manual Event Log Search Figure 45: Event Log Search screen. The DVR maintains a log of each time the Alarm Input port is activated. The Event Log Search screen displays this list. Use the arrow buttons to highlight the event for which you would like to see video. There is no determined user authority to display the Event Log Search screen, however, the event video will not be played unless a user with Search authority logs into the system . -
Page 71: Record Table Search
Digital Video Recorder Highlight the box beside To and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the last recorded image . When highlighting and pressing the button the bookmark list displays and the bookmark point you selected will be the ending date and time. -
Page 72: Figure 46: Record Table Search Screen
User’s Manual < Expanded View > Figure 46: Record Table Search screen. Recording information about video images currently displayed on the screen displays on the recording status bar. A grey vertical line indicates the current search position. To search specific video, move the vertical line by using the Left or Right arrow buttons on the front panel or by clicking the mouse on the desired segment. -
Page 73: Motion Search
Digital Video Recorder Go To: Displays the first or last recorded image, or searches by date and time (see the previous Searching Video – Go To section of this chapter for more details). Clip-Copy: Clips a video segment and saves it (see the following Clip Copy section for more details). ... -
Page 74: Text-In Search
User’s Manual Highlight the box beside From and press the button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. When highlighting and pressing the button the bookmark list displays and the bookmark point you selected will be the starting date and time. - Page 75 Digital Video Recorder Pressing the (Play/Pause) button will extract the video associated with the Text Input and display the first image of the event. Pressing the button will start playing the “event” video segment. Pressing returns to live SEARCH monitoring . NOTE: It is possible that no recorded image displays on the current screen.
-
Page 76: Bookmarks
User’s Manual Bookmarks The Bookmarks screen can also be accessed by selecting Bookmark in the Search menu. Figure 49: Bookmarks screen. Highlight + and press the (Play/Pause) button to add the current playback point to the bookmark list. Highlight the Title box and enter the name of the registered bookmark. Use the virtual keyboard to enter the bookmark name. column can be used to delete a Bookmark. -
Page 77: Figure 50: Clip-Copy Screen
Digital Video Recorder Figure 50: Clip-Copy screen. You can search video from the first to last recorded images, or you can set the start and stop times and dates. Highlight the box beside From and press the (Play/Pause) button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. -
Page 78: Print
User’s Manual NOTE: The file size for clip copy is limited to 30GB. When copying video clips larger than 2GB, the video clips will be save in units of 2GB. For example, 3 individual 2GB files will be created when saving a 6GB video clip. -
Page 79: Appendix
Digital Video Recorder Appendix USB Hard Disk Drive Preparation NOTE: The following description is for preparing a USB hard disk drive under Windows 2000. Preparing a USB hard disk drive under Windows XP, Window Vista and Window 7 is almost identical to Windows 2000. Connect the USB hard disk drive to your computer using the USB Cable. -
Page 80: Search Example Ii
User’s Manual Search Example II 123456789012345678901234567890123456789012345678901234567890 Item Unit price amount ================================================== Coke 2.20 | 1(s) 2.20 Fanta 2.20 | 1(s) 2.20 Hotdog 3.50 | 3(s) 10.50 Pepsi 1.95 | 1(s) 1.95 ================================================== total : $ 16.85 Thank you~~ In the above text-in data, you can find that the comparison value is located at 17th (Unit price, $ mark will be ignored automatically), 28 (Qty) and 40 (amount) characters (including spaces) from the left, but the value of amount... -
Page 81: Webguard
Digital Video Recorder WebGuard WebGuard allows you to access a remote DVR, monitor live video images and search recorded video using Internet Explorer web browser anytime from virtually anywhere. Computer system requirements for using the WebGuard program are: ® ® ®... -
Page 82: Web Monitoring Mode
User’s Manual NOTE: There might be a problem with screen display or screen update due to low image transmission speed when using the Microsoft Windows Vista or higher operating system. In this situation, it is recommended that you disable the Auto Tuning capability of your computer. Run the Command Prompt with elevated administrator permissions (Go to the Start Menu ... -
Page 83: Web Search Mode
Digital Video Recorder ⑩ Click the to save the current image as a bitmap or JPEG file format. ⑪ Click the to set up the image drawing mode, OSD display and beep on/off. You can adjust the display speed by changing the image drawing mode, select OSD information to be displayed on the screen, and turn the DVR’s internal buzzer on and off from a remote site. -
Page 84: Time Overlap
User’s Manual ⑦ Click the screen format to select the desired display mode. ⑧ Click the to enter the time-lapse search mode which allows you to search for recorded data by time and then play back images found within the time parameters. The Timetable window located at the bottom displays the time information for the image of the date selected on the calendar. -
Page 85: System Log Notices
Digital Video Recorder If you want to search recorded video from four to five o’clock during the overlapping time range using a search menu such as Event Log Search, Text-In Search or Motion Search, it is possible for the DVR to have two overlapping start and stop times. -
Page 86: Error Code Notices
User’s Manual Error Code Notices System Upgrade Related Clip Copy Related Description Description Unknown error. Unknown error. File version error. Device error. Operating system version error. Mounting failed. Software version error. No media. Kernel version error. Invalid media. Upgrade device mounting failed. File already existed. -
Page 87: Map Of Screens
Digital Video Recorder Map of Screens MENU SYSTEM General Date/Time User Storage System Event RECORD General Schedule Pre-Event EVENT Motion Alarm-In Video Loss Video Blind Text-In CAMERA General DEVICE Alarm-Out Remote Control NETWORK General RTSP WebGuard NOTIFICATION Callback Mail Schedule DISPLAY Main Monitor... -
Page 88: Troubleshooting
User’s Manual Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check camera video cable and connections. Check monitor video cable and connections. No Live Video Confirm that the camera has power. ... - Page 89 Digital Video Recorder CONNECTORS Video Input Composite: 16 BNC HDMI: 1 HDMI Monitor Output VGA: 1 VGA Alarm Input/Output Terminal Blocks Ethernet Port RJ-45 RS232 Serial Port Two-connector terminal block RS485 Serial Port Two-connector terminal block IR Port 1 Remote Control USB Port 2 (USB 2.0) STORAGE...
